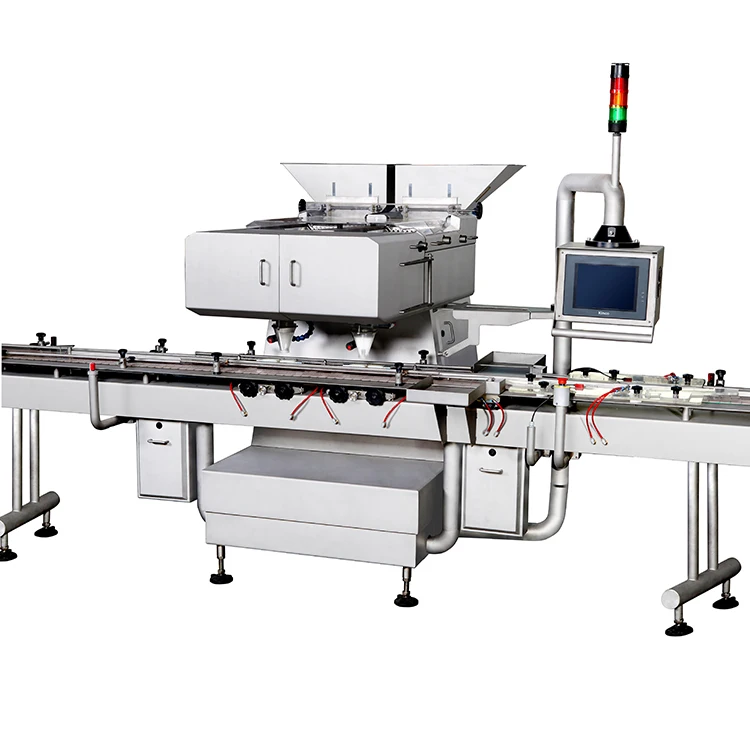

Pure Granules into top hopper, adjust primary, intermediate or last
stage vibration feeder, then medicine granules in hopper
drop into material-dropping mouth continuously in line along
vibration trough slab.Granules drop into checking passageway
one by one, infrared ray dynamic scanning transducer will
catch signals about granules and put them into FPGA high-speed microprocessor, counting will be finished with the
cooperation of electric circuit and programme.
Technical Parameters
Items
Specific parameters
Note
Steady speed
10,000 granules/min
Bottle-filling speed relates
to medicine and packaging material
Filling volume of single bottle
1~1000 grain
Drugspecifications
T:3~10mm DIA:3~13mm L:3~21mm
Pills, tablets, hard and soft capsules and other solid
Bottle specifications
DIA:20~100 mm H:40~240 mm
Power supply
AC220V 50/60HZ
Power
3.2KW
Air pressure
0.5~0.7Mpa
Air consumption
200L/min (clean air)
Boundary dimension(L×W×H)
About 1980mm(L)×1580mm(W)×1740mm(H 1740mm(H)
Weight
About 800 kg
Famous Brand Electrical Parts is Optional
Item
Name
Brand
Origin Country
1
PLC
Siemens
Germany
2

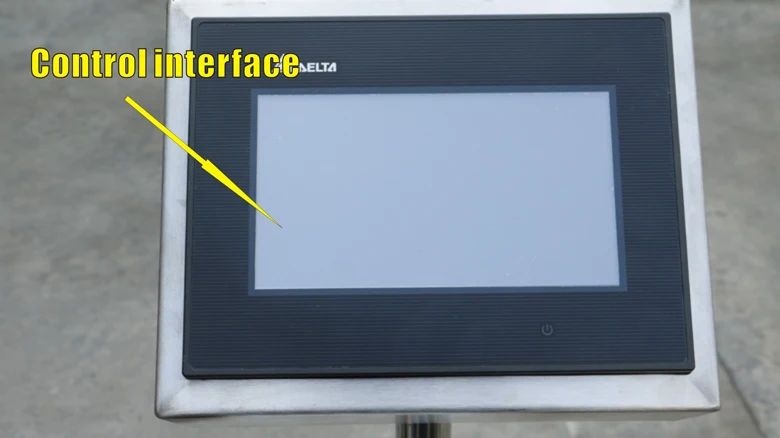

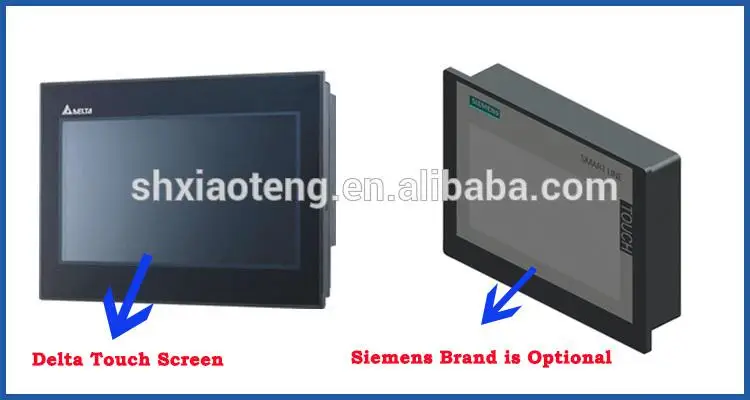

HMI
Siemens
Germany
3
Label Sensor
Schneider
France
4
Switch
Schneider
France
5
Servo Label Feeding
Schneider
France
6
Driver
Schneider
France
7
Main Motor
Siemens
Germany
8
Conveyor
Siemens
Germany
Company Information
Shanghai Xiaoteng Electrical And Equipment Co.,Ltd. Has independently developed products including grain counting machine, filling machine, sealing machine, can sealing machine, cartoning machine, 3d film packaging machine and labeling machine. Professional automatic production line makes the whole packaging process intelligent, accurate, safe, environmental protection and other functions. At present, the packaging machinery industry is gradually changing from "Made in China" to "Make in China", so it has become our consensus to upgrade and replace automatic products. In the future, Xiaoteng company will advance towards the goal of intelligence and seek a new way of development.
Customer Visit
Certifications
Technical Support
Packaging & Shipping
Our Services
After-sale service:
We provide you with one year warranty and life long after-sale service, we guarantee the main parts within 12 months, if the main parts go wrong without human contact within one year, we will freely provide with you. And after one year, if you need to change parts, we will provide with you with best price and main it in your site. Whenever and wherever you have technical problems, you can contact us at any time, we will do our best to support you to solve the problems.
Quality guarantee:
We are the manufacturer of the machine, as a manufacturer, we guarantee the machine are made of the best materials, with first-class workmanship, brand new, unused and in all respects with the quality, specification and performance are stipulated in the contract.
Quality warranty period is within 12 months from B/L date. The manufacturer would repair the contracted machines free of charge during the quality guarantee period . If the breakdown is due to the improper use or other reasons, the manufacturer will collect the repair fee.
Installation and debugging:
After the machine arrives at the buyer's factory, if the buyer want us to install and commission the machine in buyer's factory, we will dispatch one engineer to your site to install and commission the machine to you, but the related fees: round trip tickets, local accomodation, food, transportation will be borne by the buyer, and the buyer should provide his site site assistance for the installation and commission.
FAQ
1. Are you the factory?
Yes. Our company engaged in packing machinery for ten years.
2. Can you do customized packing machine?
Yes,of course. We are specific packing machinery manufacturer with morn than 10 years experiences,we can do packing machinery accourding to the customer's requirements.
3. I there any installation direction after we received the machine?
Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
4. Is there any ensurance to guarantee my order from your company?
We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply.
