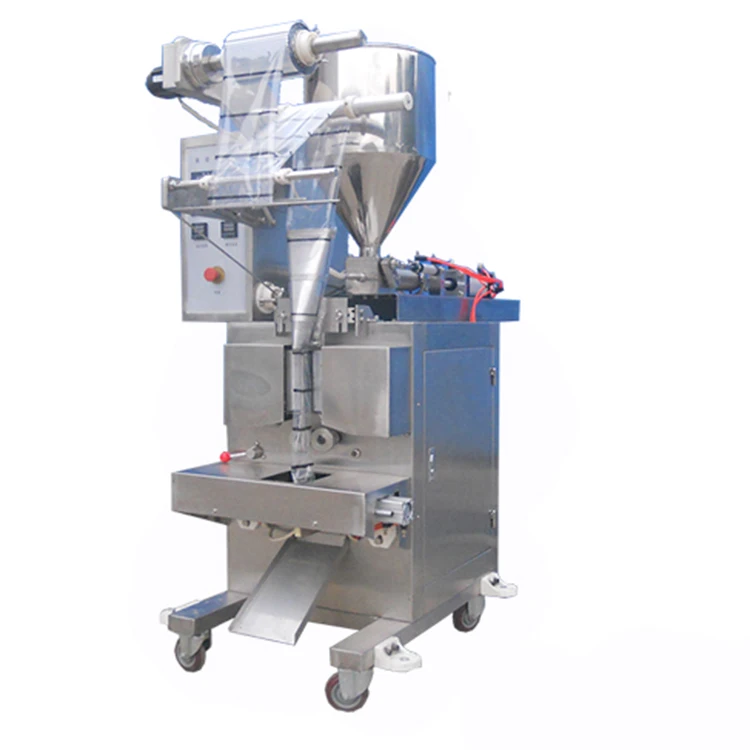

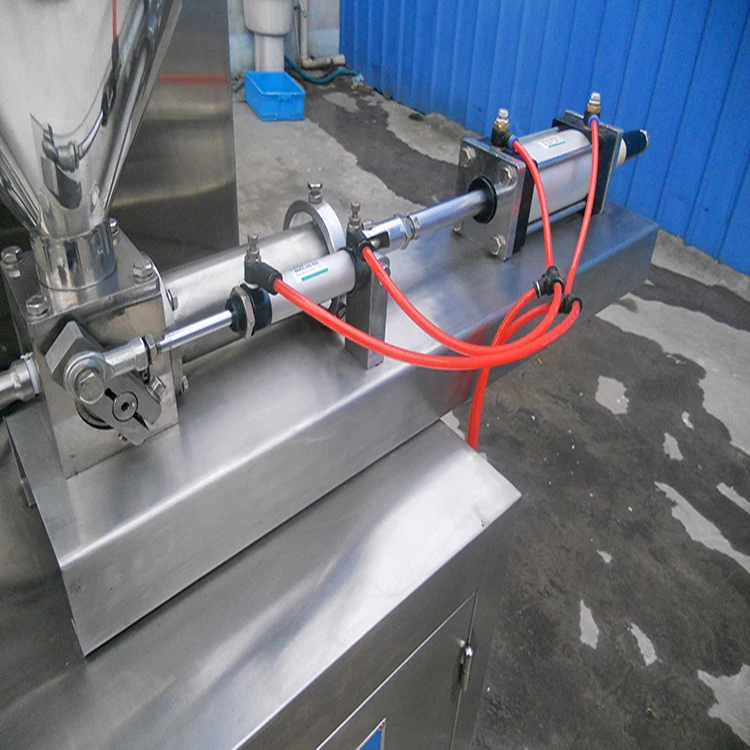

QT-320D Series sachet packing machine adopts Computer Controll System completly, it can finish the production process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip, and so on. It also adopts the adjustable quantificational plunger pump, and it special uses for something which easy to drawbench or dript as tomato sauce.
Packing scope: water,sugar,bamboo,paste, sauce etc.
Sealing type:
The bag can be sealed on three sides, four sides, or pillow style.
Packaging material:
Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.
Optional device:
Hot stamp ribbon coder(color style,ink wheel style); micro-computer controller
MAIN SPECIFICATION OF sachet packing machine
| Model | QT-320D | Sealing type | Three side sealing ,four side sealing, or back side sealing |
| Bag length | 50-150(mm) | Bag width | 25-120(mm) |
| Film width | 60-240mm | Packing speed | 30-60 bags/minutes |
| Filling temperature | 10-90 degree | Filling volume | 5-100(ml) |
| Power | 1.6(kw) | Air souce | 0.65(MPa) prepared by customerself |
| Machine size | 760*1380*1700(mm) | Air consumption | 150(L/Min) |
| Machine weight | 320(kg) | Option device | ribbon date printer |


sachet packing machine features:
1.This sachet packing machine can finish all the work automatically: membrane pulling-bag making-filling-cutting-code printing-cutting-production output
2. Photoelectric and tracing system or computer system can be provided without your specific requirements, and has the advantages such as setting the length of the bag, the out put alarm and the speed and quantity with buttons.
3. High speed code printer can be installed to print 1-3 lines of characters such as bath number and production and expiry date.
