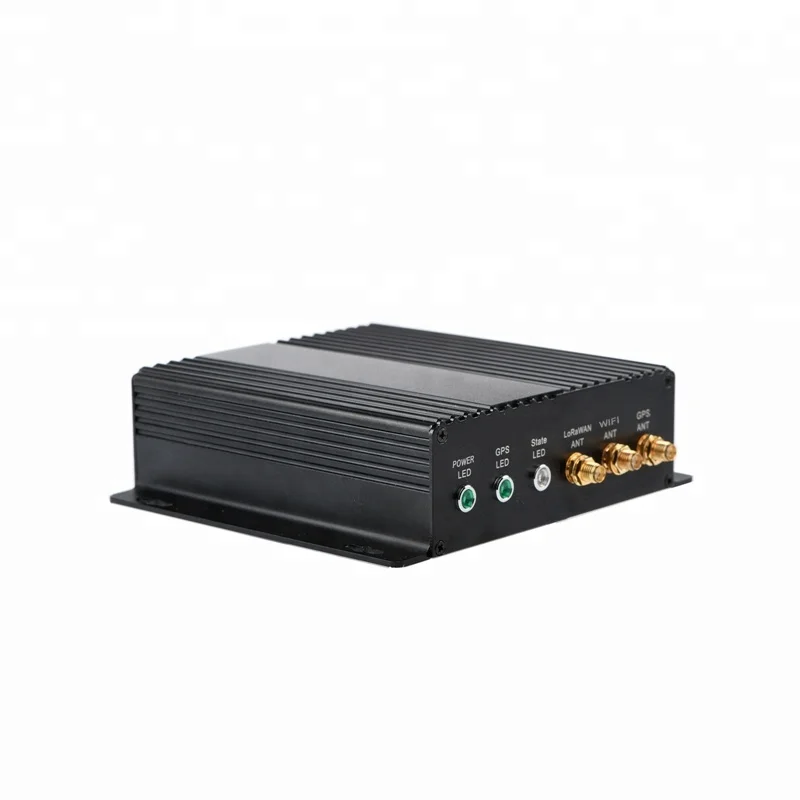

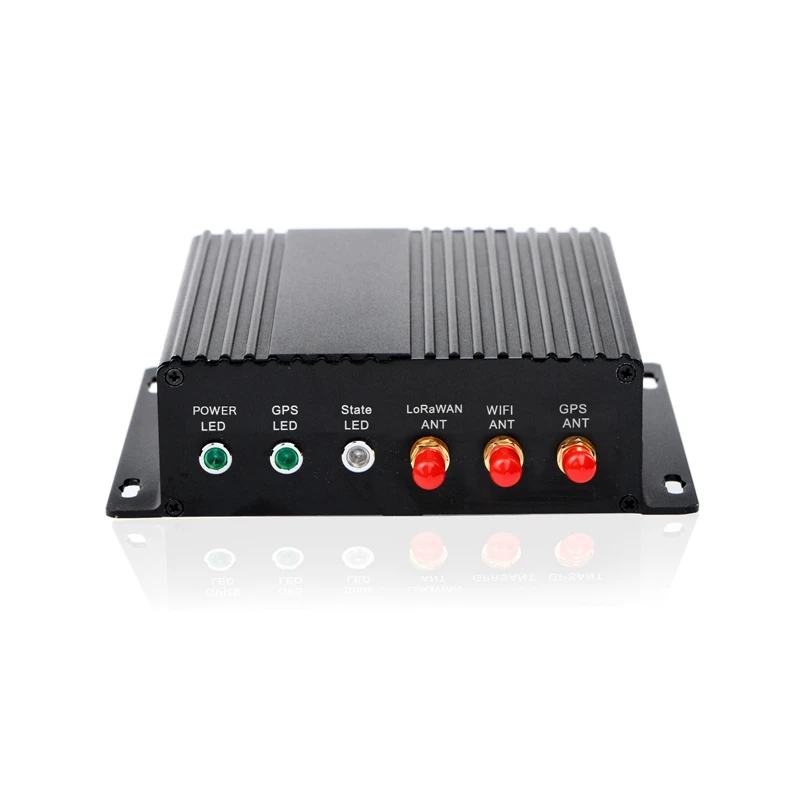

LG1301_PF Transceiver module LoraWAN gateway for wireless alarm and security system

Product Overview

Description



Overview

GW1301_PF is the LoRaWAN gateway. It can work with any LoRaWAN node which comply
Standard LoRaWAN protocol V1.0. The gateway use linux platform as host.It mainly consists of concentrator ,GPS module ,WIFI and
Ethernet. The GPS module send NMEA frames containing time and geographical coordinates data to
the host. The GPS module also output one pulse to the sx1301 per second. The gateway receives the RF data from nodes and sends to the server. It also receive data from
the server and transmit to the nodes. The gateway connects to the server via Ethernet or WiFi



Feature:

• LoRaWAN protocol supported
• Uart interface
• AES128 encryption
• 8 channel communication simultaneously
• Configurable parameters
• GPS support
• Long range
• EU433M / EU868M / KR920M / AS923M / CN780M/CN470M / US915M / AS915M

Application:

• Smart city
• Smart Metering ( Water, Electric, Gas meter )
• Agricultural Monitoring
• Irrigation control
• Internet of Things (IoT)
• M2M
• Wireless Sensors
• Wireless Alarm and Security Systems

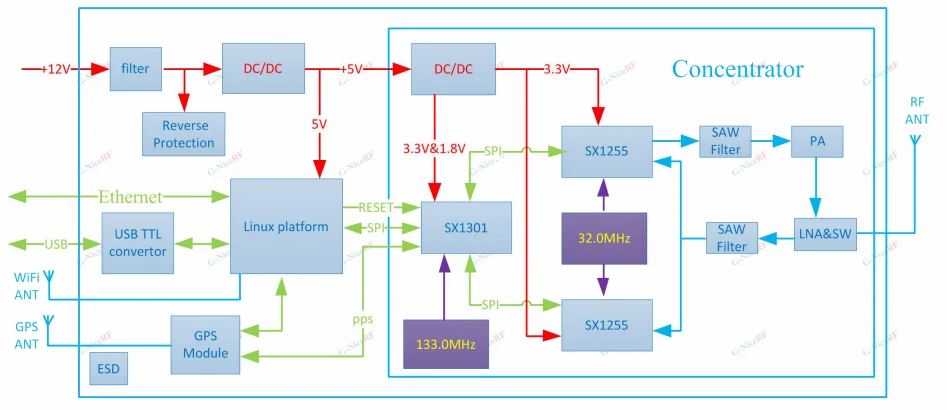

Block Diagram

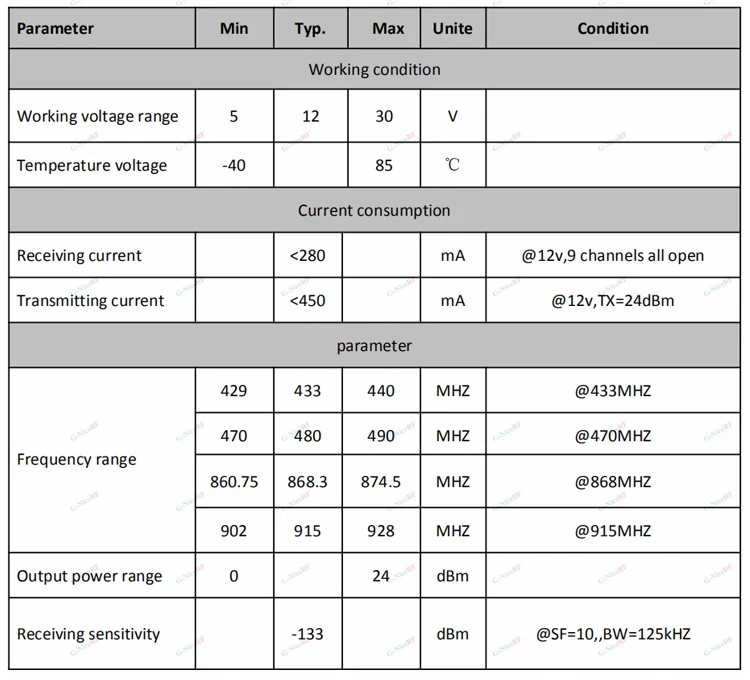

Electrical Characteristics
