high frequency switch mode power supply 12V 200A auto polarity reverse rectifier
- Category: >>>
- Supplier: Linyi Reyok Electronic Co. Ltd
Share on (60836623518):
Product Overview
Description
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
Advantages
Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow start,touch screen
Follow ISO 9001 quality standard,CE certificate
Product Description
| 12V 200A auto polarity reverse rectifier | |
| input voltage | 1 phase 220VAC±10%,50HZ |
| output voltage | 0-±12v dc adjustable |
| output current | 0-200a adjustable |
| output power | 2.4KW |
Adjustment range | From 0-100%continuously adjustable voltage and current |
Output conditioning method | Switching mode,PWM Pulse control |
Machine efficiency | ≥90% |
polarity reverse time set | 1-99 Minutes |
Constant voltage control accuracy | Within 1.0%of rated output voltage |
Constant current control accuracy | Within 1.0%of rated output current |
| Insulation resistance | 5MΩ or more |
| Cooling system | Forced air cooling
|
| Operating temperature | -15-45℃(overheating self-protect) |
| Ambient temperature | -30-65℃ |
| Relative humidity | 30-85% |
| protection | Over heating,over current,over voltage,lack phase,over load,input over/low voltage |
| Control mode | 3meter cables Remote control box
|
Company Information
plating line

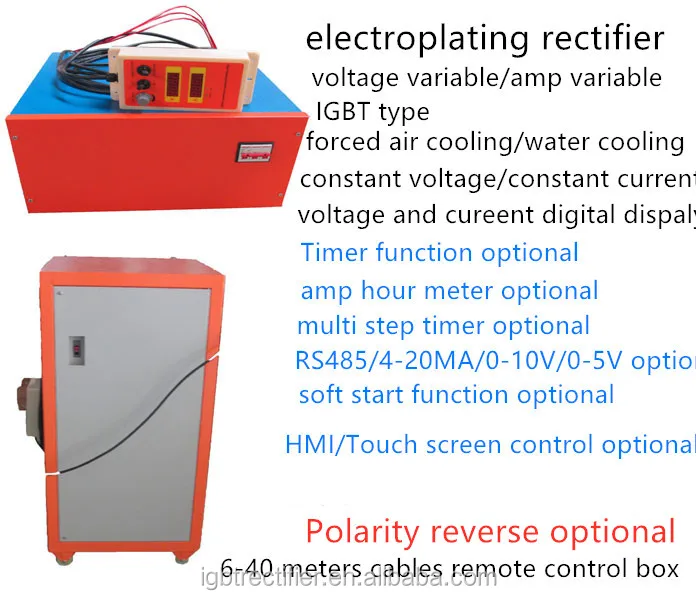

Electroplating rectifier

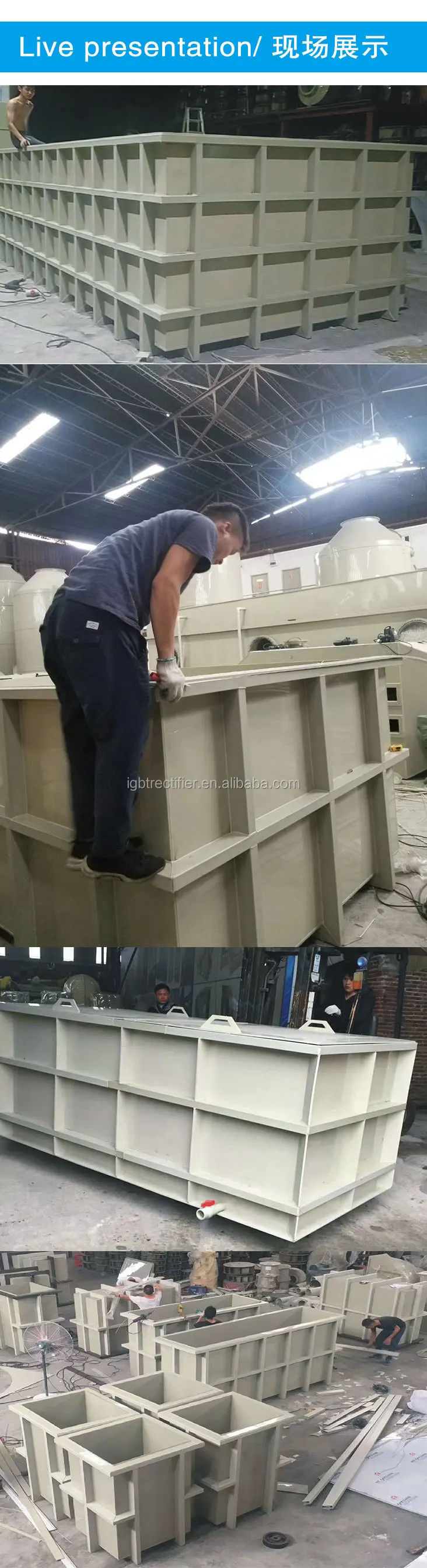

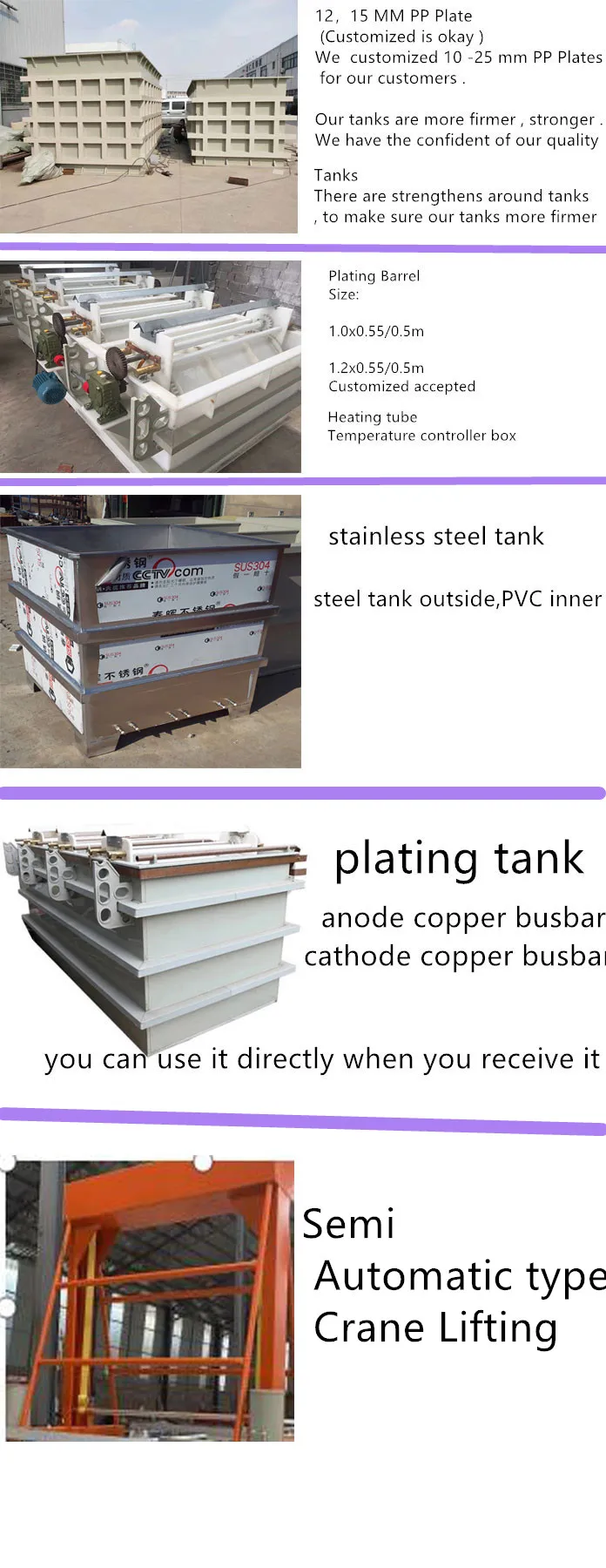

Elctroplating Tank/plating bath

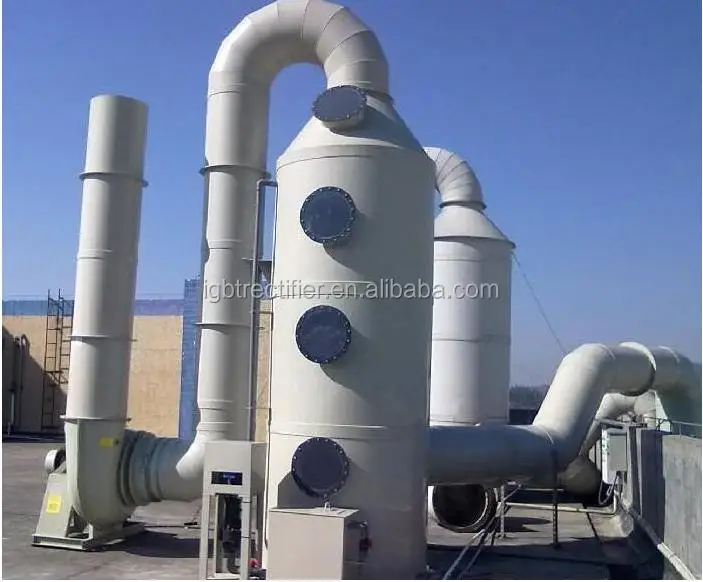

optional equipment Waste gas tower/acid mist waste gas tower
shipping in Container
