Most advanced ink ultrasonic materials disperser

3000w ultrasonic industrial mixing mixer machine

Explain of the product:

The generator produce ultrasonic mechanical energy to the horn to make more than 20000 times vibration per seconds,
These energy can not only stimulate or promote many chemical reactions, to speed up chemical reaction, can even change the direction of some chemical reaction, generate some unexpected effects and miracles. Generally considered the stems mainly from the phenomena of ultrasonic mechanical and cavitation effect, is that they change the result of the reaction conditions and the environment.
20 KHZ frequency of ultrasonic industry application, already been proved that it is the most efficient, and has large-scale application.Ultrasound in liquid medium, by mechanical action, cavitation effect and heat effect, produce mechanical, thermal, optical, electrical, and chemical and so on a series of effects. Especially high power ultrasonic, can produce strong cavitation, and thus formed in the local instantaneous high temperature, high pressure, vacuum and micro jet.

Ultrasonic sonochemistry reactor advantage and features:

1.Needn't change customer's existing production equipment and technological process.
2.It can be upgraded to a general equipment by using a simple installation .
3.It have less investment on a new technology, production and efficiency are improved obviously.
4.It has no moving parts, no electromagnetic radiation, fixed installation is very simple.
5.suitable for the high pressure high temperature, toxic, explosive dangerous environment application.
6. Low power consumption, adaptation of wide,equipment almost don't have to do any modification.
Ultrasonic working situation Features
Mechanical mixing--Introducing ultrasonic chemical reaction system, the ultrasonic can give substance to be forced to exercise, produce one way energy accelerated the transfer and diffusion of material, can replace mechanical agitation, can make the material from the surface, so that the interface updates.
cavitation effect--Acoustic cavitation is refers to under the effect of sound waves, exists in the tiny air bubbles in the liquid (hole) in a series of dynamic process: oscillation, expand, shrink and collapse. In the event of a cavitation, a great difference to local state of liquid, extreme high temperature and high pressure is produced. As in the general conditions difficult or impossible chemical reaction provides a new very special physical and chemical environment
Catalytic chemical reaction--
① High temperature and high pressure conditions conducive to the reactants cracking into free radicals and bivalent carbon, forming a more lively reaction species;
②Shock waves and micro jet on the solid surface, such as catalyst have desorption and cleaning effect, can remove the surface reaction product or intermediate and catalyst surface passivation layer;
③The shock wave may destroy the structure of reactants;
④Dispersion of reactants;
⑤Ultrasonic cavitation erosion surface, shock waves cause the formation of metal lattice deformation and internal strain area, improve the activity of the chemical reaction of the metal;
⑥Make solvent into the solid interior, produce so-called mixed reaction;
⑦Improve the catalyst dispersion.
Working mode:
High-power ultrasonic focusing probe chemical processing system can have two kinds of working.
One is insert the probe into the reaction tank directly. Ultrasonic launch head inserted into the liquid, the ultrasound. By processing flow of liquid in the container, at the same time were the strong ultrasonic role. Reaction container size or temperature.
Another one is with our company special ultrasonic reaction kettle, constitute a complete chemical reactor. Treated liquid flow from one end of the reaction kettle, after the effect of ultrasonic, again from the other end. This way the minimal changes to the original chemical system, immediate effect.

Main configuration:
1*pcs oscillator(transducer,booster, mould probe head),
1*pcs Aluminum alloy out shell,
1*pcs digital generator (drive power supply)

The range of application of sonochemistry reactor:
• Dispersion
• Cell disruption
• Pharmacy sample prep
• Homogenization
• Emulsification
• Nanoparticle dispersion
• Atomization
• Graphene dispersion
• Biodiesel making;
• Liquidation,
• Crystallization,
• Extraction,
• Wastewater treatment,
• Accelerated reaction,
• kill microbes(cell disruption),
• Degradation of toxic organic pollutants
• Antiscaling descaling in sewage treatment field
The following sonochemical effects can be observed in chemical reactions and processes:
•increase in reaction speed
•increase in reaction output
•more efficient energy usage
•sonochemical methods for switching of reaction pathway
•performance improvement of phase transfer catalysts
•avoidance of phase transfer catalysts
•use of crude or technical reagents
•activation of metals and solids
•increase in the reactivity of reagents or catalysts
•improvement of particle synthesis
•coating of nanoparticles

The products application and effect

Defoaming and degradation

Graphene particle dispersion effect under a microscope and Nano particle dispersing making

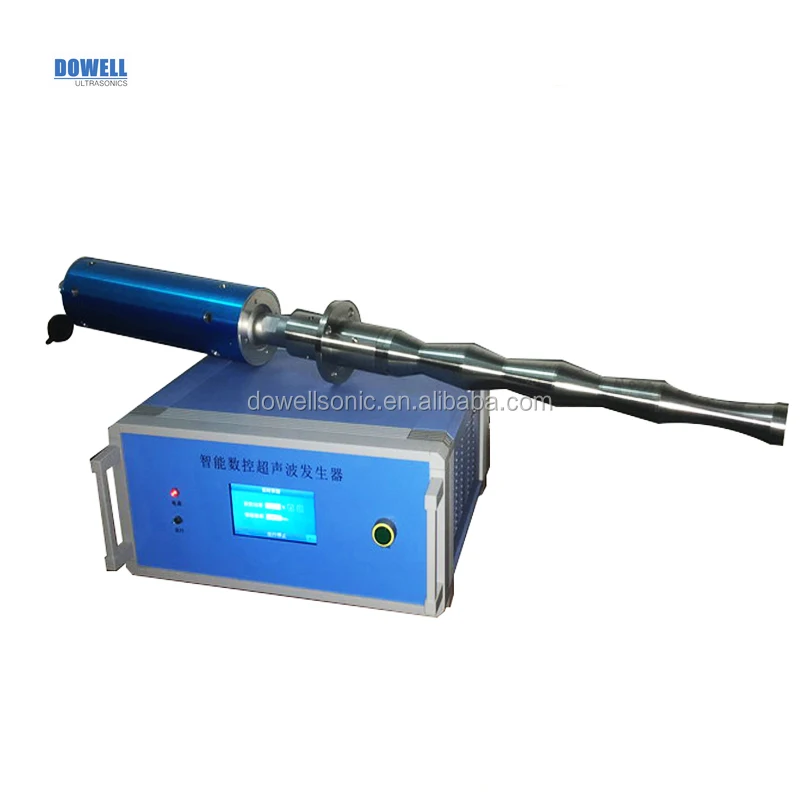

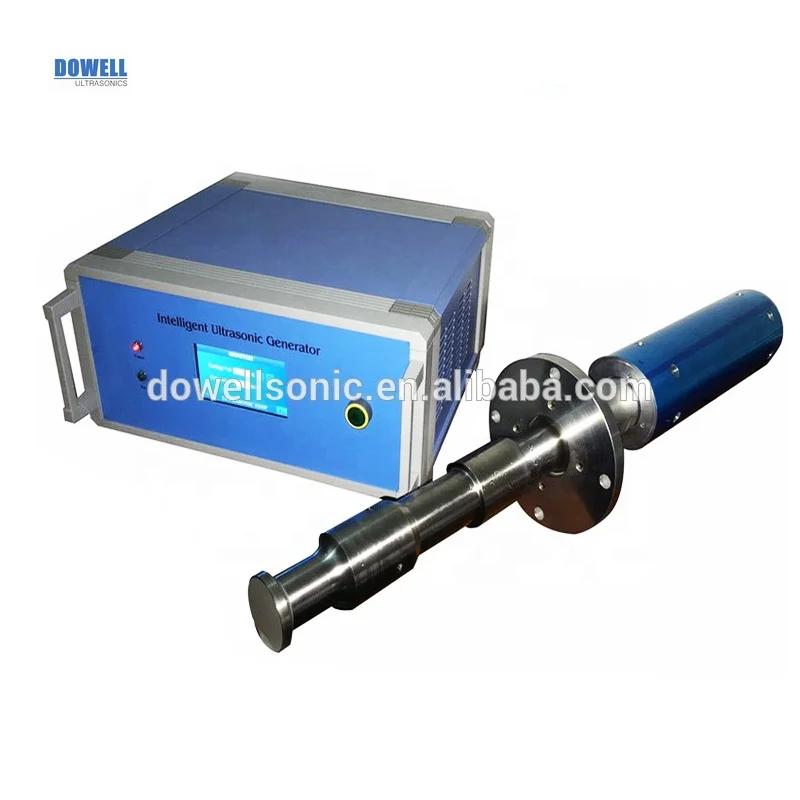

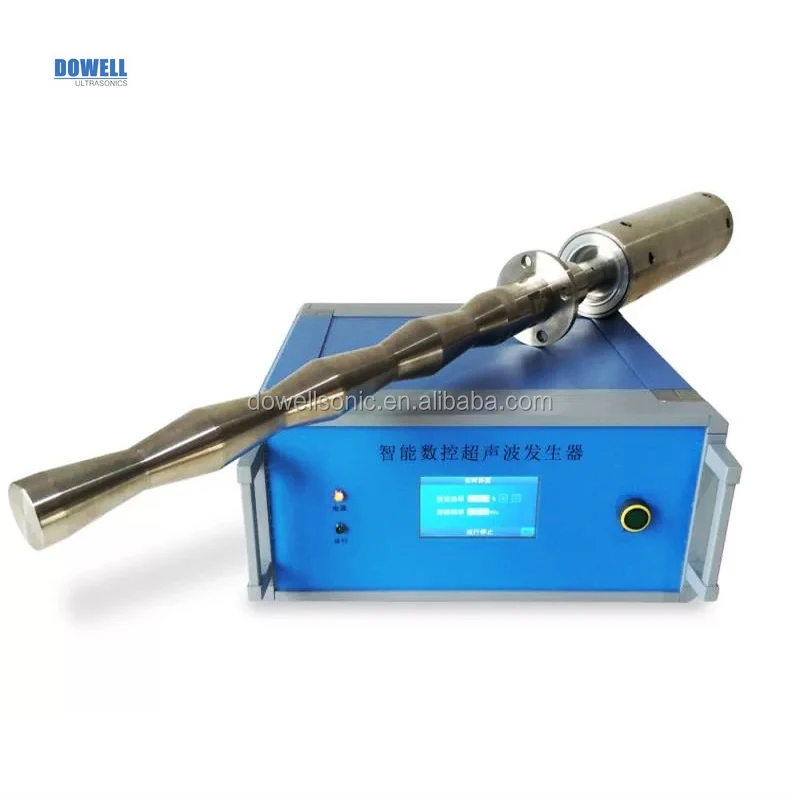

Titanium alloy horn probe head

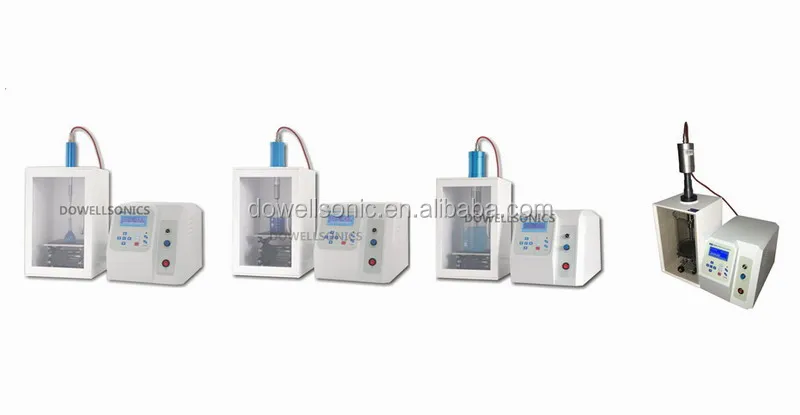

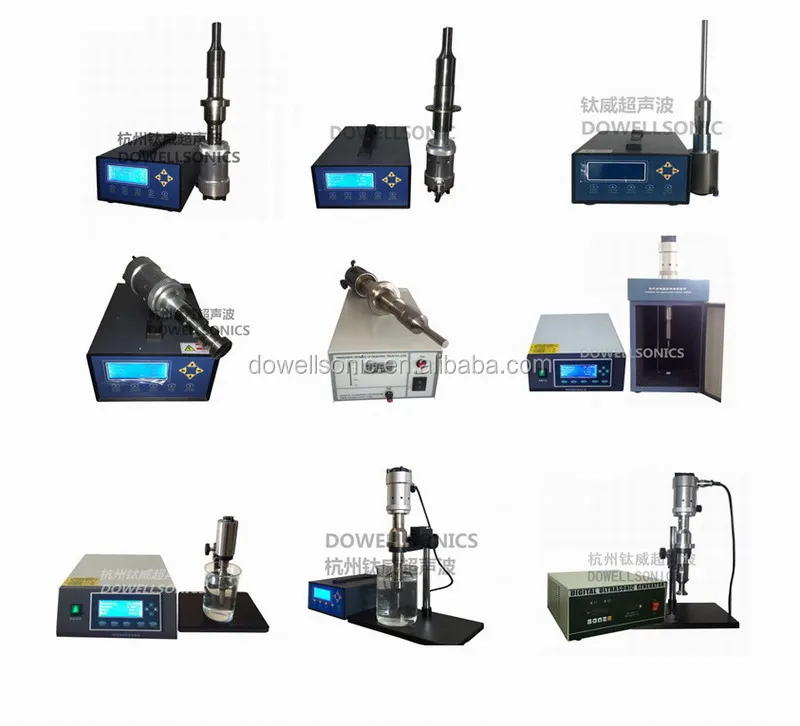

Laboratory application

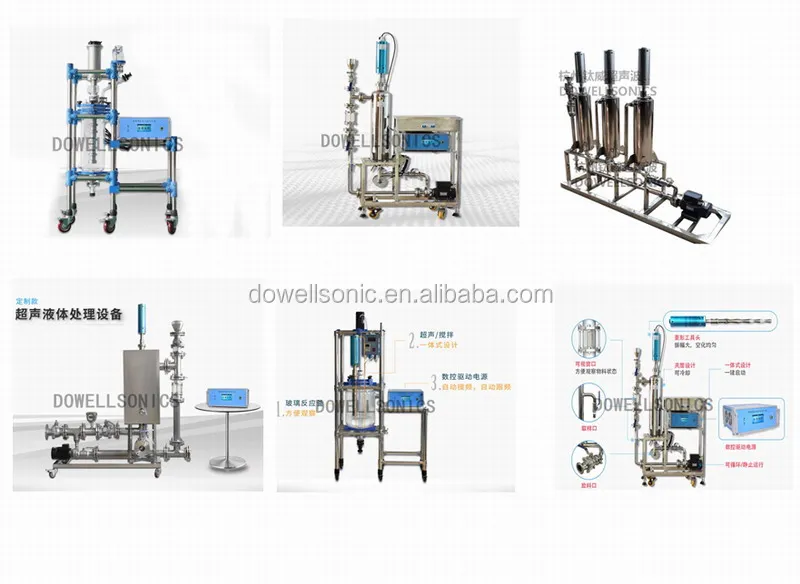

Industrail application

All kinds of titanium alloy probe and horns(customized types)

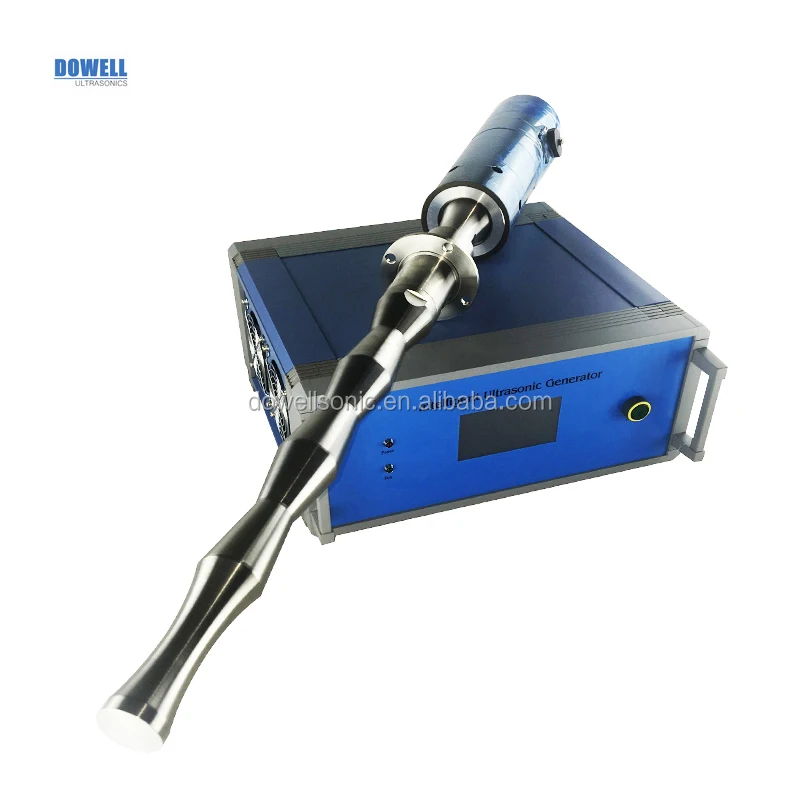

Industrial type: 2000-3500w

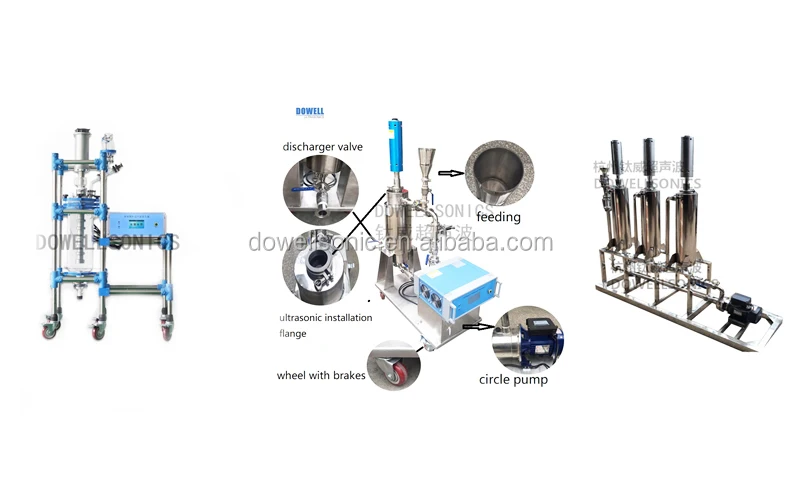

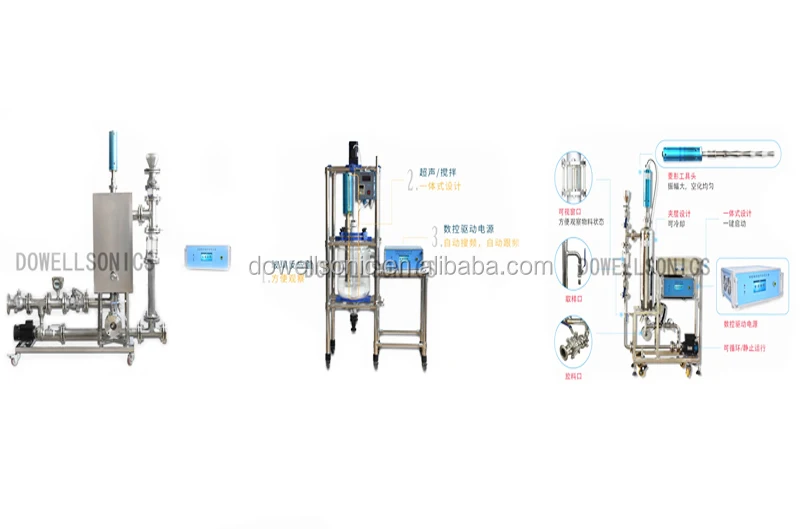

Working with flow cell and chamber pump

Company introduce

Dowellsonic is the industry profession in the design, development, manufacture, and marketing of ultrasonic equipment and machine,we mainly focus on ultrasonic sonochemistry processing,plastics joining welding machine, precision cutting machine and ultrasonic non standard new application equipment. We are committed to providing solutions to the needs of our customers, and providing the latest in technology, we mainly provide ultrasonic equipment with factory price and willing to meets customers'demand and solve the customers' problems.
We welcome customers from all over the world for inquiring and purchasing.

Factory view:

Warehouse

We provide customer services:

 Customer & Supplier Alliances
 Technology & New Product Development
 Marketing & Sales
 Manufacturing
 Product Quality
 Services & Support

1. Do you have it in stock?

We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers' different requirements.
2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
3.How long do you make the order product?
Common products for 2- 7days,big qty and none standard products for 10-20days
4. Do you have operating manual?
Of course, we will put it with the goods together.
5. How about the quality?
We have export to many other customers from all over the world,the feed back is good,quality is the first of our company
6. Could you do OEM?
Yes, of course.We can produce according customers' requirement,just send us your requirements and design of drawing and sample
7. Could we as your agent?
Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
8.Payment:100%T/T in advance for small order.30%T/T in advance as deposit,70%T/T paid before shipment
9.What is the method of Delivery?
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavy weight more than 50kg,we suggest to use sea freight LCL or by air
10.Warranty:
1 years Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
We can produce according customers'requirements,OEM is available,pls send us inquiry for quotations.
