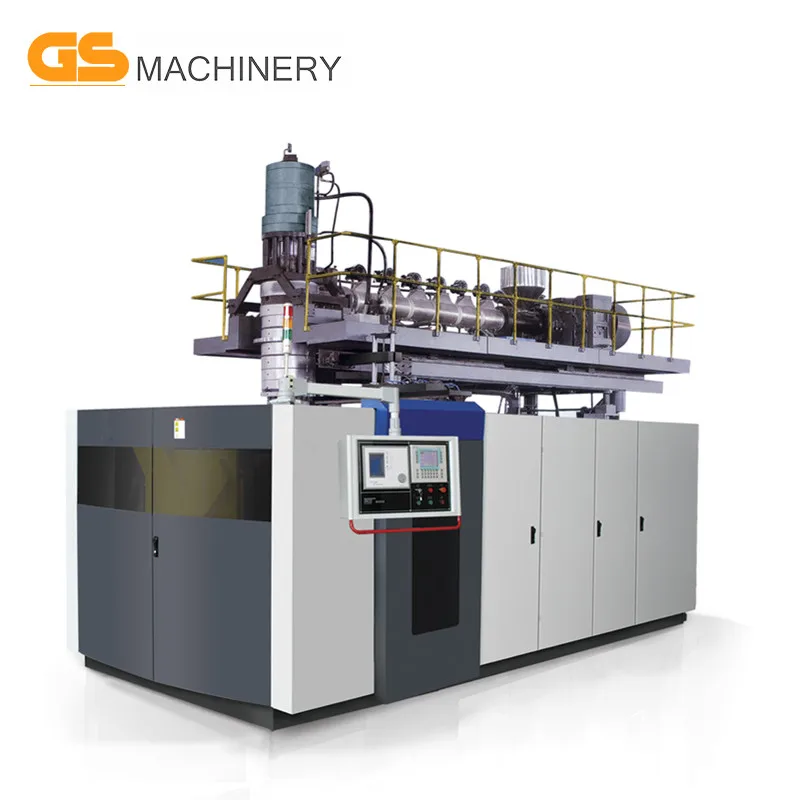

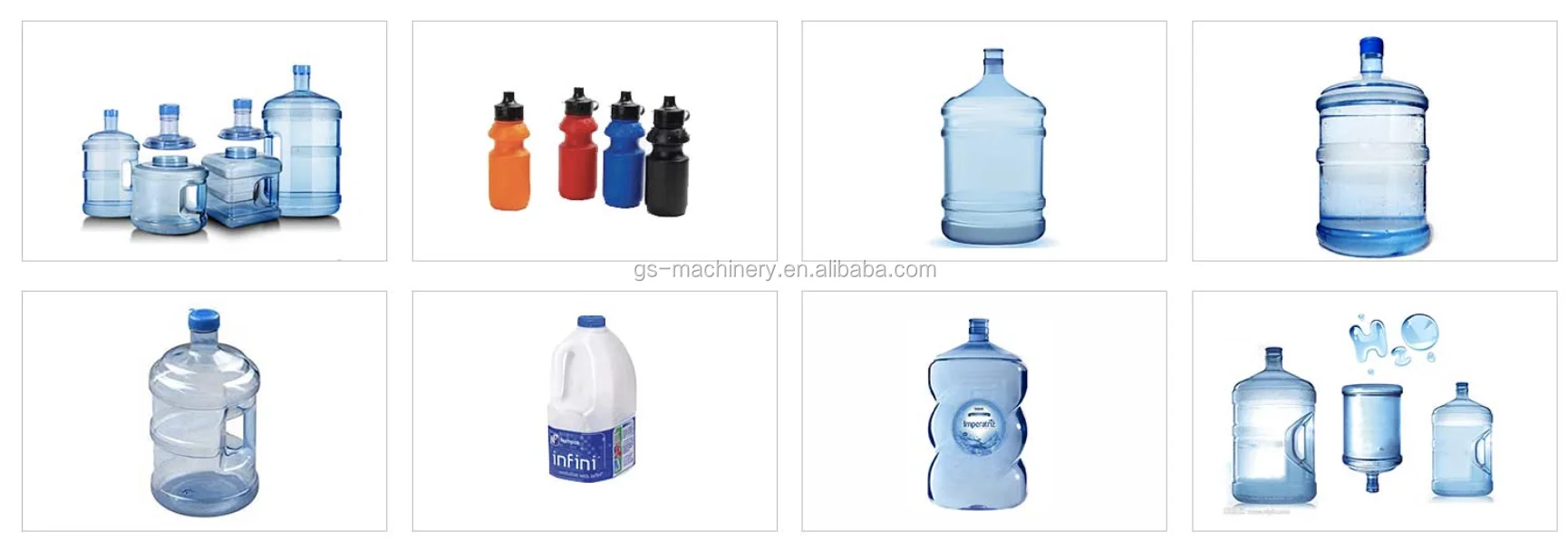

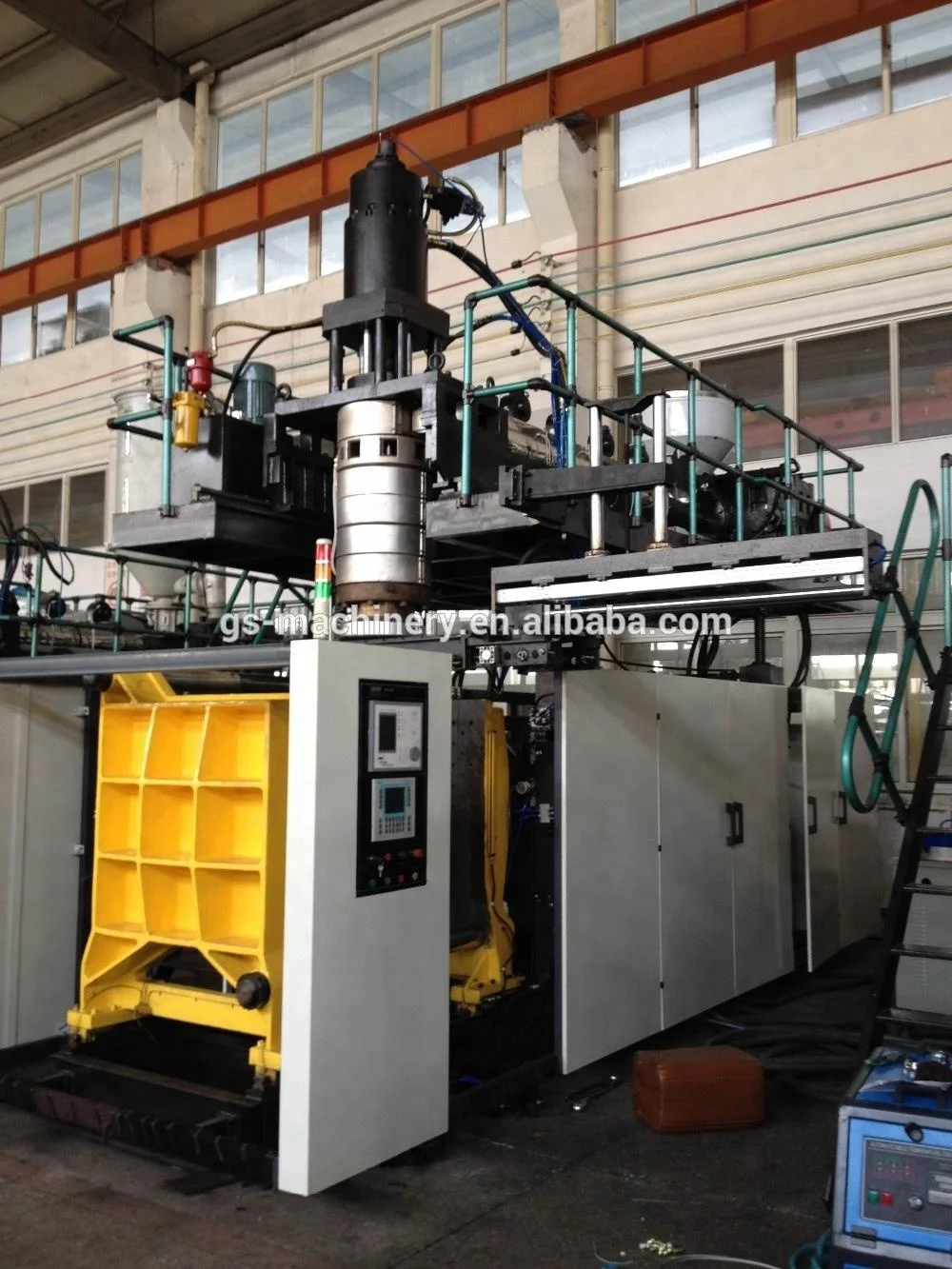

GSB-82PC Model is specially for 3 gallon and 5 gallon water barrel and lamp cover with PC Material..
Maximum capacity of accumulator head can be 2L while volume of products can be 3-6gallon.

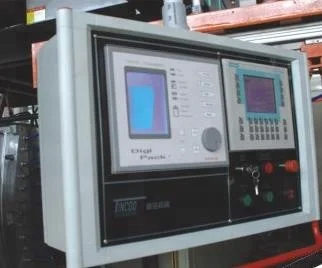

Its control system adopts closed loop control imported from Europe.

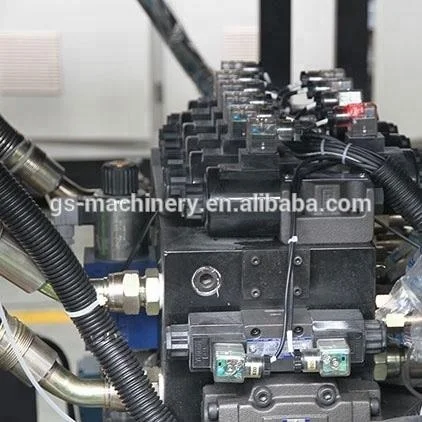

Hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine.
Energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity.
Main Features
1.Accumulator are compound in the main body which can avoid the explosive fissile convergence line which is result from parision combined in the material-storage-on-top accumulator; 2.The new platform design for the die head, the lifting platform and headrising separated from each other, not only making the rise of the die head more stable, but also the die head can move forwards and backwards. 3.According to the double pump, proportion flow valve, the power consumption can be decrease; 4.Automatic lubrication system; 5.It also has down blow pin, down widen device, double clamping and robot hand; 6.It could be optional configured with tele maintenance system; 7. No contamination and low noise with the air cylinder to drive the action instead of the oil pump. 8. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine. 9. Strong clamping force with high pressure and double crank links to lock the mold. 10. Two ways of operating: automatic and manual. 11. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand. 12.The screw diameter is 82mm, with L/D 38:1
Our Services
The advantage of GS sales consultant 1.We can provide comprehensive,professional equipment selection Suggestion; 2.And can provide production energy consumption calculation,return on investment benefit analysis; 3.To provide tailor-made workshop layout CAD blueprint; 4.Provide products optimization Suggestions; 5.Can provide the whole line optimization Suggestions;
The advantage of GS technical team 1.Each year 400 set customized requirements makes us have rich experience across multiple industry; 2.Customized equipment model According to industry products unique characteristics 3.The project responsibility system,closed loop team cooperation of design team and process team,and adjusting team,jointly create the equipment for user‘s satisfaction; 4.Engineers would study abroad or attend meeting of industry,keep up with the latest industry information and technology trend; 5.Undertake many key projects,and have a construction team formed by a number of senior technicians who can build cable tray,and install whole line equipent;
The advantage of GS after-sales team 1.free lifetime service for leshan machine; 2.24-hour rapid response; 3.Set up domestic services team and international services team; 4.Some technical personnel also master auxiliary equipment debugging and maintenance; 5.Every season,Leshan would provide customers with a free of charge training course for 2 days 6.Exclusive machining equipment for producing After-sales components,guarantee a quick response to users’requirement;

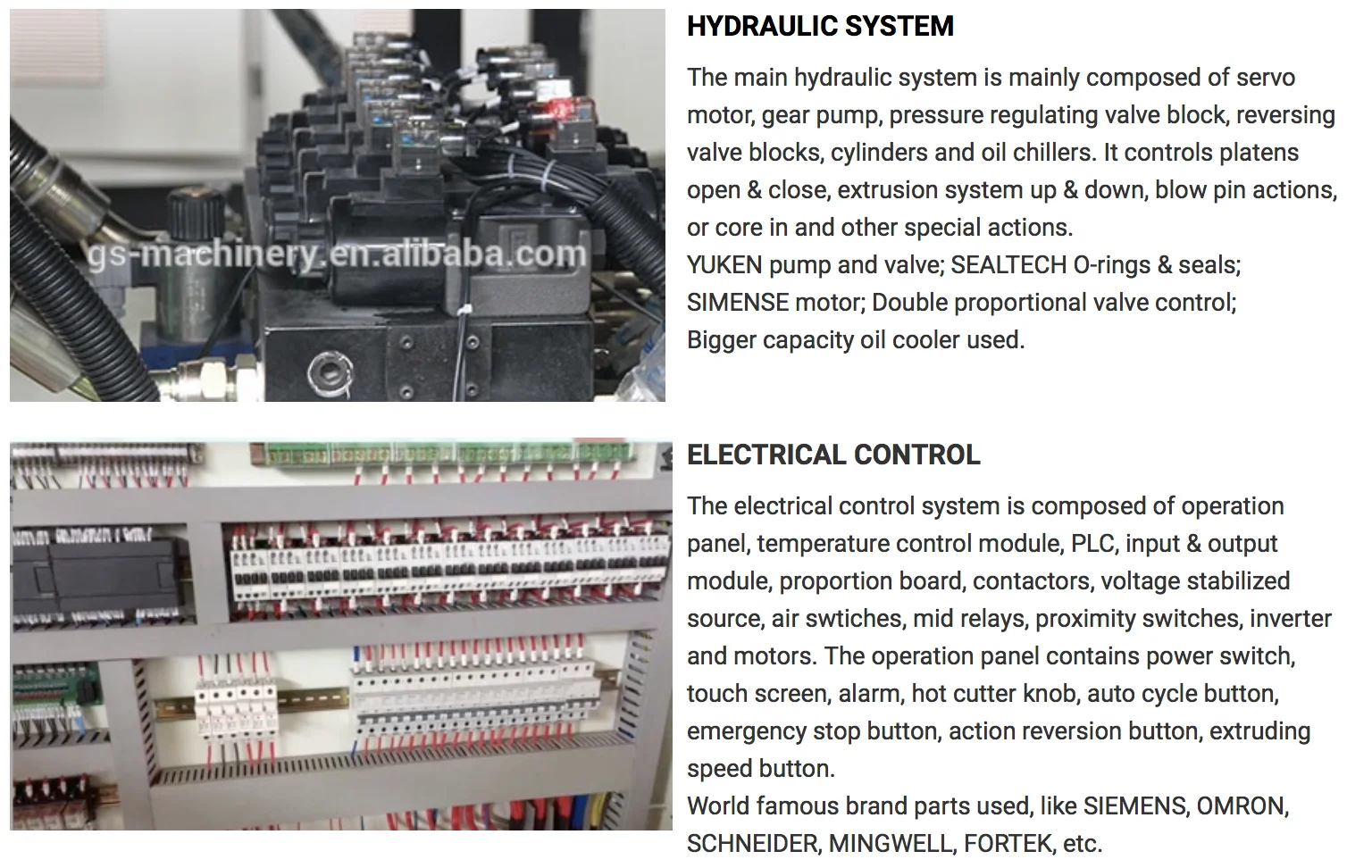

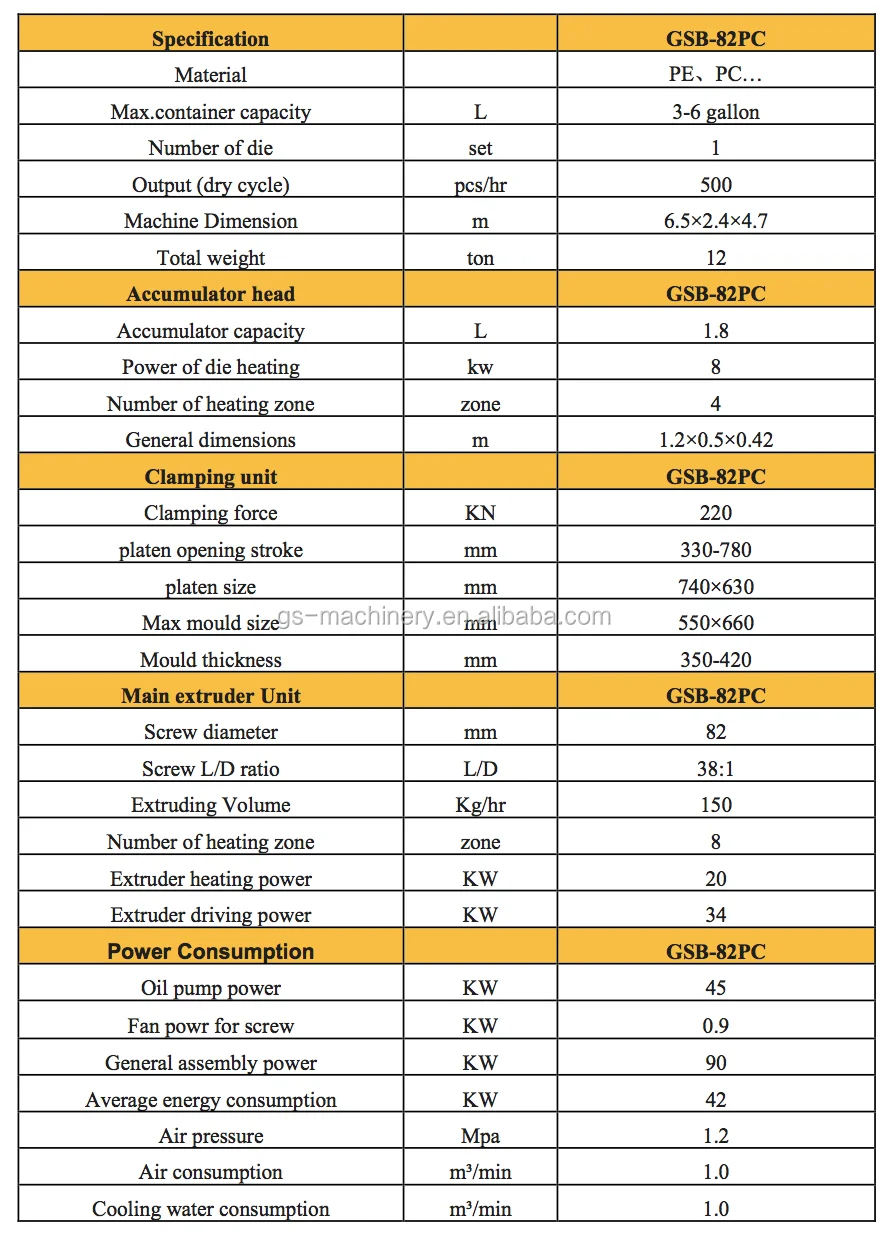

Technical features

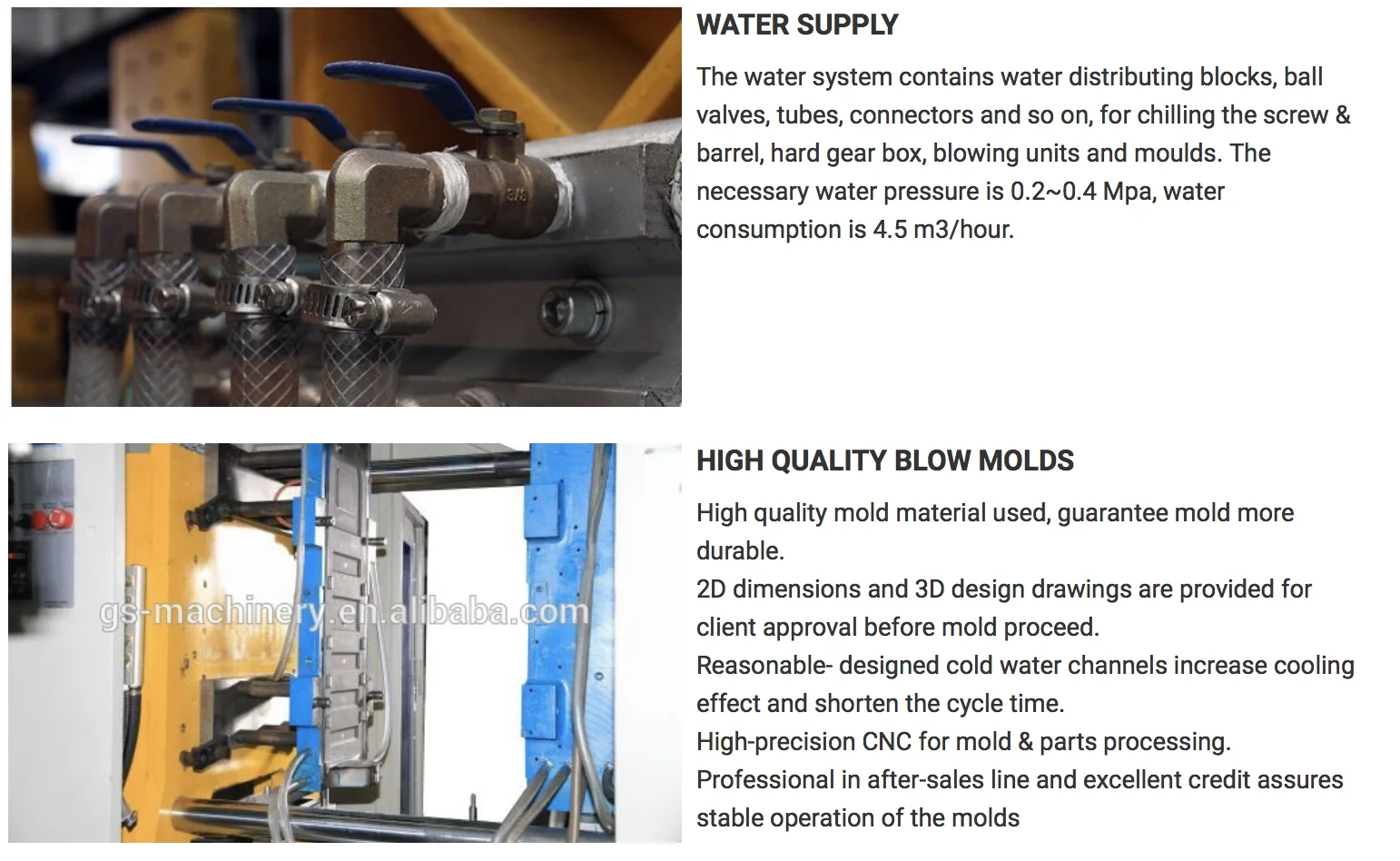

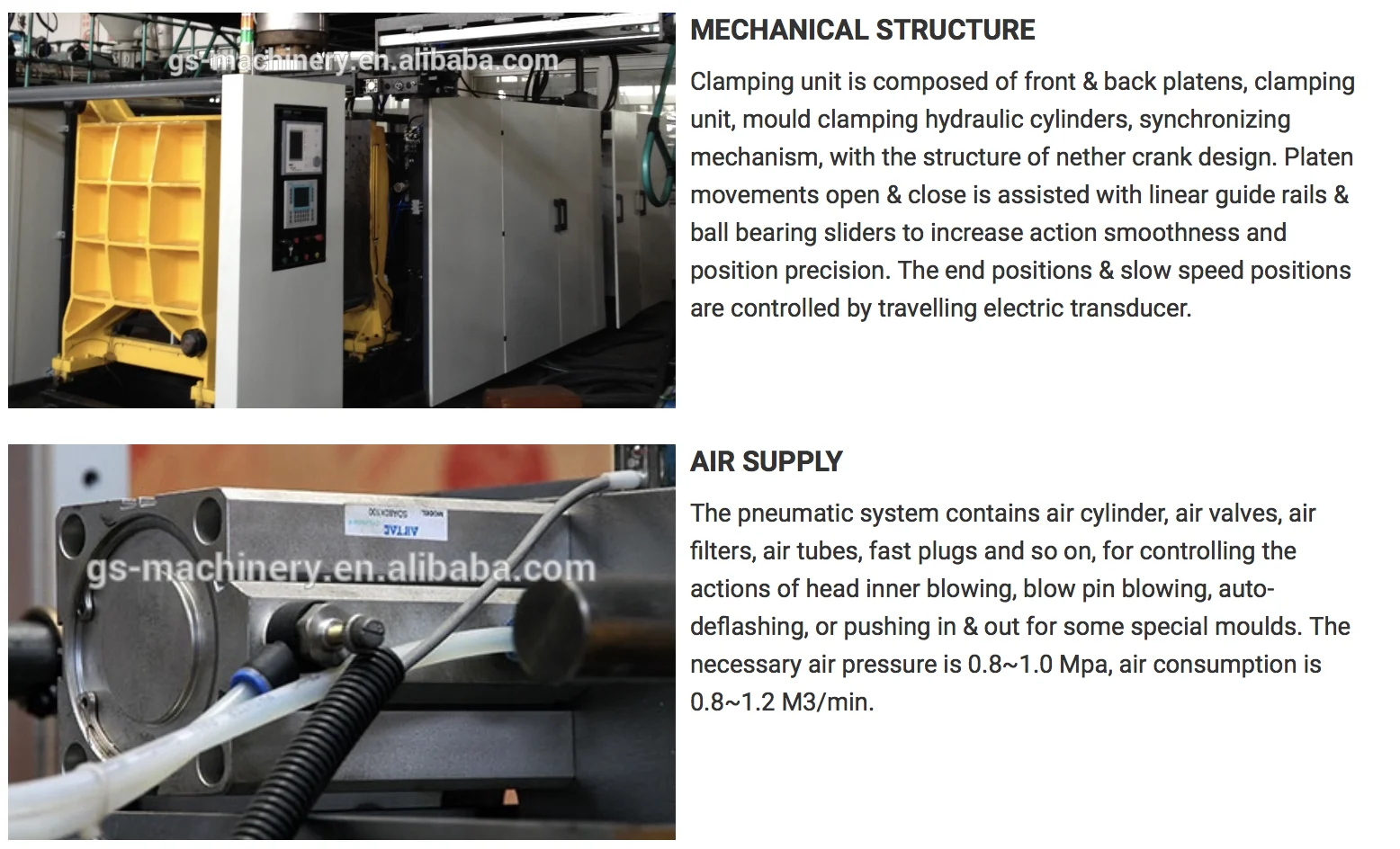

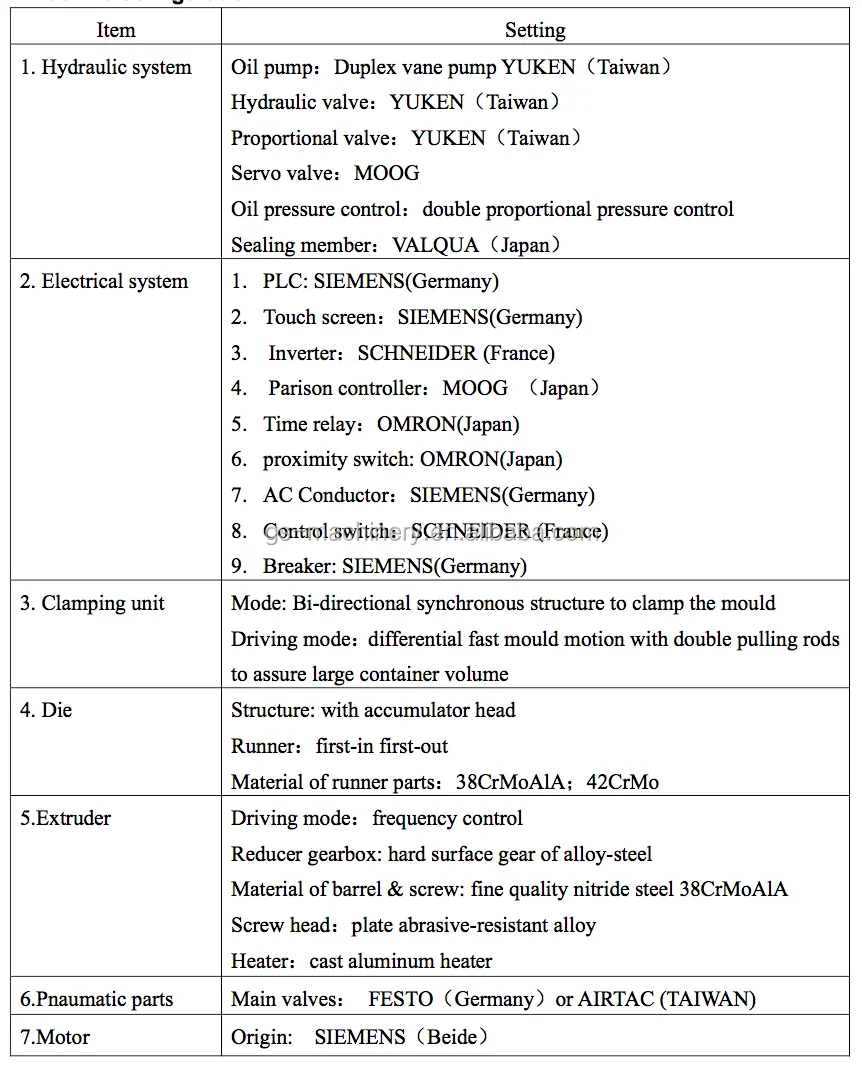

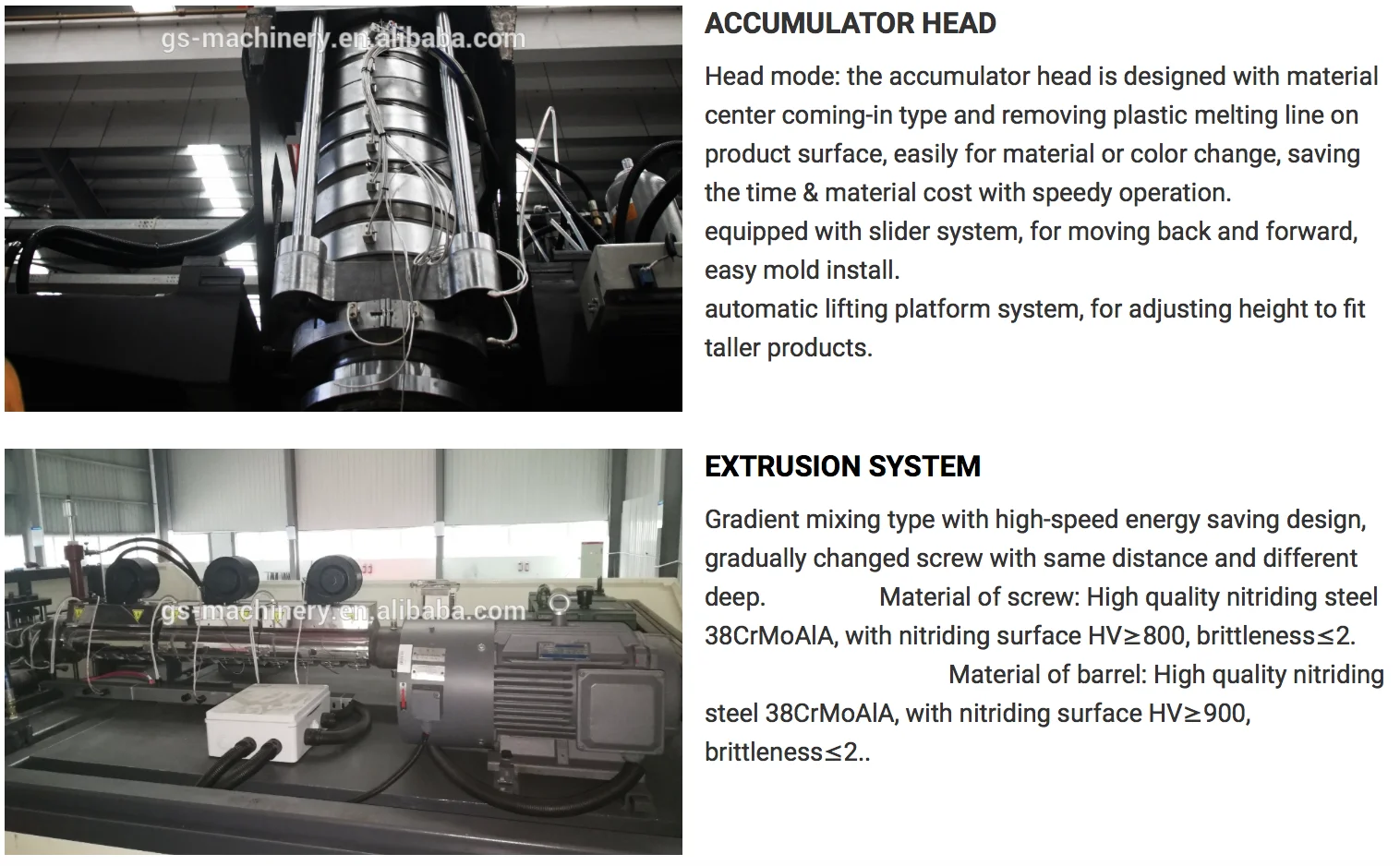

Machine configurations

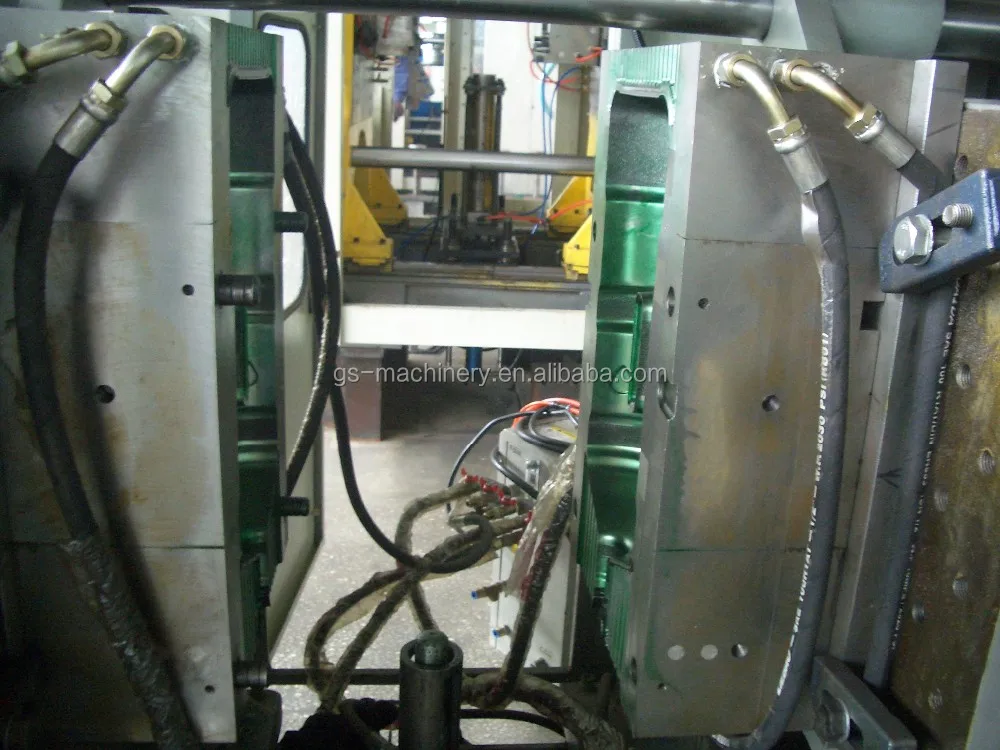

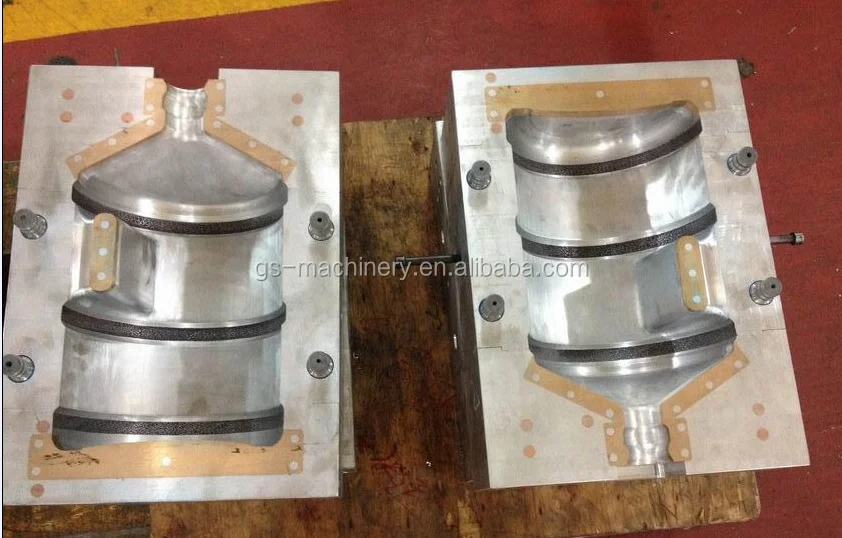

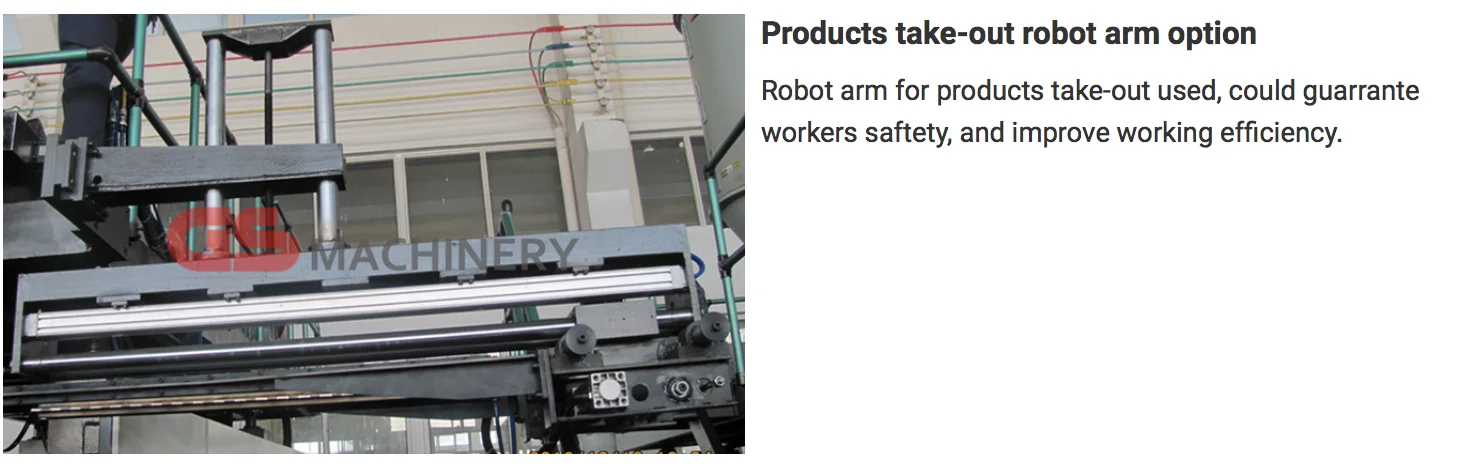

product details

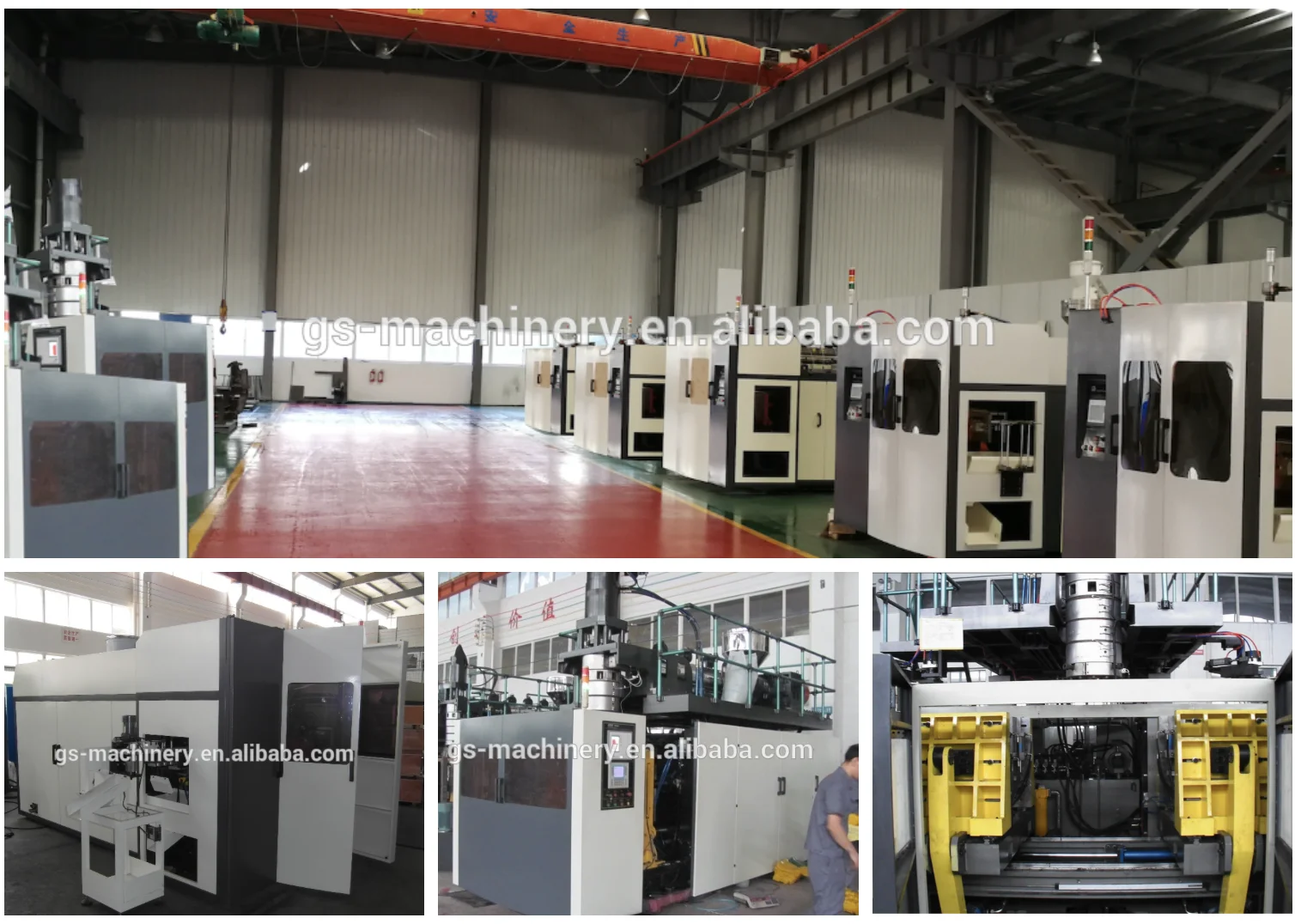

Company Information
ZHANGJIAGANG GREAT SUPREME COMPANY LIMITED ZHAJIANGGANG GREAT SUPEREM COMPANY LIMITED is a professional manufacturer of Extrusion Blow Molding Machines, injection machine, and plastic molds, owning more than 10 years’ experience in machine design, manufacturing, commissioning, service and turn-key project solutions.
