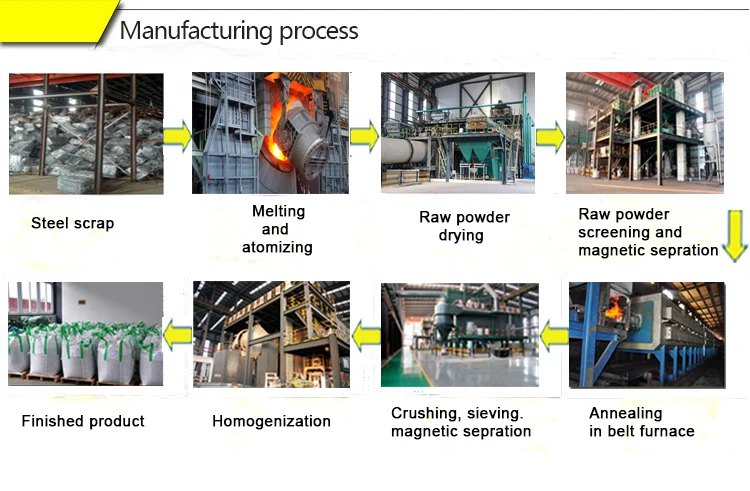

Manufacturing process of Water Atomized Iron Powder
Iron metal is melted down in an electric arc furnace. The melt is teemed, slag-free, through a bottom hole into a ladle where it is refined . The ladle is then transferred to the atomizing station and the liquid iron is again teemed, slag-free, through a bottom hole in the ladle into a specially designed tundish. From the tundish, the liquid iron flows in through the center of a ring-shaped nozzle, where it is hit by jets of highly pressurized water. At this stage the stream of liquid iron explodes into fine droplets. Air, swept along by the water jet and water vapor arising in the atomizing process, causes superficial oxidation of the small metal droplets. The solidified droplets and the atomizing water are collected in a container, where they settle as a mud. This mud powder is then de-watered and dried. The dried powder is magnetically separated from slag particles, screened, homogenized, and eventually transported to the annealing and reduction unit where the particles are therefore soft annealed, and their surface oxides and residual carbon are reduced in a belt furnace.
IF YOU HAVE CUSTOMIZED ORDER,YOU CAN ALSO CONTACT US, WE WILL PROVIDE YOU WITH GOOD PRODUCTS ACCORDING TO YOUR REQUIREMENTS, EFFICIENT AND HIGH QUALITY.
2. Q: How can I get the sample and how long will it takes?
A: For small quantity sample, it is free, but the air freight is collect or pay us the cost in advance,we usually use International Express, and we will ship it to you after receipt of your charge.
3. Q: What's the minimum order quantity?
A: 100kgs.
4. Q: Do you have quality control system?
A: We do have quality control system for each step of process controlling, and we have the control system from
raw material to finished products. We have ISO certificate and get IATF16949 soon.
5. Q:About Price:
A: The price is negotiable. It can be changed according to your quantity or package.
When you are making an inquiry,please let us konw the quantity you want.Some products we have in stock, the MOQ is thousands pcs.
6. Q:About warranty:
A: We are very confident in our products, and we pack them very well, so usually
you will receive your cargo in good condition.Any quality issue,we deal with it immediately.
Remark Your inquiries will be replied in 24 hours with our professional suggestions. Welcome to contact us by Email, Wechat, Skype, WhatsApp,or Phone call.
