Product Overview

Description



Product Description


SPECIFICATIONS FOR  Battery Pack
Model
36V-10AH
36V13AH
36V16AH
36V20AH
Material
Li(CoNiMn)O2
Li(CoNiMn)O2
Li(CoNiMn)O2
Li(CoNiMn)O2
Power
250W
500W
800W
1000W
Nominal Voltage
36.0V
36.0V
36.0V
36.0V
Typical capacity(25℃,0.2C Charge&discharge)
10Ah
13Ah
16Ah
20Ah
Charge Voltage(cc/cv)
42.0V
42.0V
42.0V
42.0V
Max. Charge Voltage(cc/cv)
44.0V
44.0V
44.0V
44.0V
Standard Charge Current
0.25C
0.25C
0.25C
0.25C
Max. Charge Current
0.5C
0.5C
0.5C
0.5C
Standard Charge Time
Around 6H
Around 6H
Around 6H
Around 6H
Continue discharge Current
≤1C
≤1C
≤1C
≤1C
Max. Pulse discharge Current
3C
3C
3C
3C
Discharge End Voltage
28.0V
28.0V
28.0V
28.0V
Protection
36V BMS,over-charge/discharge protection, over-heat protection
36V BMS,over-charge/discharge protection, over-heat protection
36V BMS,over-charge/discharge protection, over-heat protection
36V BMS,over-charge/discharge protection, over-heat protection
Cycle life@80% DOD,25℃,0.2C Charge&discharge
≥1000 times
≥1000 times
≥1000 times
≥1000 times
Weight (approximate)
2.2Kg
2.7Kg
3.2kg
4.3kg
Dimension (approximate)mm
L96*W96*H150
or L205*W80*H70
L182*W96*150
or L205*W100*H70
L272*W96*H150
or L205*W120*H70
L205*W160*H70
OperatingTemperature
-20~+60℃
-20~+60℃
-20~+60℃
-20~+60℃
Charge Temperature
0~+50℃
0~+50℃
0~+50℃
0~+50℃
StorageTemperature(Less than 1 month)
0~+45℃
0~+45℃
0~+45℃
0~+45℃
Operating humidity
5% to 90%,non-condensing
5% to 90%,non-condensing
5% to 90%,non-condensing
5% to 90%,non-condensing

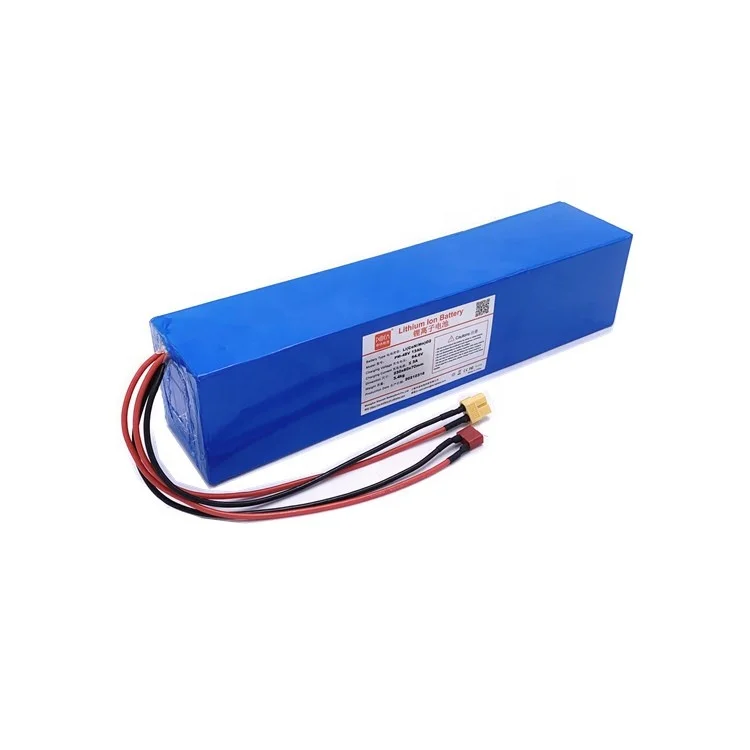

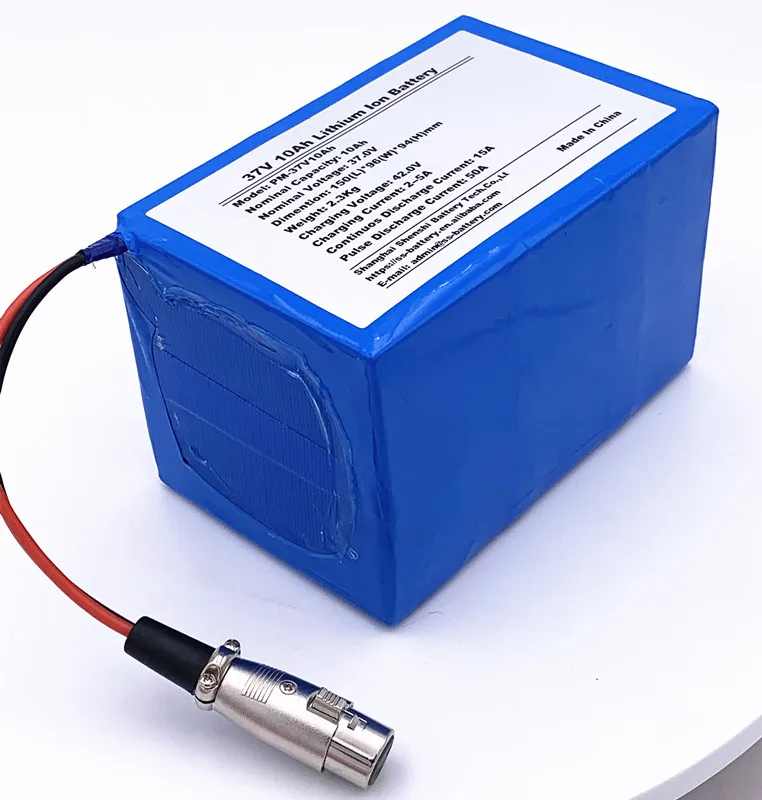

              36V 10Ah Lithium Battery.

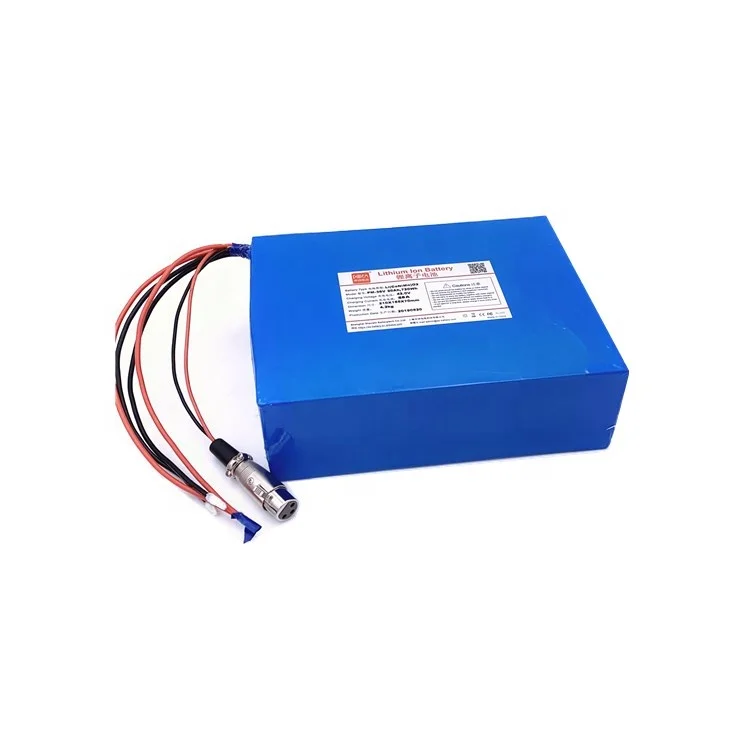

                36V 13Ah Lithium Battery.

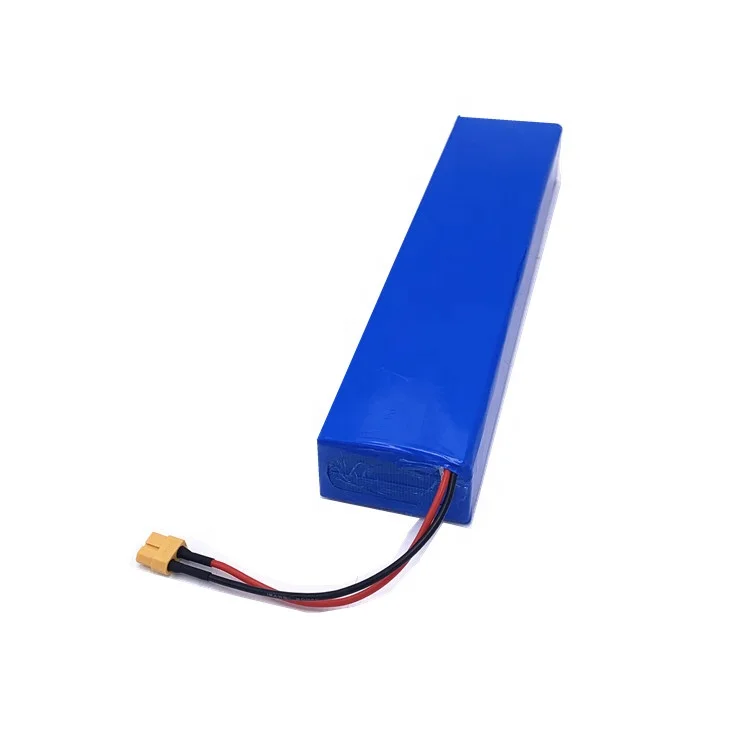

                         36V 20Ah Lithium Battery

               Click in

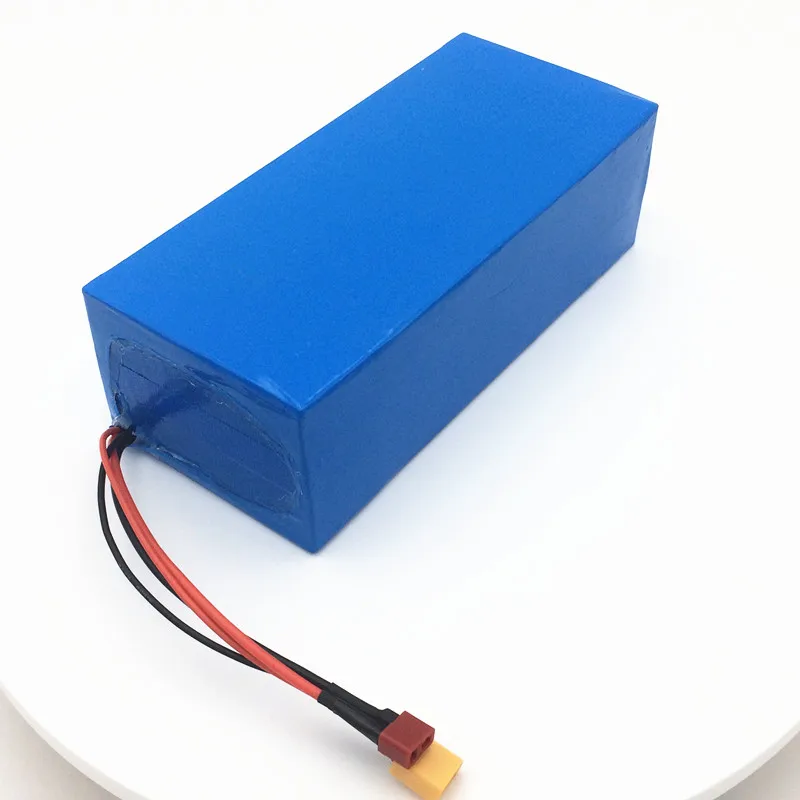

                   36V 30Ah Lithium Battery

                                          Click in


Related Parts


         Connector for choice

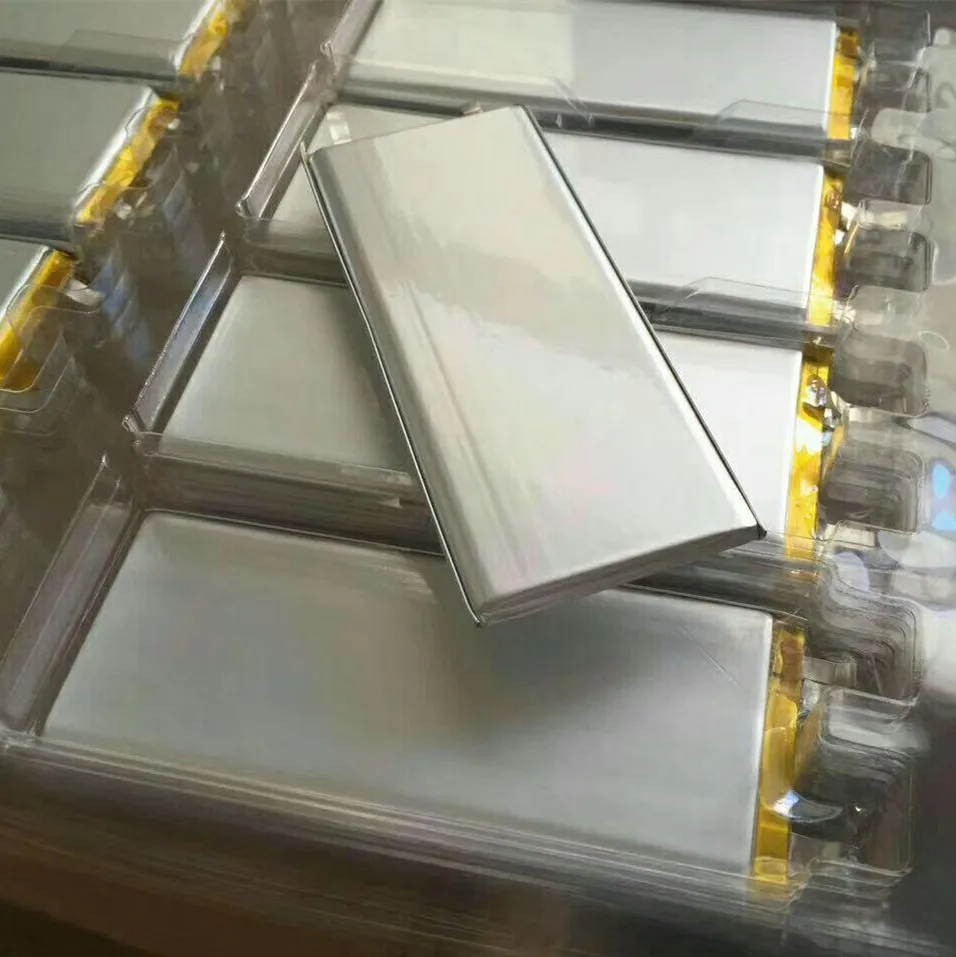

             High Capacity lipo cell

                   BMS/PCM




Other Products






Product Applications




Electric Bike/Bicycle/Motorcycle / Scooter /Wheelchair/Automobile / Golf Cart /tricycle /three-wheeler/ three-wheel cart/ trishaw
\tSolar Storage/Wind Storage/\tUPS Storage /Power Supply
\tMedical /Machinery/Mining equipment, Back-up or EPS Emergency

\tAudio, lighting, household appliances

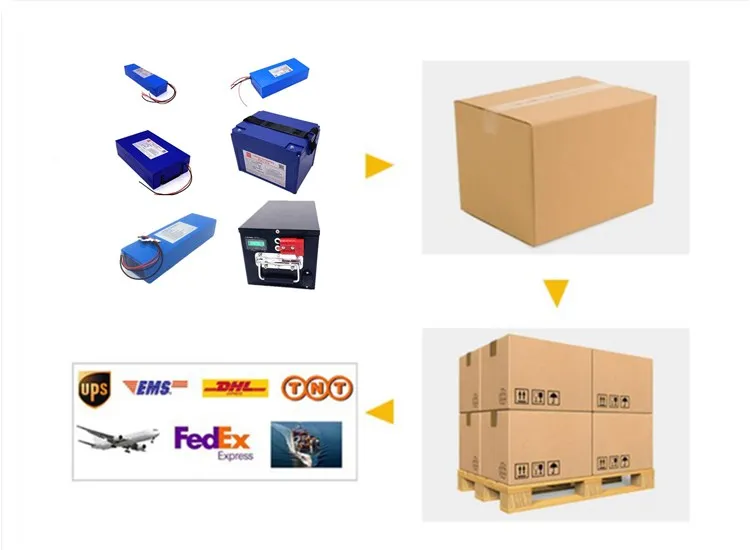

Packing & Delivery





Compliant with Lithium battery package regulation for overseas transportations


+sea shipment (about 1 month)
+air shipment to major airports all over the world
+ UPS, DHL,FedEx,EMS,etc

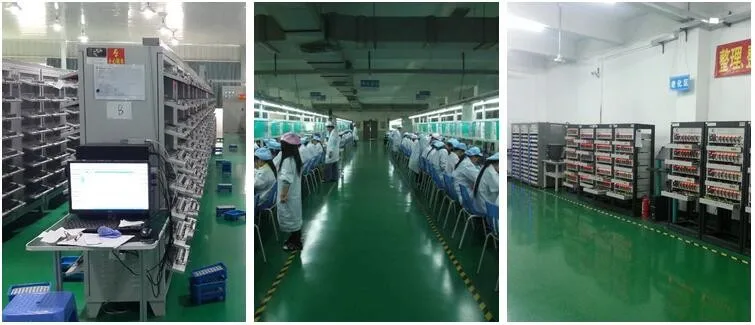

Our Company






Shanghai Shenshi Battery established in 2008,is a leading high-tech new energy company in designing and manufacturing lithium-ion batteries,electrolyte and anode material with advanced technology for various applications,enabling utility and industry customers to improve

performance while lowering environmental impact around the world.
Being the Global Golden Lithium Battery Manufacture,Shenshi is implementing its strategy in the electric vehicle,renewable energy storage,transportation,wide & solar energy storage,telecommunication markets,mining equipement and rail transportation,with high performance lithium ion battery of large capacity,long cycle life,high power density,excellent safety performance,low self-discharge rate and excellent low temperature performance.

With years of export experience along with excellent quality, advanced services and competitive prices, Shenshi Battery has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Shenshi Battery has won numerous customers' trust and support.






Certifications




FAQ


Q1:Why choose Shenshi Battery?
1.Quick response to clients' enquiries within 12hrs.
2.Strong R&D capability, all kinds of latest products available.
3.More than 20 years experience in producing battery products for various application.
4.Value quality and long-term cooperation to reach win-win relationship.
Q2:Are you a Factory or trading company?
We are a factory which is located in Pudong new district,Shanghai City.
Q3: When will the products be deliveried if the order has been placed?
We promise we do delivery our battery in 7 days and it will take 28 days for the customised itmes.
Q4: What is your quality control process?
We are certified with ISO-9001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been deliveried.
Q5: What Certificates do you have?
Our batteries have been tested by CE and RoHS Standards which is complied with the European Directive.
Q6: Do you have any sales service?
Yes, we do 1 Year Warranty for any of our battery.We keep promise we do full refund for the defective battery.
Q7: What about the payment?
We accept T/T, L/C for the large quantities order, and Western union and Paypal will be accept for the small quantities order of battery.
