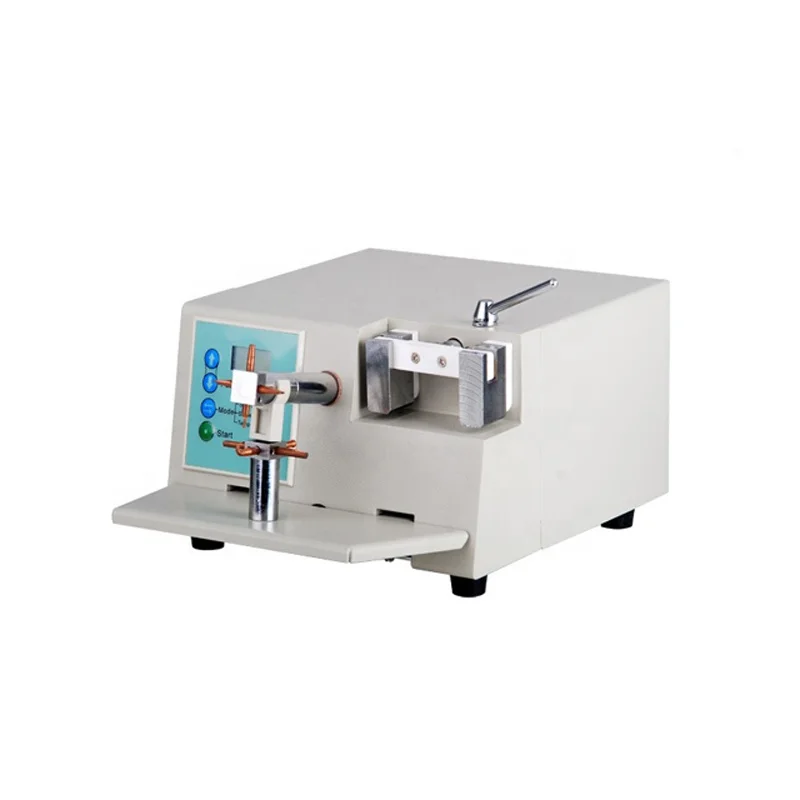

Orthodontic Welding Machine Dental Solder Machine

Product Overview

Description

Technical Parameters

voltage	AC 110V, 60 Hz; AC 220V, 50 Hz
transformer output power	2000W
output voltage	5V
power	instantaneous maximum current 20A
energy adjustment	spot welding 1 ~ 30 files,brazing 1 ~ 9 files, Tempering 1~9 files
safety type	a type I type B



The main technical parameters:

1. Power supply: AC220V, 50Hz, or 110V, 60HZ

2, power: instantaneous maximum current 20A

3, transformer output power: 2000W, output voltage: 5V

4. Erroneous operation alarm: When the working status does not match the setting mode, Err is displayed.

5, safety type: a type I type B

6, transformer over-temperature protection: 85 °C

7, energy regulation: spot welding 1 ~ 30 files

             Brazing 1 to 9 files

             Tempering 1~9 files

8, welding workpiece size: Φ0.2mm ~ Φ1.8mm stainless steel wire

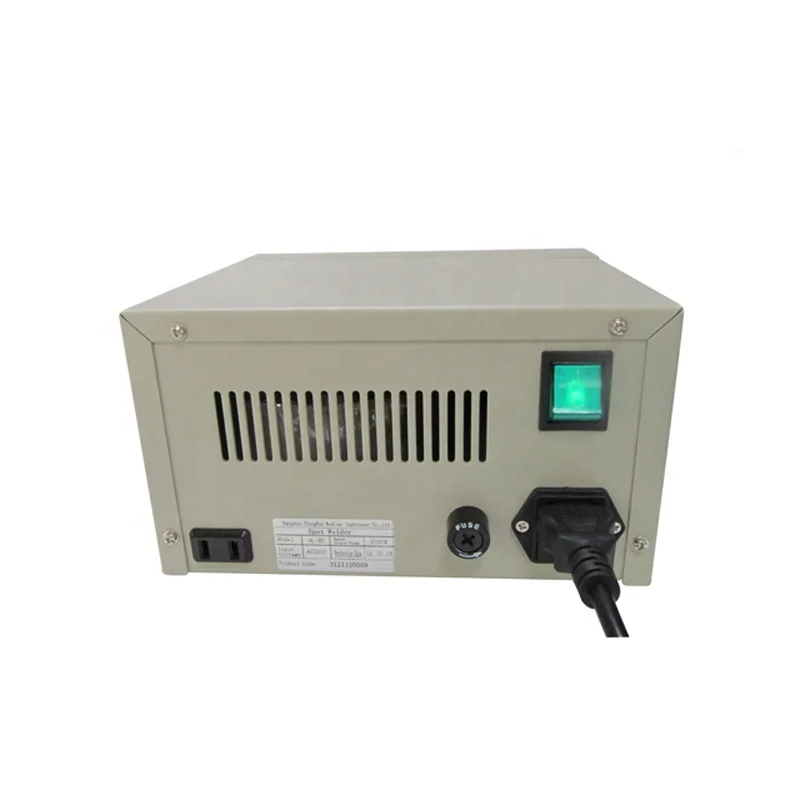

9, fuse: Φ5×20mm, 20A



This spot welder is used for stainless steel wire, stainless steel sheet welding, heat treatment. Commonly used range Weldments: 0.2mm to 1.8mm stainless steel wire.

3. Product features:

(1) Using a microprocessor control system, reliable quality, and high control accuracy.

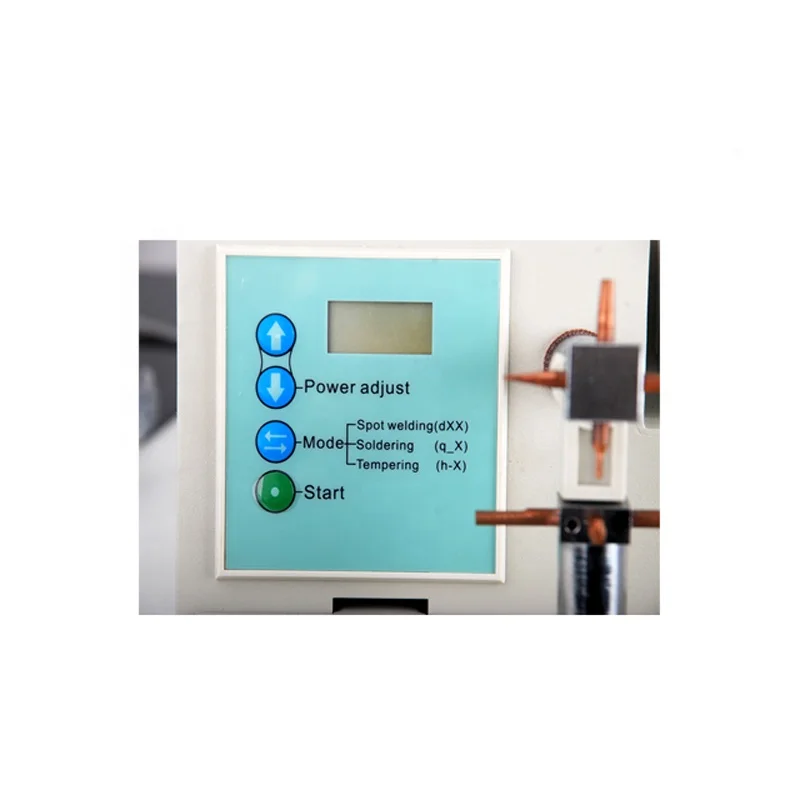

(2) Using LCD screen to display the working status and its power parameters, and adjusting the parameters through the membrane keys, which is convenient and concise.

(3) It has good safety performance, and it has various functions such as overheat protection, improper display and alarm.

(4) With the function of welding parameter memory, the state of the parameter value at the time of the last shutdown is automatically set at the time of starting, so that the parameter is not adjusted in the same situation.

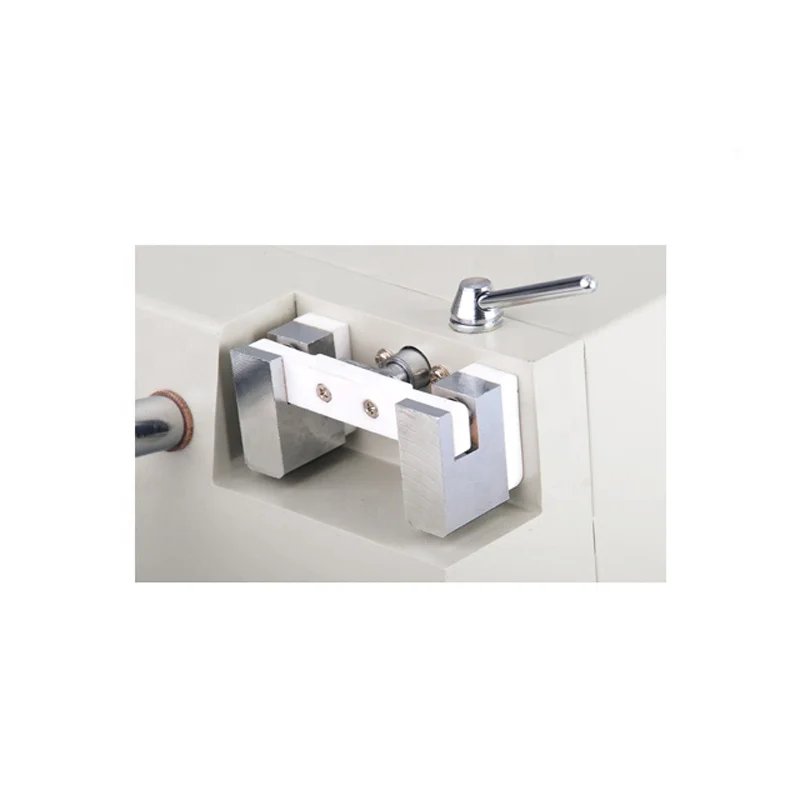

(5) There are many combinations of welding electrodes, which can be freely adjusted to adapt to different weldments.

(6) With spot welding, brazing and heat treatment.

 Range of use

Used in stainless steel wire, stainless steel sheet welding and heat treatment in orthodontic and orthodontic treatment;
