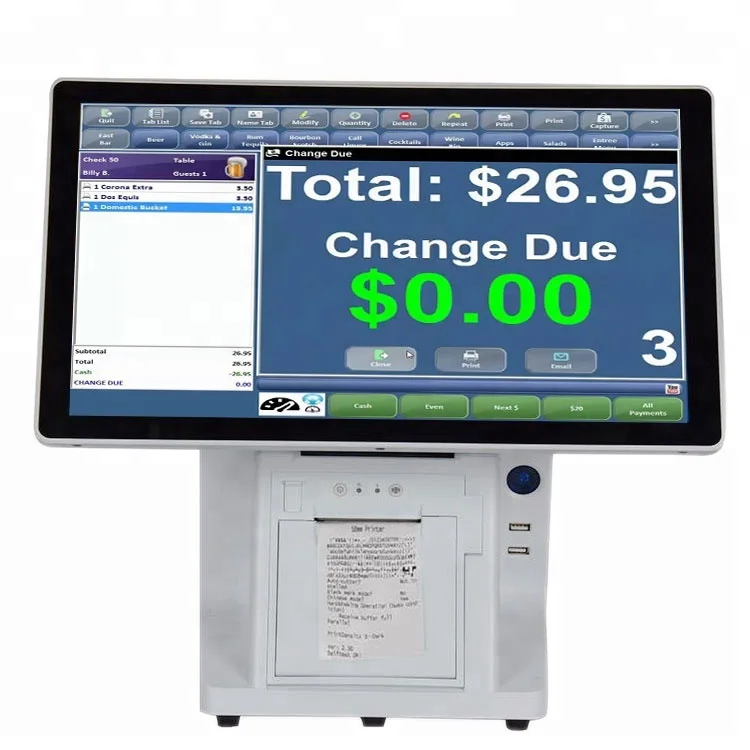

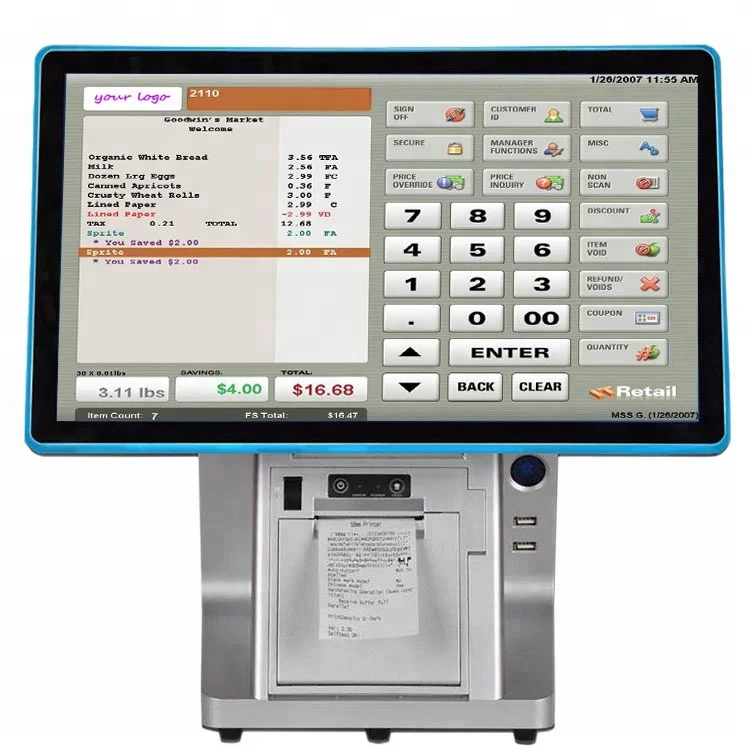

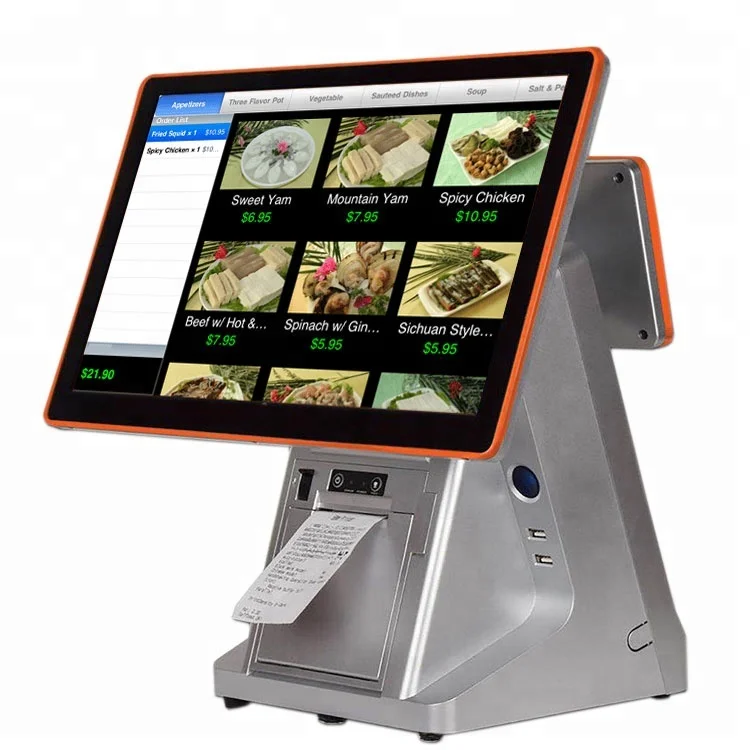

made in China USB POS Cash Register 15.6 inch touch screen POS machine with printer 80mm RS232 all in one POS system GC097B
- Category: >>>
- Supplier: Shenzhen Haodexin Electronic Technology Co. Limited
Share on (60836733601):
Product Overview
Description
Made in China USB POS Cash Register 15.6 inch touch screen POS machine with printer 80mm RS232 all in one POS system GC097B
Product Description
| Specification/Features | |
| Item No. | GC-097 (Android, RK3288) |
| Feature/Advantage | made in China USB Cash Register 15.6 inch touch screen POS machine with printer 80mm all in one POS system GC097B |
| Casing/Material | ABS, PCBA, color: white/black |
| Platform | Application firmware, apps to be developed by customers |
| Operation System | Android 6.0 or higher (windows also available) |
| 2D code decoding | with built-in 2D code decoding software, based on Android 6.0 |
| CPU | RK3288 ARM Cortex-A17,quad core,1.8GHz |
| Memory | DDR3 2GB (256*16 high speed cache chip, 4 pcs) |
| Nandflash: EMMC 8GB,24bit ECC, 16GB optional | |
| Operation display | G+G capacitive multi-point touch, glass polishing,waterproof |
| 15.6" RGB TFT,1366*768 pixel, Aspect ratio:16:9 | |
| or 15.6" RGB TFT,1920*1080 pixel, Aspect ratio:16:9 | |

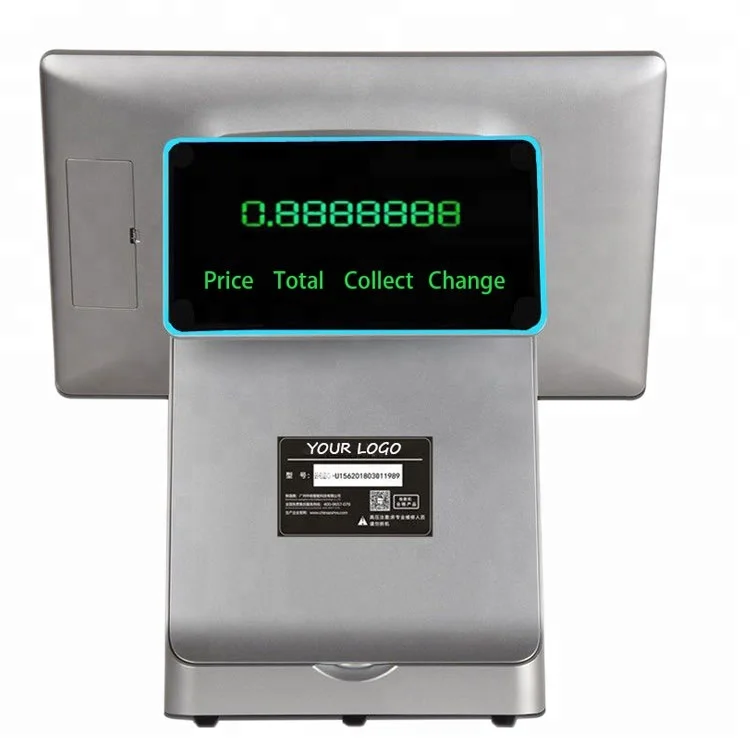

| Customer display | 8 segment LED display,show Price/Total/Collect/Change |
| Camera | Optional. 2 Mega, CMOS, 720P, LED light filling |
| NFC card reader(optional) | 13.56MHZ contactless, meet standard of philips Mifare 1K/4K, ISO/IEC14443A/B, ISO/IEC15693, Mifare DESfire, Sony Felica |
| Commucation module | SIM card, meet almost all the telecom operator standard |
| Optional, 3G module, 850/900/1800/1900MHz, WCDMA/HSDPA/EDGE/GPRS, 4G/LTE | |
| Wifi module: IEEE802.11b/g/n compatible with wapi(optional) | |
| Bluetooth:support 2.0+EDR, 3.0, 4.0 | |
| (Optional)Wifi probe,customer flow volume collection and analysis | |
| Ibeacon: wechat shake(Optional) | |
| Ethernet(RJ45), support TCP/IP HTTP protocols | |
| Printer | High speed thermal printer, 58mm(80mm optional paper auto cutting) |
| Paper width: 58mm, printing speed: upto 5cm/s, 10cm/s for 80mm printer | |
| can print text, image, bar code with setting size and font | |
| Antenna | Built-in high gain antenna |
| Multi-media function | High effient DSP processing, music,support mp3, wma and etc, support lyric display line by line or full display |
| Video, support 4k,H.265, HDMI 2.0,video enhancemene | |
| Picture, jpeg, jpg, bmp, gif, jfif, support upto 8000*8000 pixel | |
| External interface (may vary for different product batch,OEM available) | USB 4 pc (2 side, 2 on plate), mini USB OTG: 1 pc |
| TF card slot(support upto 32GB) 1 pc | |
| SIM card slot, 1 pc | |
| Rs232 serial port, standard DB9 1pc, | |
| Ethernet RJ45 port, 1 pcs, support TCP/IP HTTP protocol | |
| RJ11, 1 pcs, connect password keypad | |
| Earphone port, 1 pc, Microphone port 1 pc | |
| DC power socket(12V, 4A) 1 pc | |
| DC switch 1 pc | |
| Accessories | DC power adaptor,input 100-240V, output, 12V, 3A |
| Working temperature | -10℃~50℃ |
| Storage temperature | -40℃~80℃ |
| Humidty | 95% without sticky |
| ESD protection | 12kv |

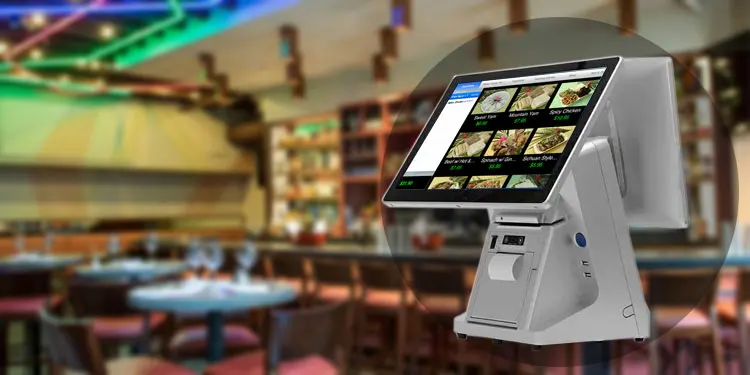

Applications:
- Catering and hospitality: hotel, restaurant, fast-food restaurant, coffee shop, bakery and cake shop
- Retailer: business street, boutique, department store, cosmetics shop and high-class barbershop
- Recreation: sauna, spa, night club, theme park, casino and point of sales for lottery ticket
- Commercial: information management terminals for parking lot, inn, aviation, subway, station and wharf

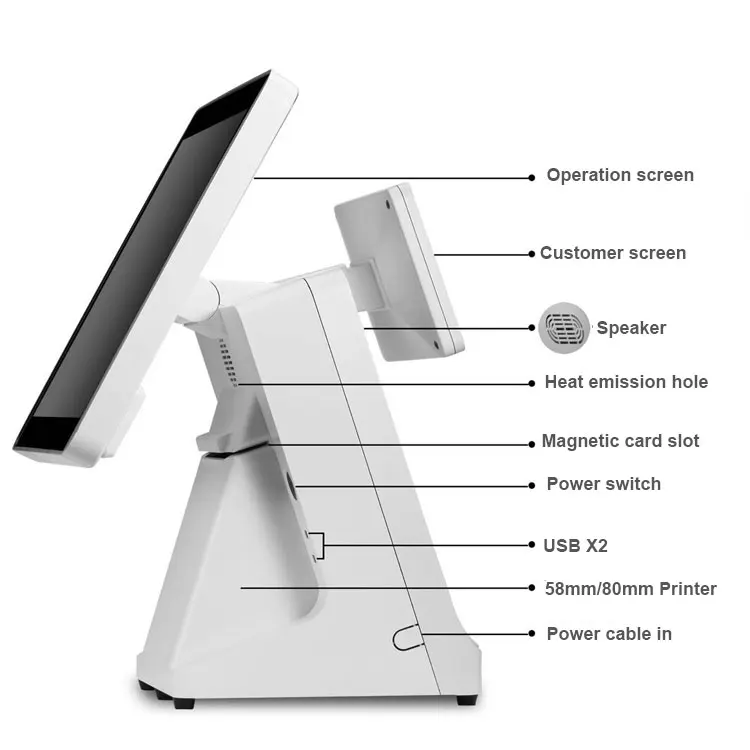

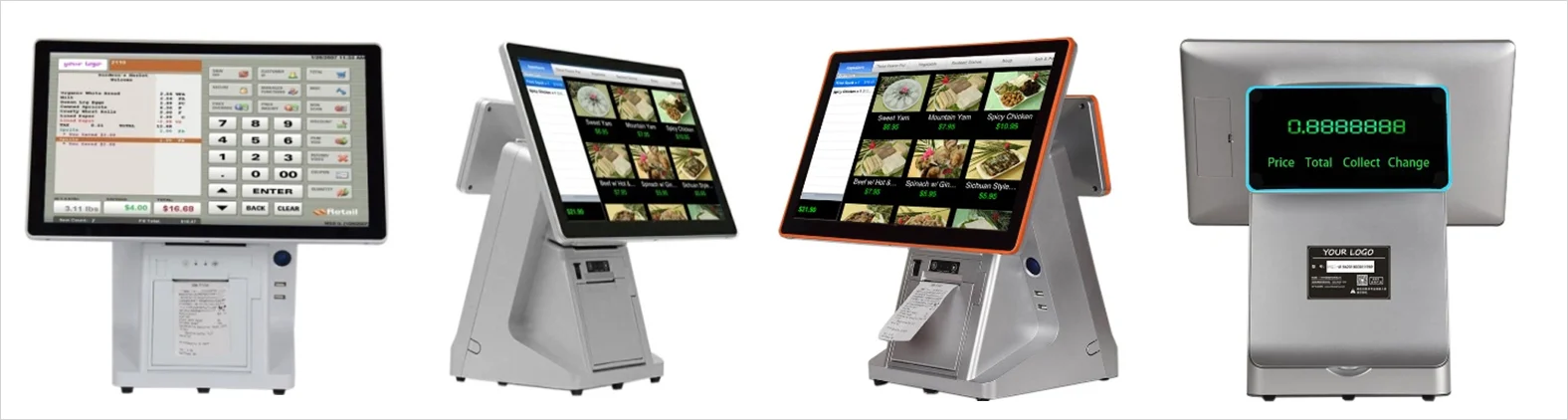

Product show:
Packaging & Shipping
Packing
Item size: 390*210*405mm
Box size: 490*300*490mm
Gross weight:8.6 kg
Qty/carton: 1 pcs/ctn
Weight: 15 kgs
Standard industrial package, gift box, paper tray, user manual, warranty card, carton, EVA holder, EPE foam
Delivery
we can delivery the good to the warehouse assigned by customers if you have your own forwarder;
And we can arrange shippment with our cooperated forwarder at best price;
We are VIP customer for DHL, UPS, FedEx, TNT and EMS, we accept any one upon your requirement.
Our Services
Pre-sale service
We will do our best to help customer to choose the suitable POS and cash register afer make sure the customer's requirements in detail. The technical specifications will be sent for checking. All the inquiry and email will be responsed within 12 hours
In-sale service
We will provide the updated information of the production progress, shipment and clearance.we will always let the customer to know the dated production information
After-sale service
We will provide one year warranty for all of our POS terminal. We provide solution if any broken devices after customer receive the goods. Give powerful technical for customers' secondary development. Will always provide repairing service
ODM service
ODM is available in our factory. We can design the new products after make sure the detail requirements of customers.
Company Information
About our company
HAODEXIN was founded in 2008, we have 10 years experiences in windows pos terminal,android pos terminal,handled pos terminal, barcode, 2D cord scanning pos terminal, Android cash register, Window cash register.
Have great advantages in R&D and technical support providing
OEM/ODM order is totally available in HAODEXIN
Warmly welcome friends from all over the world to visit HAODEXIN
Our location is Pingshan High tech Park in Shenzhen.
Certifications
FAQ
1.Q:Are you manufacturer?
A:Yes.our factory and headquarter located in Pingshan High-tech Zone, Shenzhen.China, we are professional POS terminal source supplier,
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year for all devices, anyhow man-made damage is not included.
4.Q:Could the device set default language?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on, we can set the boot language as requested.
5.Q:Can your device install the Android Apps that our customers provide?
A:Sure. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
6. Q: Can we have our logo and set boot screen in the product?
A:Yes, we accept OEM/ODM, just send your logo in .cdr format and clear boot screen, we can set for you, on body logo, we can print, stick and laser.
7. Q: What's the terms of payment?
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
8.Q: what is your sample policy?
A: Usually, customers should pay for the sample and the sample price will be a little higher than the bulk order.We will return the sample cost in the bulk order if the quantity is large enough. We warmly welcome you to come to our factory to test the sample.
9.Q: About Discount:
A: For discount, please contact Luisa.
Skype: sophianie87 Whatsapp & WeChat: +86 13798585895
¡Muchas Gracias!
Related Products
------------->> More models <<-------------------

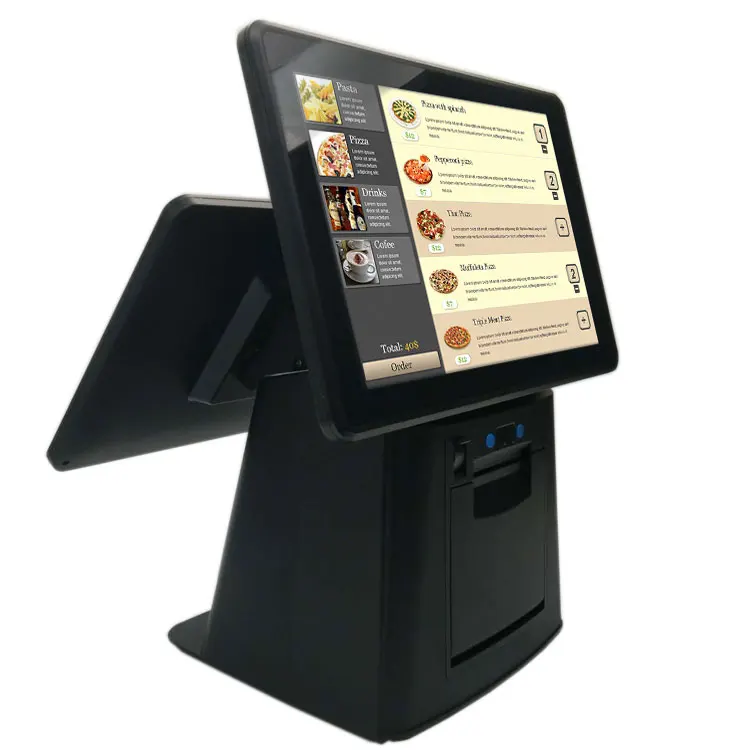

15.6 inch double screen Windows OS touch POS 80C printer driver all in one POS system
