Direct manufacturers selling high technology high quality doctor blade

Product Overview

Description

Introduction

Doctor Blade is widely used in gravure, flexography, coating and printing areas. It’s suitable for the speed more than 130m middle high-speed machine.



Flexo printing presses are available in may different sizes from 200mm to over 4meter.while single reverse angle blade systems are used for the smaller press,the midsize and larger presses are normally equipped with enclosed doctor blade systems.printing speed also varies from 50 m/min to 450m/min.the wiping doctor blade is always applied in a reverse angle between 30-40 degrees.Due to the abrasive surface of ceramic anilox rollers,minimal doctor blade pressure is always recommended.equally important for good doctor blade life is the relationship between cell configurations and blade tip thickness.



The flexo industry uses mainly 0.20 mm thick blade,in some cases 0.15mm.enclosed blade systems do not require a back-up blade.based on the application ,lamella,bevel or straight blades with rounded edges,like the MDC flexo blade,are used to meter the ink.for high quality process printing,the label printing industry uses a lamella as thin as 75 microns.as a rule, a thinner blade edge allows for a cleaner wipe.



Standard dimensions and specifictions

MDC doctor blades are available in width of 8-80mm.

Standard blade thickness : 0.15mm,0.20mm.

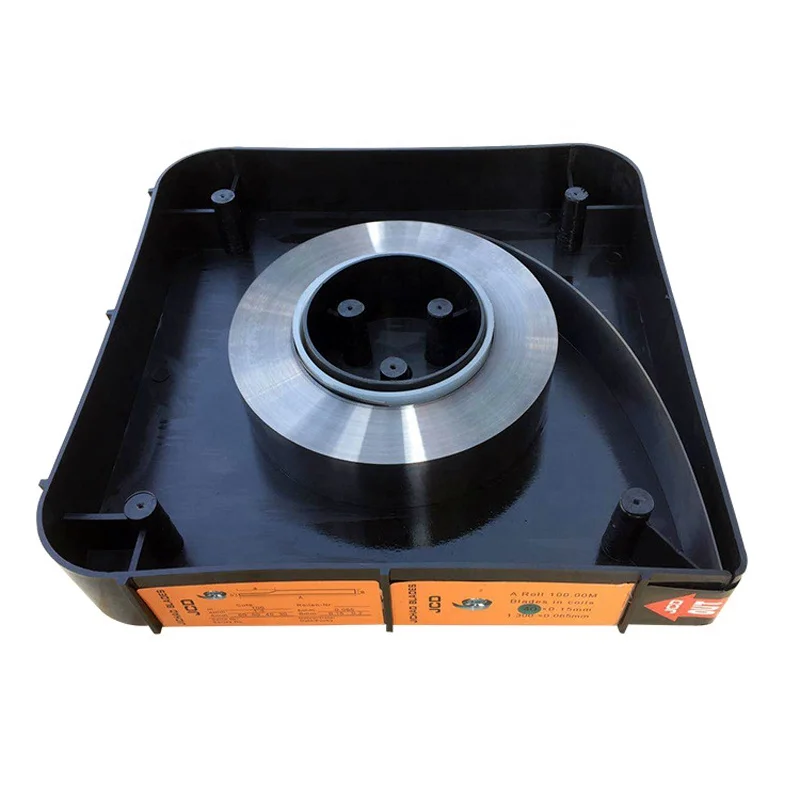

Blades are available in pre-cut sizes of any length or in coils of 50m,100m and 200m.



The recommended blade tip dimensions are:

Cell count           Lamella thickness                    Lamella Length

80-240l/cm          125micron                          1.7mm

240-450l/cm         100micron                          1.3mm

Above 450l/cm        80micron                          1.3mm

Technical Specifications

Material: High quality carbon steel, Steel grade SK2, Stainless steel, Plastic.

Thickness: 0.15mm / 0.20mm and others on demand of customer.

Lamella: 50-120 micron / -5m.

Available size: 10 to 60mm.

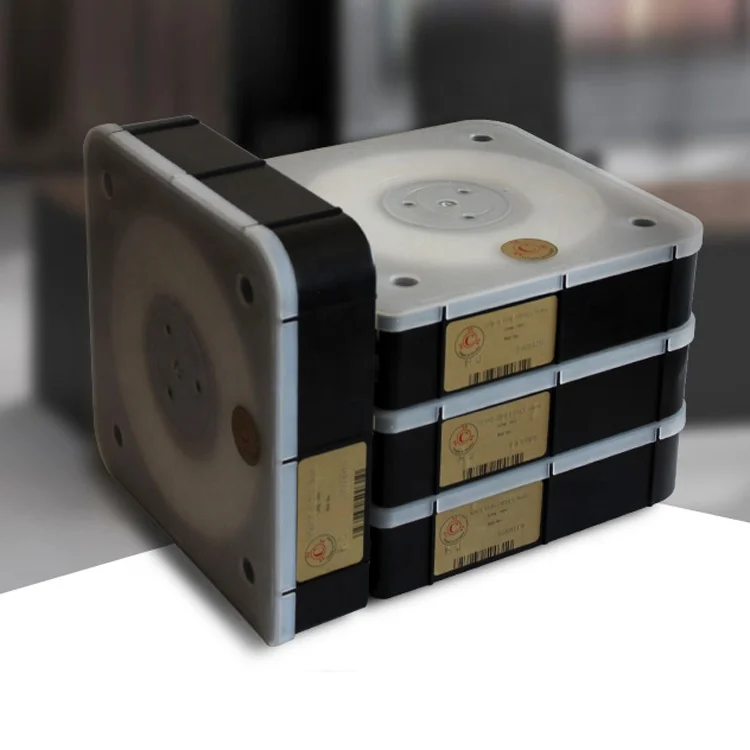

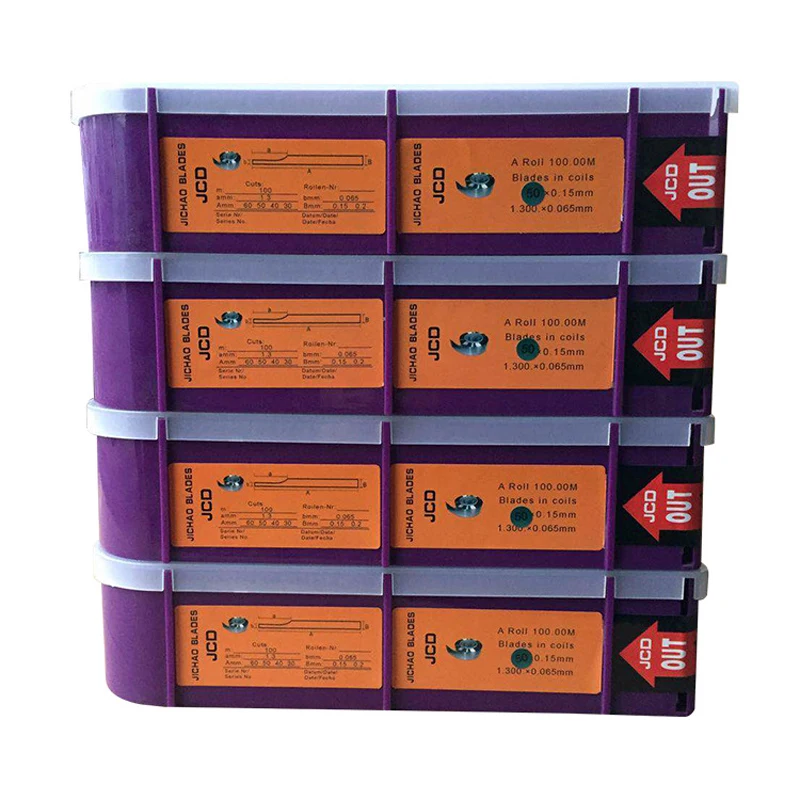

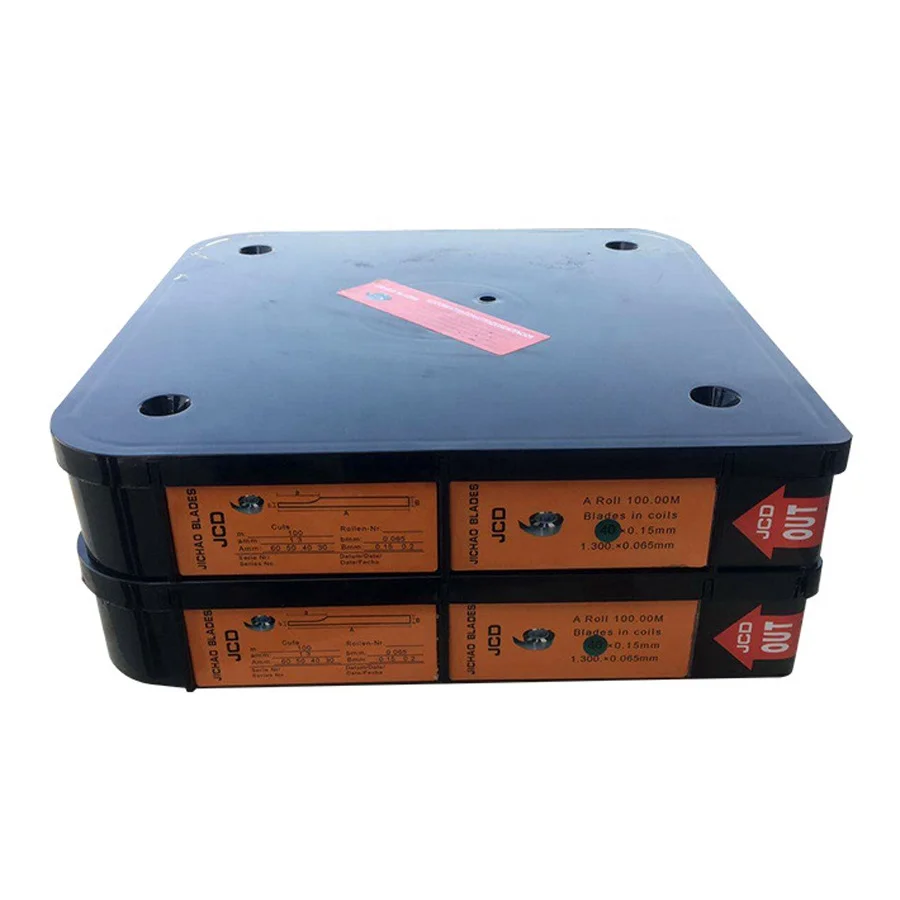

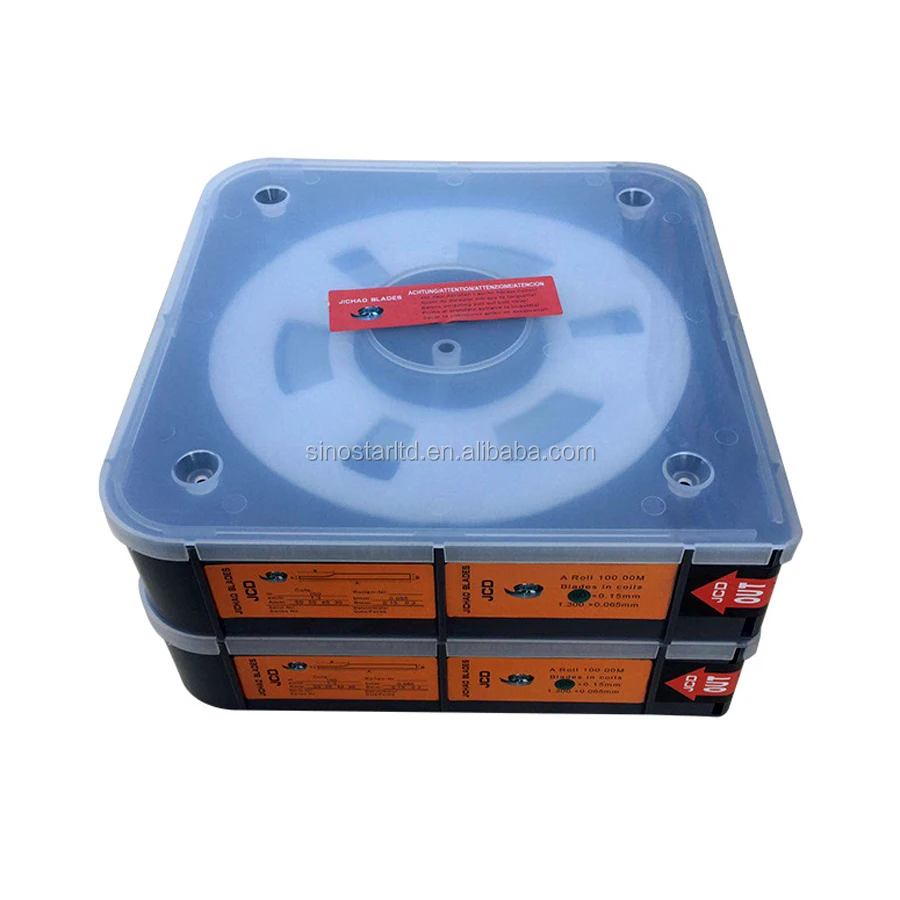

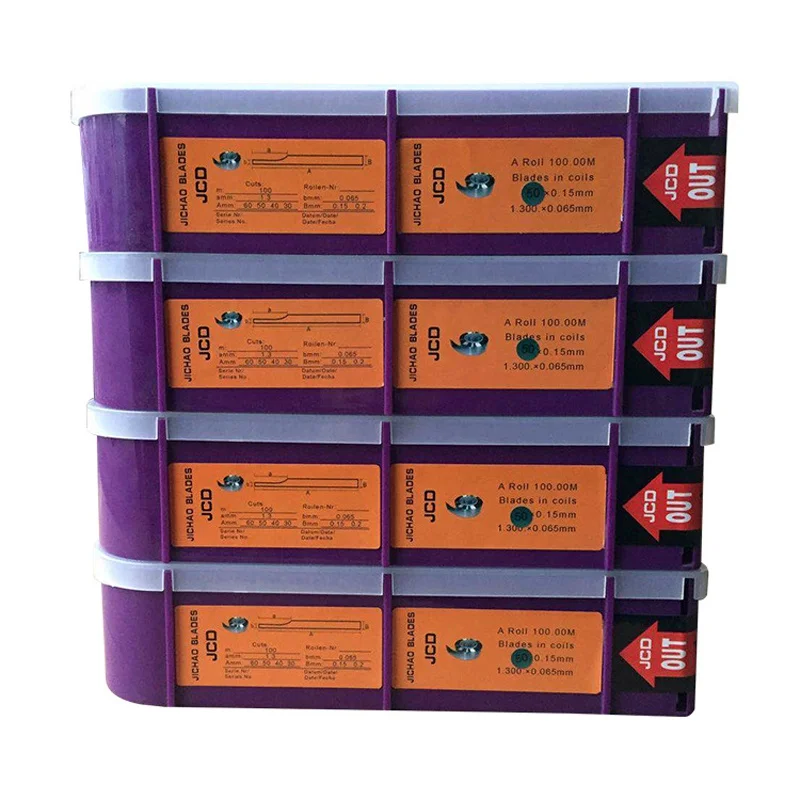

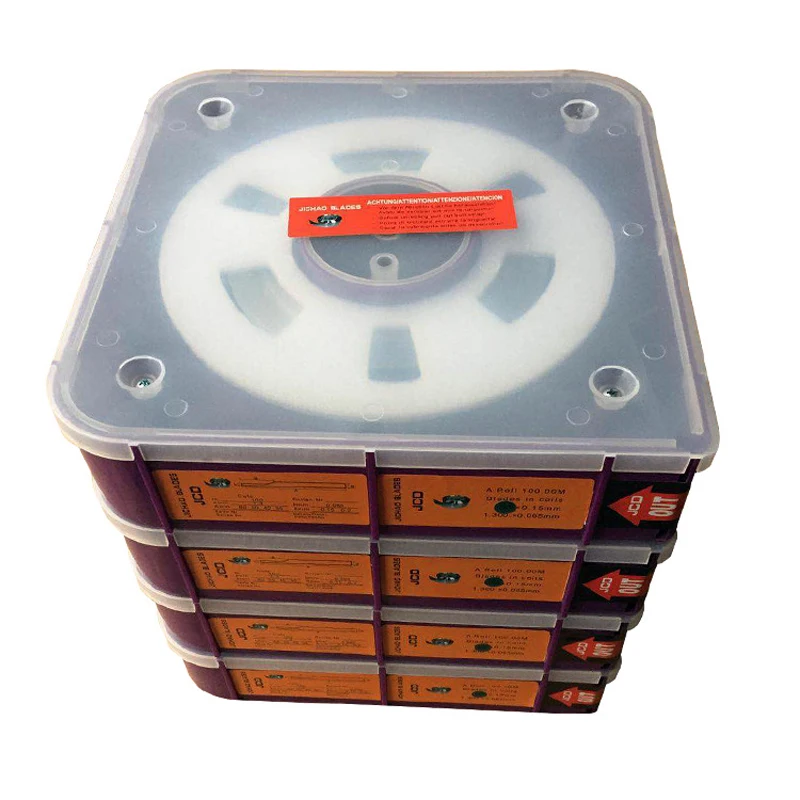

Package of doctor blade

Anti-corrosion plastic packaging insdie, and ply-wood or carton outside.







Features

Smooth blade,good elasticity.

Good flexibility and durability.

Unique high technology.

High precision processing.

Blade with small pressure.

Material uniformity,high strength.

excellent mechanical properties.

Quality guaranteed,strict inspecting&testing.

High efficency,factory lowest prices,cost saving.

Benefits

The main benefit of doctor blade is to remove the ink from the impression cylinders.

Increase quality of film.

Our blade is made from imported material which prevents the damage on cylinders.

High flexiblade so less chance of cylinder damage.

Corrosion and wear resistance.

Highly durable, longer life as compared to conventional blades.

Applications

Gravure industry.

Flexography industry.

Coating industry.

Decoratibe coating industry.

Printing industry.

Other industries.

Points for improving printing quality

Use a high quality super edge doctor blade with dimensions suitalbe for your ink and anilox type.

Inspect the doctor blade holder for damages. Dents, nicks or bends make the doctor blade setup wavy.

Try to achieve a 55-66 degree contact angle between doctor blade and cylinder.

Use a blade pressure of 0,5-1,0 bar, increase more if there is no clean wipe.

Check so doctor blade extensions are correct.
