Product Overview

Description


Product Description

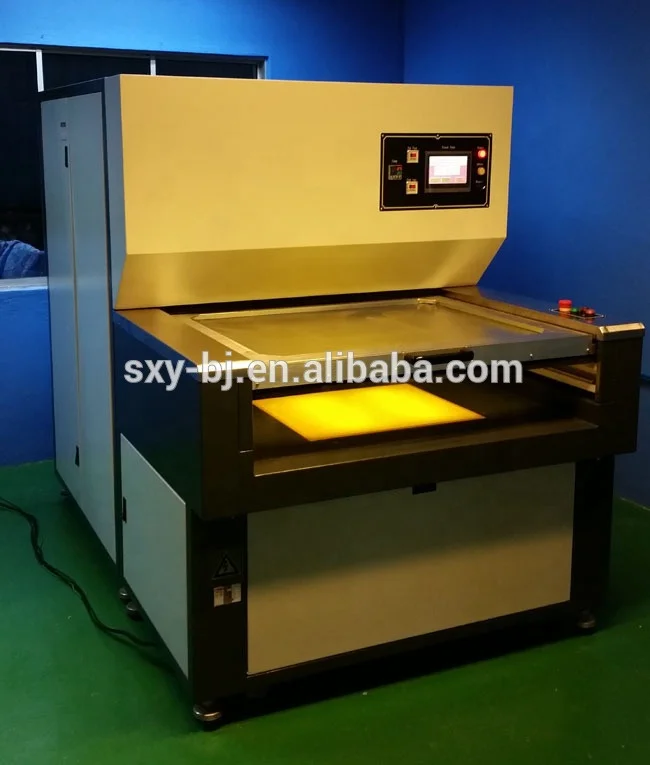

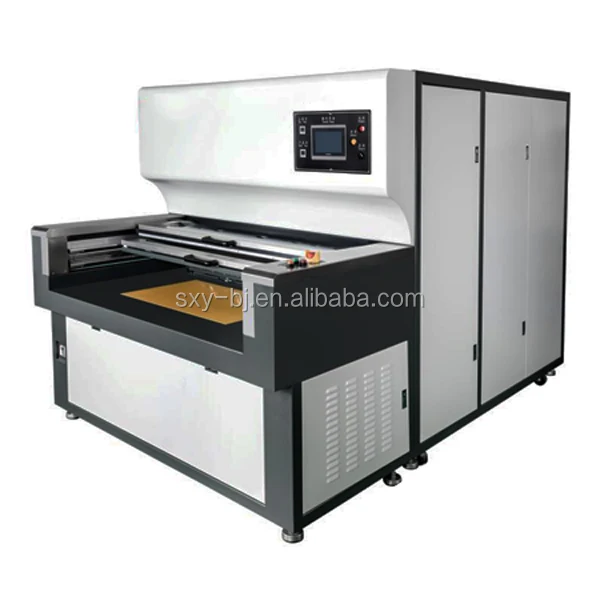

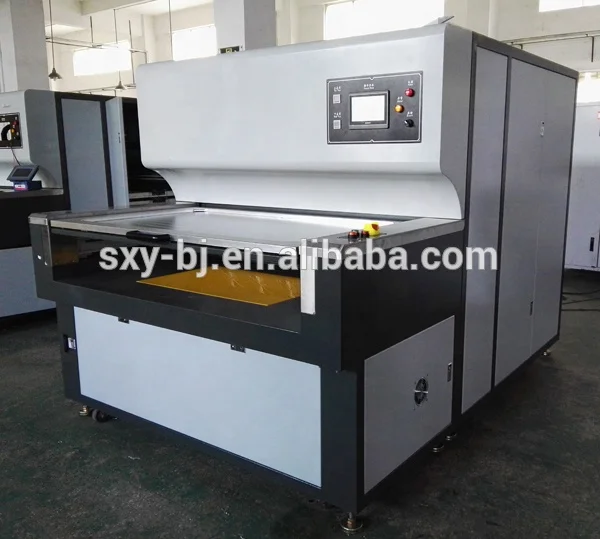

 Double Side UV Led Exposure Machine / PCB UV  LED Exposing Machines
Machine Model
LED-1200
Machine Power
AC380V,50HZ,30A, 4.5KW
Working Size
720x1250mm
Expose Lamp
Cold LED Light
Expose Type
Double Side & Vacuum Exposing
Exposing Table
Mylar & Glass

Vacuum System
Imported oil-free vacuum pump,
Japan SMC digital display electronic vacuum table
Light uniformity
>90%
Plate Thickness
0.01~4.5mm
Cooling System
Ice Water Cooled for lamp
Operation
Human-Computer & PLC
Working
Temperature 25℃             Humidity:55%
Protection Function
1. LED Light Off Alarm
2.Over Temperature Alarm
3.open-phase protection
4.short-circuit protection
Machine size/ Weight
2500mm X 1800mm X 1750mm / 1000kgs

1) Double Sided PCB exposure machine / UV LED exposure machine is used for photoresist film or solder mask film exposing work.

2) LED machine is most different from traditional mercury lamp exposure machine, working stably and reliably,save energy and inproves the speed of scheduling.

Function:
1) Can control single exposing and double -face exposure automatically;
2) Exposure PLC control panel, UV LED light,cooling system,vacuum system;
3) Light cooling use chiller indirect cooling way,exposure table use clean indoor air for cooling.

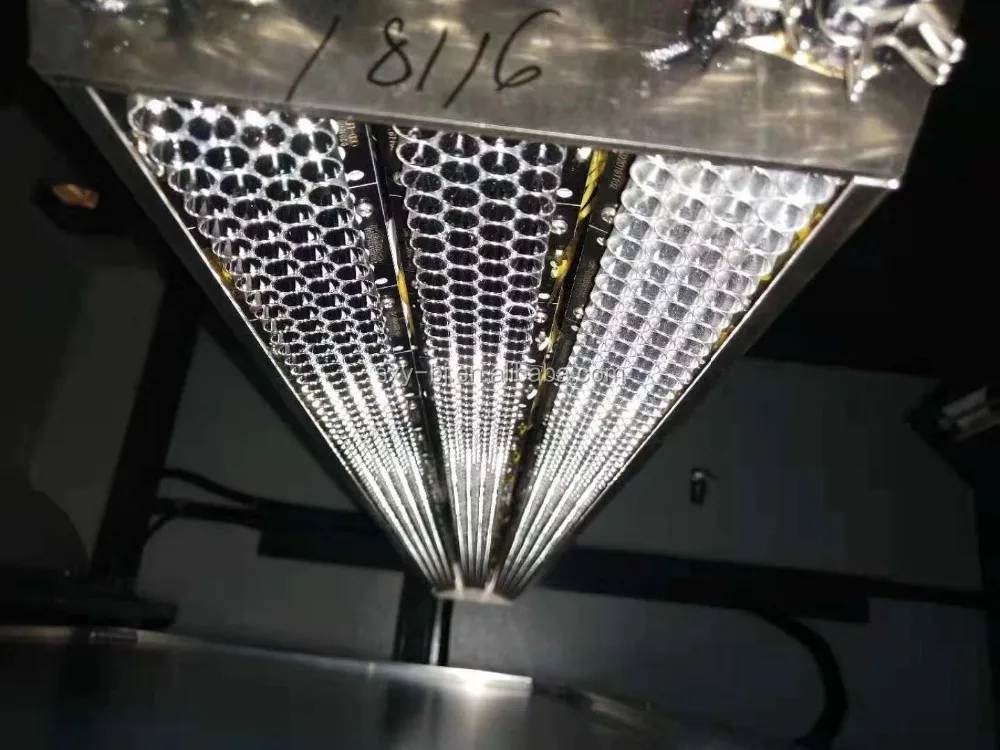

Detailed Images
