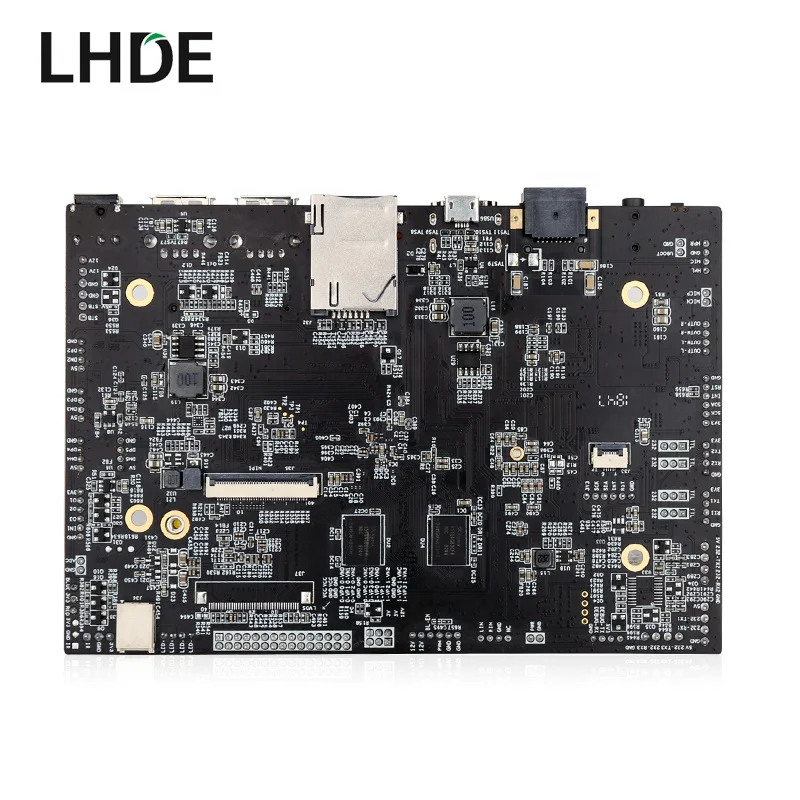

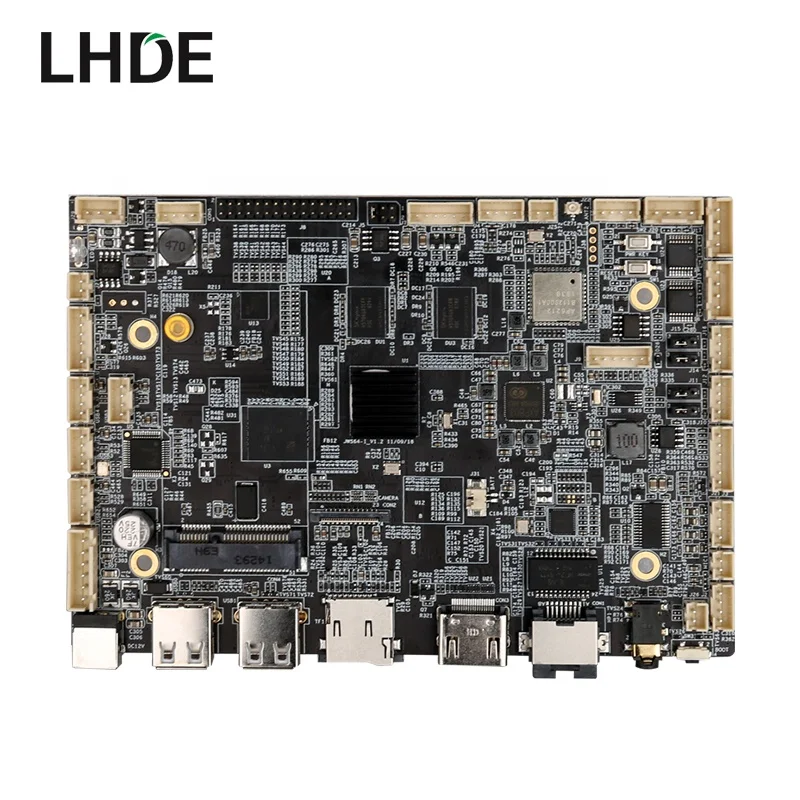

Customized Android mother board mainboard with WIFI function
- Category: >>>
- Supplier: Shenzhen Le Hua Display Electronic Technology Co. Ltd.
Share on (60836799756):
Product Overview
Description
Customized Android mother board mainboard with WIFI function
Mainboard
Product Description

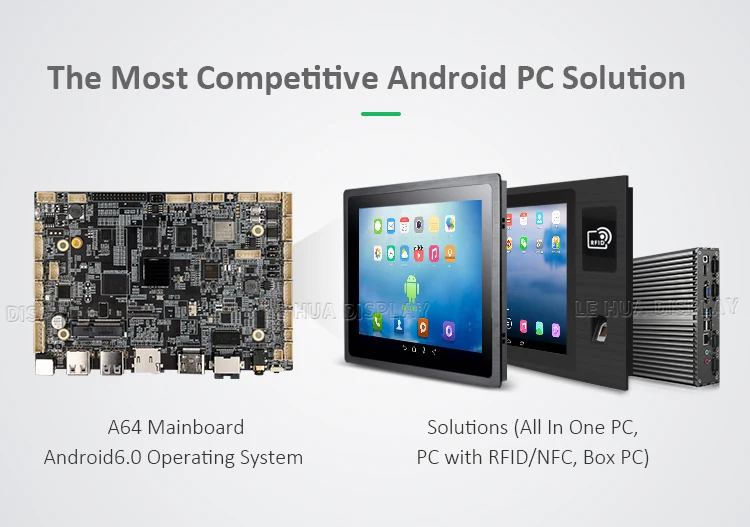

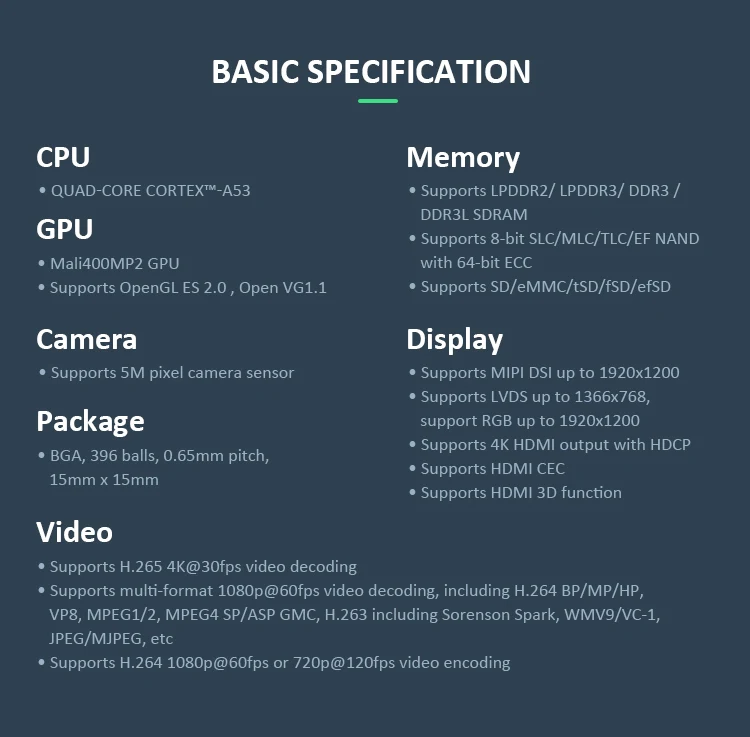

A64 Specification
| A64 mainboard Specification |
Hardware Resources |

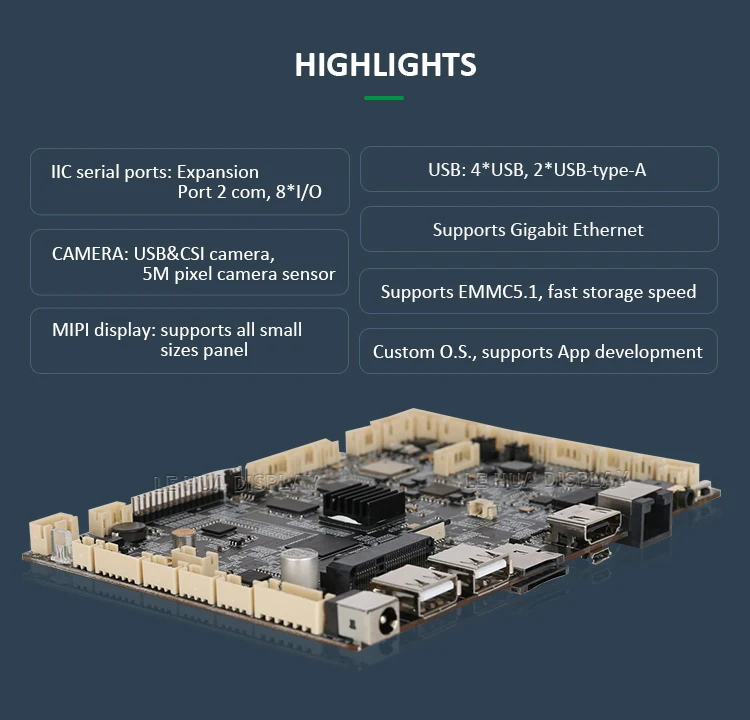

| CPU | A64, Quad-core Cortex™-A53. Frequency reaches 1.5GHz |
| GPU | Mali400MP2 |
| RAM | 1GB/2GB(DDR3) |
| ROM | 2KB EEPROM |
| Flash | EMMC 8GB (16GB/32GB/64GB for options) |
| Network | Perfectly support 10M/100M/1000M, ethernet interface adaptable |

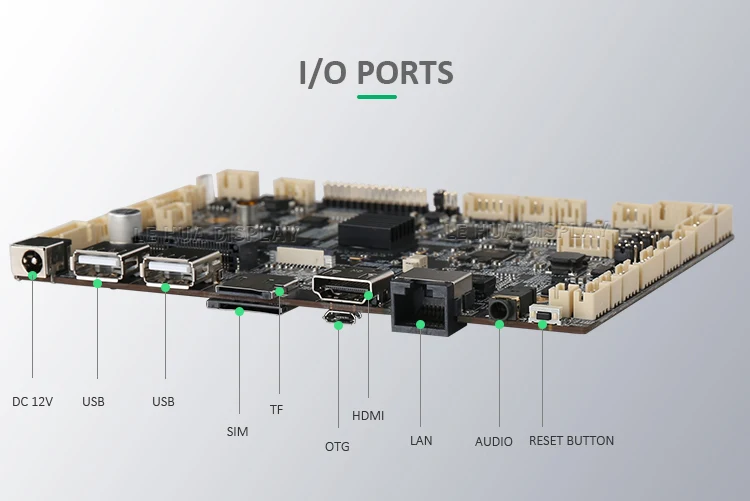

| Communication | 3-ch RS232, 2-ch TTL |
| 4-ch USB HOST, 2-ch USB type A, 1-ch micro USB (OTG) | |
| 1-ch 10/100/1000Mbps industrial Ethernet port | |
| onboard WIFI, Bluetooth (option) | |
| GPS, external GPS module (option) | |

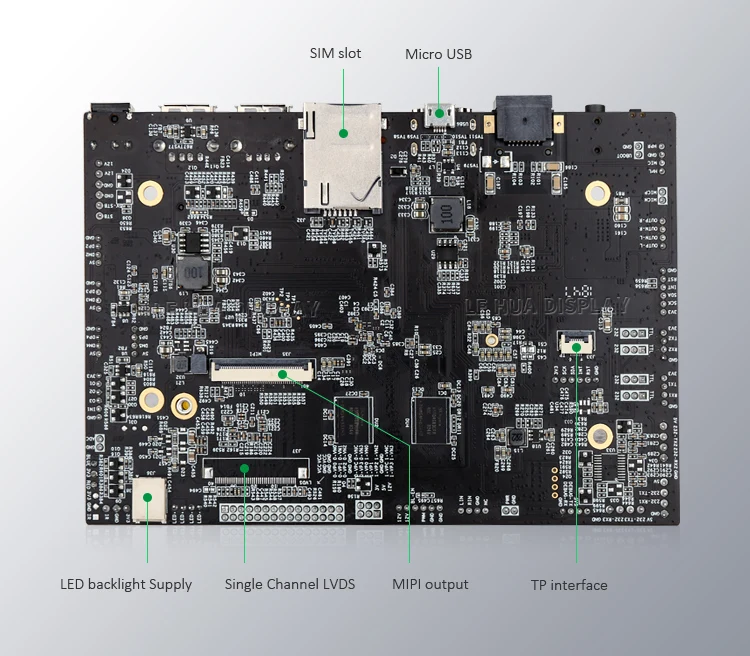

| Display | 1-ch dual channel LVDS interface, support 30Bit HDMI interface |
| 1-ch single channel LVDS interface | |
| HDMI output, up to 4K 3840*2160 with HDCP | |
| MIPI display, 50/60 GHz LED backlight | |
| TP interface | 1-ch TP interface |
| Memory Interface | 1-ch TF card slot |
| GPIO | Support |
| Audio Outpu | Left and right channel output, built-in dual 4R/20W, 8R/10W |
| Audio Player | Loop playing, timing playing, emergent playing |
| Video Player | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, etc |
| Picture Format | BMP, JPEG, PNG, GIF,etc |
| Power Input | 12V power |
| RTC POWER BOIS | Support |
| Timing Boot/Shutdown | Support |
| Resources |
| Operating System | Android 6.0 (support upgraded and customization) |
| Upgraded&Development | Support TF card and USB upgrade |
| Support secondary development SDK |
| Electrical specification |
| Size | 146mm*100mm |
| Layer | 8-layer high precision immersion gold process |
| Power Consumption | ≤3W |
| Operation Temperature | -20℃ ~ +70℃ (Could be customized to industrial level temperature) |
| Operation Humidity | 10%~90%, Non-Condensing |
OEM/OEM Service
