Reention 48v dorado tube integrated battery 48v 8.7ah 9ah 9.6ah 10ah 10.5ah lithium electric bike battery pack

Product Overview

Description

Reention 48v dorado tube integrated battery 48v 8.7ah 9ah 9.6ah 10ah 10.5ah lithium electric bike battery pack



1. product description:

48v 8.7ah/9.6ah/10.5ah dorado electric bike battery
Model	48V 8.7Ah 9.6Ah 10.5Ah Dorado battery
Chemistry	LiNiCoMn
Nominal Voltage	48V
Nominal Capacity	8.7Ah/9.6Ah/10.5Ah
Weight	Approx 3.4KG

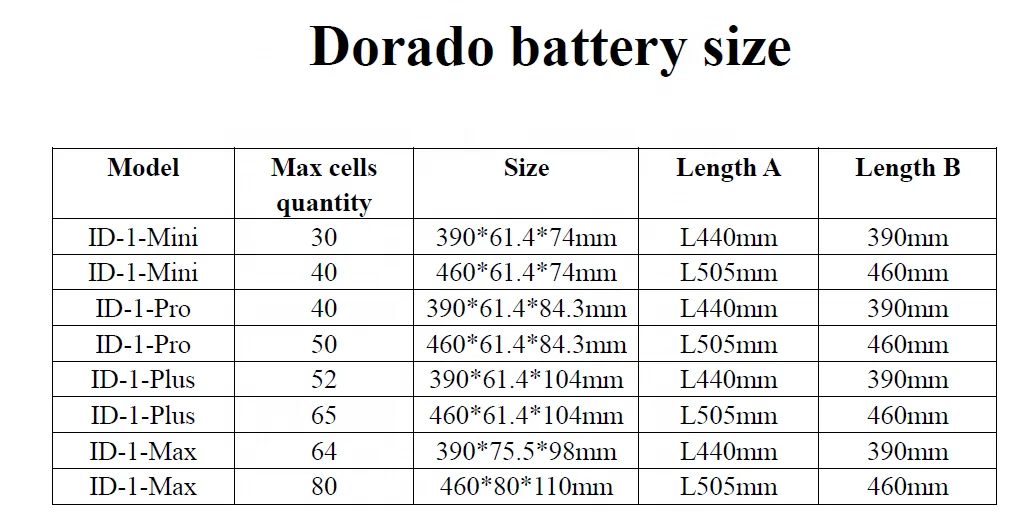

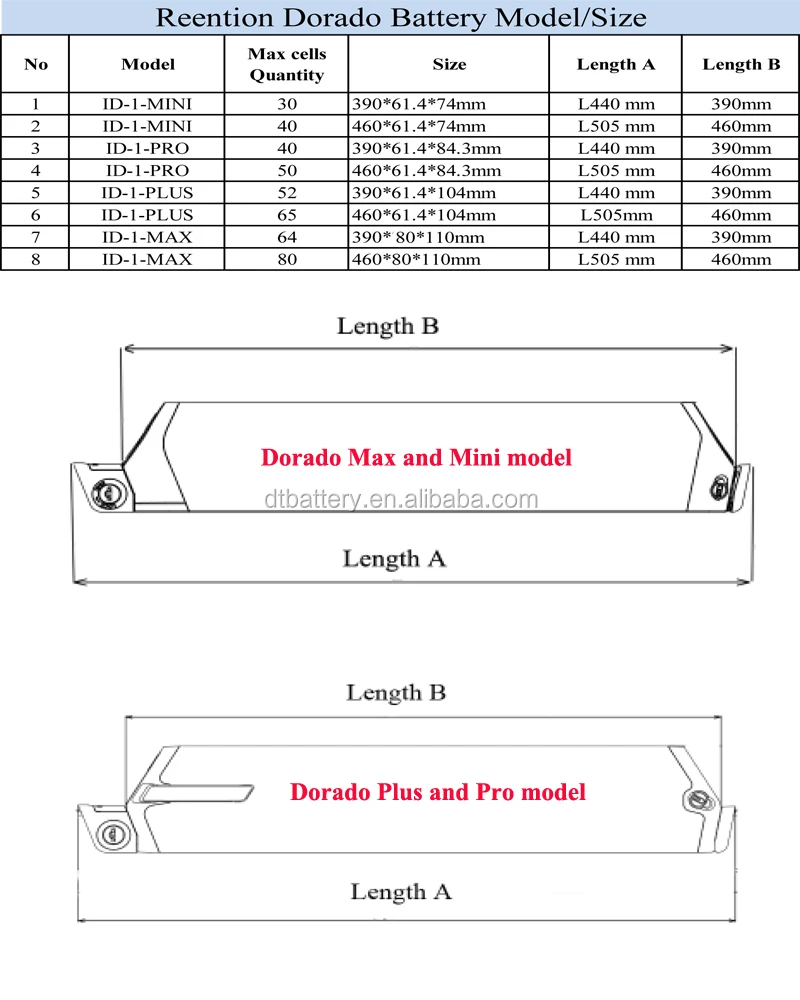

Outer case	Dorado Mini 65*74*458mm or Dorado Pro 65*85*390mm
Standard Charge	Constant Current 0.2C, Constant Voltage 54.6V Cut-off
Fast Charge	Constant Current 0.5CA, Constant Voltage 54.6V Cut-off
Standard Discharge	Constant Current 0.2C/End Voltage 39V
Continuous Discharge Current	20A
BMS function	Over-Current Protection,Over-Discharge Protection, Over-Charge Protection, Short-Circuit Protection, Balance
Storage Temperature Range	Temperature: -10-40 Relative humidity:45-75% Pressure: 86-106KPa



2. Our service of 48v 8.7Ah/9.6Ah/10.5Ah dorado electric bike battery:

(1)12 months warranty;

(2) Strict quality control: All parts must be strictly tested by our engineer before shipping;

(3) OEM service is available;

(4) Small quantity is acceptable;

(5) Return policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.

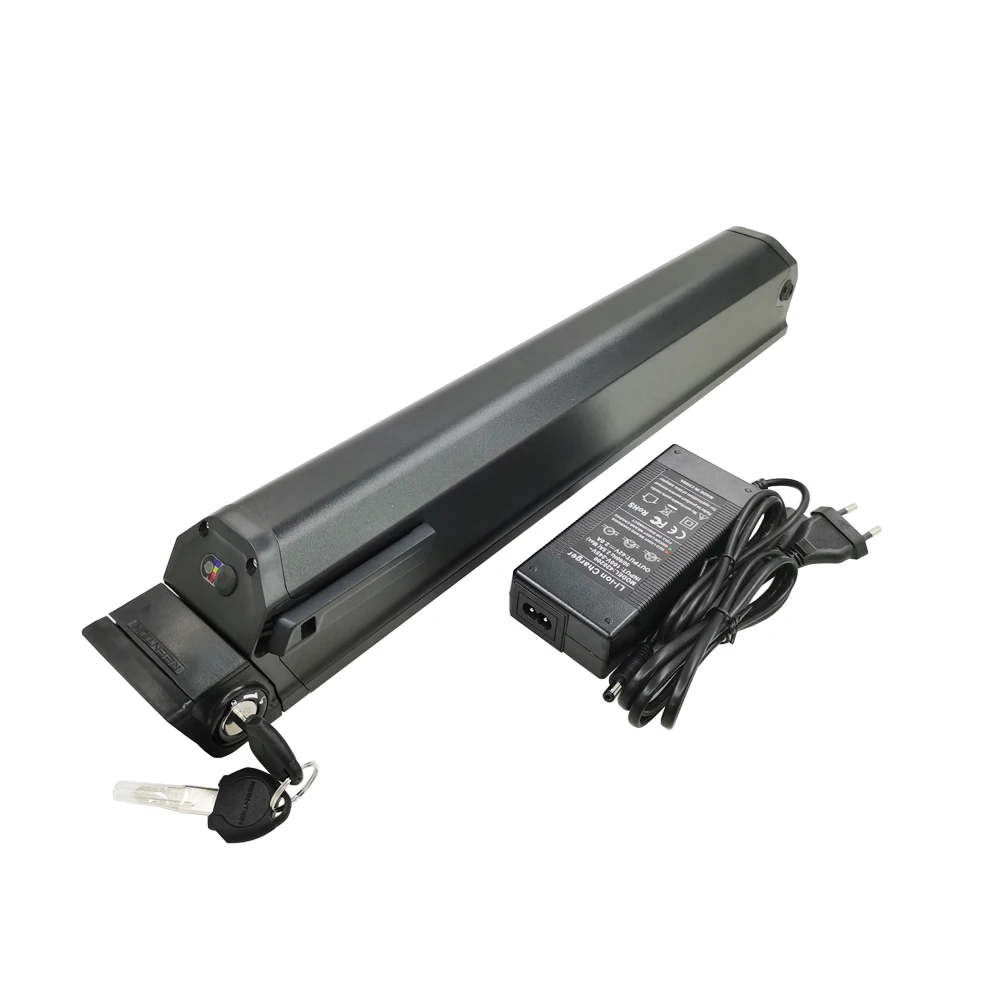

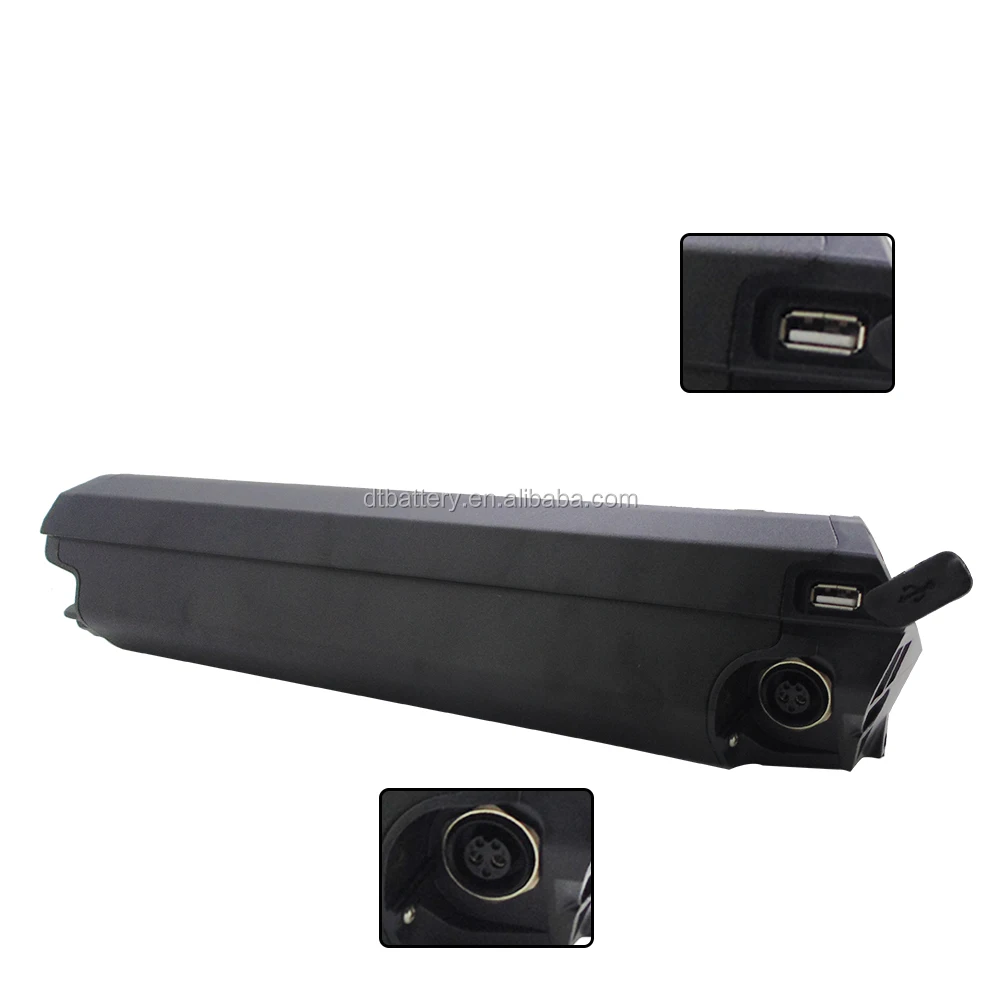

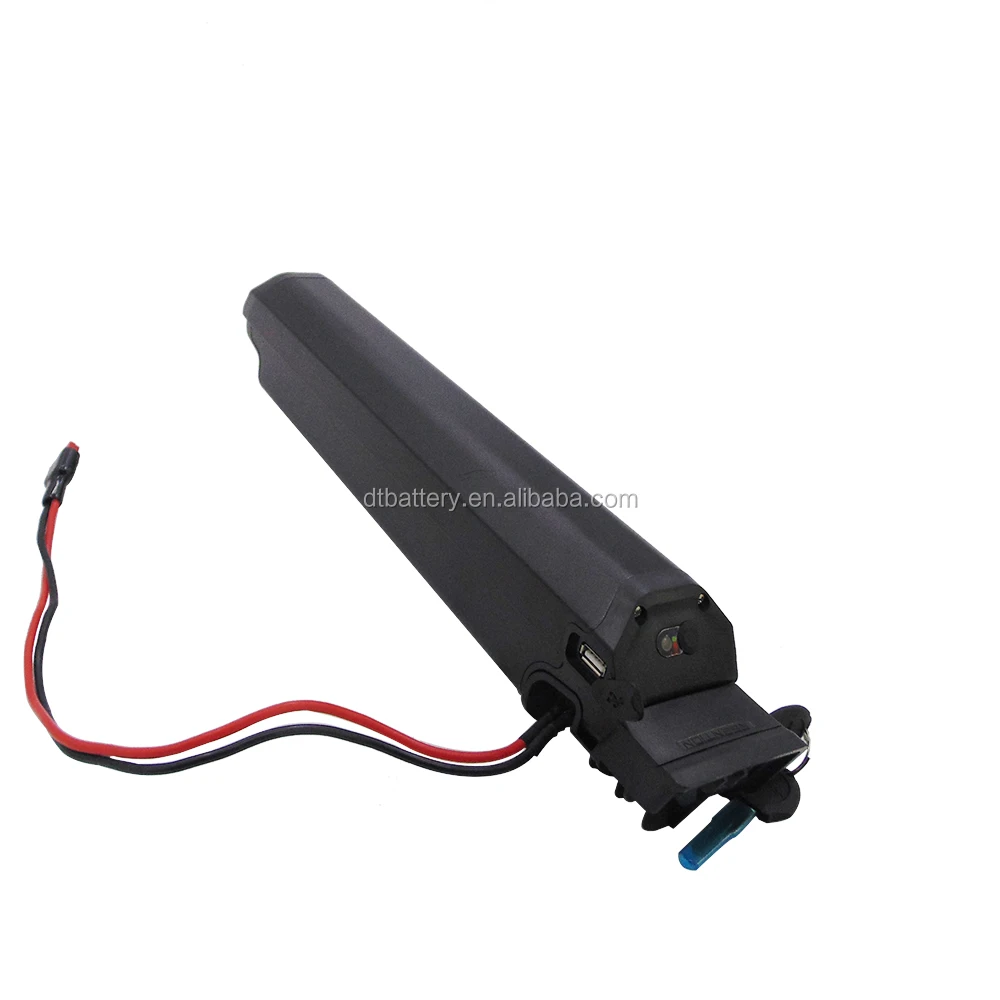

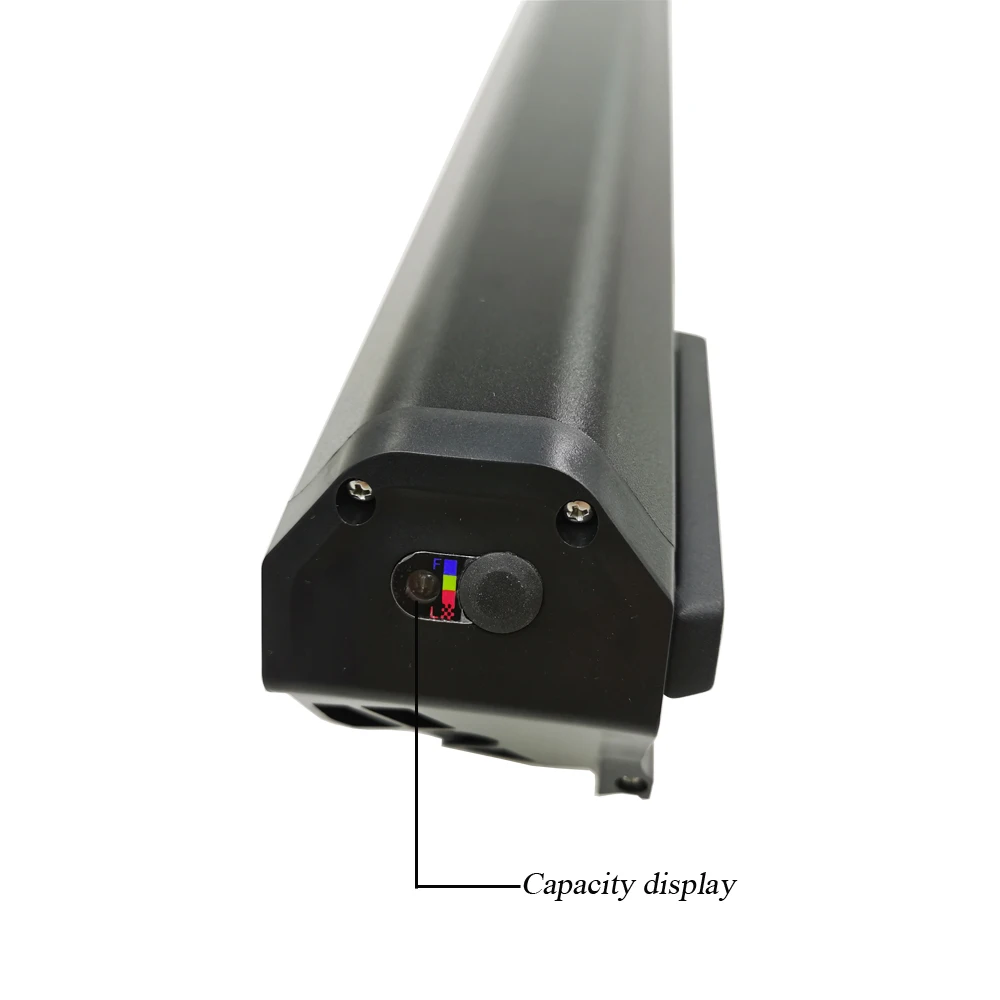

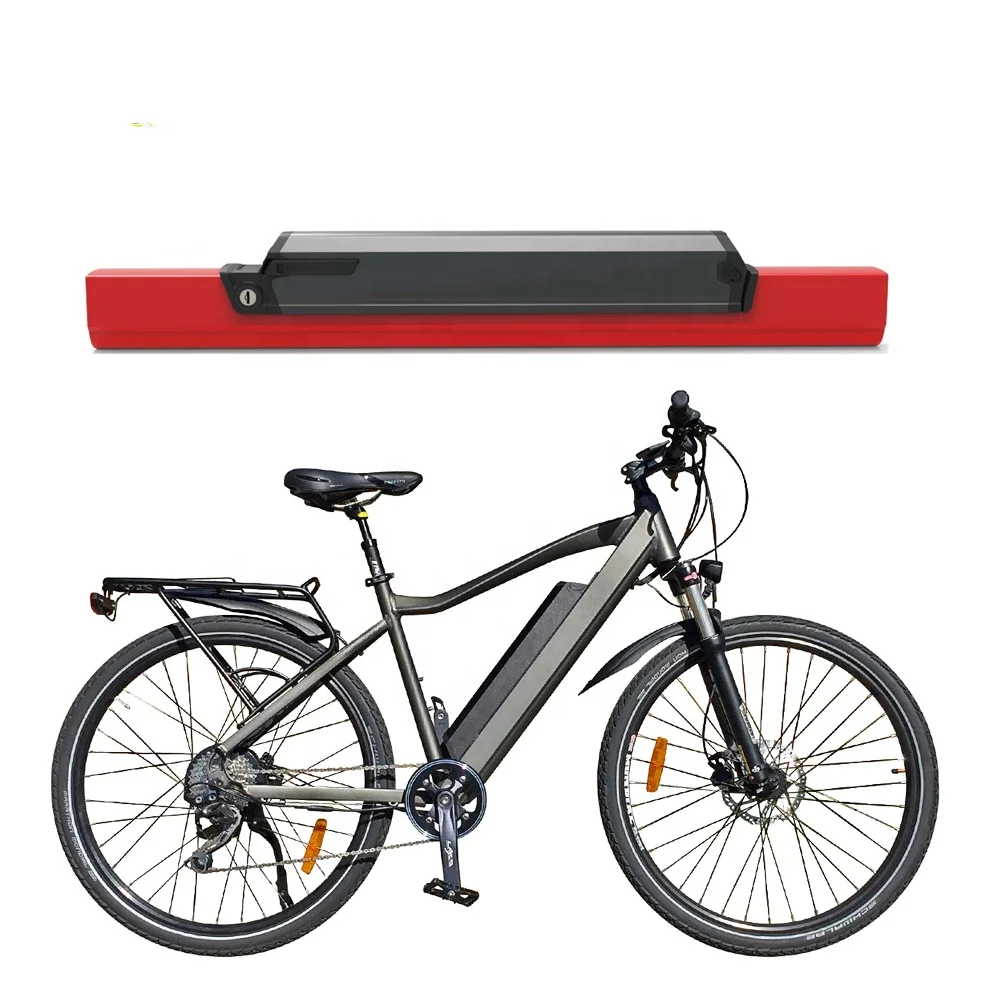

3. Picture of our 48v 8.7Ah/9.6Ah/10.5Ah dorado electric bike battery:





4. Caution of our 48v 8.7Ah/9.6Ah/10.5Ah dorado electric bike battery:
(1) Do not attempt to disassemble, open or service the battery pack;
(2) Replace only with the battery pack designated for this product;
(3) Do not crush, puncture, short external contacts or dispose of in fire or water;
(4) Do not store above 60℃ (140°F);
(5) New battery pack must be fully charged before use;
(6) Keep contact pints clean.
