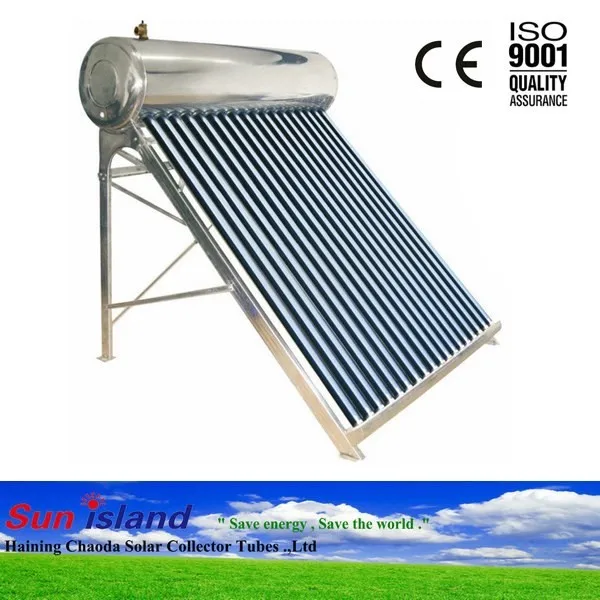

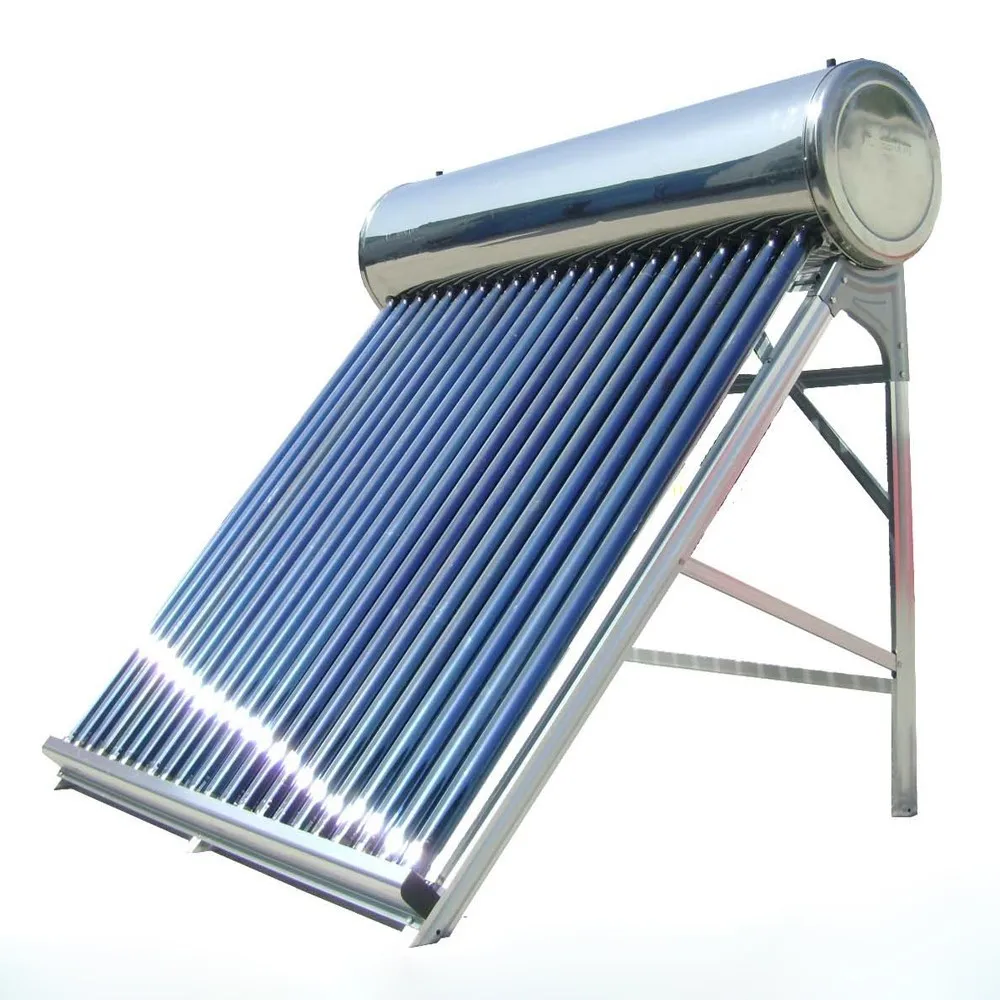

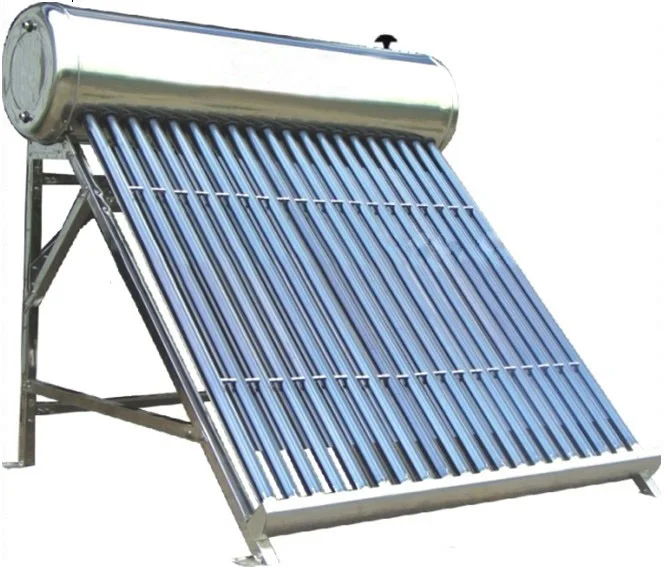

Солнечный водонагреватель с вакуумной трубкой 200 л
- Category: Solar Water Heaters >>>
- Supplier: Haining Chaoda Heat Collection Tubes Co. Ltd.
Share on (60836841841):
Product Overview
Description
Product Description
1. High efficient absorber of high performance with daily average efficiency over 50%.
2. Cheap and reliable solution, simple structure, easy installation.
3. Withstands water pressure no more than 0.1MPa.
4. Operated without any power supplying.
5. Easy plug-in installation and be installed on the roof or at the ground level.
6. No need to service for long time.
7. Water go through tube.
8. The pressure comes from the tap water.
9.Workable at any time and enjoyable.

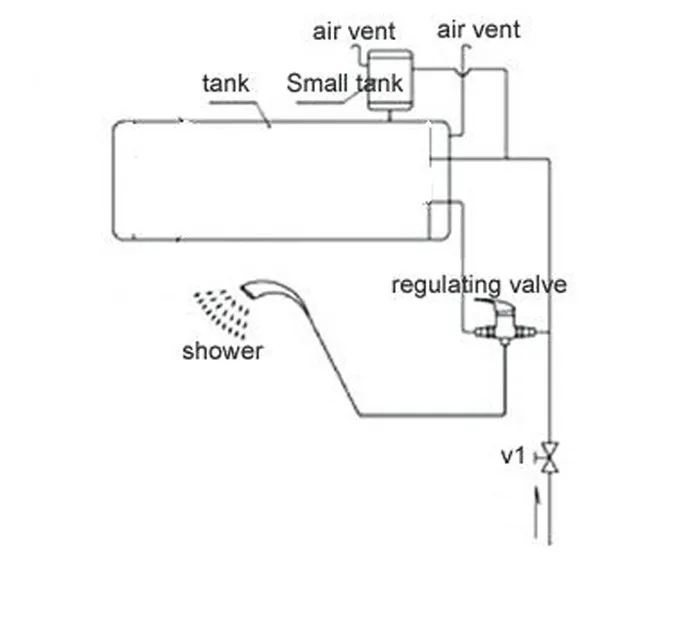

Solar water heater with automatic feeding tank is based on the natural circulation-thermosiphon phenomenon. It is the most economical type of solar systems for hot water application. Depending on the different density between hot water and cold water, a water flowing cycle is created in the tube. Hot water flows automatically upwards while the cold water from assistant tank flows down. The assistant tank can reduce the high pressure of cold water from water storage tank on the roof. When water tank is fulled with water, the ball valve inside assistank tank will close inlet automaticly. The water in the water tank will be heated from this natural circulation. And there is a stable water pressure. The outlet will supply enough hot water pressure and keep stable temperature balance to shower. It has the feature as the most economic type. It wan work indepently as well as work together with assistant tank. Electric element heater can be installed when it is rainy or claudy day. Workable at any time and enjoyable.

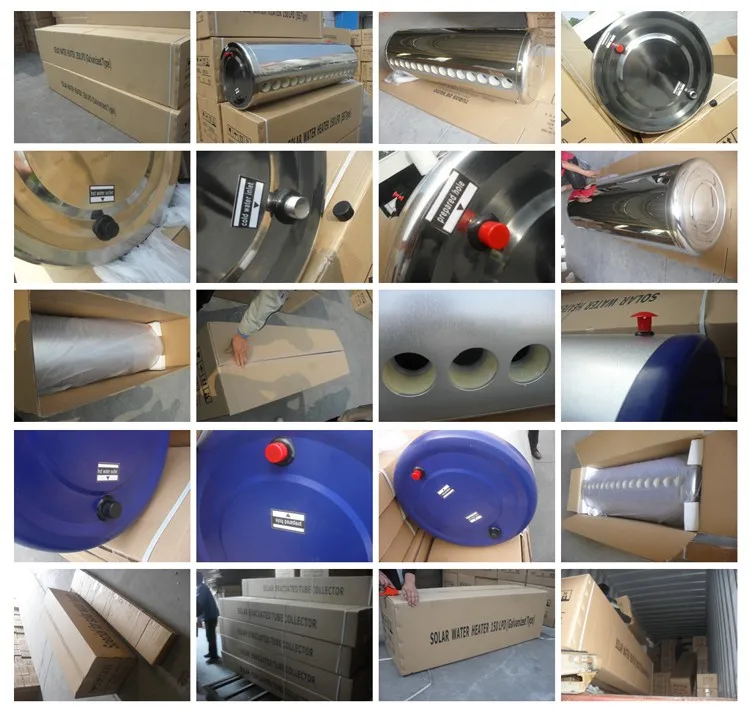

Detailed Images

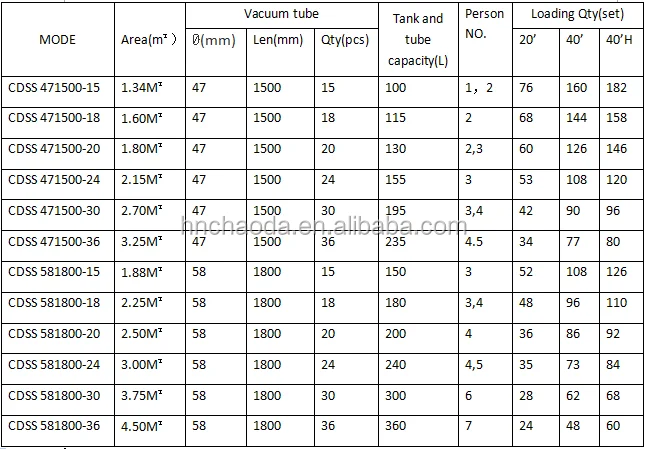

Specifications of Non pressurized solar water heater
Tank capacity (L):100~400L
Material of inner tank:0.31mm thickness SUS304 stainless steel
Material of outer tank:0.31mm thickness SUS201 stainless steel
Insulation (mm):55mm thick Polyurethane foam
Tube specification (Dia x Len) mm: 58/1800mm
Tube quantity:10~40 PCS or as costomer`s request
Color of tube:Blue or purple golden
Material of frame:1.2mm thickness stainless steel
Angel of frame:20-70 degree
Color of frame:Silver,black,white, blue, red,or as costomer`s request
Inlet and outlet hole:Male G 1/2, 3/4
Fastening pieces:Made of stainless steel screw
Accessories:Silicon rings, Gasket rings
Warranty:3 years
Packing & Delivery
If LCL/sample order, in order to avoid be broken in shipping, we will pack the tubes with wood box.
FCL Order: international standard export cartons for tank, frame and tubes if full containers(FCL), international standard export cartons for tank, frame, case (plywood)+ cartons for tubes if less than full container(LCL).

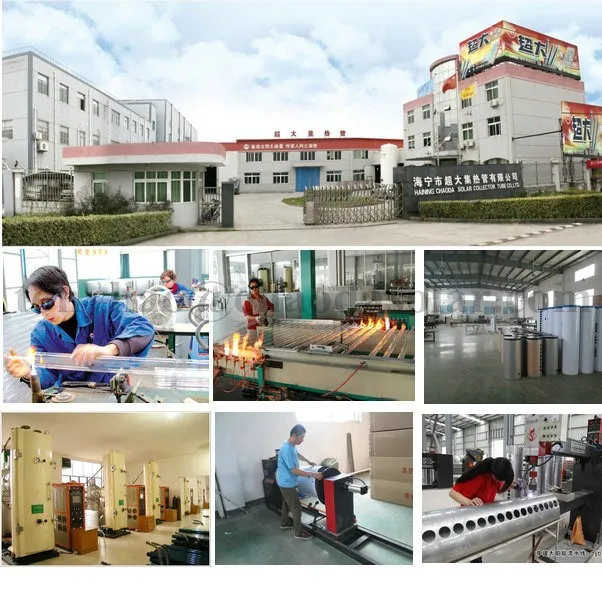

Our Company
Founded in 2006 , Haining Chaoda Solar Collector Tubes Co.,Ltd is professional supplier for all kinds of solar water heater products .
We supply good price and high quality solar water heaters ,solar collectors ,solar vacuum tube ,solar water tank ,solar bracket ,solar PV panel ,solar air conditioner ,solar hot water project and other related accessory and fittings .
we has been in international solar bussiness for more than 10 years , exporting to Europe ,Canada , USA , Middle east ,Mexico , New zealand ,Iran ,South Africa and so on .
Our company has CE ,solar key mark ,ISO9001 certificates . We are honest to be your best supplier.
