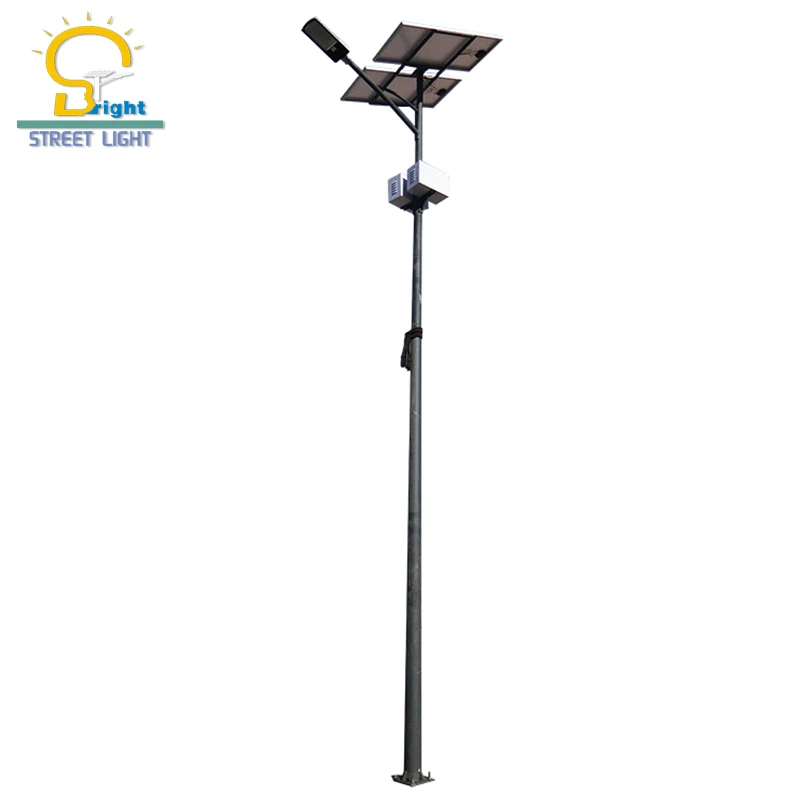

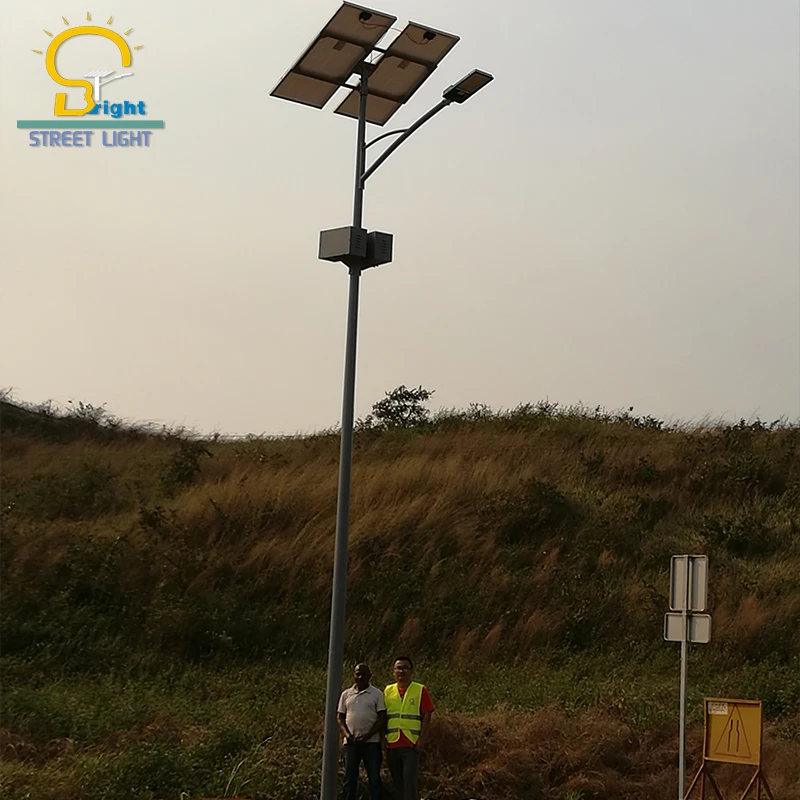

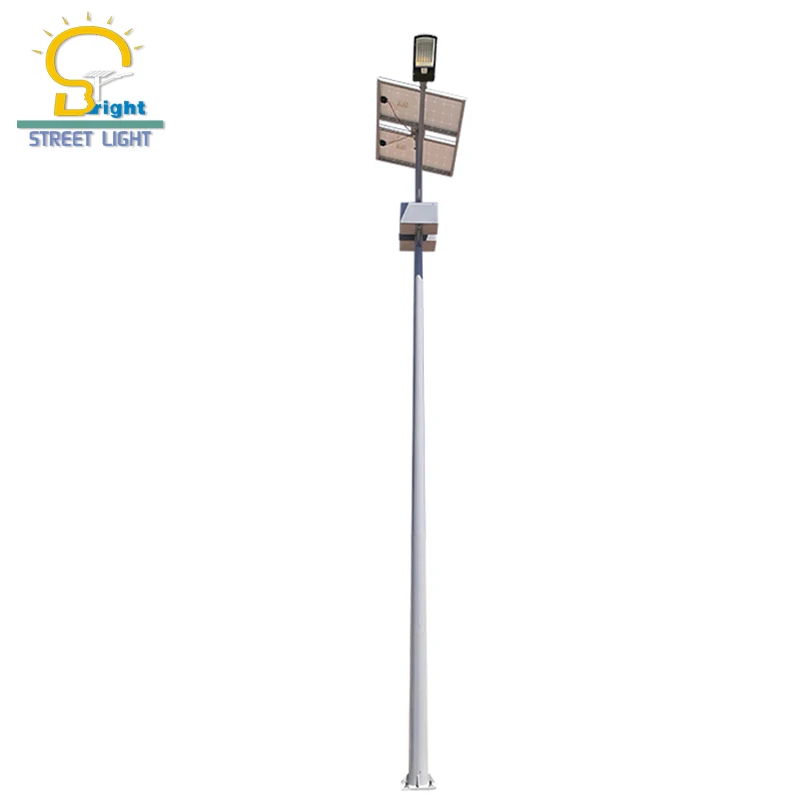

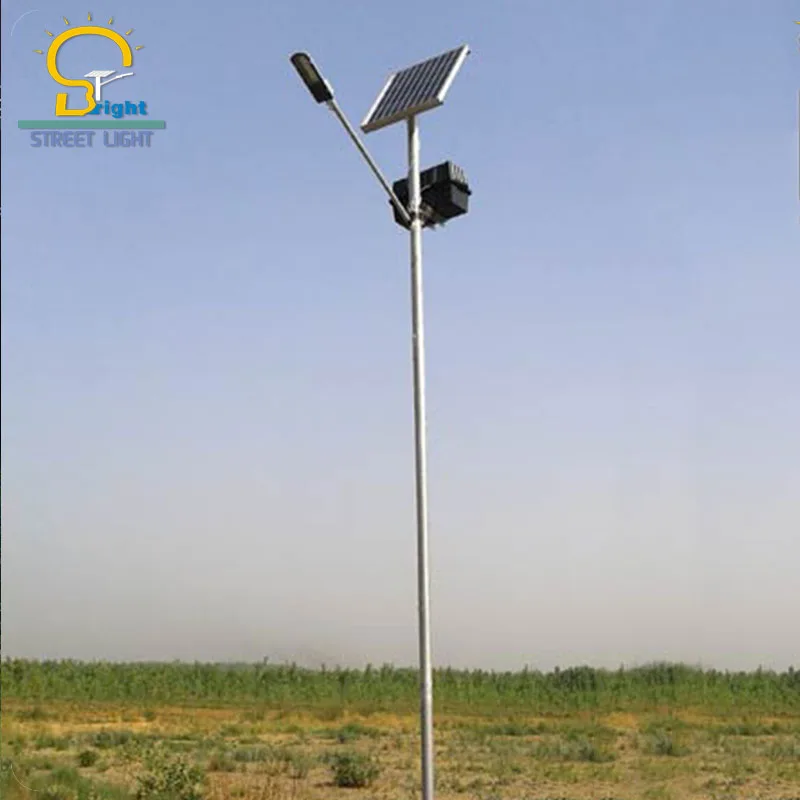

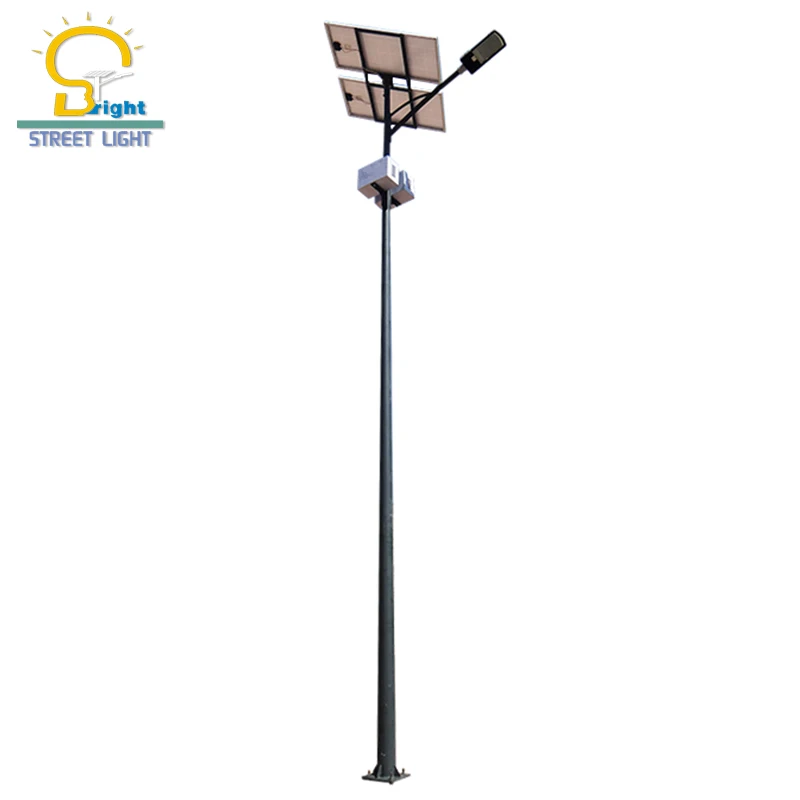

3 5 years warranty 600W LED aluminum alloy solar street light integrated solar street light

Solar panel

• 180W for 24V Lighting,17% Efficlency,Mono Crystalline,Sillicon

• High Efficiency.Adding Aluminum Frame,Tempered Glass

Gel Battery

• 180ah/12v*2,Deep Cycle

• Maintenance Free

Intelligent Solar  Controller (PWM/MPPT Type)

• 20A/24V, Automatic Light and Time Control

• Over-Charging/Discharging Protection

• Reverse-connection Protection

• Switch on Automatically with Light

• Sensor Switch off after 11-12 Hrs Later.

• IP 68

 Light Source: High Power LED

• 120W LED, White Color, 150LM/W, 2700-6500k, IP65,

          140 Degree Angle, High Power, High Brightness.

 Pole

• 10M Height, Steel, Hot-Dip Galvanized.

• With Arm, Bracket, Flange, Fittings, 80mm top, 180mm

         bottom, 3.5mm thickness, Cable, Etc. Plastic Coated, Rust

           Proof.

 Battery Box

• Material: Engineering Steel Hold 2 batteries.

• With Rubber inside for Protection Cable,

• Anti-theft Screw, Fittings IP65

 Base Foundation & Fittings

• Assemble Design M20*1.2m J bolts

• Suitable for the Pole Flange Size
