Product Overview

Description

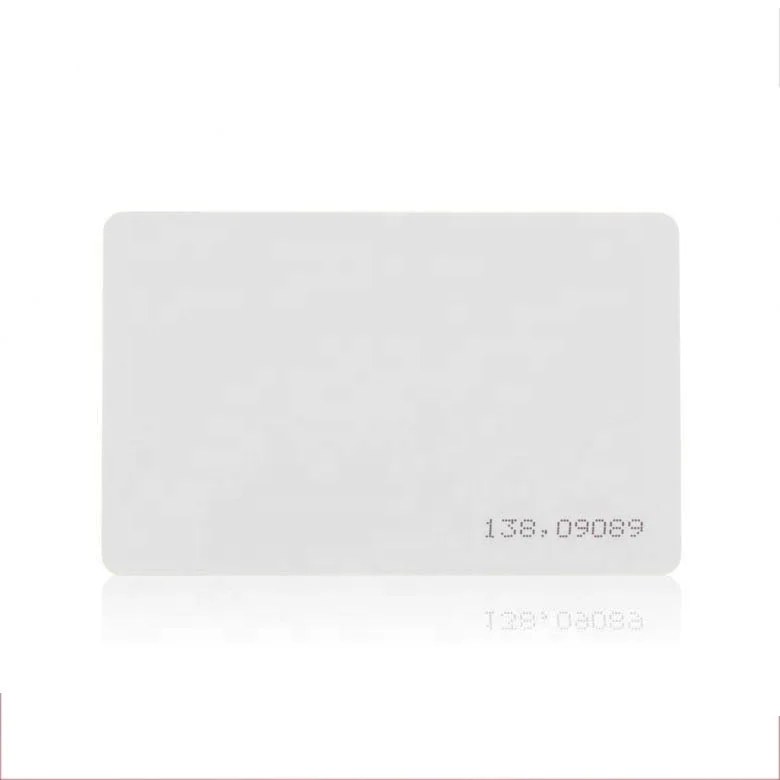

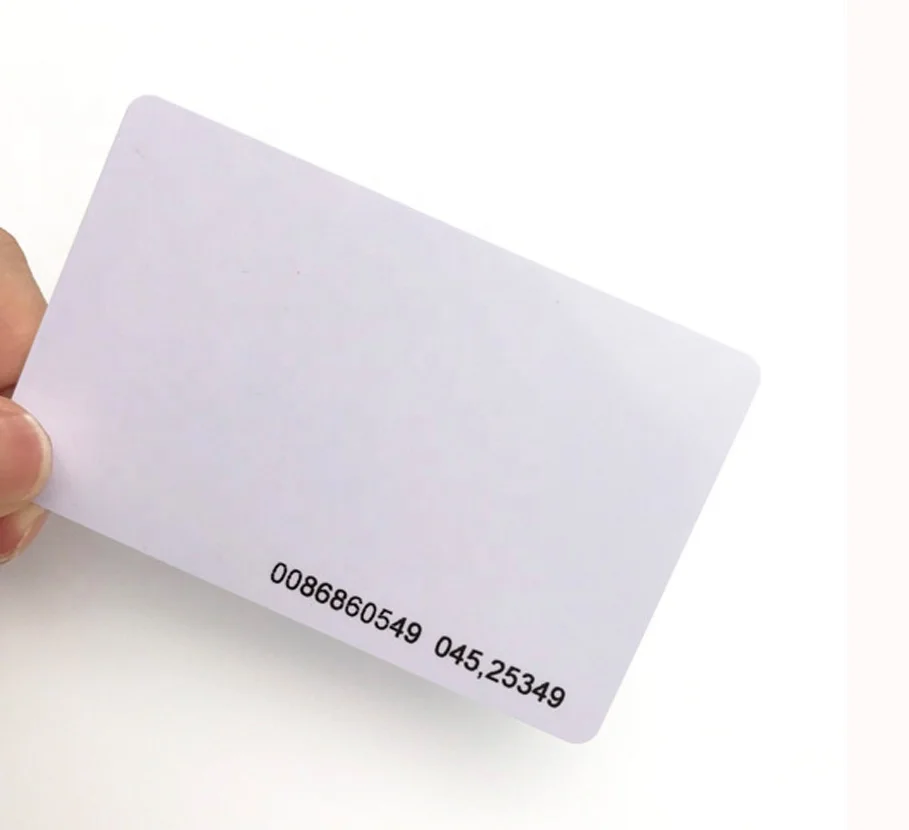

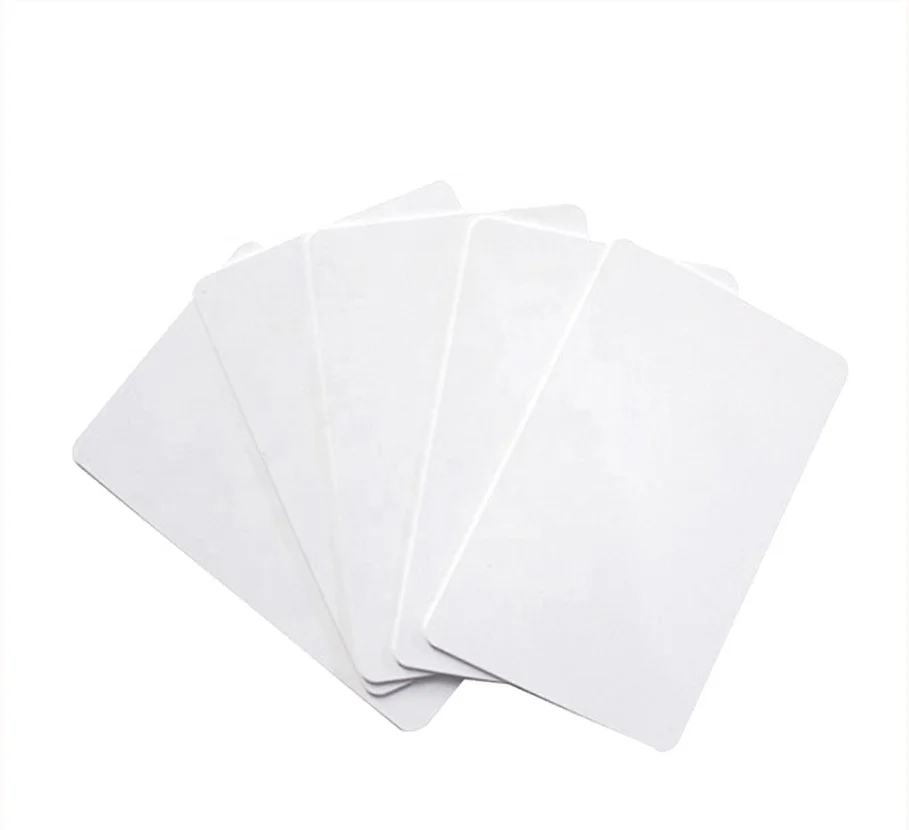

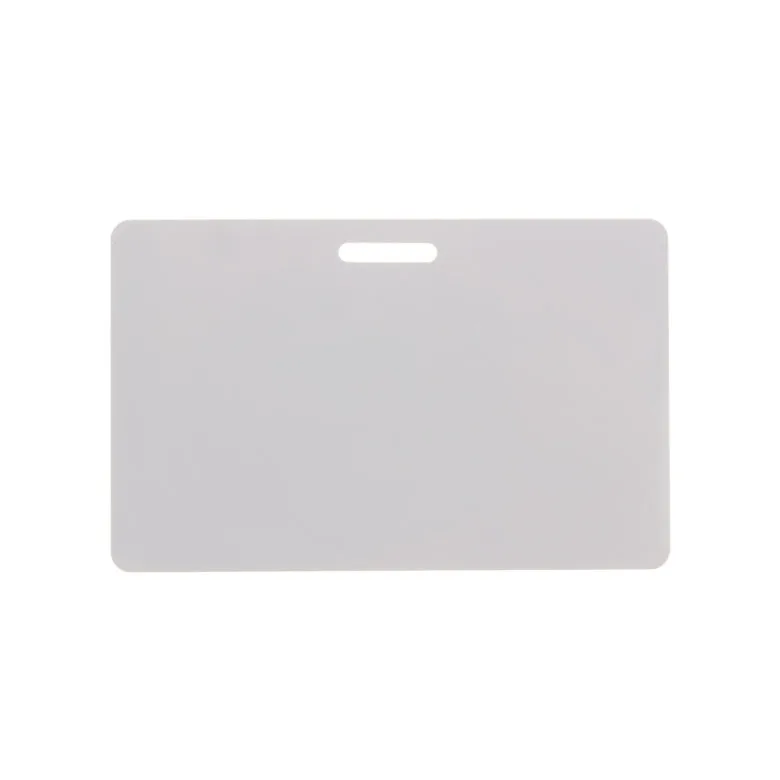

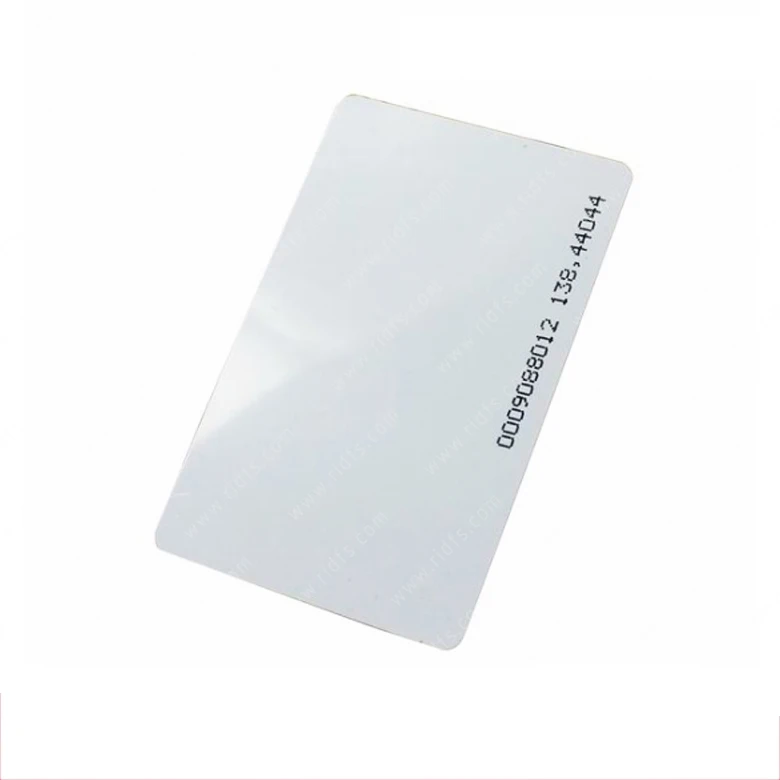

printable rewritable chip rfid MIFARE Classic® 1K blank paper card

Free Sample! Quality is our culture.

100% premium quality, reasonable price, sales and kindly service for you!

Parameter
1. Item		printable rewritable chip rfid MIFARE Classic 1K blank paper card
2.Frequency		13.56mhz
3.Protocol		ISO14443A
4.Chips available		MIFARE Classic 1K
5.Operation temperature		-10°C +50°C(PVC      PET: -10°C—+100°C;
6.Store temperature		-20°C~+60°C;
7.Read range		1-10cm (reIated to the reader and reading environment);
8.R/W		read only or R/W;
9.Write endurance		100,000 times;
10.Data endurance		10 years.
Suface:Glossy ,Matt finish

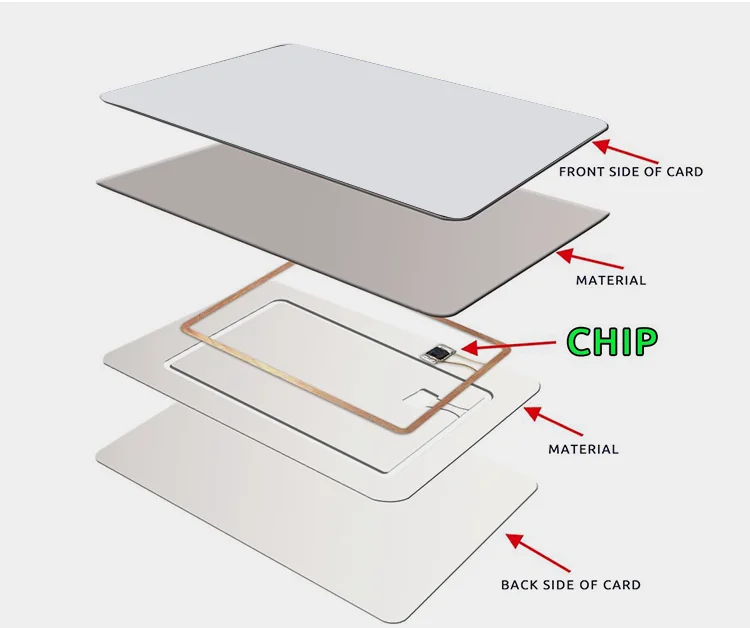

Material	PVC,Paper, PET or others;
Printing	offset printing or digital printing,silk pritning;
Application	identification,Card,Logistics,Library,Asset management,Payment, Access control

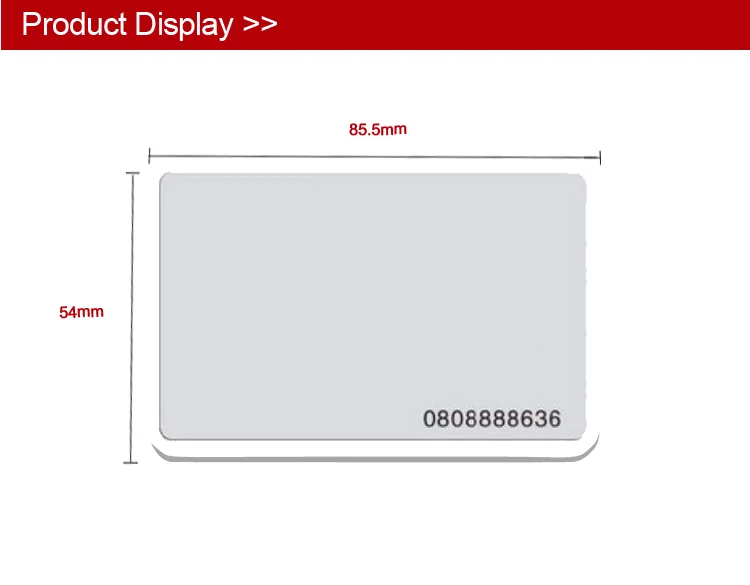

Size	85.5*54 or customized;



Remark:

MIFARE and MIFARE Classic are trademarks of NXP B.V.

MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.

MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.

MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.



Feature:

1.1 MIFARE®, RF Interface (ISO/ IEC 14443 A)

* Contactless transmission of data and supply energy (no battery needed)

* Operating distance: Up to 100mm (depending on antenna geometry)

* Operating frequency: 13.56 MHz

* Data transfer: 106 kbit/s

* Data integrity: 16 Bit CRC, parity, bit coding, bit counting

* Anticollision

* Typical ticketing transaction: < 100 ms (including backup management)

1.2 EEPROM

* 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)

* User definable access conditions for each memory block

* Data retention of 10 years.

* Write endurance 100.000 cycles

1.3 Security

* Mutual three pass authentication (ISO/IEC DIS 9798-2)

* Individual set of two keys per sector (per application) to support multi-application with key hierarchy

* Unique serial number for each device
