Product Overview

Description

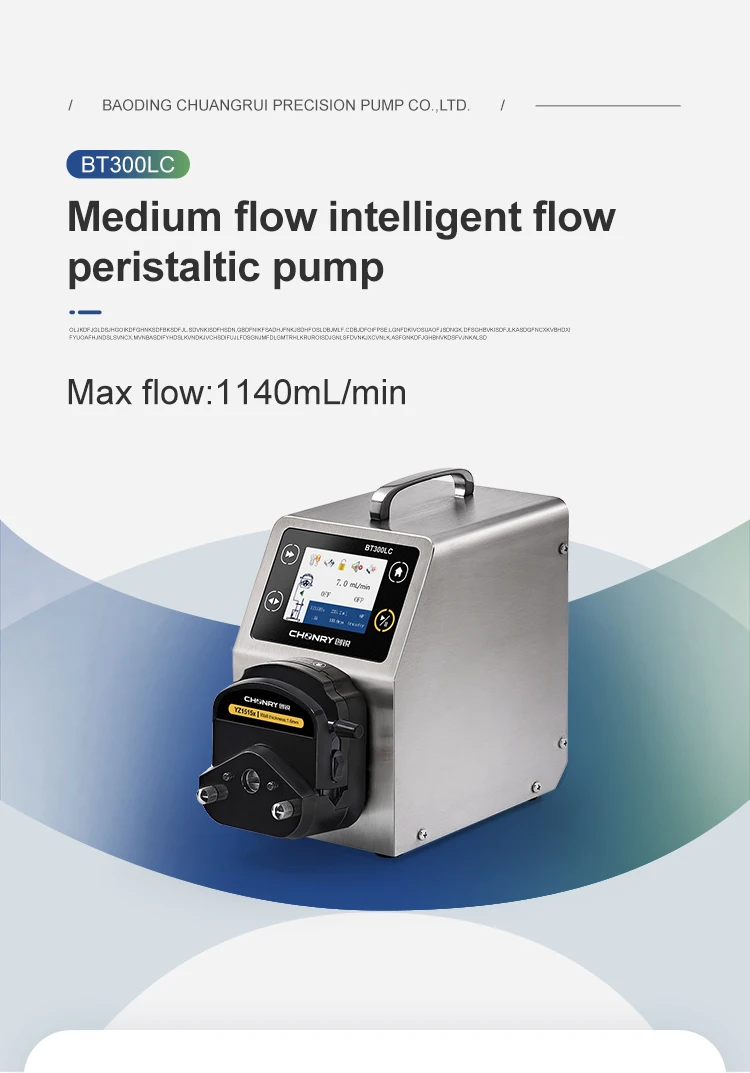

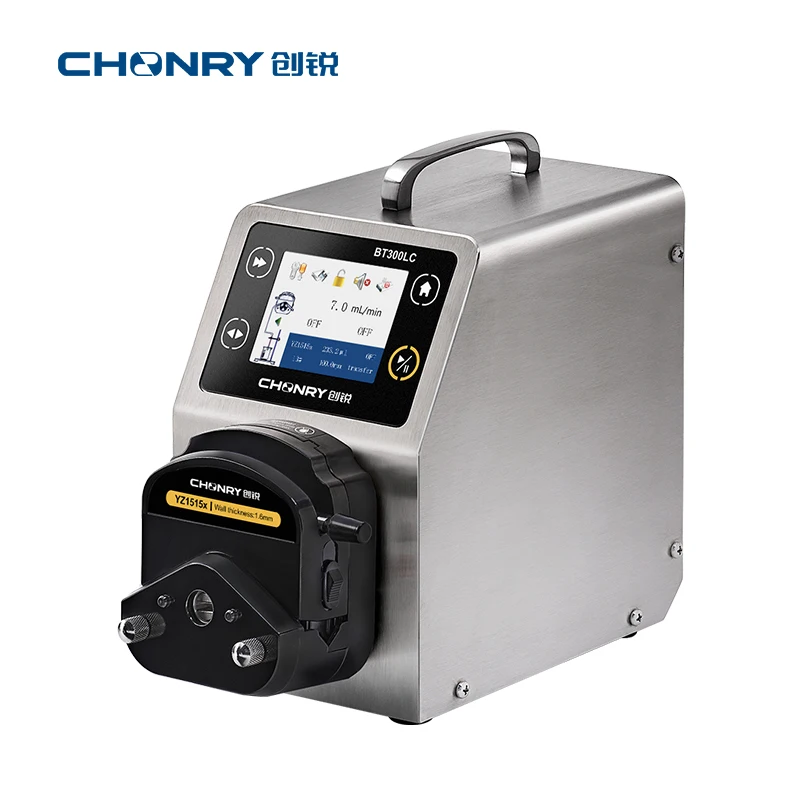

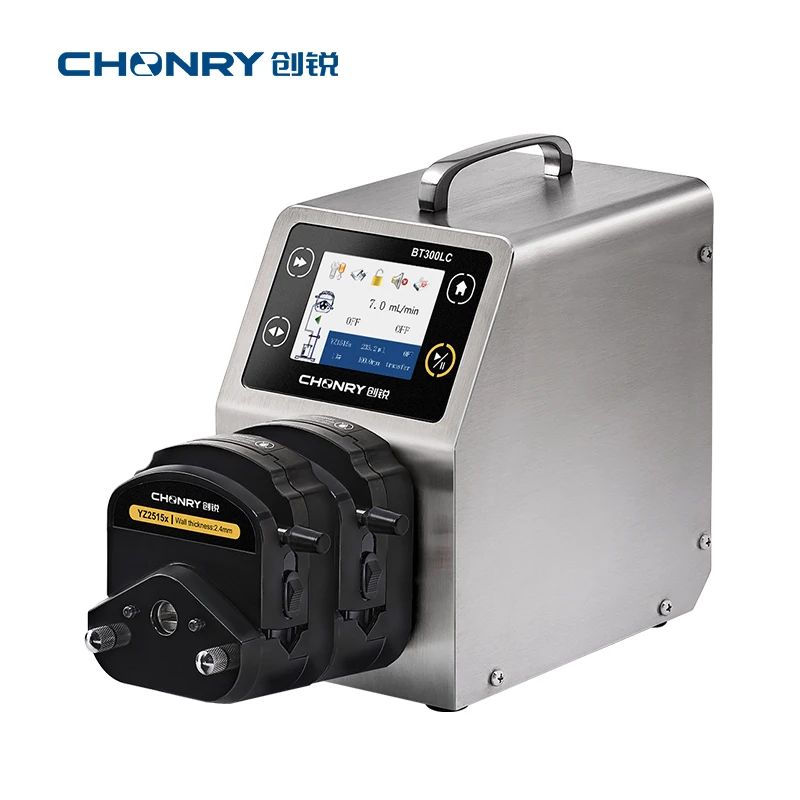

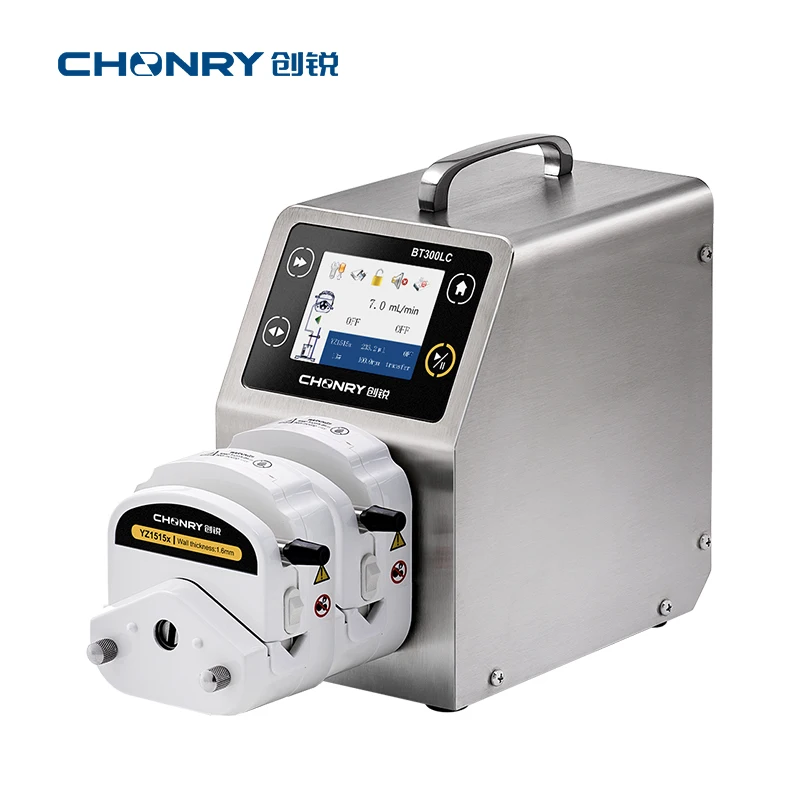

Medium flow intelligent flow peristaltic pump

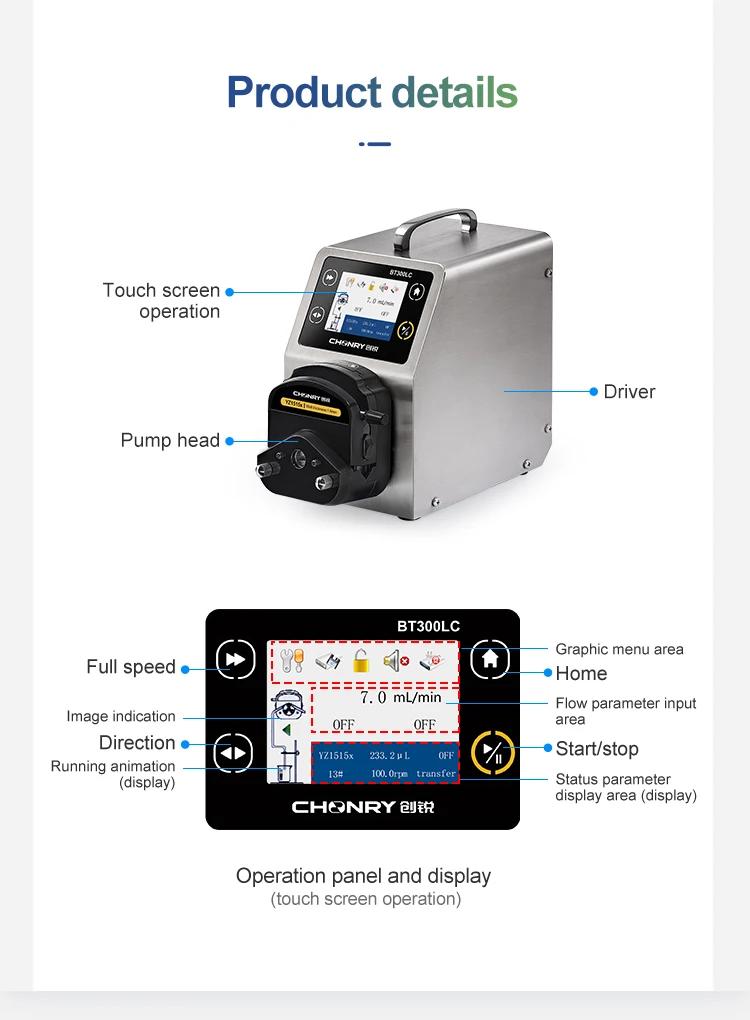

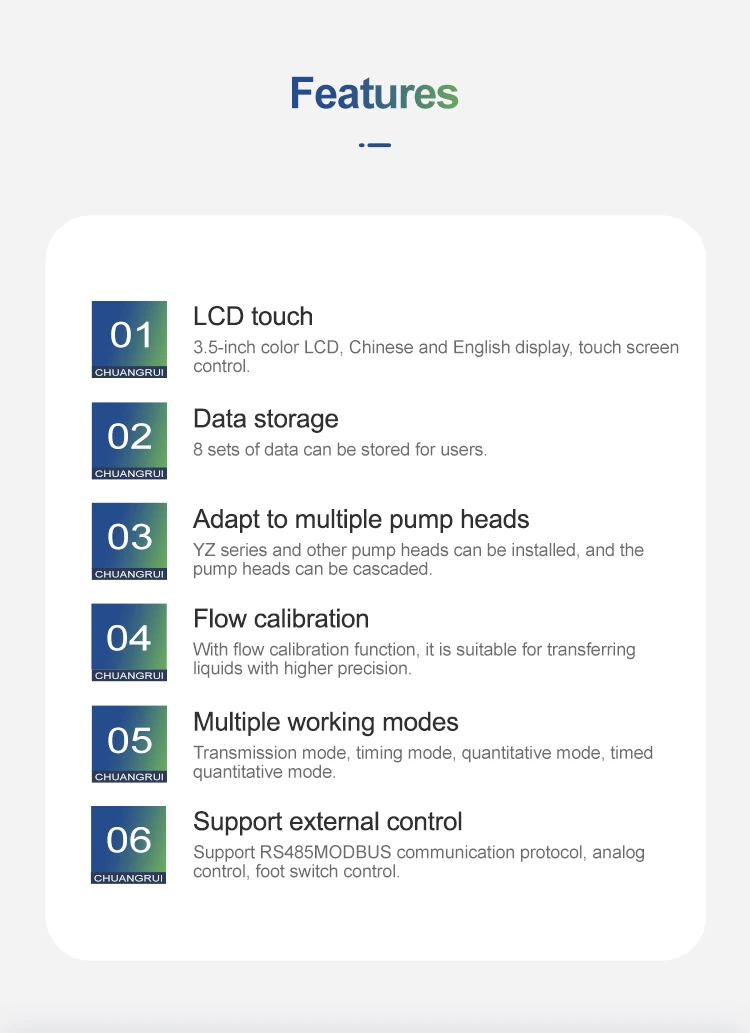

LC series is a medium flow intelligent flow peristaltic pump. The stainless steel all-inclusive design is sturdy and durable. The 3.5-inch color LCD screen is touch-controlled and has a variety of working modes. It can display the transmission status, flow data, setting parameters, and transmission direction with animation on the same screen. , The storage function can save 8 groups of filling data, realize fast filling, and support various external control methods such as RS485MODBUS communication protocol.

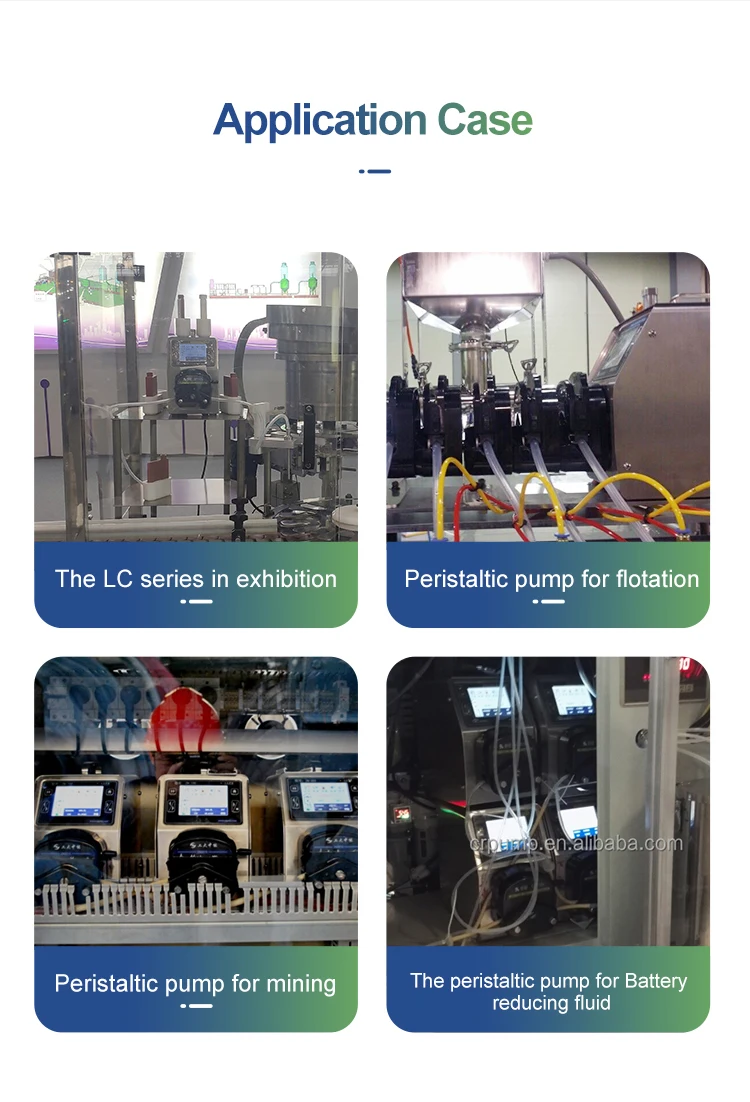

Used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.




Drive model
BT300LC
Max speed
300rpm(reversible)
Speed resolution
0.1rpm

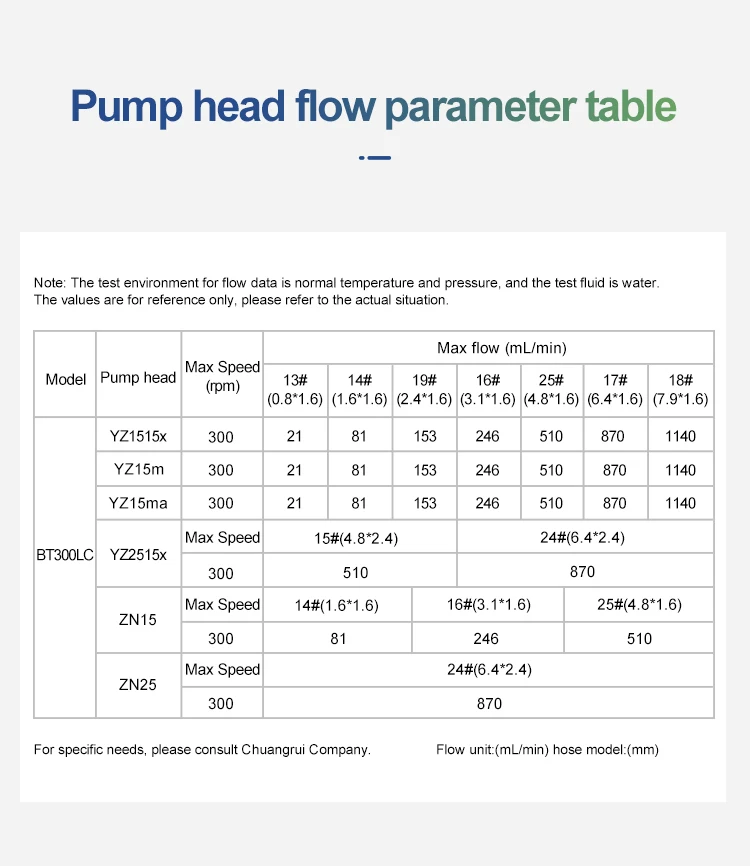

Max flow
1140mL/min
Display method
LCD(EN and CN)Color LCD display (Chinese and English optional)
Speed mode
Touch screen adjustment
Timing range
0.1s-9999min
Quantitative range
0.001mL-9999L
Back suction angle
10°-720° (0° means no back suction)
Back suction speed
10-300rpm
Power
<35W
Drive size
215x136.4x236.7mm
Drive weight
4.64kg
Power supply
AC220±10% (standard) or AC110V±10% (optional)

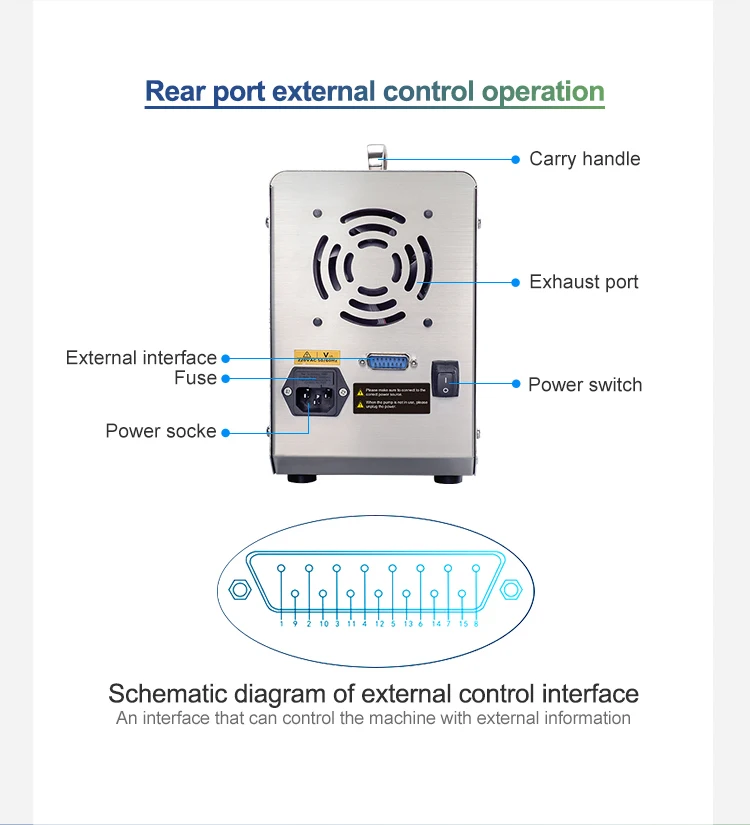

External control method
Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication






















Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump. With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field. Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
