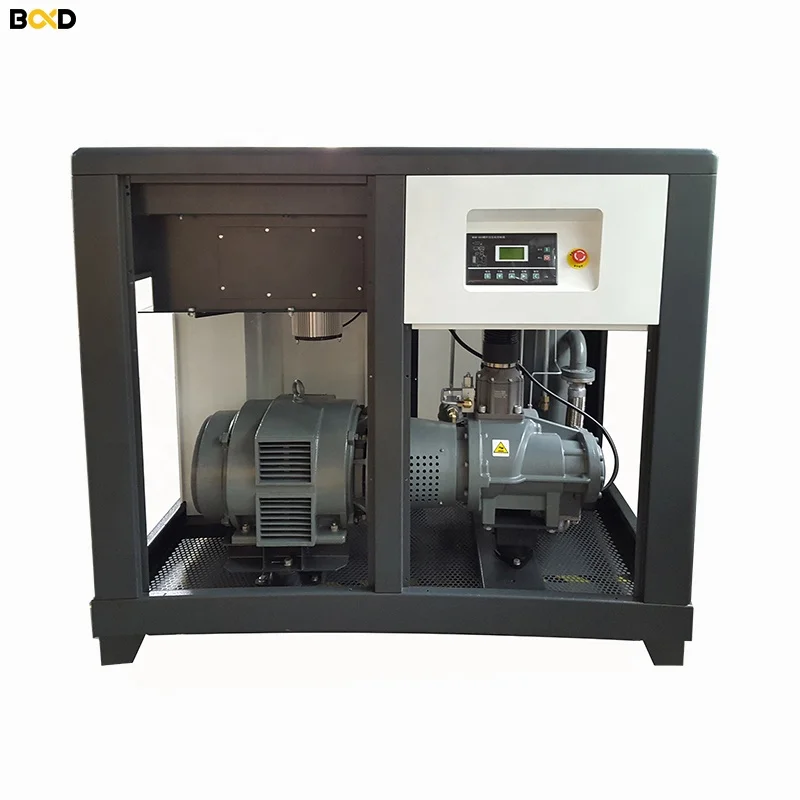

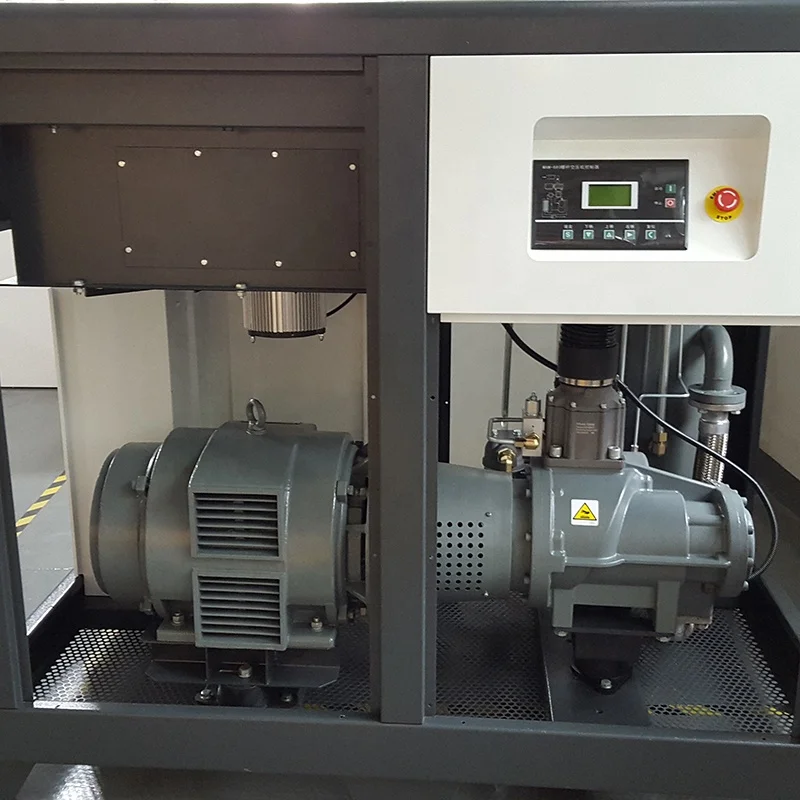

star delta starting type motor screw air compressor from chinese B&D technology factory
- Category: >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (60836887776):
Product Overview
Description
| Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight(kg) | Output pipe Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| psig | bar | cfm | m3/min | kw/hp | L | W | H | |||||
| BD-30A | 100 | 7 | 135.71 | 3.8 | 22 | Driect Driven | Air cooling/water cooling | 1250 | 800 | 1120 | 500 | ZG11/4" |
| 116 | 8 | 130.36 | 3.65 | |||||||||
| 145 | 10 | 110.71 | 3.1 | |||||||||
| 181 | 13 | 96.43 | 2.7 | |||||||||
| BD-40A | 100 | 7 | 185.71 | 5.2 | 30 | 1500 | 1000 | 1350 | 680 | ZG11/2" | ||
| 116 | 8 | 178.57 | 5 | |||||||||
| 145 | 10 | 153.57 | 4.3 | |||||||||
| 181 | 13 | 135.71 | 3.8 | |||||||||
| BD-50A | 100 | 7 | 232.14 | 6.5 | 37 | 1500 | 1000 | 1350 | 685 | ZG11/2" | ||
| 116 | 8 | 225.00 | 6.3 | |||||||||
| 145 | 10 | 196.43 | 5.5 | |||||||||
| 181 | 13 | 175.00 | 4.9 | |||||||||
| BD-60A | 100 | 7 | 285.71 | 8 | 45 | 1750 | 1150 | 1500 | 1038 | ZG2" | ||
| 116 | 8 | 267.86 | 7.5 | |||||||||
| 145 | 10 | 250.00 | 7 | |||||||||
| 181 | 13 | 214.29 | 6 | |||||||||
| BD-75A | 100 | 7 | 375.00 | 10.5 | 55 | 1750 | 1150 | 1500 | 1043 | ZG2" | ||
| 116 | 8 | 350.00 | 9.8 | |||||||||
| 145 | 10 | 307.14 | 8.6 | |||||||||
| 181 | 13 | 271.43 | 7.6 | |||||||||
| BD-100A | 100 | 7 | 503.57 | 14.1 | 75 | 1900 | 1250 | 1650 | 1200 | ZG2" | ||
| 116 | 8 | 457.14 | 12.8 | |||||||||
| 145 | 10 | 414.29 | 11.6 | |||||||||
| 181 | 13 | 357.14 | 10 | |||||||||
| BD-125A | 100 | 7 | 571.43 | 16 | 90 | 1900 | 1250 | 1650 | 2100 | ZG2" | ||
| 116 | 8 | 535.71 | 15 | |||||||||
| 145 | 10 | 485.71 | 13.6 | |||||||||
| 181 | 13 | 435.71 | 12.2 | |||||||||
| BD-150A | 100 | 7 | 732.14 | 20.5 | 110 | 2200 | 1550 | 1800 | 2120 | ZG3" | ||
| 116 | 8 | 678.57 | 19 | |||||||||
| 145 | 10 | 614.29 | 17.2 | |||||||||
| 181 | 13 | 528.57 | 14.8 | |||||||||
Motor Efficiency Class:IE3/IE2 as per your required 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ | ||||||||||||
As an ISO 9001 certified facility,BALDOR understands quality is fundamental to production.
To handle the challenges associated with manufacturing high-variation products over a wide-range of production volumes, every process has been refined and continually improved over eight years. Using robust manufacturing resources planning (MRP), vertical integration and strategic sourcing, balanced assembly line design with networked workstations, interactive work instructions, and automated qualification of every product, BALDOR maintains the highest standard of quality in high-variation production, while remaining cost-completive over a range of production volumes.
1.Are you factory of trade company?
Factory
2.What's your delivery time?
No coustemize model (380v/3ph/50hz) will sent out whitin 3 to7 days.
3.How about your customer service and after-sales service?
24H on line service.
4.CAN we customize different voltage?
OEM is available.
