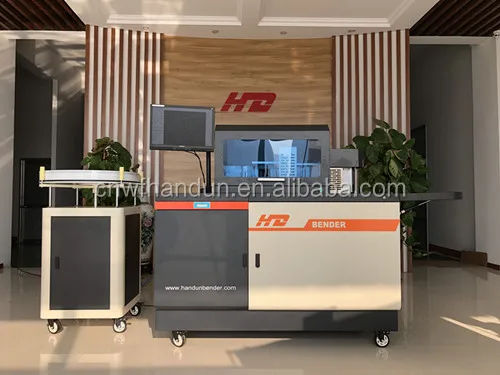

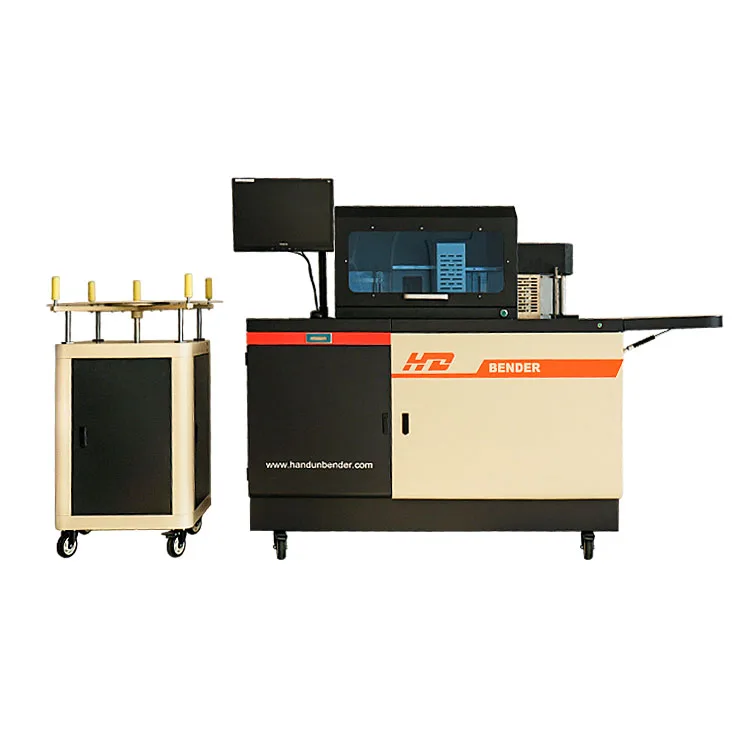

CNC 3D channel letter sign cutting and bending machine for advertising letter making
- Category: Channel Letter Bending Machine >>>
- Supplier: Weifang Handun Cnc Equipment Co. Ltd.
Share on (60836903651):
Product Overview
Description
Product Description
The most VERSATILE CNC channel letter bending machine for both aluminum and stainless channel letter. CNC 3D channel letter sign cutting and bending machine for advertising letter making
1, Exclusively developed software, high precision, easy to use. 95% users can learn it by themselves. Free software upgrades and technical support service for life.
2, Single-side slotting and double-side slotting are both optional, you can select according to your requirement.
3, It can process extruded aluminum profile, aluminum coil, channelume and steel etc.
4, Max material width is 160mm. It is equipped with famous brand stepper motors and serve motors and high precision control device.
5, Quality Milling Cutter for alu tapes. Planner cutter for stainless. All cutting depth for steel and aluminum can be adjusted in software settings, not need adjust by manually.
6, Work with air compressor.
7, Rubber rollers and quick-wear parts are easy to be changed by workers.
8, Fast bending speed, curve bending smooth and beautifully.
9, Two kinds of bender devices. One is for aluminum letters, the other for stainless letters. So no limit for any sign letters.
10, CE certificated. United States Patent No.: US9,021,847 B2.
11, Two year free warranty.
Feeding System
| Double-motor Rolling-typed continuous feeding system
|
Slotting System | Fully separated Planer cutter and Milling cutter double slotting system |
| Bending System | Fully separated Roller-bending and Double-Blade alternate bending/Pat bending two systems |
| Software | Self-developed Operate Software |
| Processing Material | Flat aluminum, Folded aluminum, Aluminum profile, Channelume, Stainless, Iron etc |
| Material thickness | 0.3-1.2mm |
| Material Height | 20-160mm |
| Speed | 5 Meters/Minute |
| Working Principle | Auto feed, Auto Slot(Cut), Auto Bend |
| Slot Degree | 45-120 Degree ( no limit for flat tapes) |
| Slot Depth | Auto-set in software, not need adjust manually |
| Min bending radius | 5mm |
| Precision | ±0.1MM |
| File Format | AI |
| Voltage | 220V |
| Motors | 2 Sevo motors + 6 Stepper motors |
| Power | 3000W |
| Air compressor | 0.6-0.8mpa |
| Machine Size | 1810*710*1370cm |
| Machine Weight | 360kg |
| Packing Weight | 400kg |

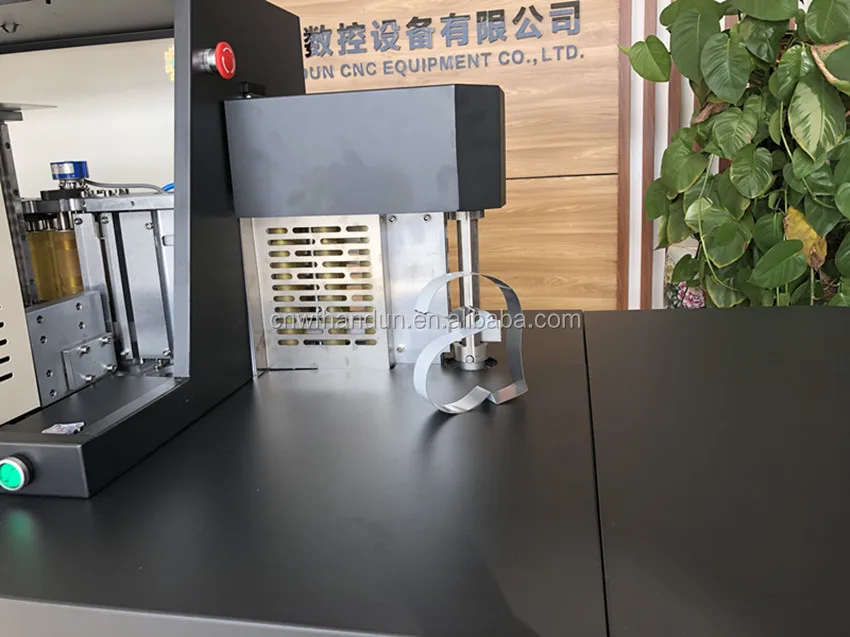

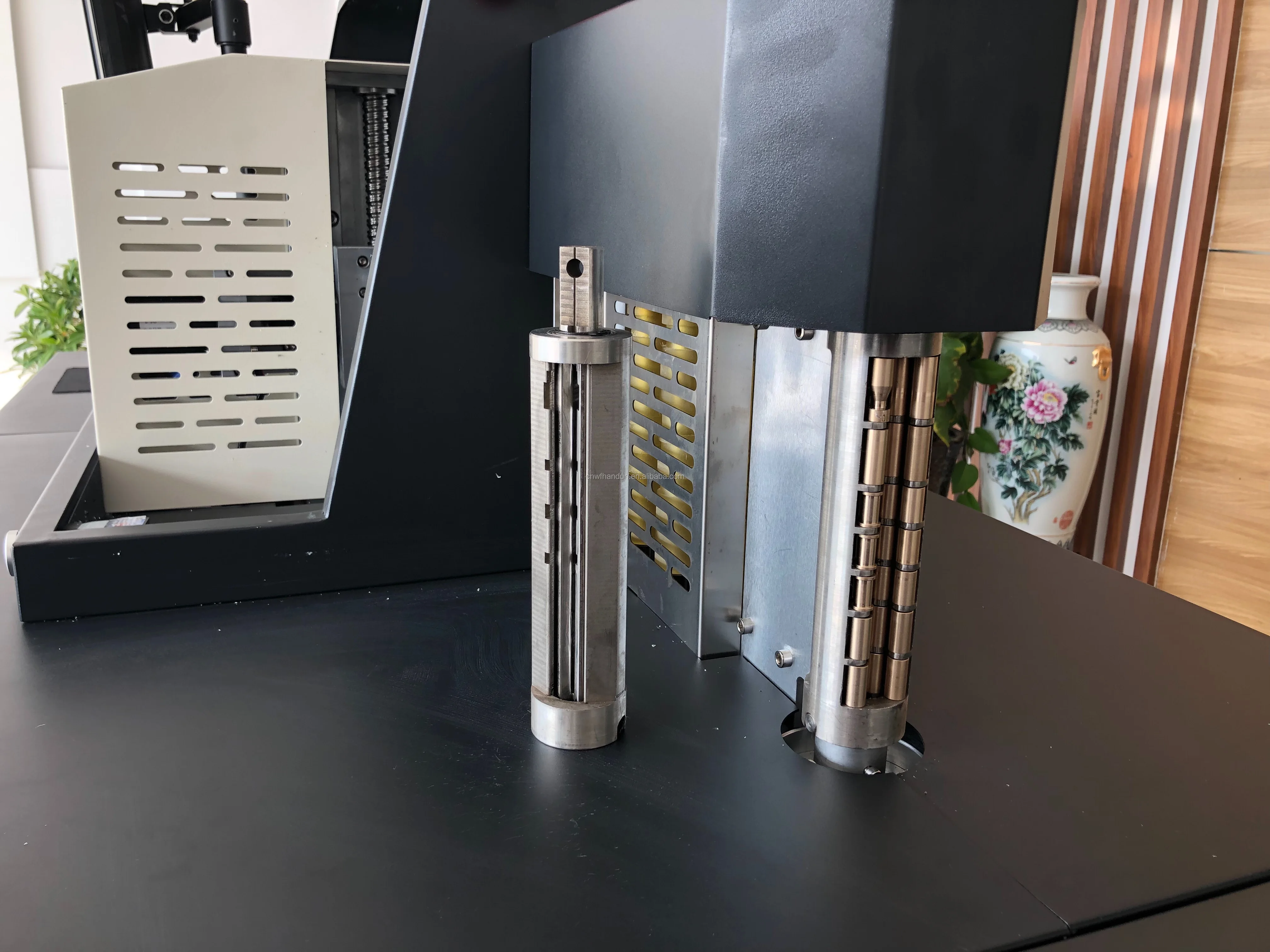

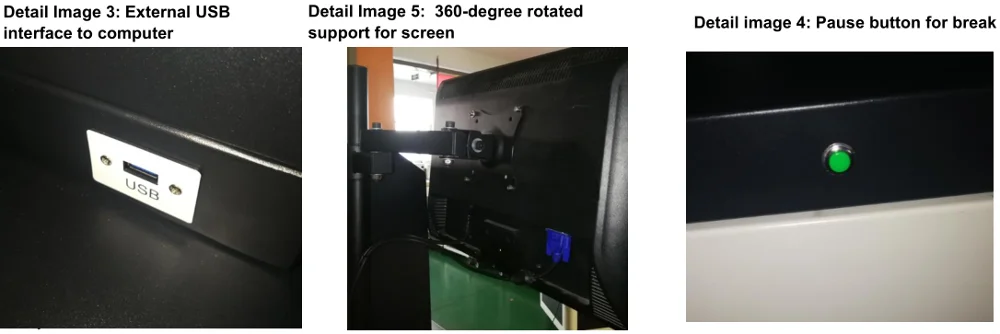

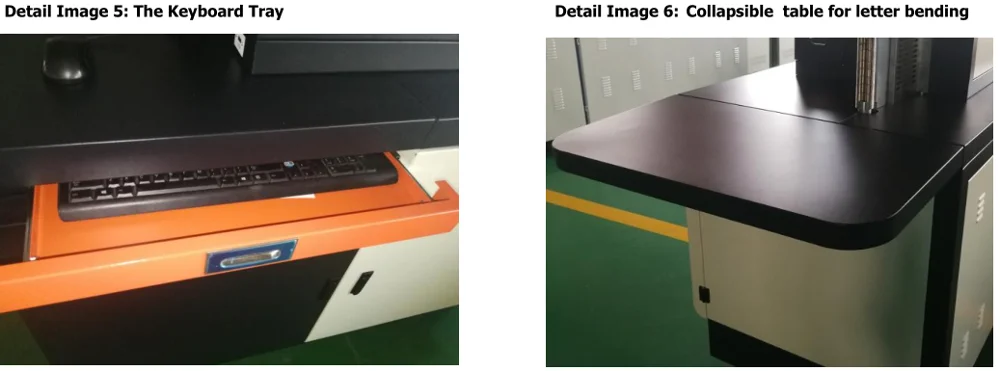

Detailed pictures:

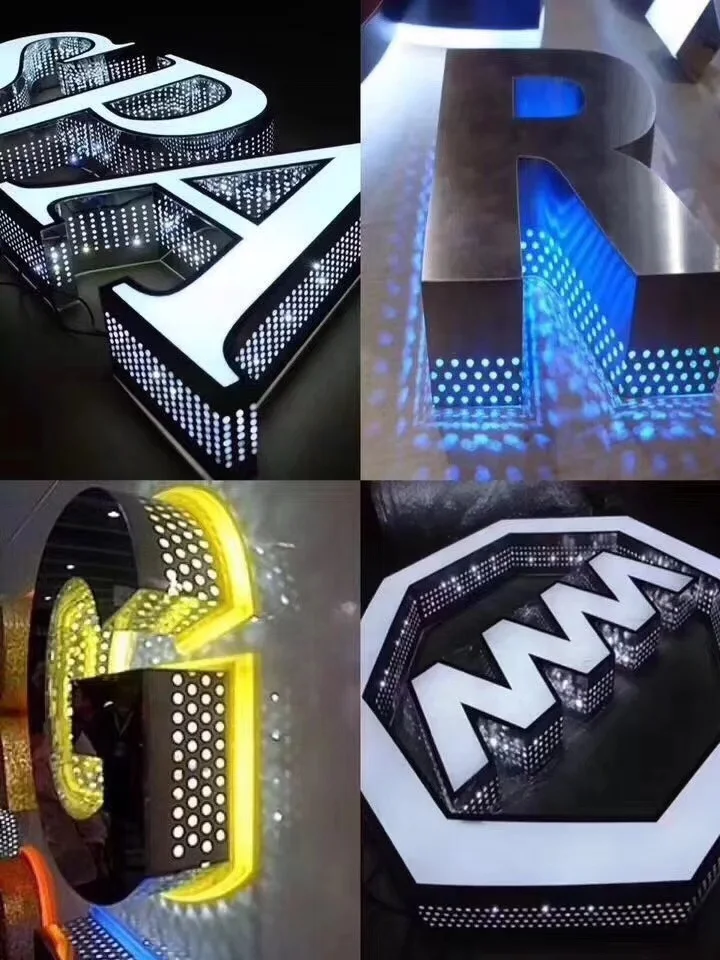

Applications:
Our aluminum coils:
Our factory- Leadership in CNC channel bending machine industry!
Our Certificates:
