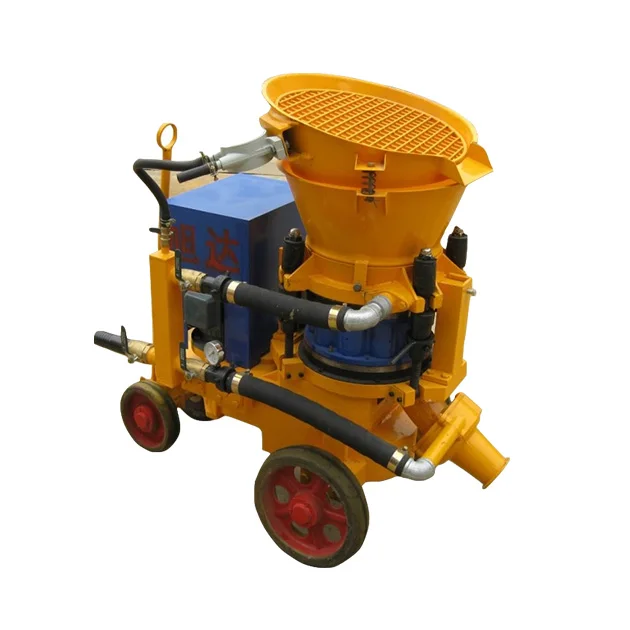

Concrete Electric 50l 220v Mix Gunite For Mine Jetcrete Dry Used Shotcrete Machine

Product Overview

Description



Condition	New
Max. Conveying Distance	200m
Max Aggregate Size	15mm
Hose Inner Diameter	51 mm
Air Consumption	7~8m3/min
China (Mainland)	Henan
Place of Origin	China (Mainland)
Brand Name	Xuda
Voltage	Customized
Power(W)	7.5kw
Dimension(L*W*H)	1350*700*1200mm
Weight	900kg
Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas
Voltages	220v.380v,50HZ,60HZ
Product name	shotcrete machine
Color	Customised
Application	mine, tunnel,hydro-power engineering, underground engineering
Capacity	5 M3/h
Model	PZ-5
Drive mode	Electric ,Diesel,Pneumatic











1. Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig ,etc.

2. With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 3 high quality talents and 10 specialized workers.Lots of them have 10-20 years experiences.













FAQ



Q:How much is the length of delivery rubber hose?

A:It is 20m.If you need we also have 15m,16m,etc.

Q:What is the difference between the wet spray machine and dry shotcrete machine?

A:Wet shotcrete machine can spray both the wet and dry concrete,while dry shotcrete machine is for dry concrete. But the wet shotcrete machine is small pollution.

Q:What is the voltage/phase for this machine?

A:220v,380v,440v,660v,1140v

Q:What is the guarantee?

A:One year for Motor, Reducer. If problem arrive, if it is not man-made damage, just offer a new one for free to replace.

Q:How should I do if meet some trouble while using?

A:We can supply manual book and also take a video for showing how to resolve the problems.
