Высоковольтный Барьерный клеммный блок 600 в 115A

Product Overview

Description

Double lines barrier terminal block

Standard Color:  Black

Certificate: UL CE

1.

Part No.: WJ10-8.5series  different cover

Pitch:8.5mm

Rated voltage: 300V

Rated Current: 20A

Housing: PA66 94V-0

Poles: 2-15P

Wire Range: 22-12AWG

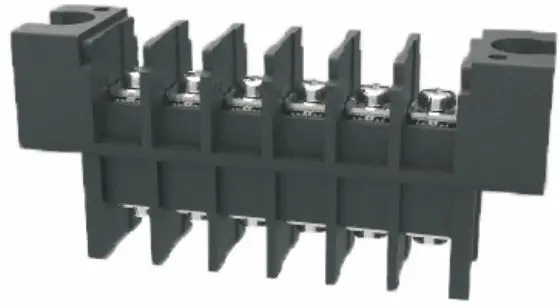

 WJ10-8.5

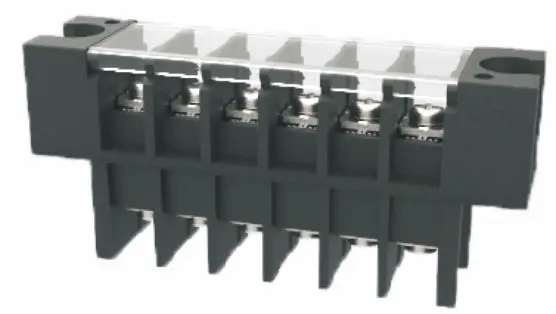

WJ10C-8.5

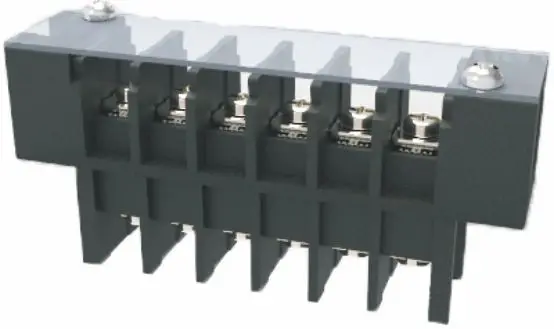

WJ10L-8.5







2.

Part No.: WJ10-11series different cover

Pitch:11mm

Rated voltage: 300V

Rated Current: 30A

Housing: PA66 94V-0

Poles: 2-15P

Wire Range: 22-10AWG

WJ10-11

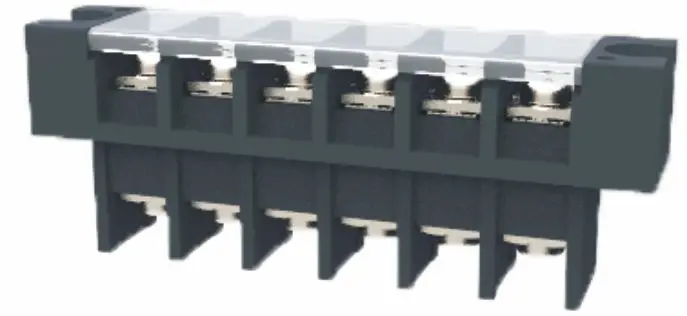

WJ10C-11

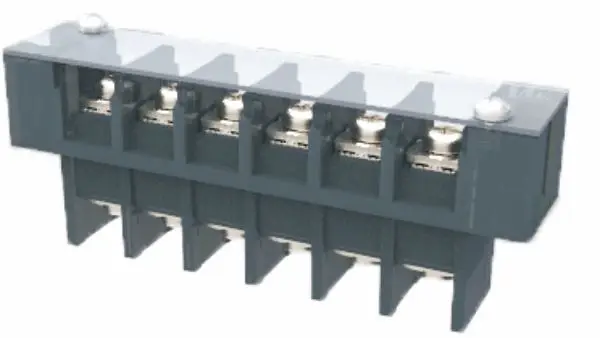

WJ10L-11







3.

Part No.: WJ10-13 series different cover

Pitch: 13mm

Rated voltage: 600V

Rated Current:50A

Housing: PA66 94V-0

Poles: 1-15P

Wire Range: 22-8AWG

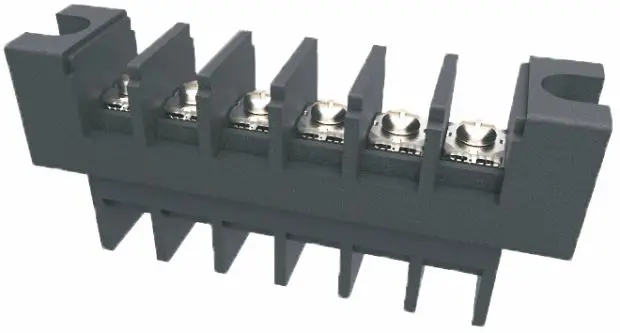

WJ10-13

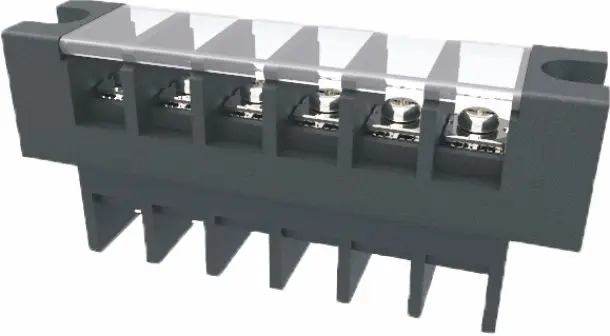

WJ10C-13

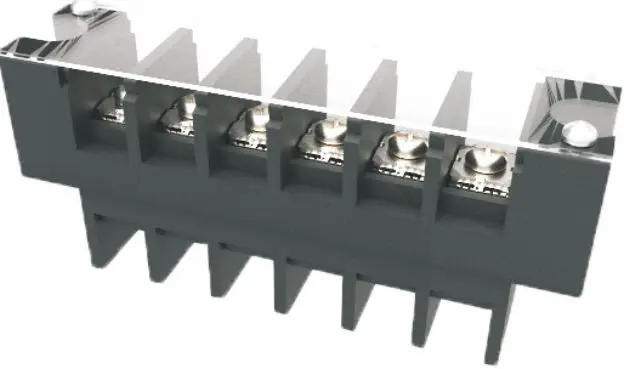

WJ10L-13

4.

Part No.: WJ10-16 series different cover

Pitch: 16mm

Rated voltage: 600V

Rated Current:65A

Housing: PA66 94V-0

Poles: 1-15P

Wire Range: 14-6AWG



WJ10-16

WJ10C-16

WJ10L-16





5.

Part No.: WJ10-21 series different cover

Pitch: 21mm

Rated voltage: 600V

Rated Current:115A

Housing: PA66 94V-0

Poles: 1-15P

Wire Range: 8-2AWG

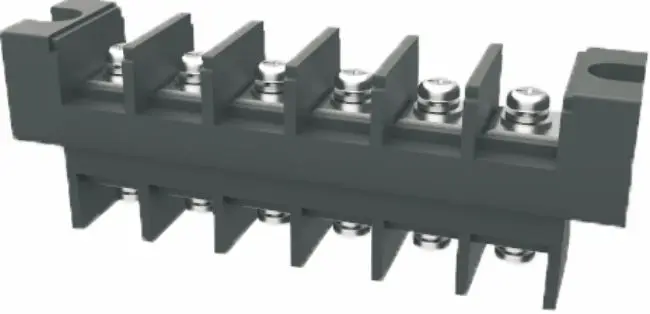

WJ10-21

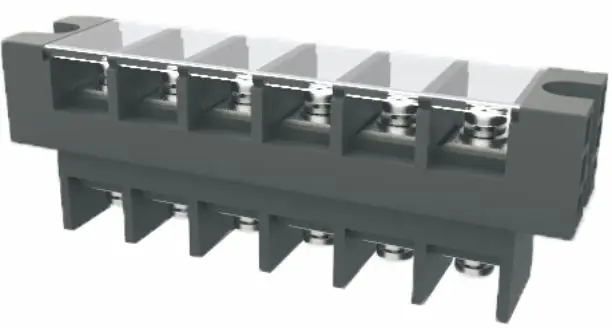

WJ10C-21

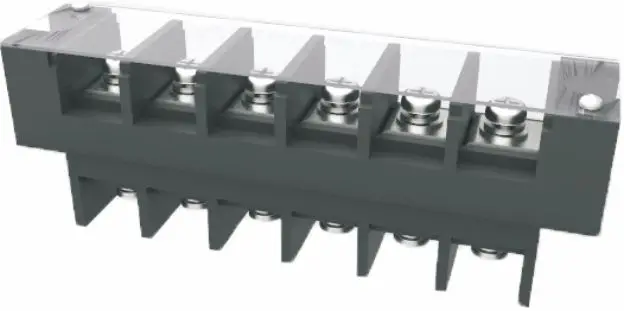

WJ10L-21



6.

Part No.: WJ10-27 series different cover

Pitch: 27mm

Rated voltage: 600V

Rated Current:170A

Housing: PA66 94V-0

Poles: 1-15P

Wire Range: 10-2AWG



WJ10-27

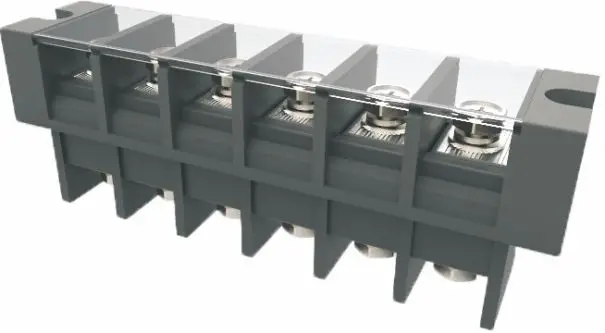

WJ10C-27

WJ10L-27
