Shrimp elbow maker machine

Product Overview

Description

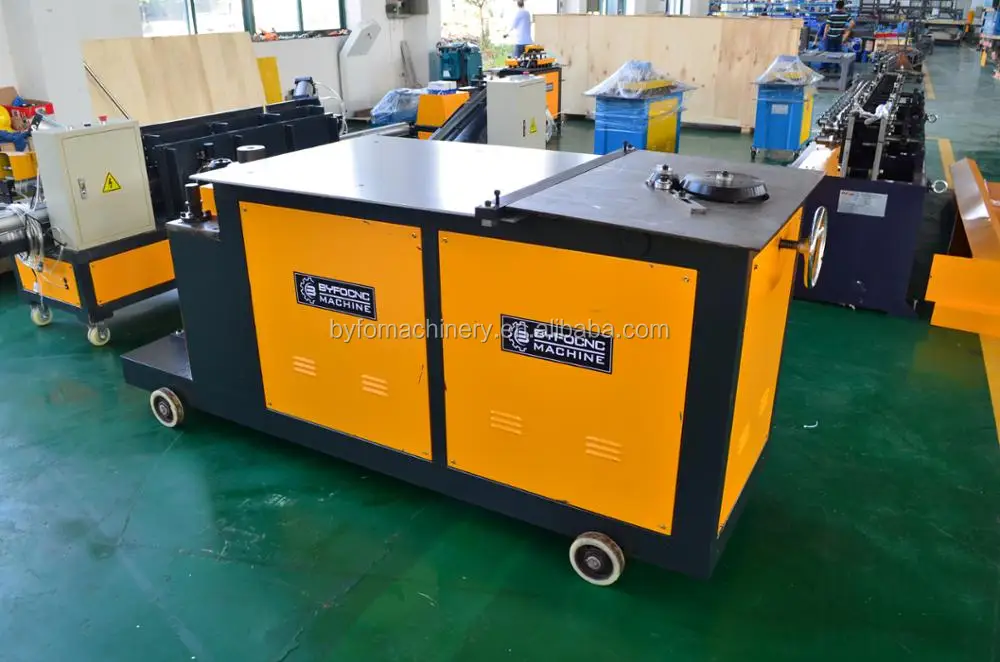

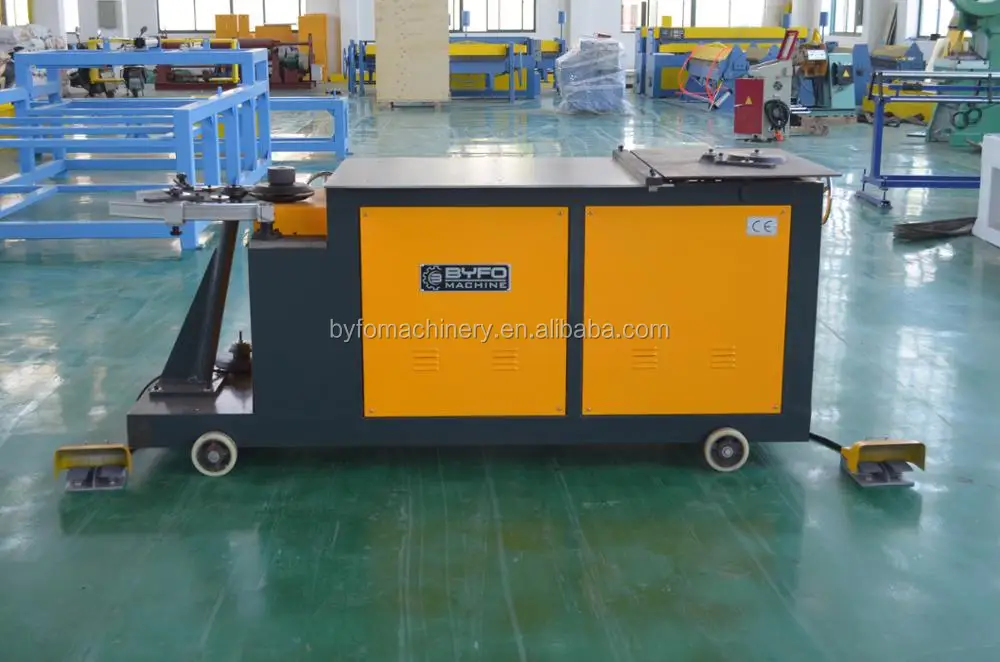

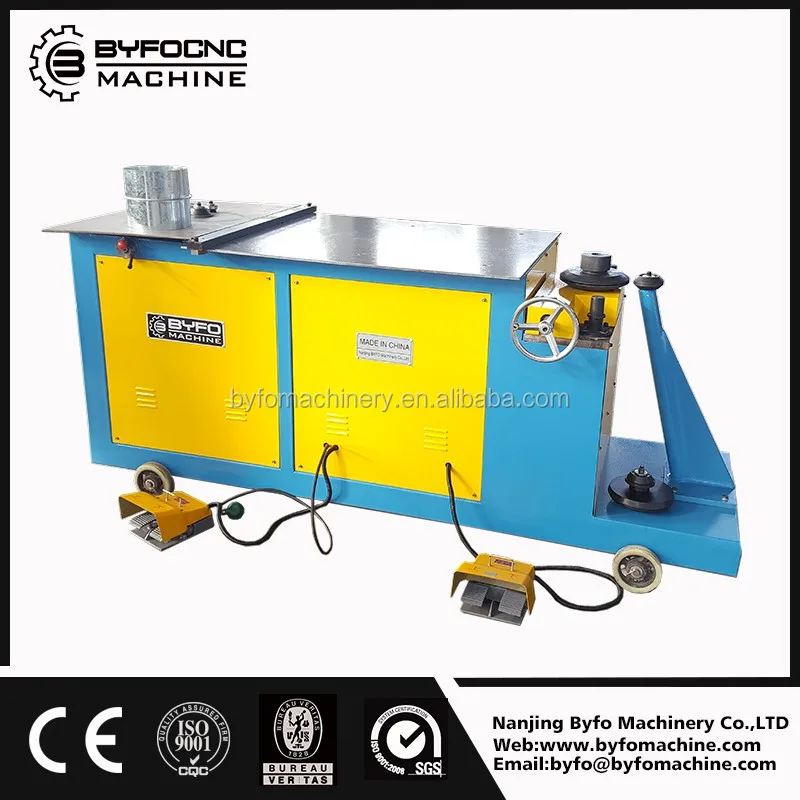

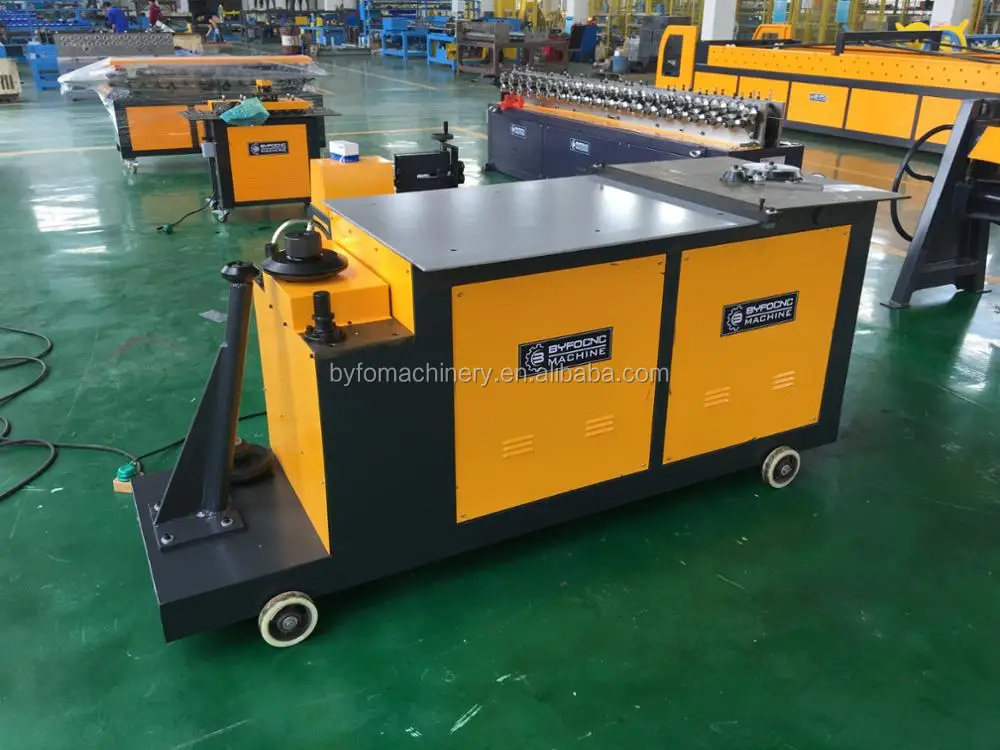

Shrimp elbow maker machine

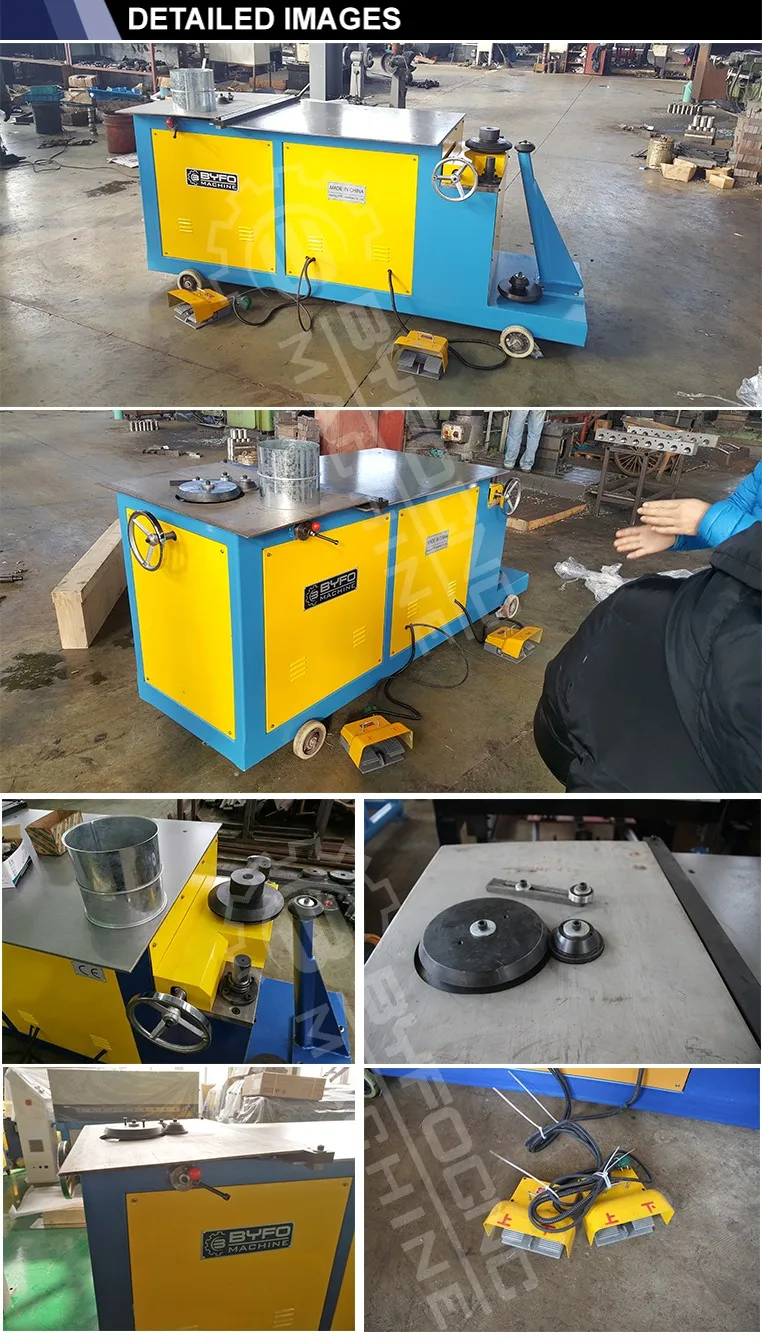

Horizontal duct elbow making machine, also called round elbow locker machine.

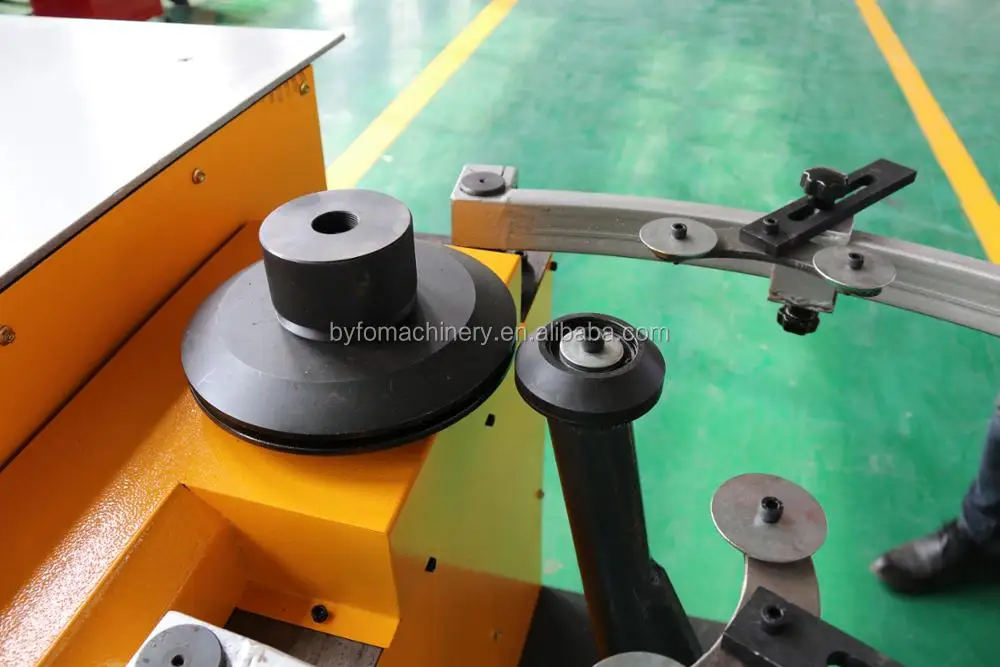

Byfo Elbow Maker is the special equipment for both connecting lock and seaming when processing on metal plate round pipe and round elbow.

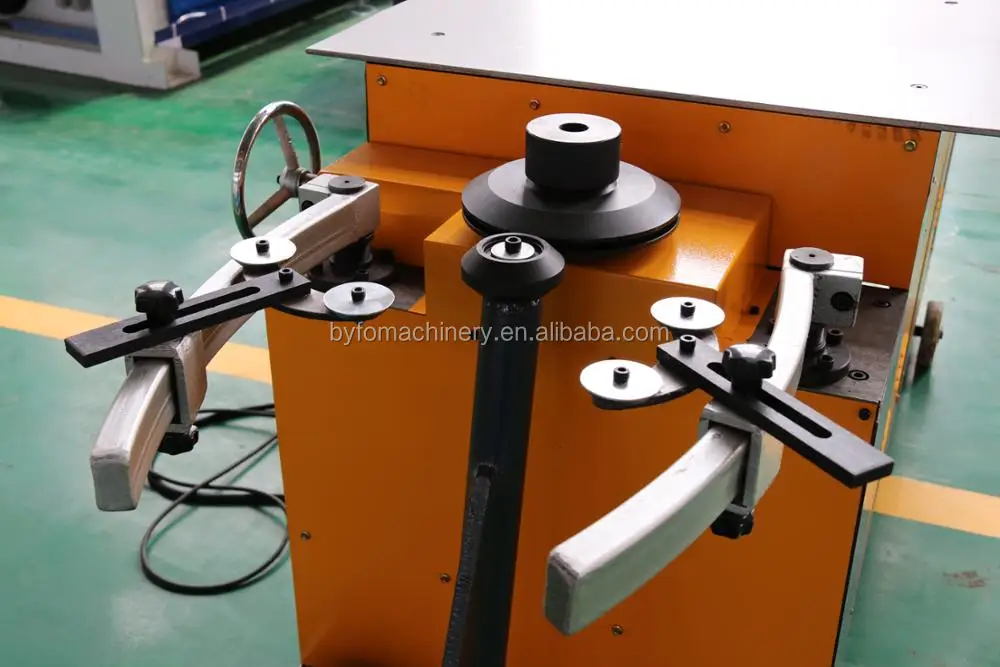

By adjusting the position of pointer on the hand wheel, two locks:

 will be formed separately at the mouth of the round pipe then connect the mouth of the pipe for two locks on the other set of the roller to form an elbow:

Featured with durable structure, high performance and efficiency and easy-operation, this machine can form accurate dimension and right angle, this type of lock is more air-tight with better seam.

Good quality forming and seaming are achieved by one machine and space is saved.



Main Technical Parameters:

Type	BFWT-1000	BFWT-1000C	BFWT-1500
Max. thickness	1.2mm	2.0mm	2.0mm
Dia. range	150-1000mm	150-1000mm	150-1500mm
Forming speed	7r/min	7r/min	7r/min
Motor power	1.5kwx2	2.2kwx2	2.2kwx2
Weight	556kg	556kg	610kg
Dimension	2100x820x890mm	2100x820x890mm	2400x820x890mm

YOUTUBE



https://www.youtube.com/watch?v=P7bpRpW65HU



How about your machine quality? We are worry about the quality.

RE:Byfo company  is a mature brand in CHINA,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1.BYFO always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
