PET PVC Blister Pack Sealing Machine for Clamshell Blister Pack High Frequency Sealing of Auto Turntable Blister Pack HF Sealing
- Category: >>>
- Supplier: Shenzhen Keepleader Machinery Co. Ltd.
Share on (60836947795):
Product Overview
Description
PET PVC Blister Pack Sealing Machine
PET PVC Blister Pack Sealing Machine is High Frequency Welding in Blister Pack Sealing of packaging, have 5kw~15kw for various sealing size, can buit in Robot Arm for automatic loading and unloading
Product Description
PET PVC Blister Pack Sealing Machine
Mainly application | ||||||

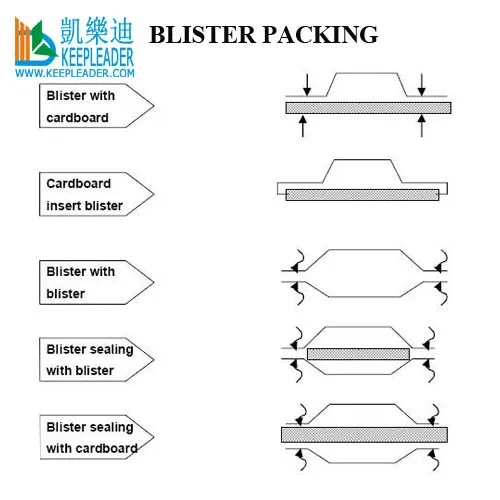

Applied for blister sealing and cutting edges by high frequency welding technology, PVC blister sealing, PVC clamshell sealing, PVC Blister sealing on heating activated coating cardboard, PVC thermoformed box sealing, welding and cutting for any shape products made of PVC or PVC 30% up in membrane structure | ||||||
Character | ||||||
High Q value oscillation tube, reliable and strong output,Toshiba brand under requested high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. High quality Imported apparatus European-model high frequency vibration barrel, more reliable and stable Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Over current protection circuit to avoid burning the oscillation tube Power ranges 5kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Stroke distance and horizontal of electrode are adjustable Pedal valve control and button switches control are optional Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components Three or four working position is optional High precision cam/divider | ||||||
Technique specifications | ||||||
Model | KLR-5000S/A/E | KLR-8000S/A/E | KLR-10KW | KLR-15KW | ||
Power | 5000W | 8000W | 10KW | 15KW | ||
Voltage | 220V/380V 50/60HZ | |||||
Frequency | 27.12MHZ | 13.56MHZ | ||||
Input power | 8KVA | 15KVA | 18KVA | 25KVA | ||
Rectifier | SILICON DIODE | |||||
Oscillation tube | 7T85RB | 7T69RB | E3069 | 8T85RB | ||
pressure | 350kg | 500kg | 800kg | 1000kg | ||
electrodes Gap | 160~200MM | |||||
Active horn | 175MM | 200MM | 150MM | |||
upper electrode | 200*350 | 400*600 | 500*700 | 600*900 | ||
lower electrode | 400*600 | 600*800 | 600*800 | 600*900 | ||
temperature | 30~200°C Adjustable | |||||
Welding time | 0~10S Adjustable | |||||
Productivity | Equal or less 4000times/8h | |||||
Net weight | 280kg | 330kg | 360kg | 500kg | ||
Dimension | 1000*660*1730 | 1000*720*1860 | 1000*720*1860 | 2500*2100*2000 | ||
Standard equipment:
Name | Origin | Brand |
Air driven components | Taiwan | Airtac |
AC contactor | Korean | LG |
Relay | Japan | Omron |
Electron Tube | Japan | Toshiba |
Time controller | Taiwan | CKC |
MFR: KEEPLEADER™ has modified and designed machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER™ for tech assessment, to get more info of PET PVC Blister Pack Sealing Machine, pls advise us 1: material 2: Size 3: Sample picture
Technology
PET PVC Blister Pack Sealing Machine have self-made sealing and cutting mold 1 set, which will comply with your blister pack, made to your order

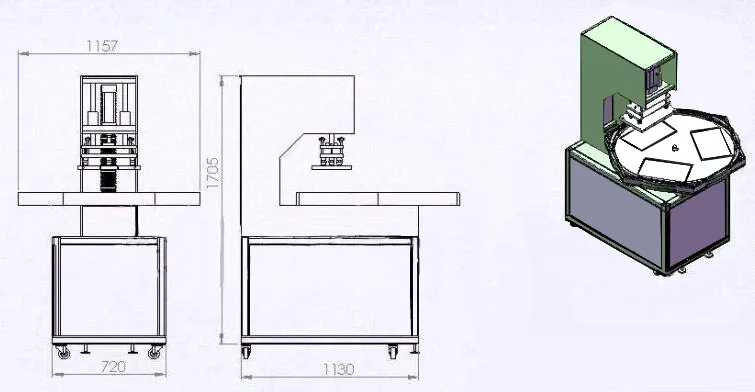

Size
PET PVC Blister Pack Sealing Machine has customized sealing size and overall size, which will comply with your sealing size, Above size is just example of 5kw model, which is also acceptable in custom size
Our Services
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
PET PVC Blister Pack Sealing Machine
With user manual, train video and on line training

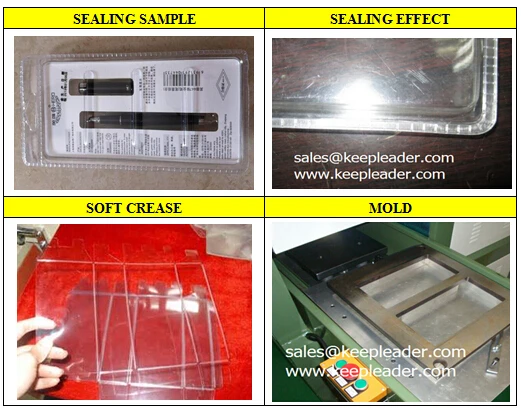

Finished Products
For PET PVC Blister Pack Sealing Machine, we need your sample or artwork to make the sealing tools/moulds
After-Sales Service
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for
defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client
in new technical information of machines’ design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition
that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative
at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical
support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide remote training
06: KEEPLEADER™ can provide electric diagram under request
PET PVC Blister Pack Sealing Machine
One year warranty, during this peiod, we provide free parts for replacement
