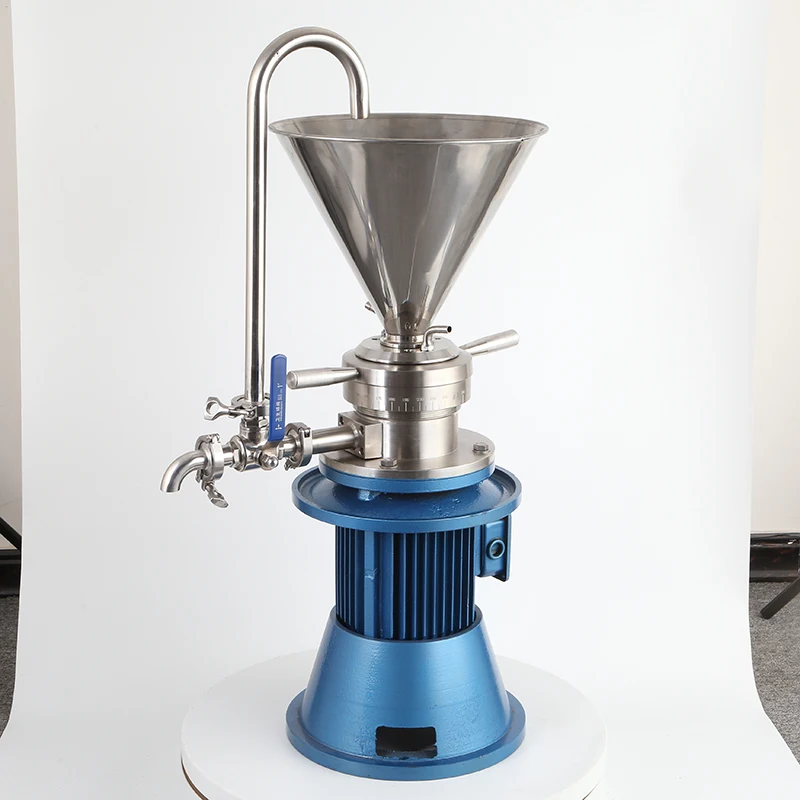

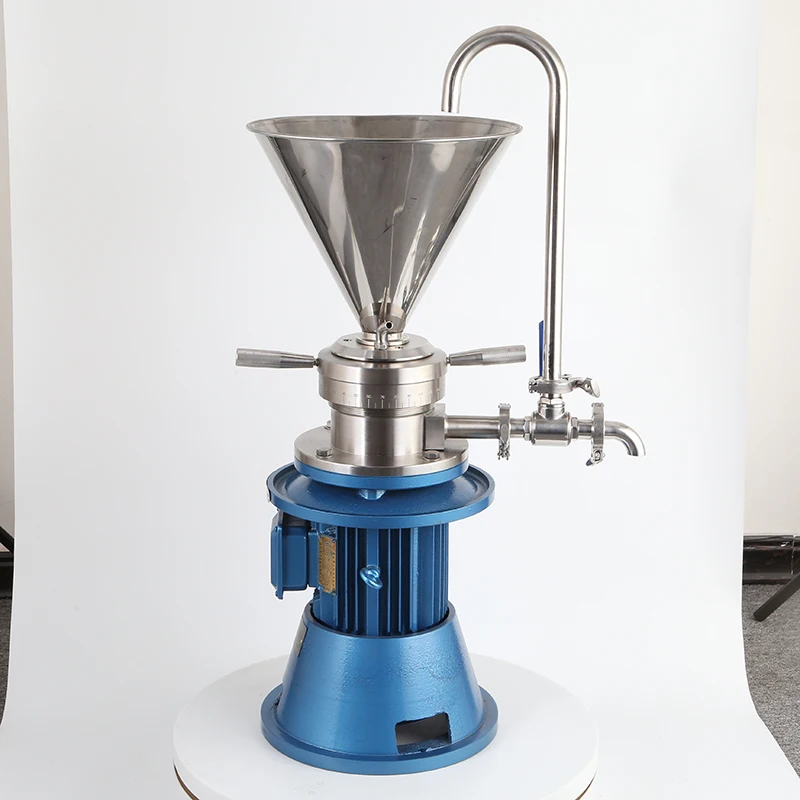

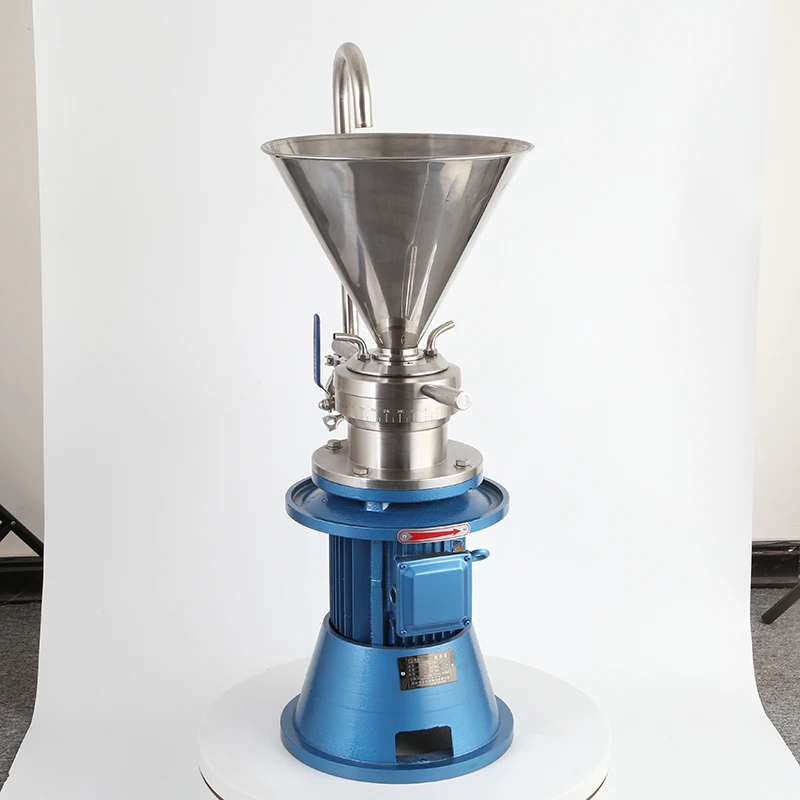

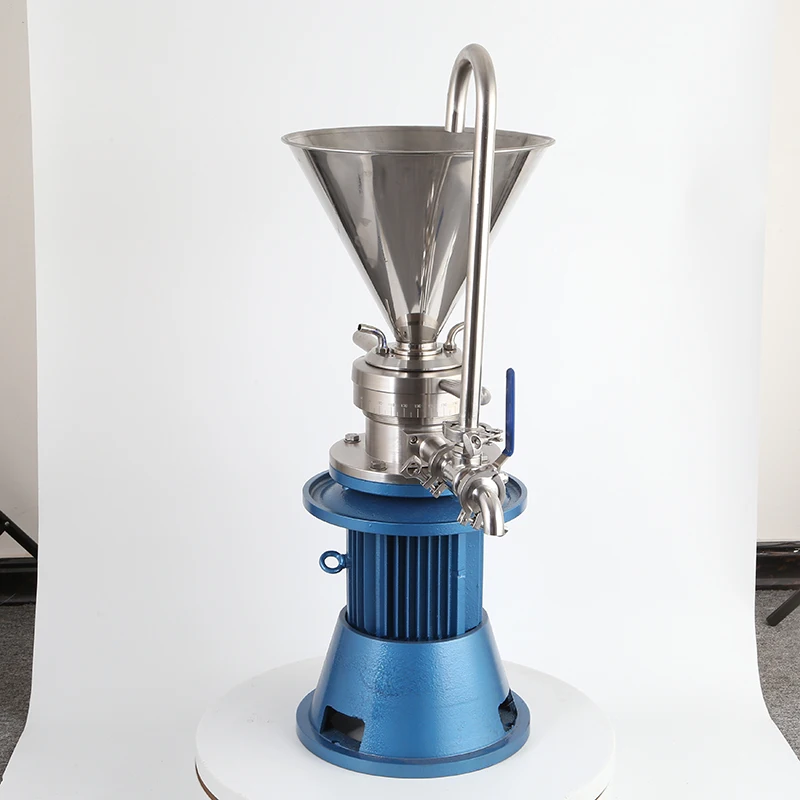

peanut colloid grinder / peanut grinding machine / peanut butter machine
- Category: >>>
- Supplier: Wenzhou Qiangzhong Machinery Technology Co. Ltd.
Share on (60836974944):
Product Overview
Description
Recommend Products
How to choose a suitable colloid mill?

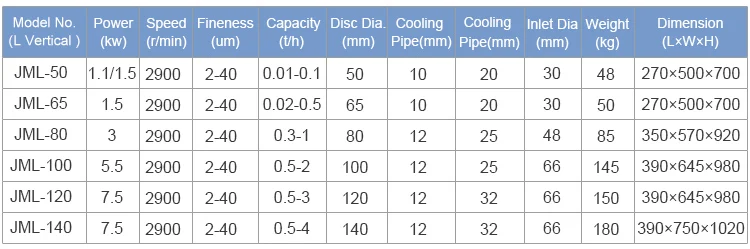

Check model no.: The model no. of a colloid mill shows its structure type and diameter (mm) of grinding
disc, which determines capacity.
Check capacity: the capacity of a colloid mill varies greatly according to materials of different density and
viscosity.
disc, which determines capacity.
Check capacity: the capacity of a colloid mill varies greatly according to materials of different density and
viscosity.
Circulation Tube: suitable for low-viscosity materials that need recycling and reflux for grinding, such as
soy milk, mung bean drinks, etc.
Rectangle Inlet: suitable for high and medium viscosity materials that don’t need reflux or grinding, such
as peanut butter, chili sauce, etc.
soy milk, mung bean drinks, etc.
Rectangle Inlet: suitable for high and medium viscosity materials that don’t need reflux or grinding, such
as peanut butter, chili sauce, etc.
Products Description

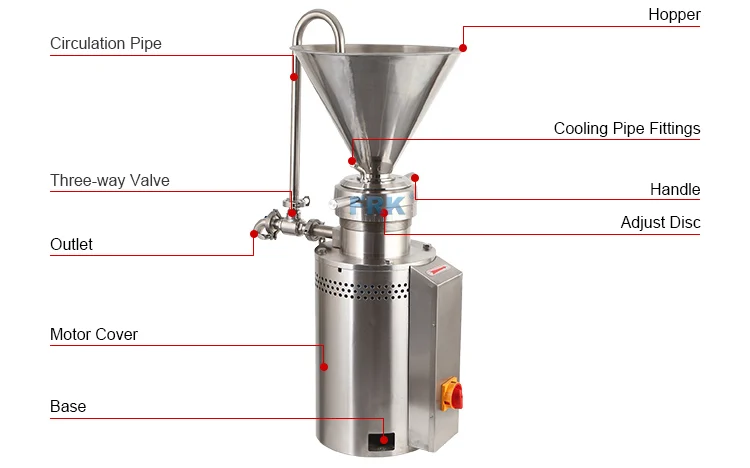

Colloid mill is a processing machine of fine grinding and crushing fluid materials, mainly consist of motor, adjust unit, cooling unit, stator, rotor, shell, and etc, widely used in various industries.
1. Both rotor and stator are made of stainless steel, the rotor rotates at high speed and the stator keeps static, which makes materials passing the toothed bevel bear great force of shear and friction.
2. There is a pair of conical rotor and stator rotating at high speed inside a colloid mill. When materials pass the gap between the stator and rotor, they bear great force of shear, friction, centrifugal force and high-frequency vibration, finally making materials ground, emulsified, homogenized and dispersed.
3. It’s high efficiency of grinding ultra-fine particles by force of shear, grinding and high-speed stirring. And crush and grinding by relative movement of the disc tooth-shaped bevels.
4. Colloid Mill is an ideal wet-crushing equipment. Materials are ground, emulsified, crushed, mixed, dispersed and homogenized under forces of high-frequency vibration and high-speed vortex.
1. Both rotor and stator are made of stainless steel, the rotor rotates at high speed and the stator keeps static, which makes materials passing the toothed bevel bear great force of shear and friction.
2. There is a pair of conical rotor and stator rotating at high speed inside a colloid mill. When materials pass the gap between the stator and rotor, they bear great force of shear, friction, centrifugal force and high-frequency vibration, finally making materials ground, emulsified, homogenized and dispersed.
3. It’s high efficiency of grinding ultra-fine particles by force of shear, grinding and high-speed stirring. And crush and grinding by relative movement of the disc tooth-shaped bevels.
4. Colloid Mill is an ideal wet-crushing equipment. Materials are ground, emulsified, crushed, mixed, dispersed and homogenized under forces of high-frequency vibration and high-speed vortex.
For your Detailed description and drawings, please send us inquiry and request!
Working Principle
The basic work principle of colloid mill is that fluid or semi-fluid materials pass the gap between fixed tooth and rotation tooth which are relative high-speed interlocking to make materials bear strong shearing force, frictional force and high-frequency vibration force. Grinding is by the relative motion of toothed bevels, one rotates at high speed, the other keeps static. In that case, materials passing the toothed bevels are greatly sheared and rubbed. At the same time, those materials are under forces of high-frequency vibration and high-speed vortex, which make them ground, emulsified, crushed, mixed, dispersed and homogenized, finally fine finished products are achieved.
Details Images
Why Choose Us
Certification | 25 National Patents, Audited by SGS/TUV/CE/ISO9001 |
Quality Guarantee | Complaint rate as low as 5‰ for 15 years. If you decide to purchase from us, any malfunction happened, once you enquiry us, we will reply you solution within 48 hours except the special reasons |
Short Lead Time | Lead time is flexible. Short turnaround of replacement parts made by substantial storage, Normally we are 20% faster than others. If you have urgent orders, pls feel free to contact us. We will get the job done with 100% satisfaction. |
24/7 Available | All your inquiry will be responded within 1 hour. All your quotation will be satisfied within 12 hours. |
Why choose us？ | •100% manufacturer • Rich production experience •Strict Quality Control System •Flexible MOQ •Punctual delivery •Excellent and Experienced Team |

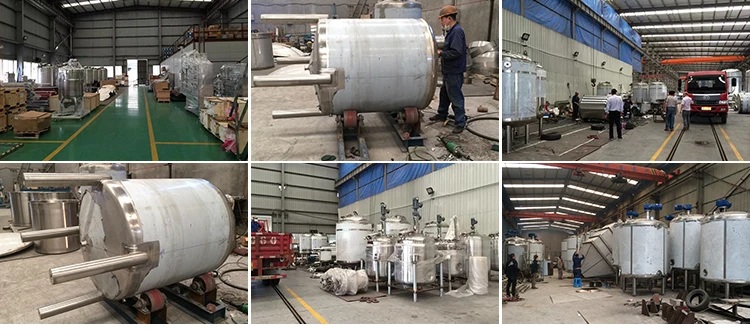

Company Profile
Wenzhou Qiangzhong Machinery Technology Co., Ltd. is a professional manufacturer of processing machines, located in Wenzhou City, China, near Longwan International Airport. Our main products include the high shear mixer, mixing tank, colloid mill, sanitary pump, sanitary filter, sanitary pipe, and valve. They are widely used in industries such as brewery, dairy product, beverage, chemicals, cosmetics, pharmaceuticals, and biopharmaceuticals.
We offer complete sets of service from research and development, production, sales, after -sales to maintenance, in accord withGMP, QS, and HACCP. As a pioneer and innovator, Obtain 25 National Patents, Audited by SGS / TUV / CE / ISO9001.

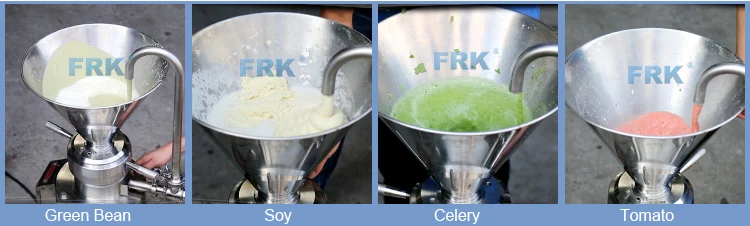

Customer Photos
Thanks to advanced technologies and production equipment, strict meeting industry standards, our quality is well-developedcontinuously. So far, our products have been sold not only all around China but also globally, such as Europe, America, Australia, Southeast Asia, Middle East, etc.
For our clients' feedback videos, please send us inquiry and request!
Packaging & Shipping
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require.
