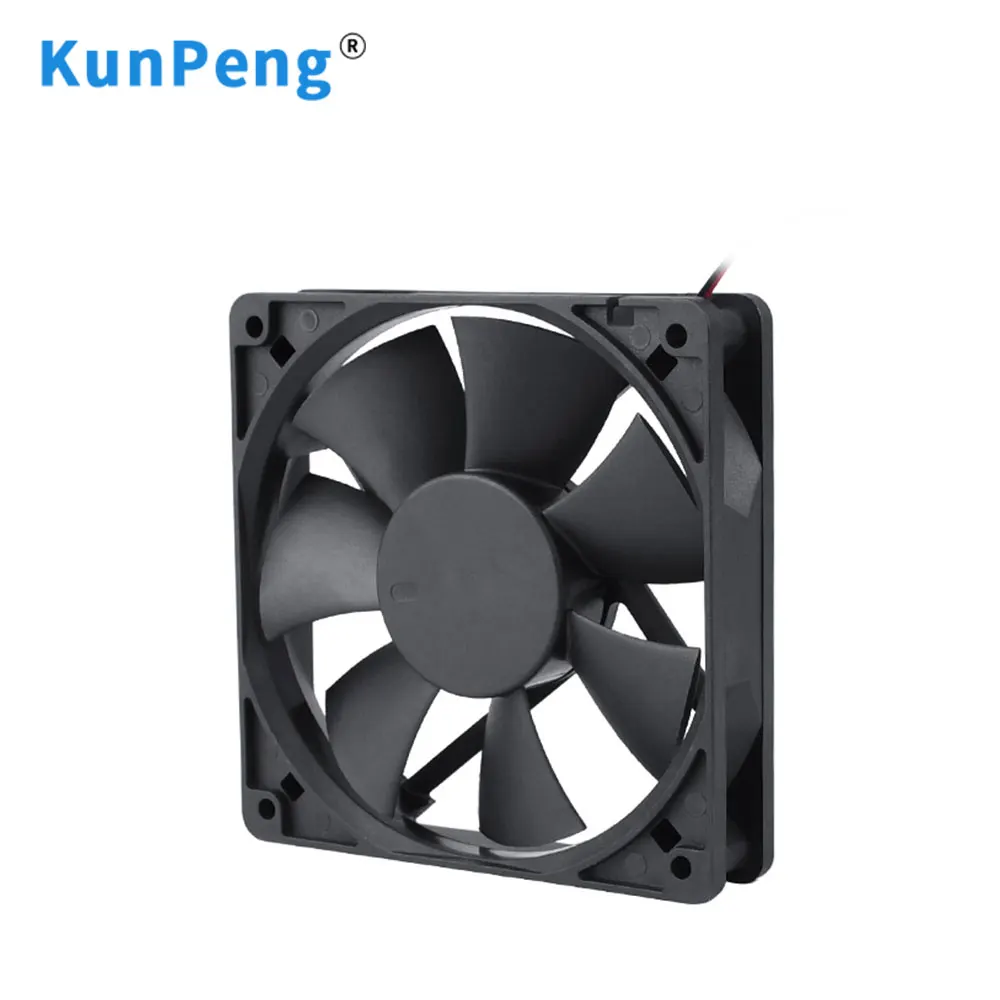

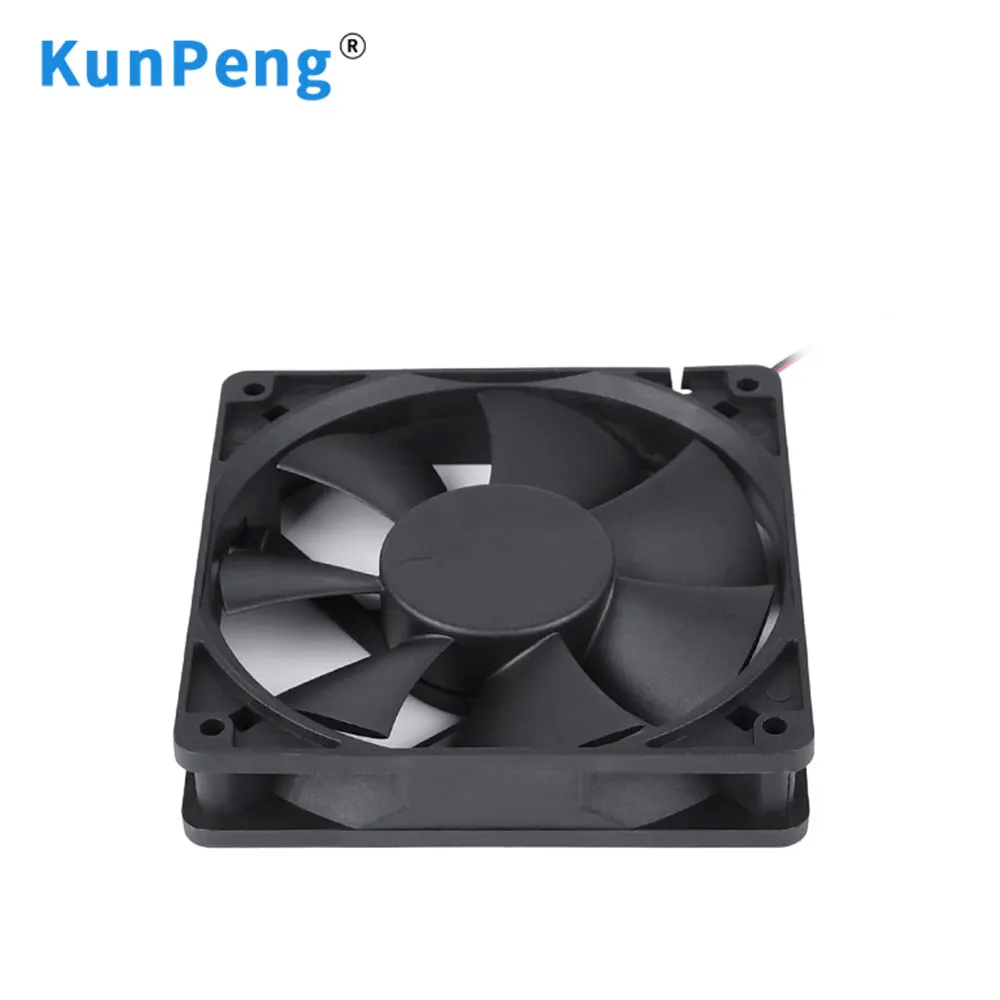

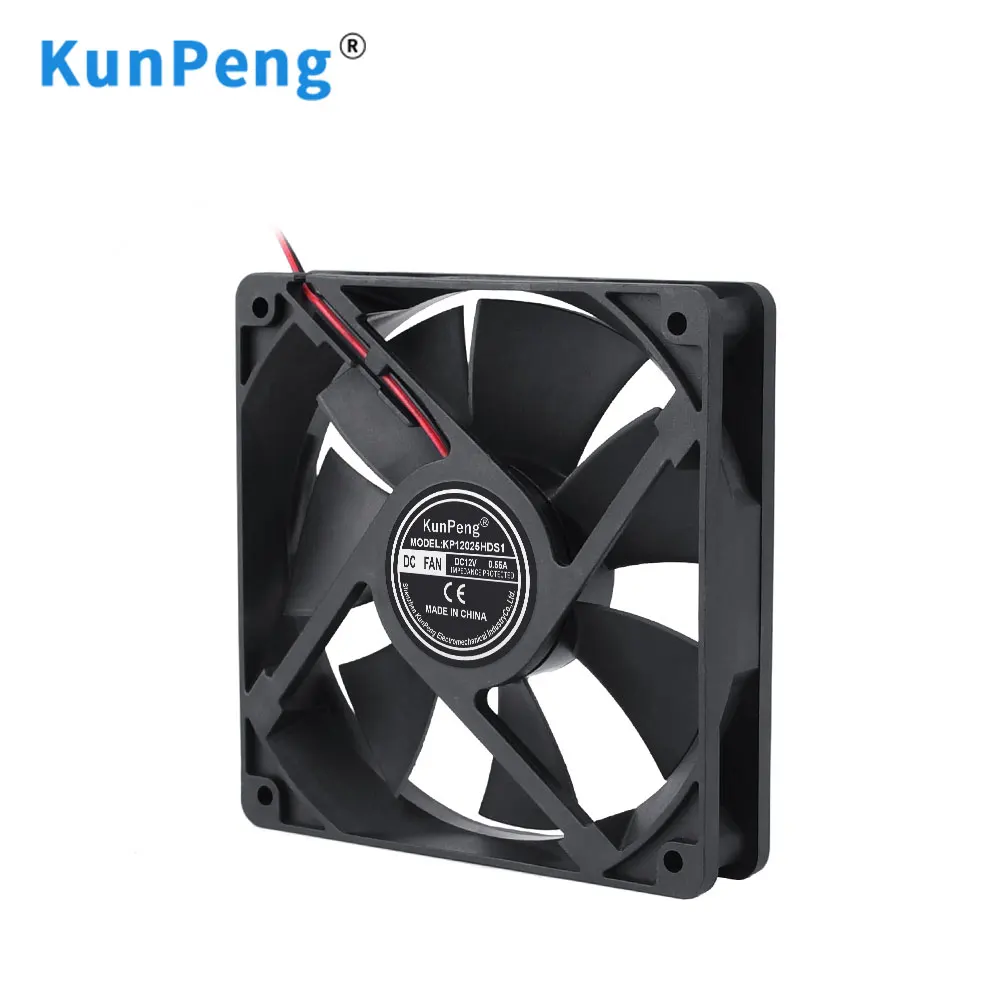

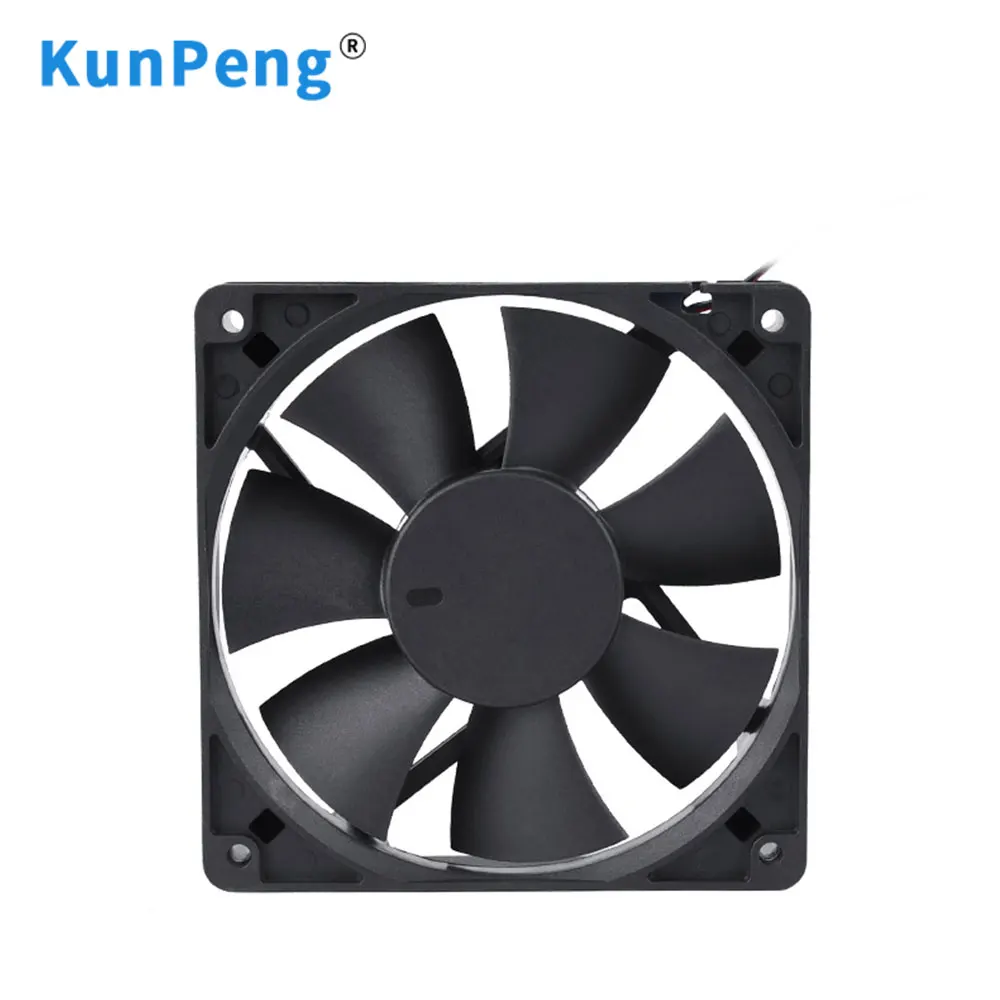

KunPeng 12025 120*120*25mm 120mm Ventolation Brushless Motor 5V 12V 24V DC Axial Flow Cooling Fan
- Category: >>>
- Supplier: Shenzhen Kunpeng Electromechanical Industry Co Ltd
Share on (60836978236):
Product Overview
Description
Specification
Electric Current Type | DC |
Mounting | FREE STANDING |
Blade Material | Plastic |
Brand Name | KunPeng |
Model Number | KP12025MDS05, KP12025MDS1, KP12025MDS2 |
Voltage | 5V, 12V, 24V |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Core Components | Motor, Bearing |
Product name | 12025MDA12B(S) |

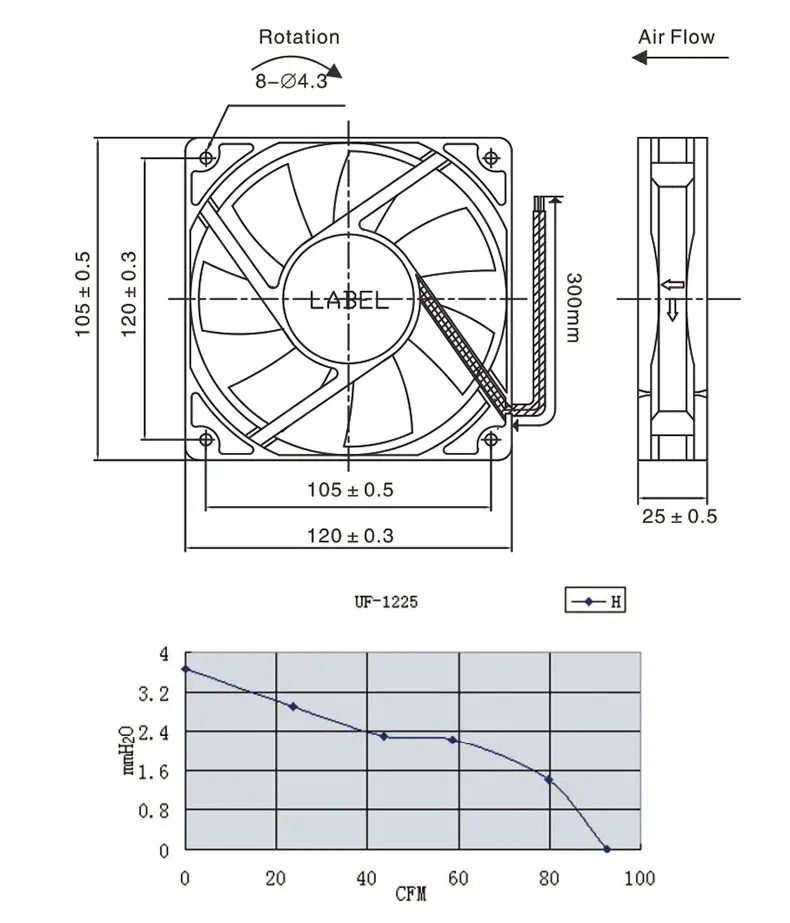

Size | 120x120x25mm |
Rated Current | 0.15~0.40A |
Bearing Type | Ball/Sleeve Bearing |
Motor | Copper Motor |
Weight | 119g |
Speed | 1500~3000RPM |
Air Pressure | 1.42~5.69mm-H2O |
Noise Level | 30~50dBA |
Life | ≥50000hrs |
Product Description
Can be Customized
For more details, please inquire or contact us.
1.Waterproof Material--The standard material is Thermal Plastic PBT UL 94V-0, which is eco-friendly and fireproof.
2.Customize the Parameters--Including size, voltage, speed, wire length, etc...
2.Customize the Parameters--Including size, voltage, speed, wire length, etc...
3.Bear Type--Sleeve/Ball/Hydraulic bearing.
4.Connector Choice--There is no Connectors for standard products.
5.List of Optional Fan Functions | ||||||||
Motor Protection | SS | soft start functiom | ||||||
LP | start with lock protection and limited current | |||||||
CL | built-in, no lead indication | |||||||
Signal Output | FG | frequency generator or output tachometer | ||||||
RD | rotation detection function | |||||||
RDB | supplementary rotation detection signal | |||||||
LD | yellow power cord | |||||||
PWM | pulse width modulation signal control | |||||||
TC | automatic temperature control | |||||||
VC | DC voltage signal control | |||||||
CC | current source signal control | |||||||
CS | fixed constant speed function(constant speed built-in, no lead indication) | |||||||
Company Profile
FAQ
Q1: What are the advantages of our cooling fan?
1. High quality and high efficiency.
2. Long life.
3. Long-term after-sales service.
Q2: Can I get the sample and what's the sample lead time?
Yes. Sample lead time: 3-7 working days.
Q3: Are you a manufacturer or trading company?
Q4: What is your production capacity?
Q5: Why choose us?
Q6: What certificates do you have?
2. Long life.
3. Long-term after-sales service.
Q2: Can I get the sample and what's the sample lead time?
Yes. Sample lead time: 3-7 working days.
Q3: Are you a manufacturer or trading company?
Kunpeng is a company specializing in cooling fans. It is located in Shenzhen, Guangdong Province, China.
Q4: What is your production capacity?
We can produce millions of fans and motors a year.
Q5: Why choose us?
1. Deep customization
2. Source manufacturer
3. Super technology
4. Efficient team
2. Source manufacturer
3. Super technology
4. Efficient team
Q6: What certificates do you have?
Kunpeng products can pass UL/CUL/TUV/CE/CCC/ISO 9001 certification.
