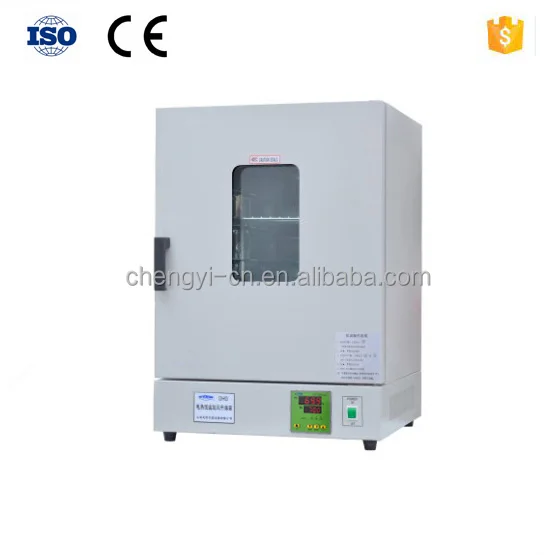

Лабораторная духовка, электрическая сухая духовка с подогревом, лабораторная духовка

Product Overview

Description



Scope of application:
The products for industrial and mining enterprises, laboratories and scientific research units, such as drying, baking, wax melting and sterilization.
Structure features:

> forced convection ventilation type structure, temperature uniformity is good.

> by microcomputer intelligent LCD temperature control, high accuracy, no overshoot, large-screen LCD display, a display multiple sets of data, temperature correction function, a timing function, easy to use, more humanized design.

> thin box body is made of high qualified steel plate.

> studio Angle using circular arc transition design, to facilitate the work of cleaning the box, the working chamber is made of high quality stainless steel, shelf bracket can free loading and unloading.

> outside the window

> have multiple sets of heater. (for DHG-101 series)

> using the selected temperature switch, depending on the speed and the use of heating temperature reasonable choice. (for DHG-101 series)

> switch freely, duct inlets, reasonable structure, indoor temperature uniformity is good work.

>  Adopt silicon rubber sealing ring > door and enclosure, sealed performance is good.

> Equipped with leakage protector

> Equipped with auxiliary thermostat, ensure that under the condition of the main temperature control out of control, the product can work normally.

> optional miniature printer or 485 interface, used for printing or join computer, implementation

Remote control and alarm.

> segment LCD temperature can be equipped with programmable controller.

 Technical parameters:

> temperature fluctuations: + / - 1 ℃

> temperature uniformity: plus or minus 2.5 ℃

Model	Studio size(cm)	Ratepower(W)	Operating temperature(℃)	Shelf(piece)	The net weight/Gross weight(kg)	The power supply voltage
DHG-9023A	25/30×30×28	320	10~200 Room temperature + 10 to 200	2	29/36	AC 220V 50HZ
DHG-9053A	54/42×37×35	600		2	35/43
DHG-9123A	138/50×50×55	1200		2	45/55
DHG-9203A	252/60×55×7064.5	1600		2	60/69
DHG-9030A	31.5/30×30×35	700	10~200Room temperature + 10 to 200	2	29/37	AC 220V 50HZ
DHG-9070A	72/40×40×45	1000		2	45/52
DHG-9140A	136/45×55×55	1600		2	45/56
DHG-9240A	225/50×60×75	2000		2	62/70
DHG-9420A	429/60×55×130	2600		3	130/153	AC380V 50HZ
DHG-9620A	624/80×60×130	3600		3	168/186
DHG-9036A	31.5/30×30×35	950	10~300Room temperature + 10 to 300	2	29/37	AC 220V 50HZ
DHG-9076A	72/40×40×45	1400		2	40/50
DHG-9146A	136/45×55×55	2000		2	45/56
DHG-9246A	225/50×60×75	2600		2	62/70
DHG-9426A	429/60×55×130	3500		3	130/153	AC380V 50HZ
DHG-9626A	624/80×60×130	5700		3	168/186



Increased options: (optional components delivery date 7 days)

1. The multiple segment programmable liquid crystal temperature controller

2. Embedded printer

3. The RS485 interface and communication software

Note: the RS485/232, printer, a choice
