Factory Customized Global Shutter Low Power OV7251 120fps 1/7.5inch B&W CMOS VGA 640 x 480 Image Sensor Infrared Camera Module
- Category: >>>
- Supplier: Shenzhen City Haozhou Technology Co. Ltd
Share on (60836987705):
Product Overview
Description
Main Feature

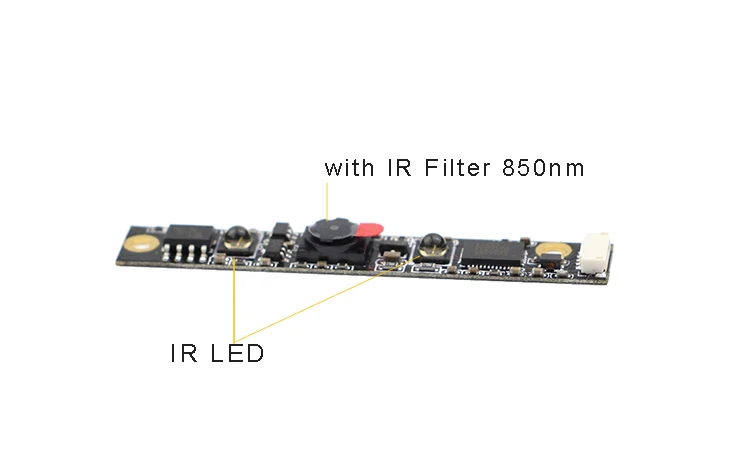

* Global shutter camera module OMNIVISION sensor OV7251
* USB2.0, Free driver, Just Plug and Play
* Monochrome Image effect (Black and White Image)
* High frame rate VGA@100fps, 320*240@100fps
* The lens can choose the FOV
* for AR/VR eye-tracking, machine vision, and 3D sensing
* Global shutter camera module OMNIVISION sensor OV7251
* USB2.0, Free driver, Just Plug and Play
* Monochrome Image effect (Black and White Image)
* High frame rate VGA@100fps, 320*240@100fps
* The lens can choose the FOV
* for AR/VR eye-tracking, machine vision, and 3D sensing
* Support customization
Module No. | ZC-FID5841-7251 S1.0 | |
Module Size | 50.0mm ×7.5mm × 3.21 mm | |
Object distance | 15CM-130CM | |
Resolution | 350LW/PH (Center) | |
Focus | Auto Focus | |
Interface | USB 2.0 | |
Voltage | 5V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Assembly technique | SMT (ROSH) | |
PCB printing ink | Black | |
Operating system request | Windows 2000 ,Windows XP/ 7 / 8 | |
Package | Anti-electrostatic tray | |
Sensor Type | ||
Sensor No. | OV7251 | |
Sercor Type | 1/7.5” | |
Active Array Size | 640*480 | |
Sensitivity | 2800MV/Lux-sec@530nm | |
Pixel Size | 3µm x 3µm | |
Maximum Image Transfer Rate | 640*480(VGA)@30fps | |
Dynamic Range | 69.6dB@8*gain | |
LENS | ||
Lens Type | 1AC0985H | |
Lens Construction | 4P+IR | |
F/NO | 2 | |
EFL | 1.26mm | |
FOV | D=82.9° | |

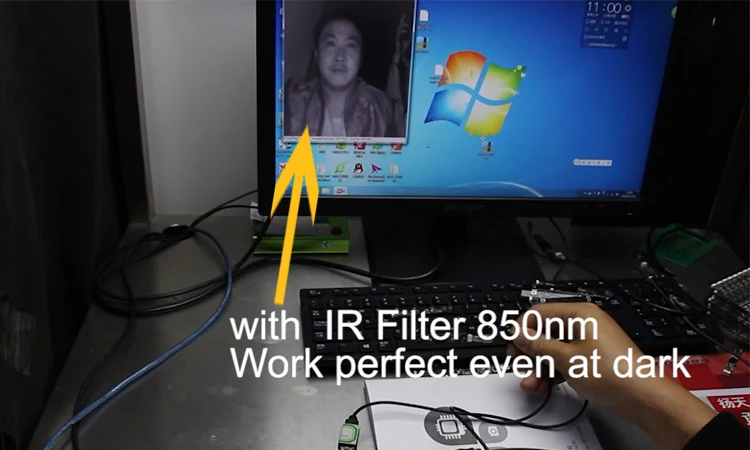

IR Filter | 850±10nm | |
TV Distortion | <1.5% | |
DSP Type | ||
AGC/AEC/Whiter balance | Auto | |
Output Formats | USB suspend out | |
Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK | |
OEM&ODM
Customizable usb2.0 & usb3.0 camera module / mipi camera module / binocular camera module / endoscope camera module / HDMI camera module / infrared camera module / global shutter camera module etc.
Application Field

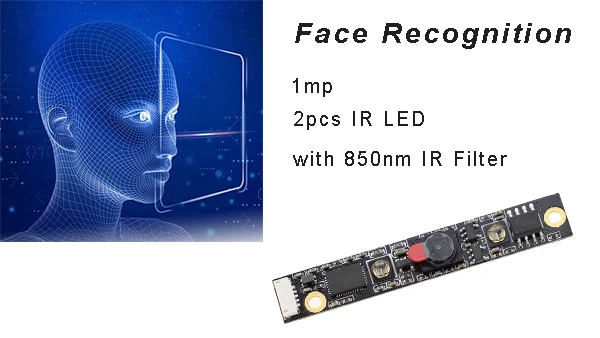

More Applications: bar code scanning machine, license plate recognition, eye tracking, smart home, access control system, driving recorder, notebook computer, all-in-one machine, iris scanning, AR, VR, robot, machine vision, industrial inspection, ATM machine, automatic vending machine, face recognition, unmanned aerial vehicle, security gate machine, pc multimedia, attendance machine, endoscope, security monitoring, pos machine, conference camera, video doorbell, motion camera, 3D vision, arcade game machine, automatic terminal equipment Wait for more applications
Main Pixel
3mp ( VGA ) pixels, 1mp ( 720P) pixels, 1.3mp (960P) pixels
2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels
5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels,
13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels
2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels
5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels,
13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels
Interface
·FPC interface: DVP, MIPI;
Using CSP (BGA chip technology), COB, PLCC, CLCC process
AV output interface: CVBS, AHD analog signal output
·USB output interface: free drive, plug and play, monocular, binocular;
Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications
Using CSP (BGA chip technology), COB, PLCC, CLCC process
AV output interface: CVBS, AHD analog signal output
·USB output interface: free drive, plug and play, monocular, binocular;
Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications
Lens / Angle
Composition material: 2P3P 4P 5P 6P IG2P 2G2P 4G 5G 6G7G 8G 9G.etc
Focus: FF MFAF. (according to customer demand)
Angle of view: 5 degrees -240 degrees panorama
Focus: FF MFAF. (according to customer demand)
Angle of view: 5 degrees -240 degrees panorama

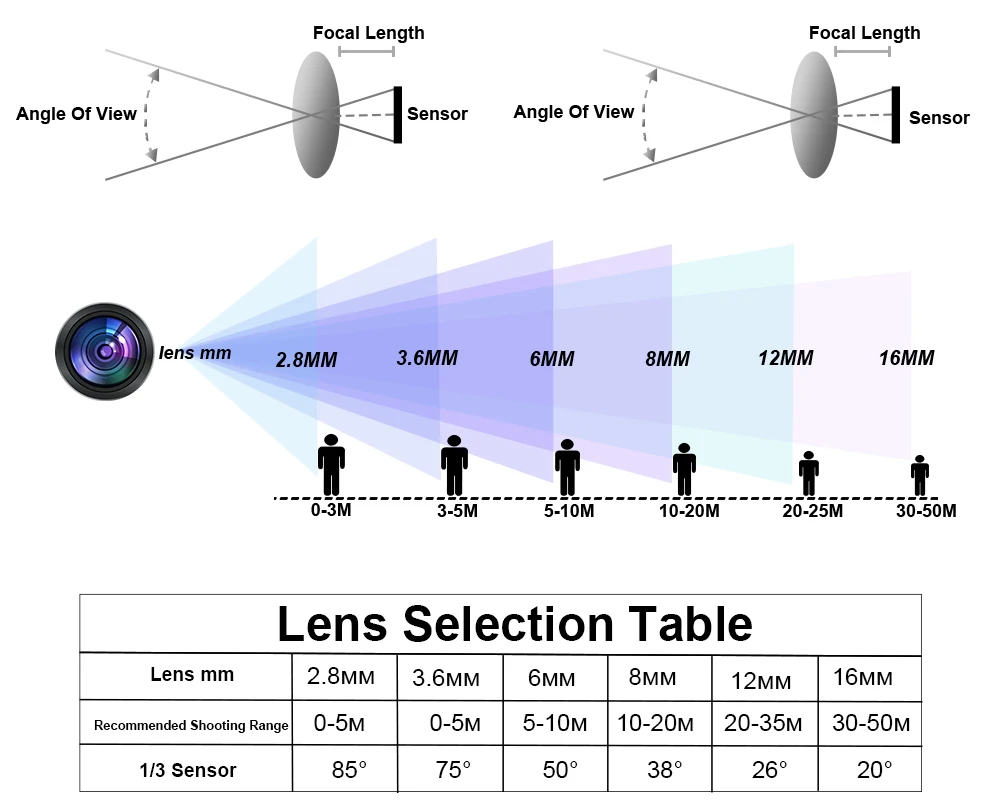

HOW TO CHOOSE THE LENS
It is a close-focus lens; in a camera, the smaller the focal length, the larger the imaging range, the smaller the image of the object in the screen, the larger the focal length, the smaller the imaging range, and the larger and clearer the image of the object in the screen, this is a far-focus lens

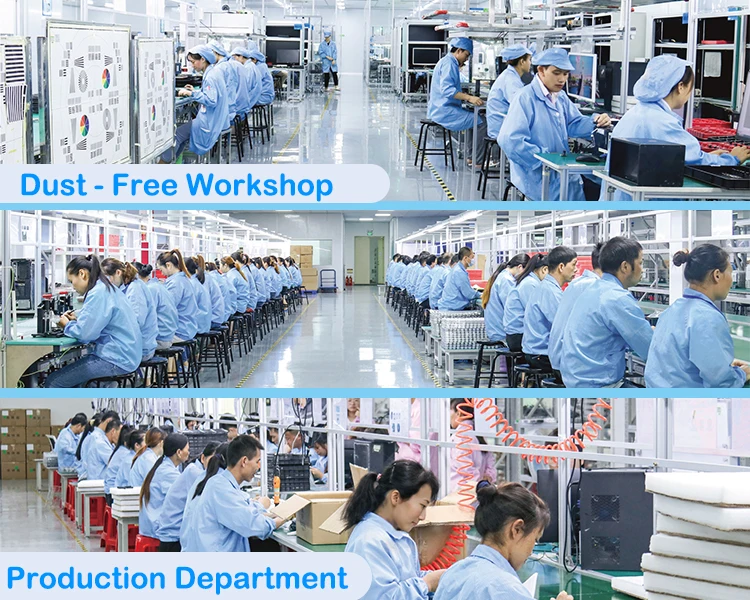

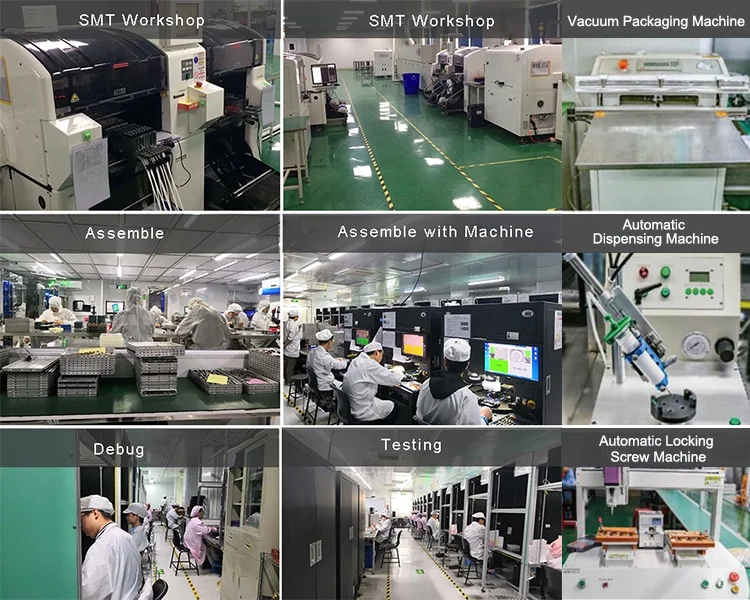

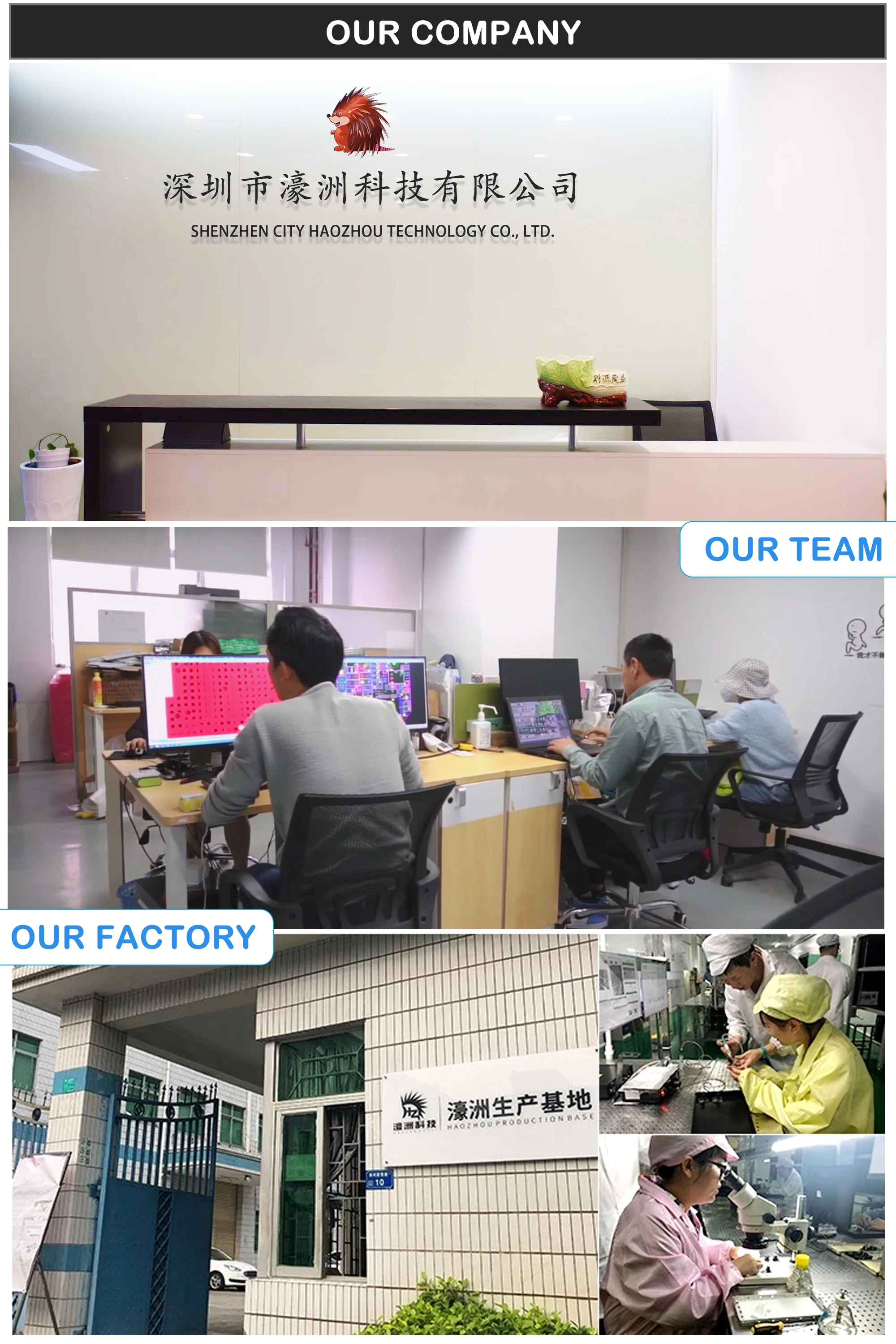

Shenzhen Haozhou Technology Co., Ltd. was established in 2014. It is a high-tech company specializing in R&D, design, production, sales, CMOS camera module, USB camera module, analog camera module, endoscope camera module, sensor chip and other high-quality camera modules technology enterprise. Passed IS09001 CE ROHS quality system certification. Products are widely used in nearly a hundred fields such as face recognition, biometrics, artificial intelligence, machine vision, drones, self-service terminals, smart homes, security monitoring, and medical applications.Warmly welcome OEM and ODM. We can design according to the drawings provided by customers. All of our products have a 2-year warranty, we are willing to provide customers with products that carry corporate culture and convey brand ideas to end users, we believe that success is built on a solid foundation and commitment to delivery.

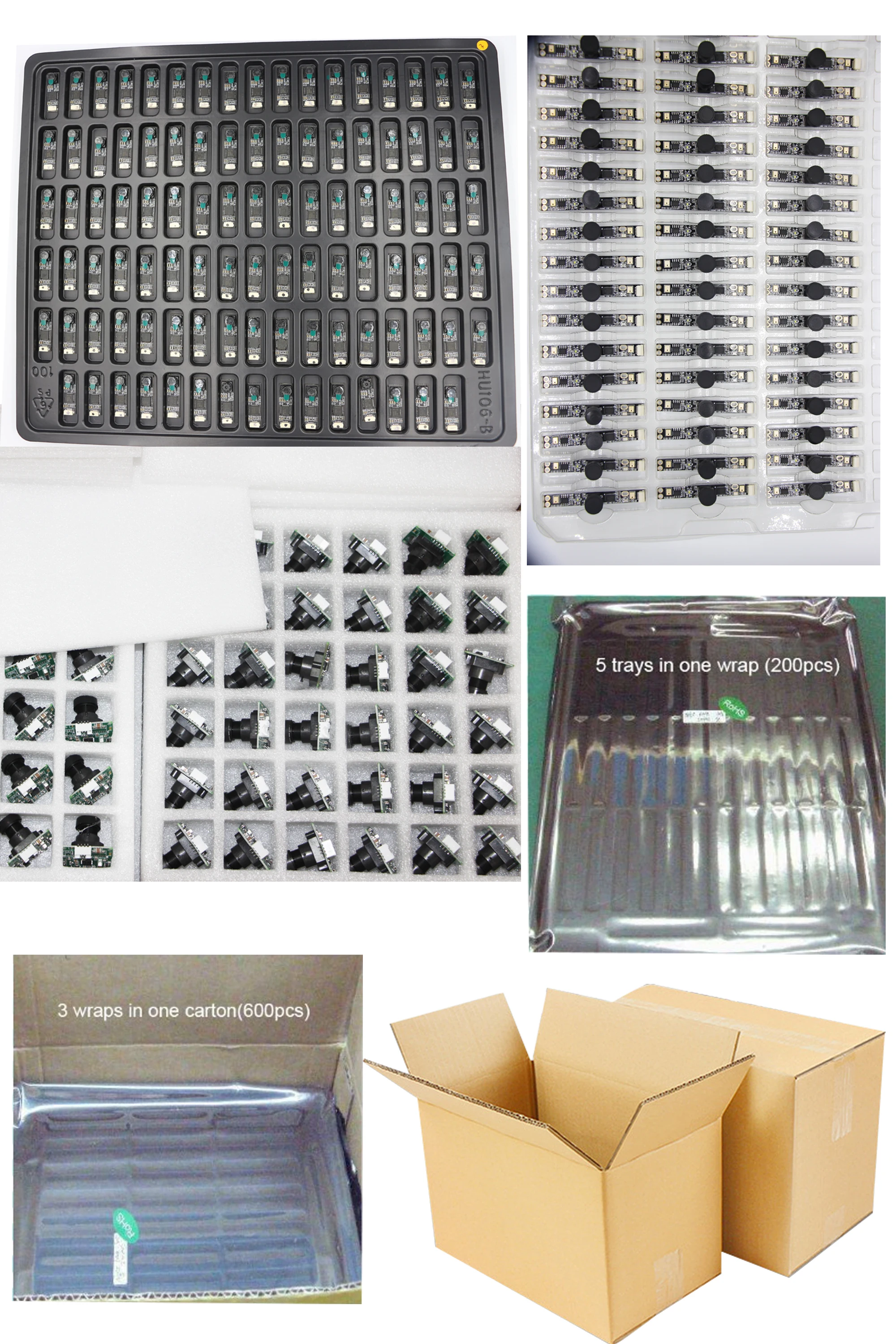

Packing&Shipping
