Vibration Automatic Racking, Weighing and Filling Machine 10 999G, 10 3000G, 20 5000G, 100 9999G

Share on (60837021066):


Price:

Quantity:


Product Overview

Description

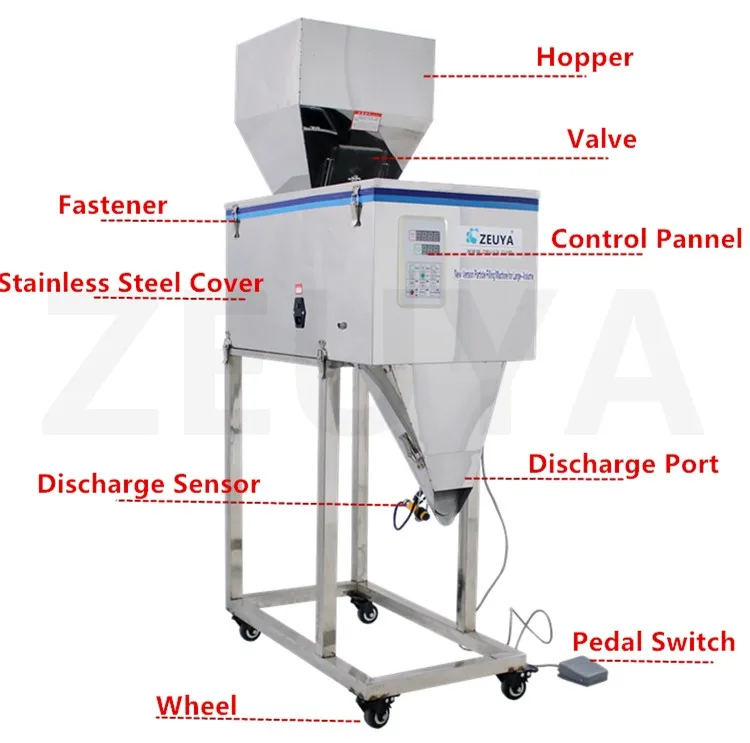

Machine Photos

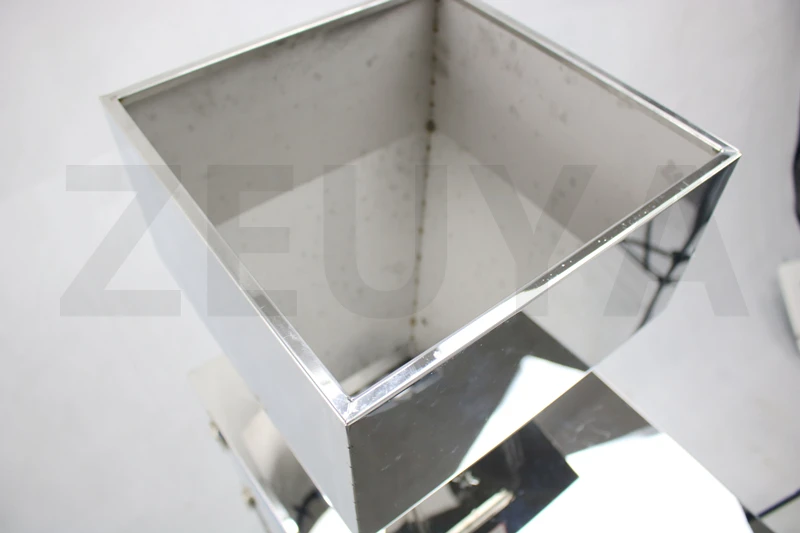

Stainless Steel Large Hopper


Adopt food grade stainless steel large hopper design, the capacity is big, loading is convenient, the hopper can be put about 25KG of rice.



Convient Adjustable Valve


This is adjustable according to the material size, for adjust this plate to reach a high filling accuracy and filling speed.



Clear Visual window


The machine has an inspection window to facilitate the observation of the flow of materials at any time during the operation of the machine.

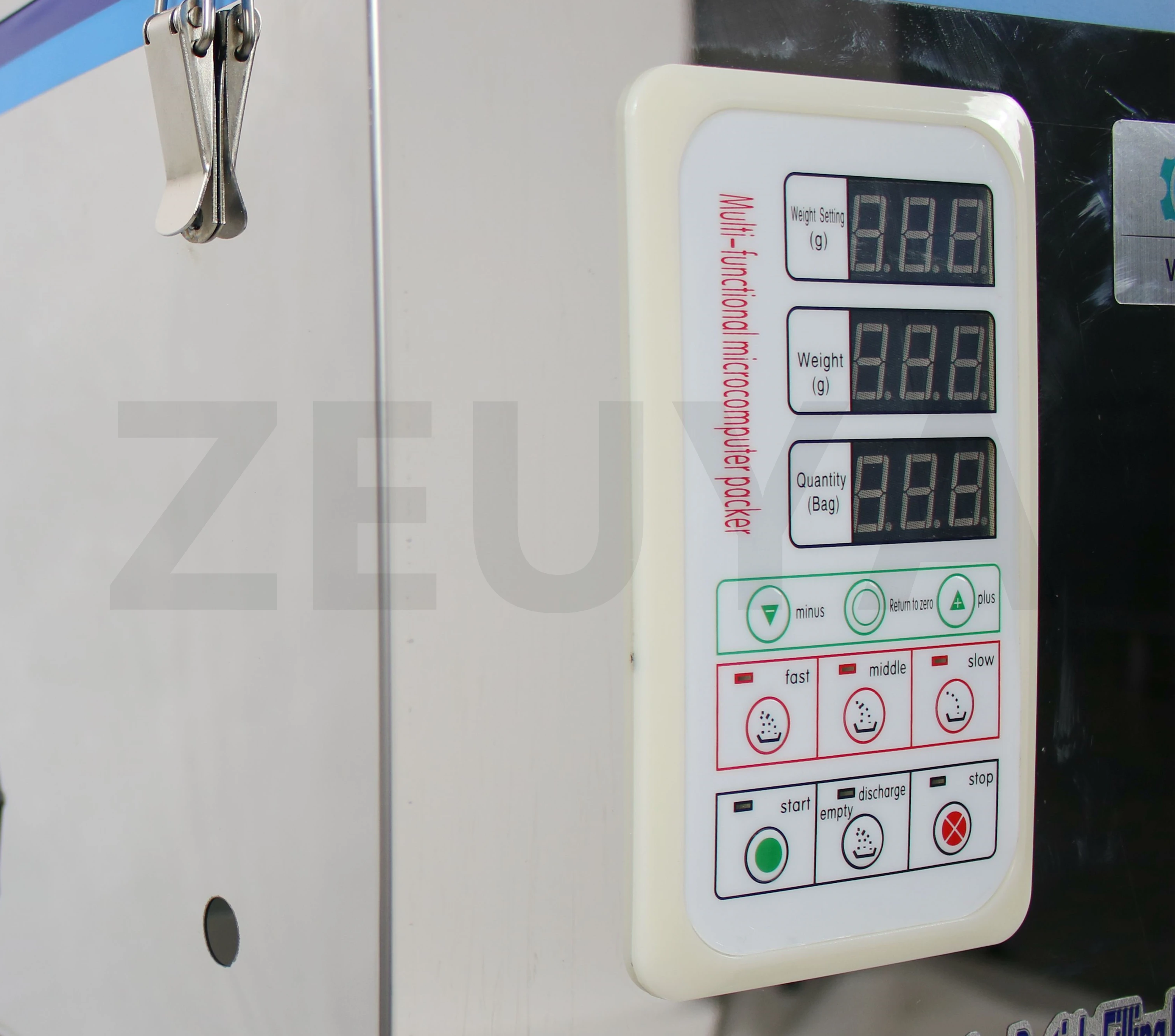

Intelgent English Control Pannel


Machine is easy operate, just setting the target filling quantity, and then put the material you need to fill.

The filling speed also can be set on this control pannel.



Humanized Operation Mode

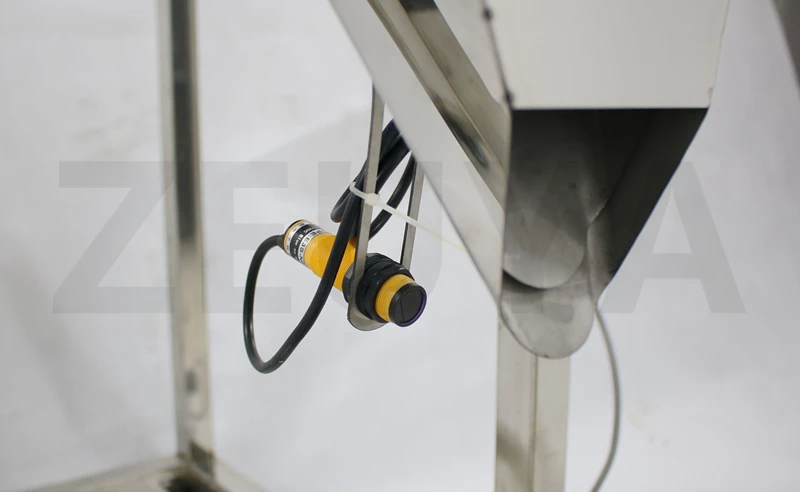

There are two operation modes of the machine, one is sensor filling, once weighing complete and machine will fill out material when container close to the sensor and the other is pedal switch control, to meet your different production needs.

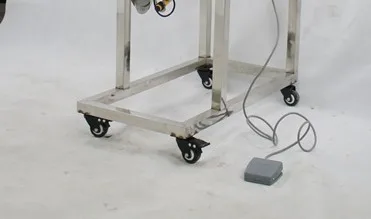

High Quality Universal Casters


Machine adopts with high quality universal casters, easy to move every time, and you can lock it  to fix where when you need to work in a place long time.



Machine Feature:

1: Microcomputer control self-energy, so that more precise and accurate dispensing, fast, fully automated dispensing process.


2: The contact material parts all stainless steel, no contaminated material.


3: Double shock structure, the machine is running smoothly, low noise.


4: Small size, light weight.


5: Minimal power, energy conservation.


6: Oblique throwing feeding, do not squeeze the material damage, especially for fragile materials packaging.


7: Show Package weight and number of packages.


8: Adjustable packing speed.


9: Set weighing excessive alarm.


10: Stainless steel, never rust.





Machine Model
MG-1000-ZD
MG-3000-ZD
MG-5000-ZD
MG-10000-ZD
Voltage
AC220V/AC110V
AC220V/AC110V
AC220V/AC110V
AC220V/AC110V
Machine Power
200W
200W
200W
200W
Filling Accuracy
±2g
±2g
±3g
±5g
Packing Speed
15-25pcs/minutes
10-20pcs/minutes
5-15pcs/minutes
5-15pcs/minutes
Filling Volume
10g-999g
10g-3000g
50g-5000g
100g-9999g
Hopper Size
28*28*40CM
29*32*40CM
29*32*40CM
45*45*50CM
Hopper Volume
for Rice 25KG
for Rice 25KG
for Rice 25KG
for Rice 50KG
Machine Dimension
30*50*125CM
38*66*133CM
38*66*145CM
58*57*156CM
Machine Net Weight
31kg
52KG
58kg
70kg






Application


Suitable for tea, food, food, seeds, fruit, grain shape chemicals and pharmaceuticals, micro and small components such as general non-sticky solid materials.





Packing & Delivery




Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.


Our wooden case is very strong,it can bear long time shipping on the sea.


And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.



Our Company




Shenzhen Zeuya Industry Co., Ltd. has been committed to R&D, production and sales of the plastic welding field ever since its establishment in 1995.

We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 10 years.

We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.



Our Certificates




Since its inception, ZEUYA INDUSTRY has been devoted to optimization and integration of developing, producing, sealing, and application of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, ZEUYA INDUSTRY with high quality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.



FAQ


Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.


Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .




Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
