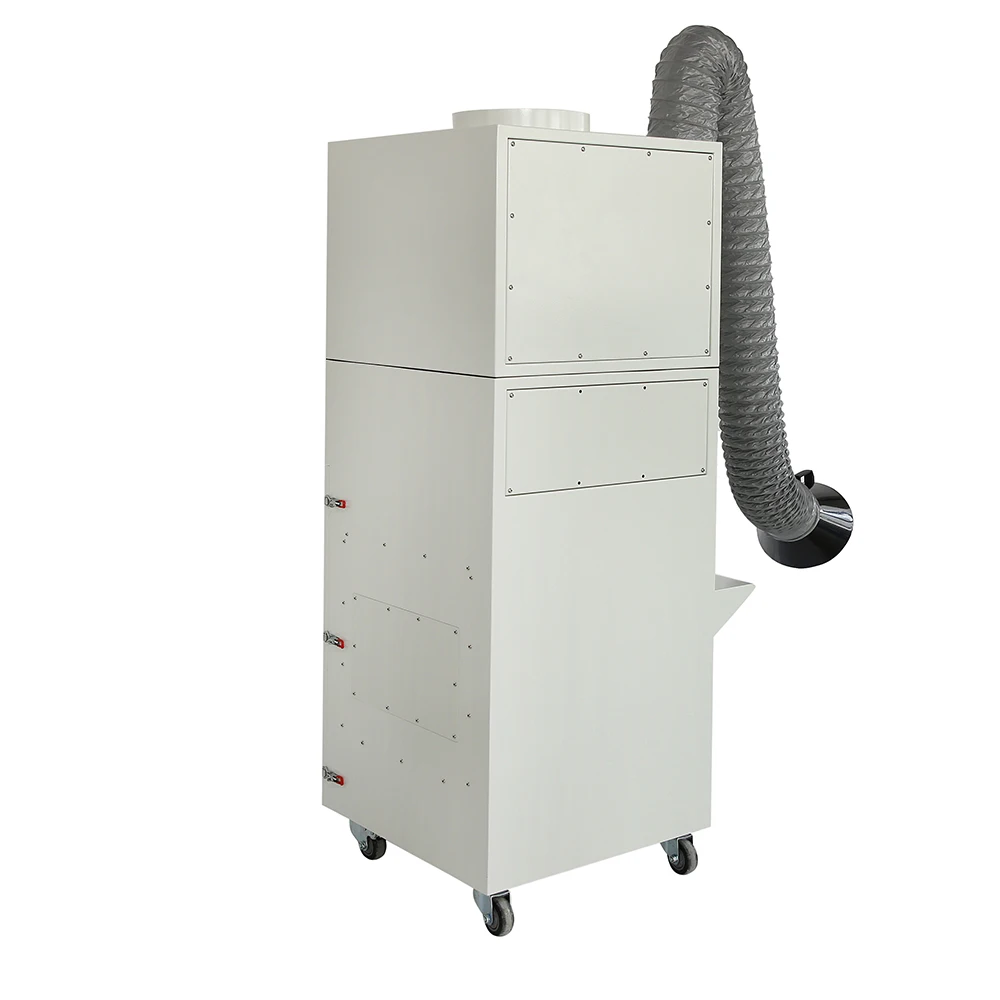

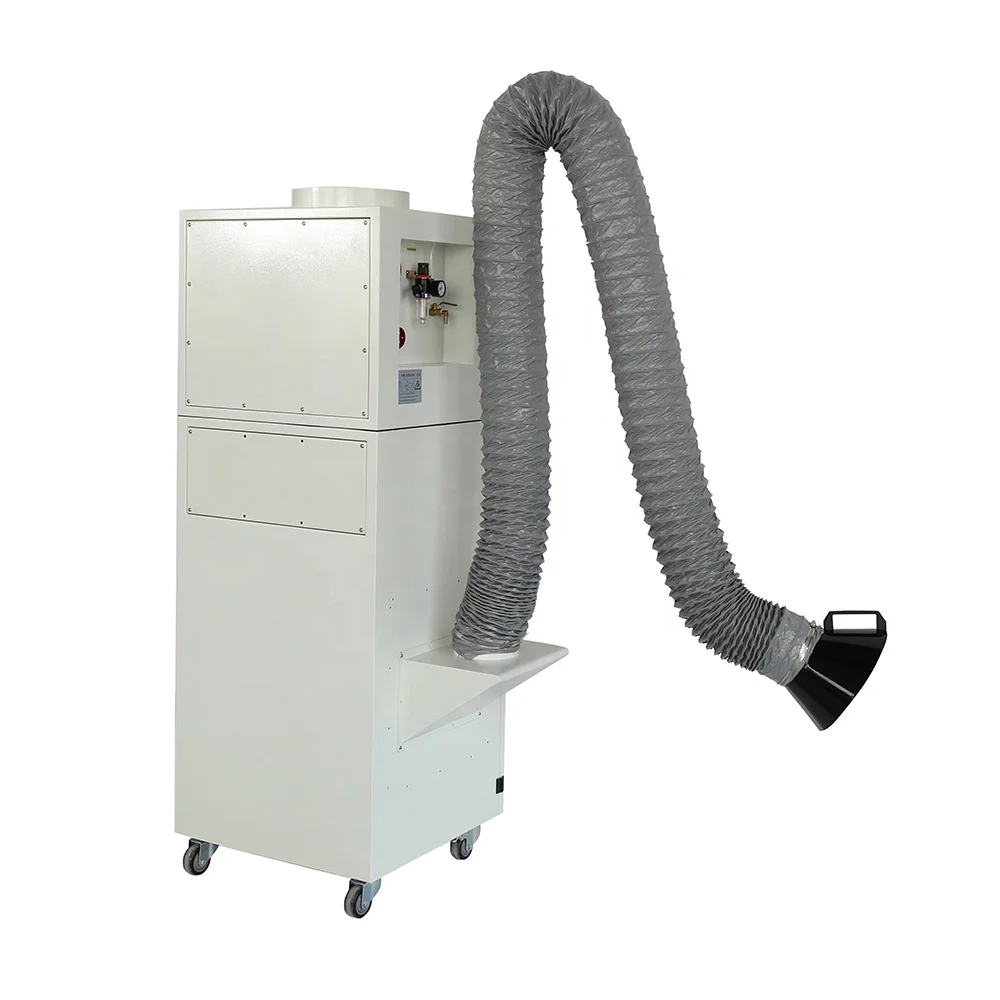

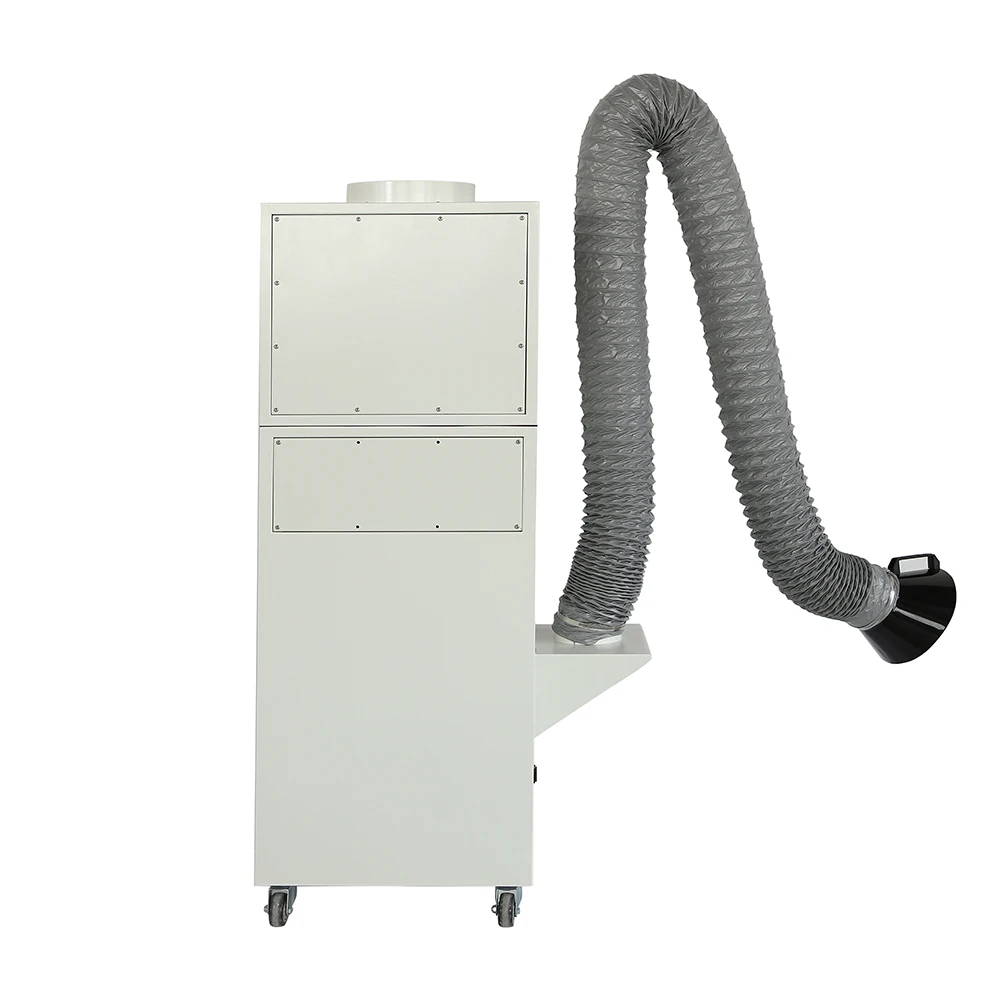

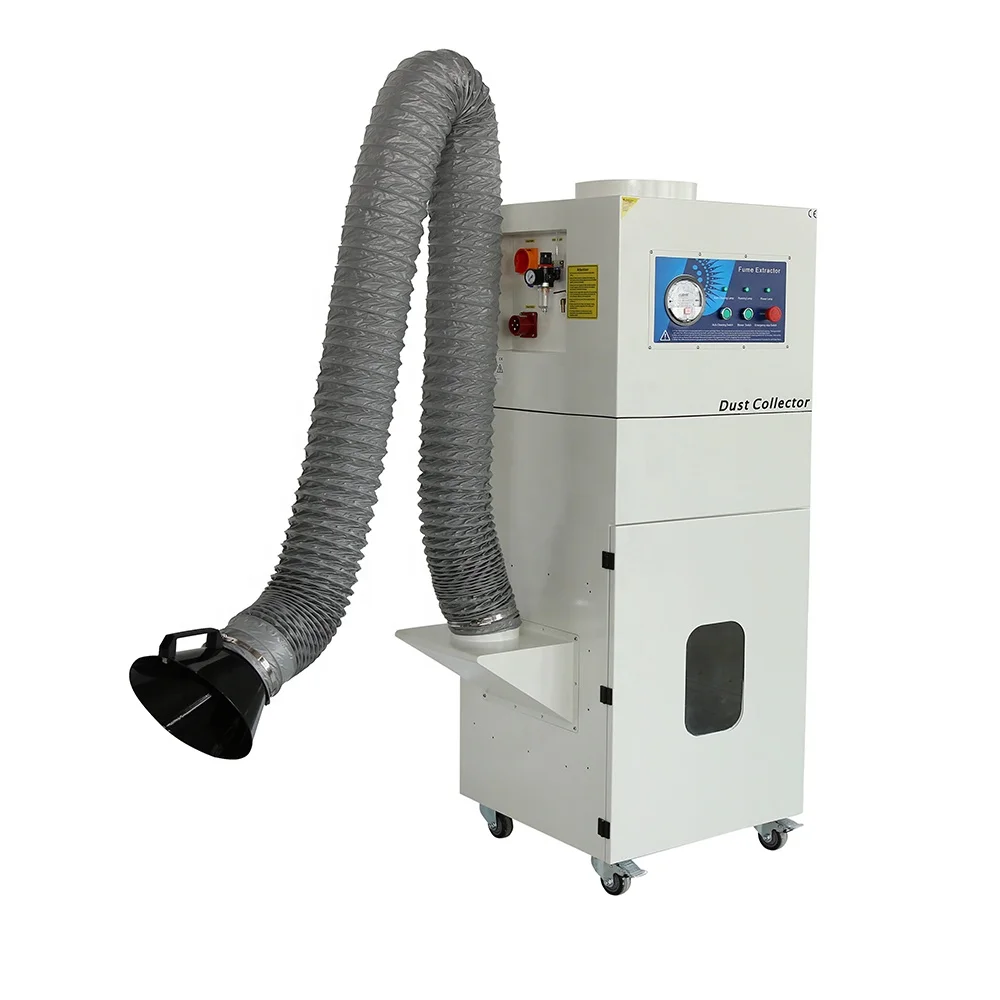

PA 2400SH X Industrial Welding Fume Purifier / Welding Air Filter / Smoke Evacuation Extractor Electrostatic Precipitator

Our Pure-Air PA-2400SH-X Welding Smoke Collector Air Filter For MIG Welders & TIG Welders is suitable for air purification, fume filtration for different welding processing:

1) Argon arc welding;
2) Electric-arc welding;
3)Carbon-dioxide arc welding;
4)electric slag pressure welding;
5)Oxygen-acetylene Gas Welding;
6)Flash butt welding ultrasonic welding;
7) Other Welding Process.

1)Working principle:Through the wind force of the fan, the dust is sucked into the air inlet of the equipment through the suction hose, then the dust is blocked at the air inlet, the large dust is blocked to the dust drawer. Small dust enter into the settlement room, take use of gravity and the upstream air, firstly make the coarse dust directly drop to the ash bucket, small dust particles were trapped in the outer surface of the filter. Clean air will be filtrate by HEPA PTFE Cartridge Filter, then enter into the clean room, exhaust outside after the outlet by the standard discharge;
2) Has very good peformance for Dust collection and fume filtration for laser cutting metal, plasma cutting, polishing and small workpeiece metal grinding, etc;
3) Air flow is 2400m3/h;

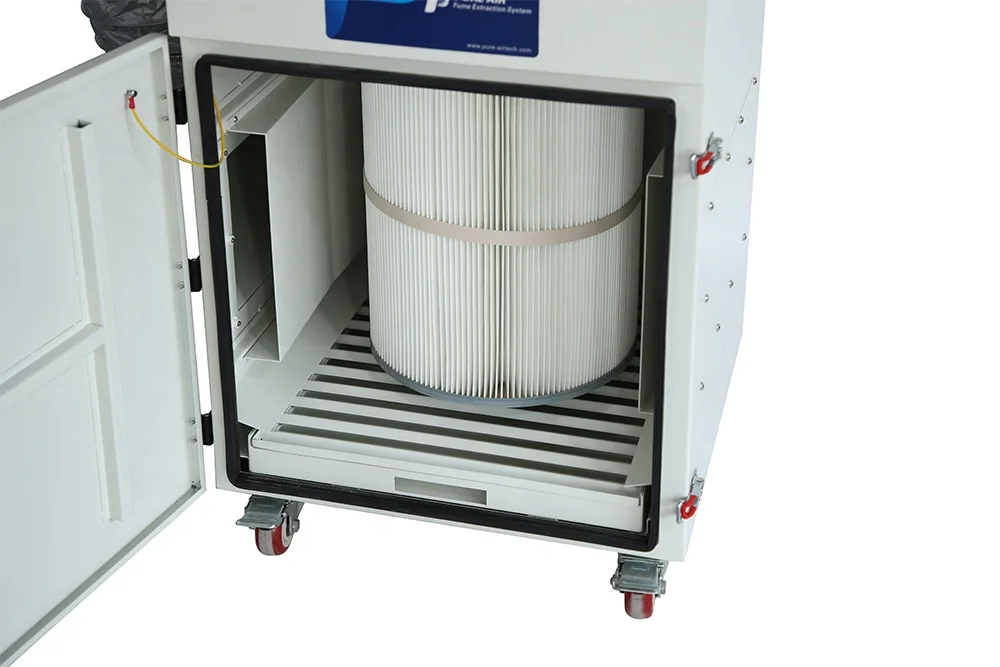

4) With HEPA PTFE Cartridge Filter to ensure filtrate harmful material of the fumes/dust completely, to achieve room air quality standard, protect environment and people's health;
5) Filter cleaning type: Automatic blowback cleaning system.
