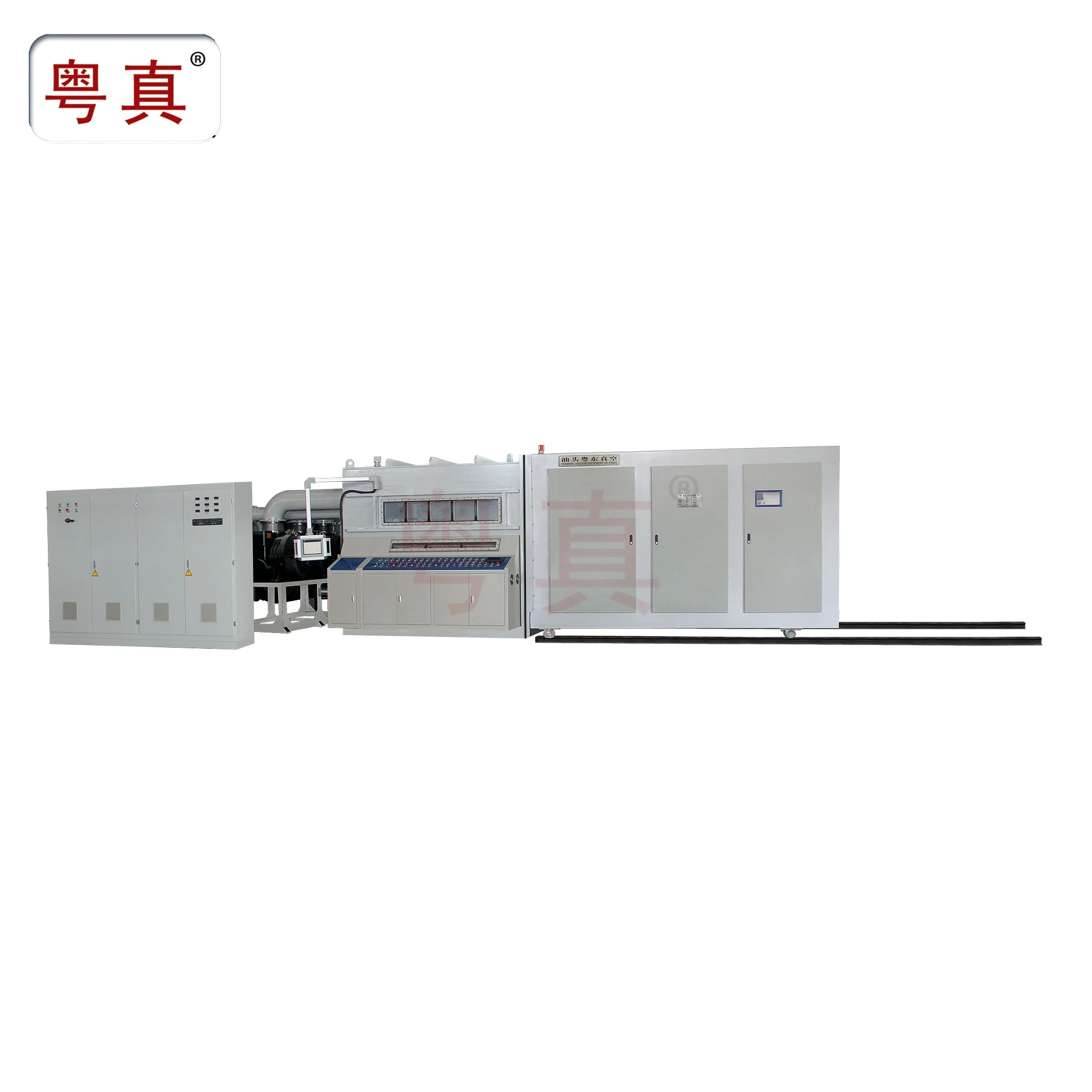

vacuum metallizing machine film metallizing machine for holographic laser film PVC glitter sequin of Yuedong Metallizer Co.,Ltd.
- Category: >>>
- Supplier: Shantou Yuedong Vacuum Equipment Manufacture Co. Ltd.
Share on (60837173217):
Product Overview
Description
Product Description
new design films metallizing machine for PVC has the advantages as below:
Main features:
1. With a high quality Siemens PLC microprocessor and three Siemens color HIM.Siemens profibus as well all digital operation parameters.Machine control program based on humanity.
2. Three Siemens color HIM in the machine so easy to control and observe it.Working condition in the chamber can be viewed more clearer by an infrared ray monitor.
3. Powerful pumping section has the feature of high pumping speed and with Siemens PLC so it can keep excellent vacuum condition under any climate environment.
4. With high precise two rollers and four servo frequency-conversion motors,also high precise Japanese Yaskawa or German Siemens servo system to achieve stable running and high winding speed.The design of unwind and rewind on the same side to make it easy operation and improve long term stability.Quick connector is fitted in unwind and rewind so it easy to operate and improve production.
5. Japanese precise servo drives control the tension section.The major feature of tension system is loseproof in roll and anti-stall,also has all kinds of function on automatic correction.The tension system has an automatic adjustment on rewind taper tension and rapid response.
6. The design of heating section is top clamp and staggered to make an excellent evaporation uniformity so increase the evaportation rate.Boats can be changed quickly.
7. Separately control the wire-feeding speed by stepping motors ensures the better uniformity of Aluminium coating,.Wire-feeding section can be easy operate and get better stability as well as safety.
new design films metallizing machine has the specifications:
| Model | F1600 |
| Web width (mm) | 1650 |
| Max.unwind dia. (mm) | 1000 |
| Boats (Pc) | 18 |
| Speed (m/min) | 800 |
| Pumpdown time (min.) | 10 |
| Ultimate vacuum (Pa) | 8×10-3 |
| Wire-feeding (m/min) | 0~5 |
| Wire diameter (mm) | 1.5~1.8 |
Working power (About Kw)/ | 220/380 |
| Occupied area (m) | 18×7×2.8 |
| Total weight (Ton) | 36 |
Packaging & Shipping
Our Services
1.Two engineers available to service machinary overseas.
2. It's 12 months after-sales service and improve machine performance forever.
3.We are a family company and not a partner company,so we can supply after-sales service for long term.
Company Information
1. Name:YUEDONG METALLIZER
2. Overseas Sales Manager: Mrs.Sophia Chen
3. WeChat ID: 008613902736527 or sophia0086
4. QQ : 751100923 and email ID is same.
FAQ

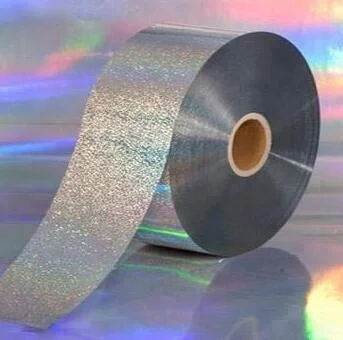

METALLIZED FILMS HAVE A
BEAUTIFUL METALLIC GLOSS ON THE SURFACE,
EXCELLENT GAS AND LIGHT BARRIER
PROPERTIES,AND GOOD MOISTURE
RESISTANCE,HEAT RESISTANCE,
PUNCTURE RESISTANCE.AND IT’S THE BEST REPLACEMENT OF ALUMINUM FOIL.
