ZHUCHENG YIFU MACHINERY CO.,LTD This is full automatic plantian chips, banana chips production line 500kg/h/300kg/200kg/100kg/h. Following is the processing of the line: 1. Boling and peeling automatic This device pre-wash the potato and transport them to peeling machine. 2. slice cutting machine This cutting machine can cut the potato to 1.5mm thickness chips with good quality 3. bubble washing machine this machine can washing the chips with bubble water 4. Blanching machine This machine use steam to heat the water and blanch the potato chips 5. Vibrator dewater This machine can distube the potato chips and remove the excess water 6. Air drying machine This machine can dry the potato chips with air 7. first frying machine We use the large size continusous frying machine for frying chips. It use external heat exchanger and gas boiler.
9.second frying. 8.Vibrator deoiler This machine distribute the potato chips and remove the excess oil
9.seasoning.
10. Packing
automatic weight and packing for all kind of size bag as customer's requiement.

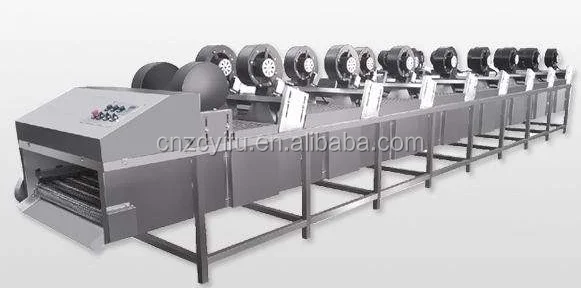

Factoy supplier China automatic banana chips frying line

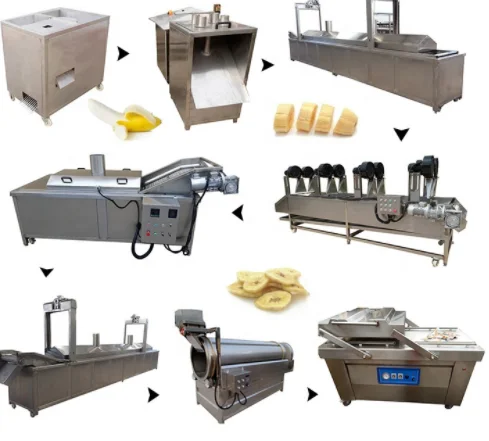

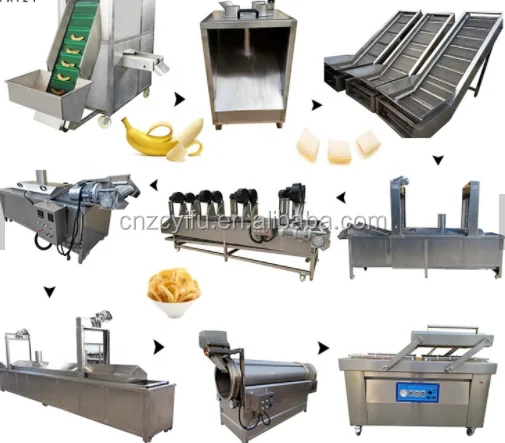

Raw material fresh banana or plantain--boiling--Peeling--Slicing--First frying--Coated with sugar--Second Frying--Deoiling--Seasoning--Packing
Main Features of Banana Chips Frying Line
1.This banana chips making machines is specially designed for processing banana into delicious banana chips,it is also suit for potatoes, to make the potato crisps by changing some machines.
2. Based on different caapcity, we can suggest semi or automatic line.
3. Easy operating and relibale quality and service

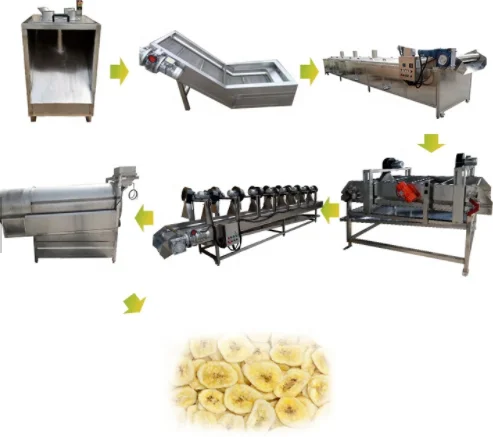

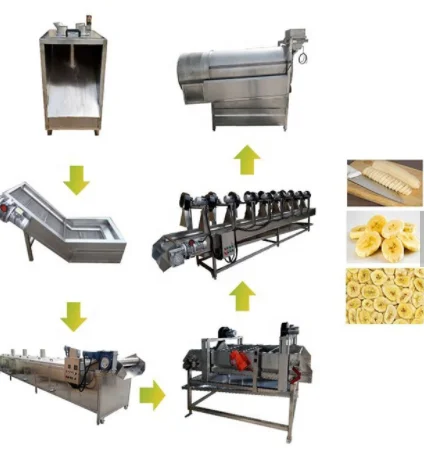

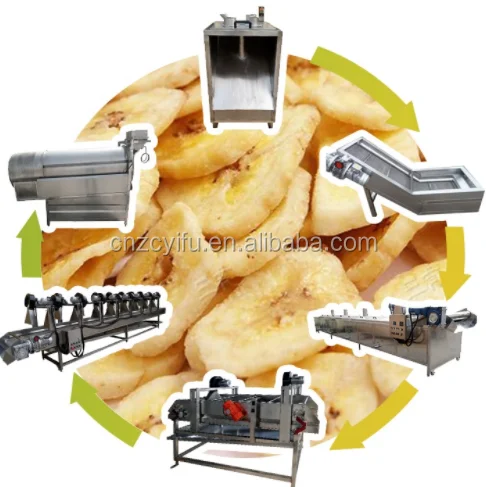

Flow Chart of Banana Chips Making Machines
Process 1 for the banana chips or plantain chips:
Raw material fresh banana or plantain--boiling--Peeling--Slicing--Frying--Deoiling--Seasoning--Packing
Process 2 for the banana chips or plantain chips:
Capacity is 100kg --1500kg /H.
We design the processing machine for full fried production Line for you according to your workshop , use Electric /Gas / oil as heating source to reduce the costs.
Main machine for Banana chips, Plantain chips Produciton Line:

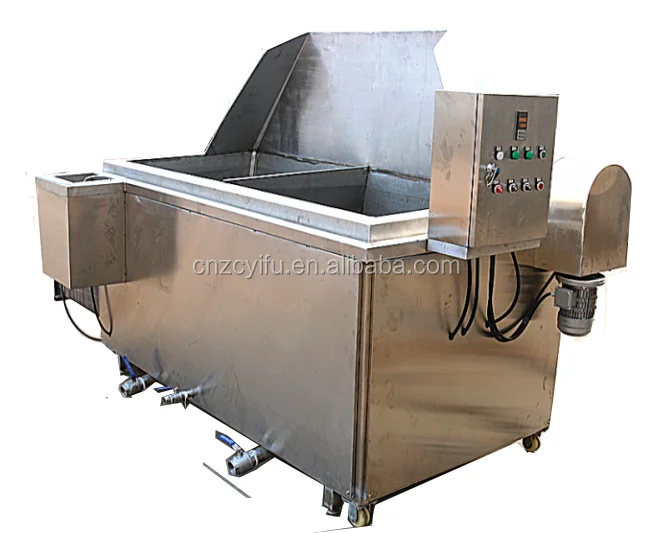

Blanching thread 1.External dimension: long 4500mm wide 1300mm high 2000mm 2, hot groove: long 3000mm wide 1160mm deep 450 mm, groove plate thickness 2.5mm 304 stainless steel plate cold forming.the column is made of 60*60*3mm 304 stainless steel industrial pipe 3.Two sides of the insulation layer thickness 60mm aluminum silicate, to prevent heat loss. 4.The insulation layer is protected by thick 0.6mm stainless steel plate to prevent water and moisture insulation. 5, the outer packing uses the inlay type packing board, thick 1.2mm 304 stainless steel 6.Design with movable bottom casters and fixed bottom gongs 7.Steam heating adopts direct heating 8.The design has the temperature automatic control, the control adopts the solenoid valve port 9.Conveyor belt of stainless steel plate, punching diameter of 4mm, wide 1000mm 10.Double layer conveyer network to prevent the product from floating when blanching, the phenomenon of discharge can not occur 11.The upper part is designed with an integral exhaust insulation system with two ends of high rise type 12.The lifting mechanism is synchronous to prevent the phenomenon of lateral shift. 13.Drive motor 1.1kW needle and thread reducer, lift 1.1kW reducer Cold bending of the distribution box with stainless steel
14.Delixi brand of electrical appliances, temperature control of Shanghai Olympic instrument intelligent temperature control, frequency conversion Shenzhen Sifang brand; Design a discharge flushing nozzle to prevent dirt from sticking on top of the product.

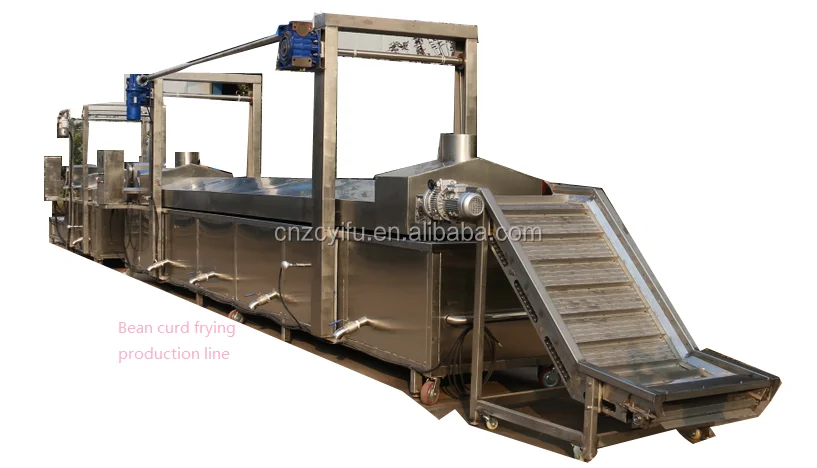

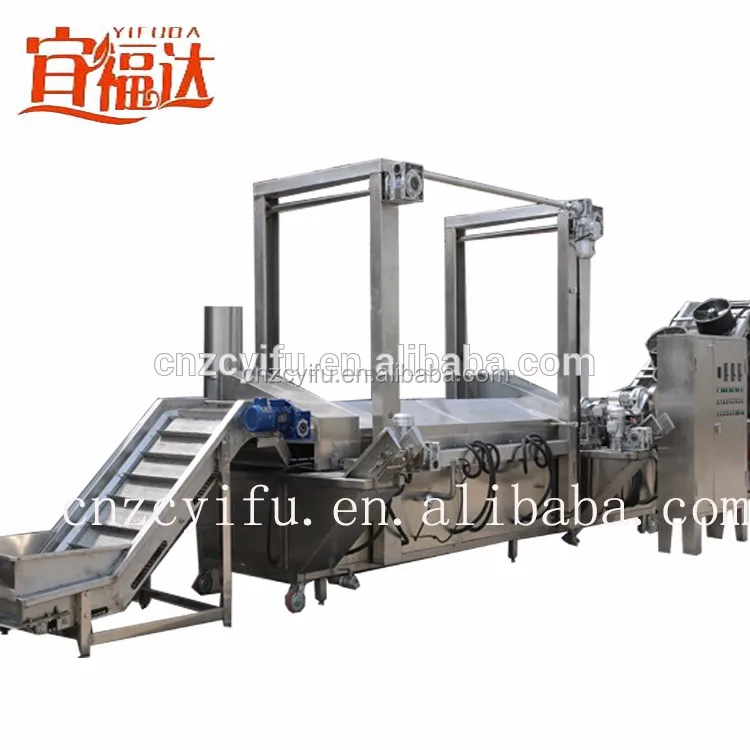

Frying equipment: The frying equipment is a relatively advanced frying equipment which is produced by combining the foreign technology with the production technology of Pengford Company. Frying equipment: Production products: French fries, potato chips, compound potato chips and other products. The frying equipment is electrically heated.
Fried electromechanical heating power is 320kW, the other 10 KW drive, a total of 320kW.
The frying temperature is 150 ℃-230 ℃. Temperature control range: room temperature-230 ℃ (intelligent temperature control). The precision of temperature control is ±1 ℃. The minimum time of frying is 300 KG-500KG / h. Food frying process time: 2 minutes 6 minutes. The frying time of food is to use the conveyor belt to adjust quickly and slowly, and to adjust the frying time for variable frequency speed regulation, and the time can be set. Equipment external dimensions: long 10000mm wide 1280mm 2000mm. The bandwidth of the frying machine conveyer network is 800mmm. Frying conveyor belt form: stainless steel coated mesh belt pitch 6mm pitch 12mm chain 25.4mm B mesh scraping type. Fryer body part: The whole tank of the frying machine is designed with thick 5mm304 stainless steel and welded once. The slot frame is made of 80*80*3mm stainless steel square pipe welding. The insulation layer is insulated with thick 80mm aluminum silicate. The outer packing of fryer is made of thick 1.5mm304 stainless steel plate by cold bending. The pot body welding adopts 304 wire welding to prevent material inconsistency from cracking. The oil frying machine is placed at the bottom of the oil tank on the side of the frying machine. The frying machine is designed with three oil-flushing circulators to prevent the product from floating and causing residual phenomena. All welding parts of frying machine are fish scale welding. The frying hood is designed as a full sealing head to prevent the oil fume from overflowing. The frying hood is designed to adjust the fume cover clearance at any time.
Conveyor belt section: The conveyor belt rack is made of thick 4mm304 stainless steel plate with cold bending and divided into two layers. The conveyor belt is designed for upper and lower layers, and the intermediate frying space is 80 mm. The heating upwarping device is used in the upper part of the conveyor belt, which can prevent the bending of the stainless steel hot rising belt frame during the heating process. Conveyor belt is made of stainless steel 304, chain 25.4 mm, pitch 6 mm, pitch 12 mm, shaft 7 mm, wheelbase 100 mm. Stainless steel bracket for mesh support The drive is designed with two sets, and the top and bottom can be adjusted separately. The conveyer belt rotates all adopt the stainless steel bearing standard national standard.
Detailed Parameter of Fries /chips production line , Pls contact our to get it .

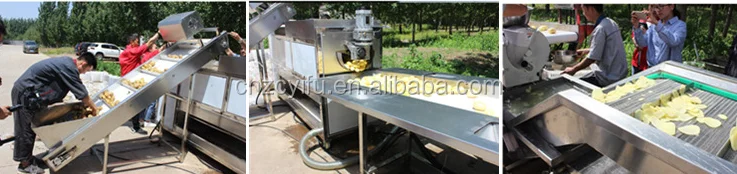

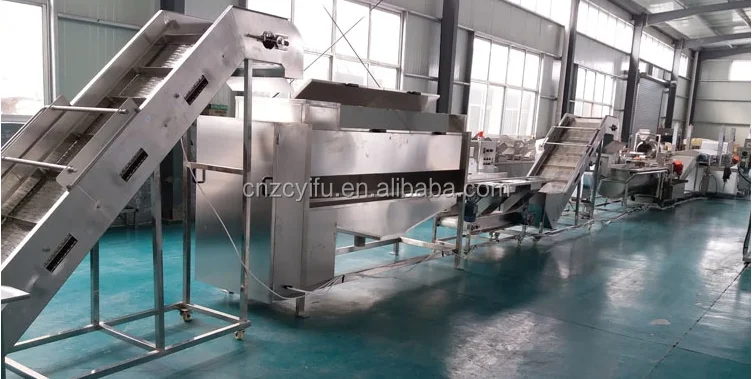

Detailed Images
FROZEN FRENCH FRIES PRODUCTION LINE FACTORY PRICE WAHTSAPP: +8615098173116

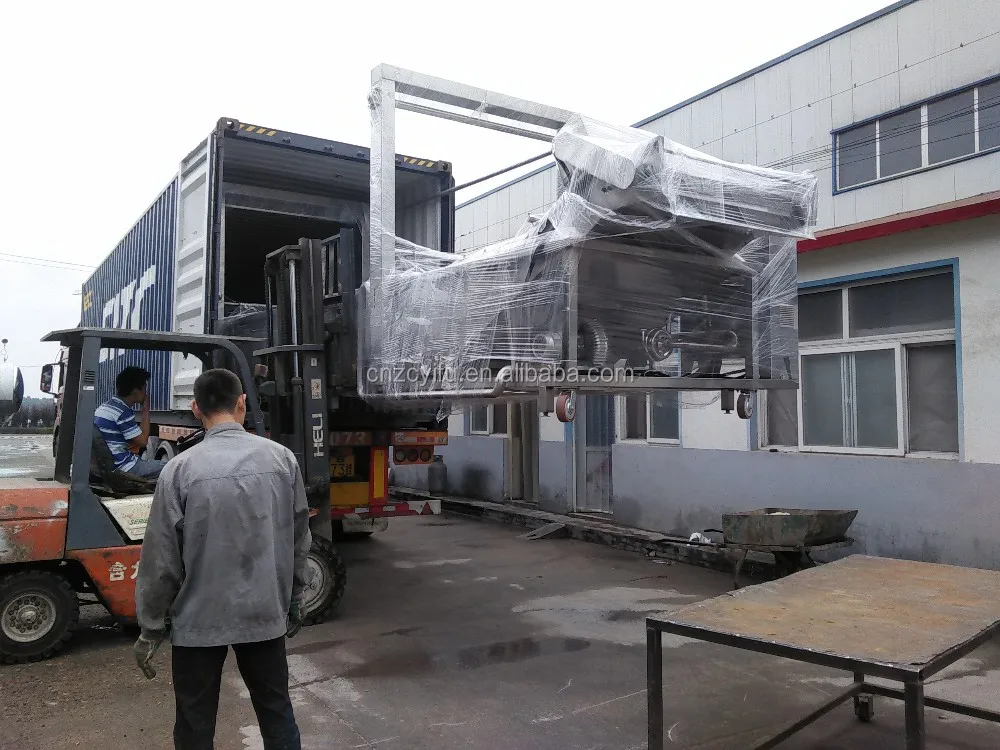

Packing & Delivery
Our Service
1. The company guarantees that all the machines sold will be tested before they leave the factory, and will not be shipped to the customers until they have passed the inspection, so as to ensure that the machines can be used normally and quickly after the customers receive the machines, so as to completely avoid the production losses of the customers. 2.Provide a full set of installation, commissioning, maintenance, technical advice and other pre-sale after-sales service, sold products within a year of free maintenance. 3.Service objective: provide perfect aftermarket for all customers and make the machine run without trouble. 4.Service principle: the warranty period of the product is 12 months. 5. During the warranty period, the supplier will repair and replace the parts damage caused by the quality reasons free of charge, and the damage of spare parts outside the warranty period will only be subject to the cost of providing spare parts. Equipment damage caused by factors considered by the buyer, supplier maintenance or the provision of accessories are priced at cost.

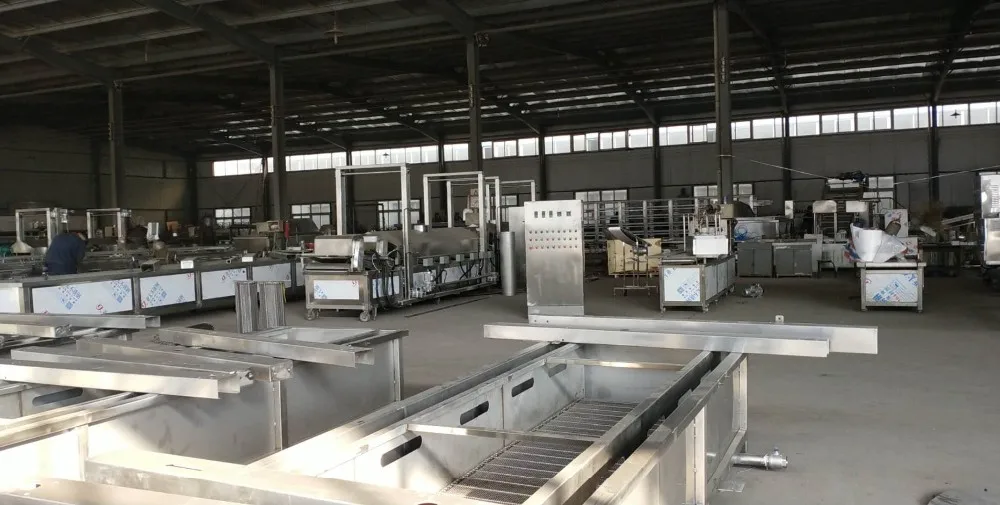

Our Company
Zhucheng Yi Fu Machinery Co., Ltd., is the earliest in the vacuum frying equipment, pure oil frying machine , oil and water mix frying lines, low temperature quick-frozen lines, sterilization lines, drying line, cleaning washing machine manufacturers.
1.Frying solution ( potato chips, french fries ,meat, Tofu ,Fish peanut,cake ,chicken , fruit , vegetable ..)
2.Potato solution: frozen french fries production line, potato chips production line.
