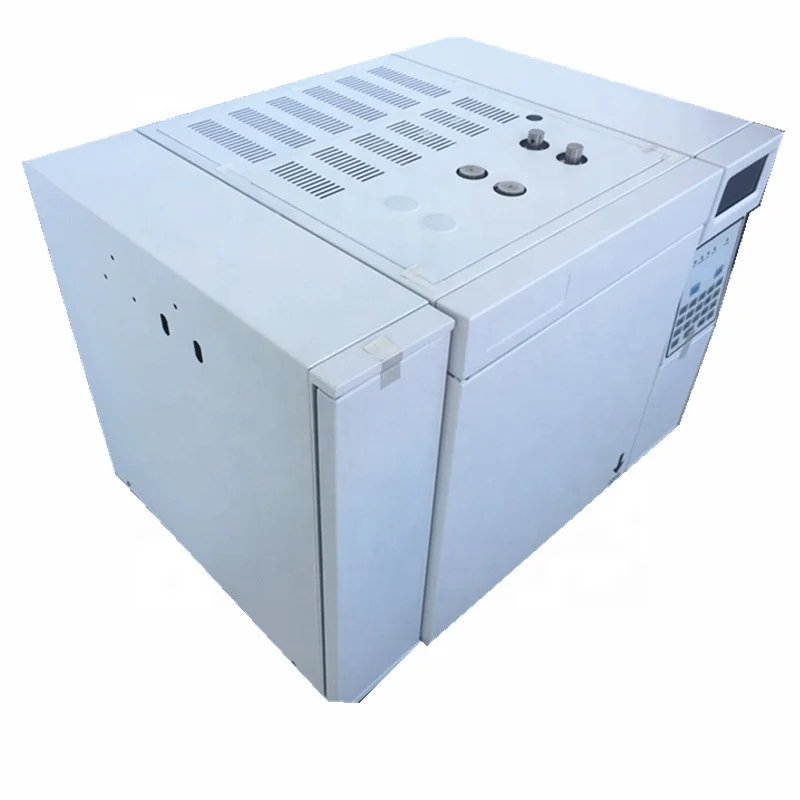

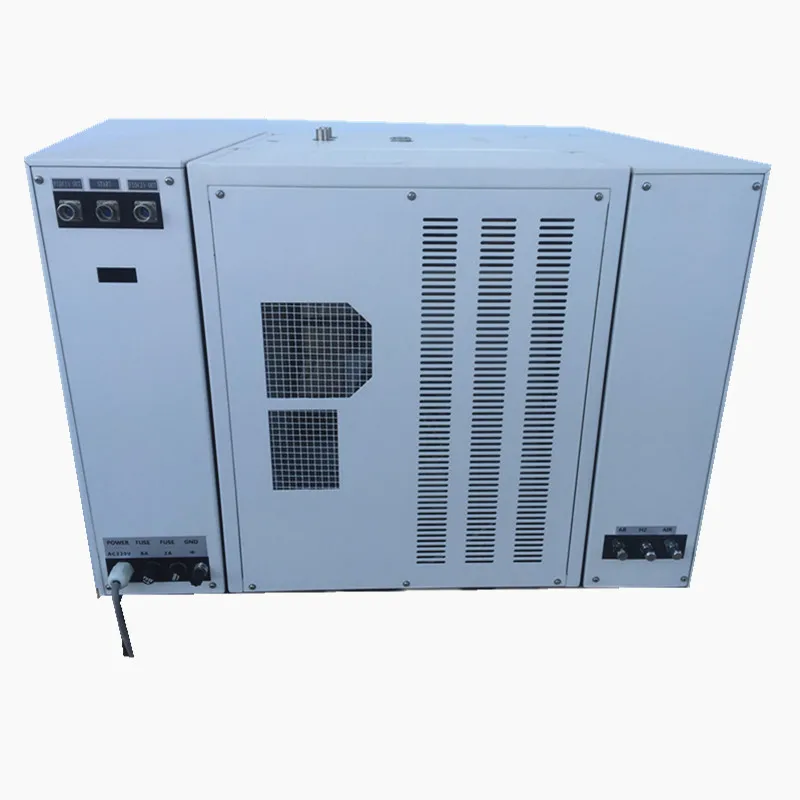

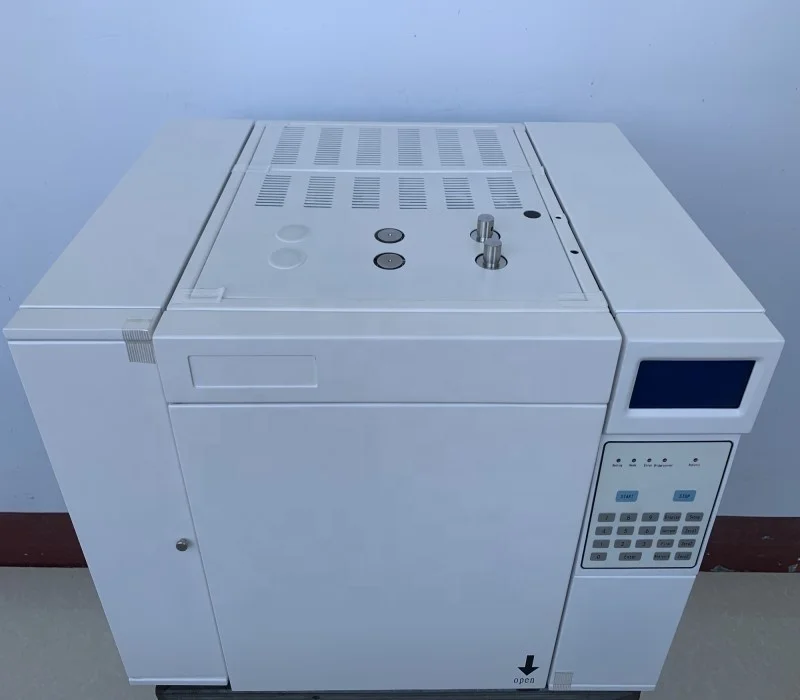

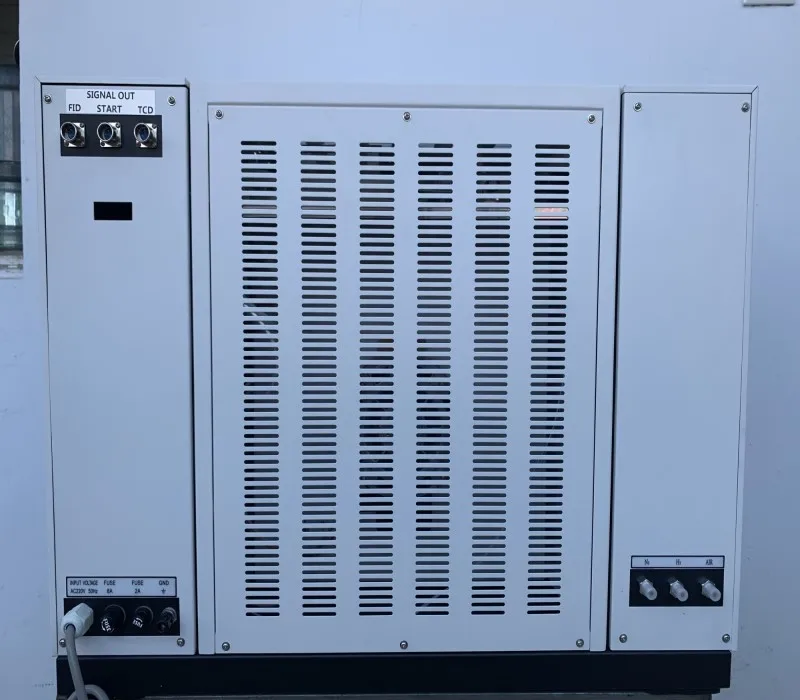

  Gas Chromatograph (GC) Analyze H2,O2, N2, CO,CO2,CH4, C2H4,C2H6,C2H2





Product Description



Application

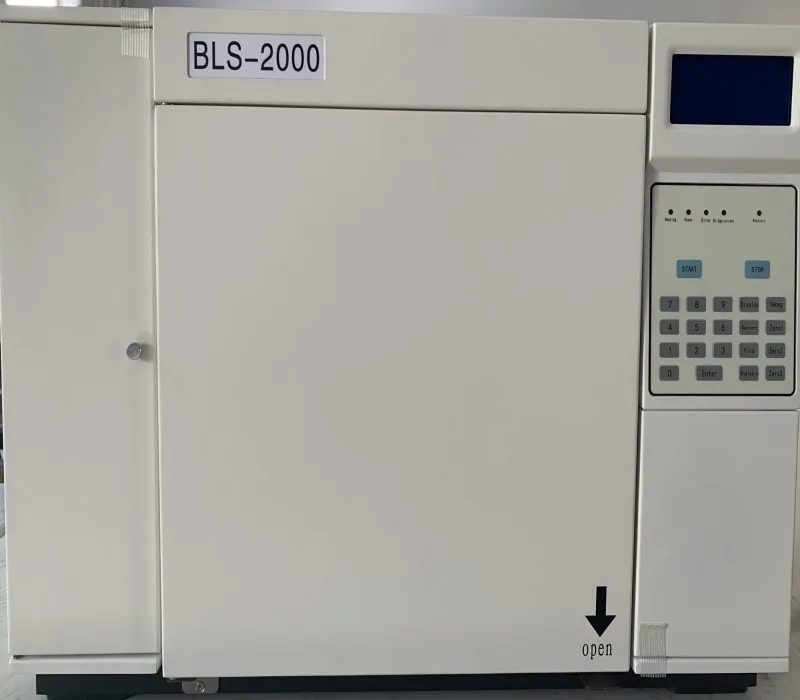

BLS-2000 gas chromatograph is designed and manufactured according to the methods specified in GB/T17623 and DL/T703, suitable for analysis of hydrogen, carbon monoxide, methane, carbon dioxide, ethylene, ethane, acetylene, etc. dissolved in insulating oil that is in oil-filled electrical equipment (including transformers, reactors, current transformers, voltage transformers, charging sleeves, etc.)



QQ20190719165402

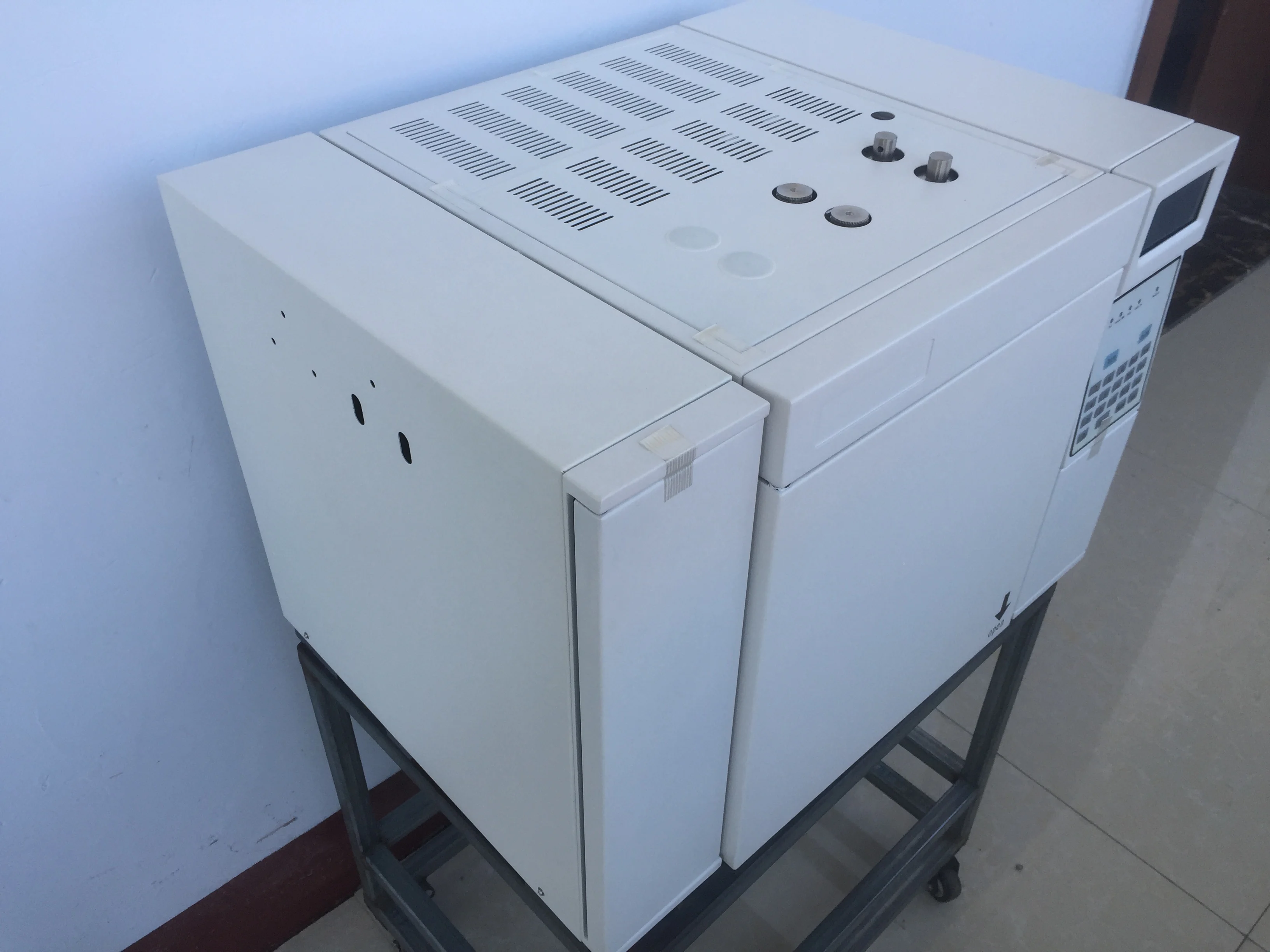

QQ20190719165357

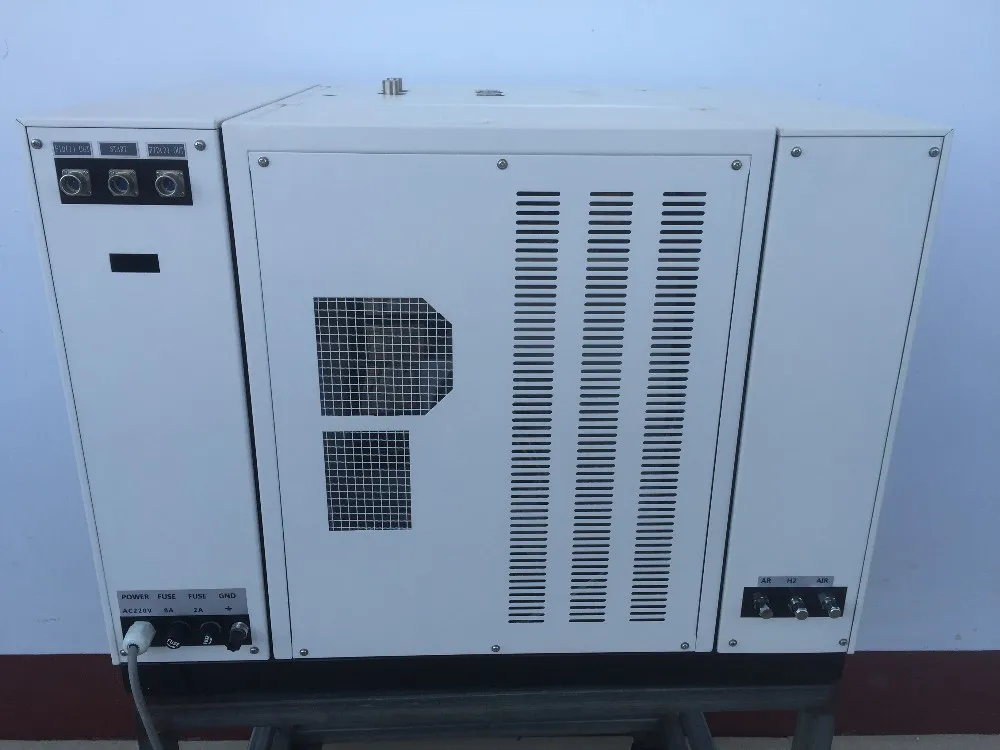

QQ20190719165407

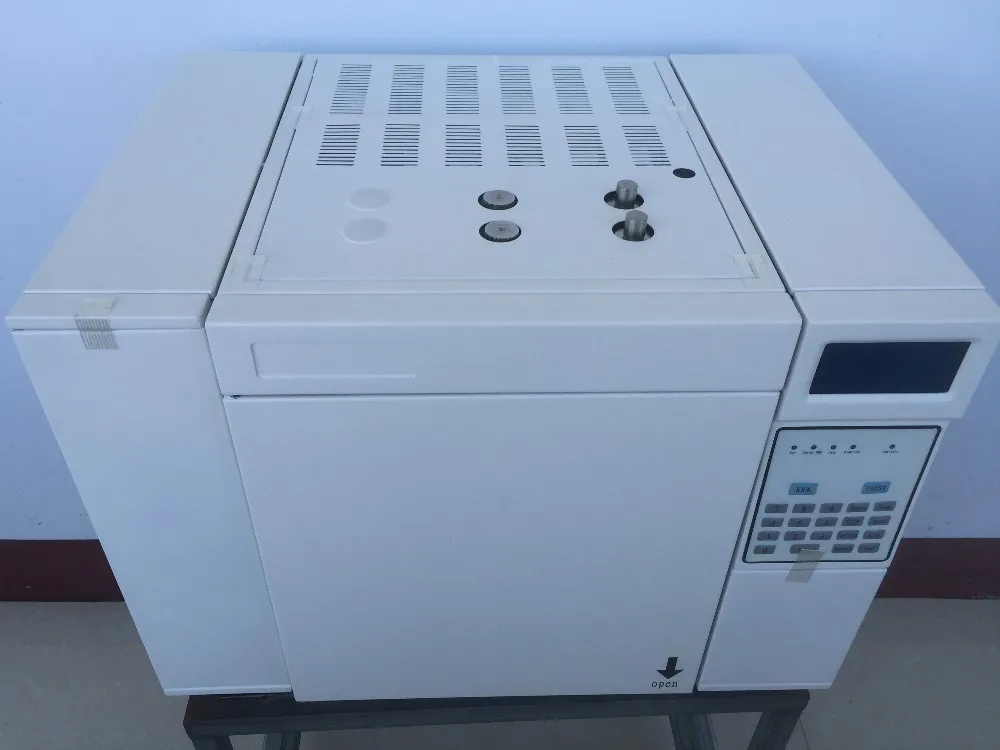

QQ20190719165350



Features

1.High sensitivity, high accuracy, high resolution, fast analysis speed, simple analysis method;

2.One chromatograph column with good separation;

3.One injection with less injection volume; short time for full analysis;

4.Data is automatically processed by the chromatography workstation.





Technical Parameters



Power-on stabilization time

<1.5 hours

Display accuracy

0.1 °C Temperature control accuracy: ≤ ± 0.3 ° C

Baseline noise

TCD ≤ 0.1mv; FID ≤ 1 × 10-12A / 30min

Baseline drift

TCD ≤ 0.2mv / 30min FID ≤ 1 × 10-11A / 30min

Sensitivity

TCD≥1000mvml/mg (benzene)

Detection limit

FID ≤ 5 × 10-12g / s

Oven temperature

Room temperature to 200 ° C

Detector (FID) temperature

room temperature to 300 ° C

Methanation converter temperature

380 ° C

Over temperature protection

Automatically alarm and power off if temperature exceeds limitation.

Dimensions

620mm × 445mm × 485mm

Weight

About 31.8kg





Company Information

  Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.



Canton fair



Packaging & Shipping



1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.

2. Inside package: strength film and foams.

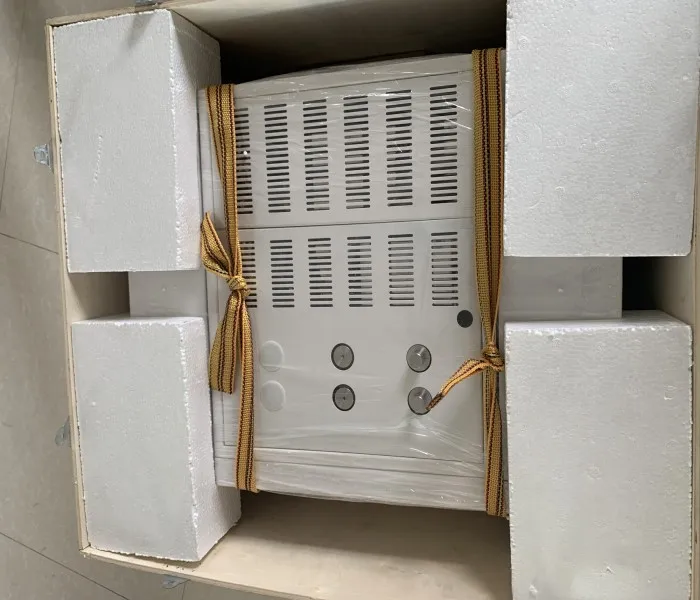

packing 1
