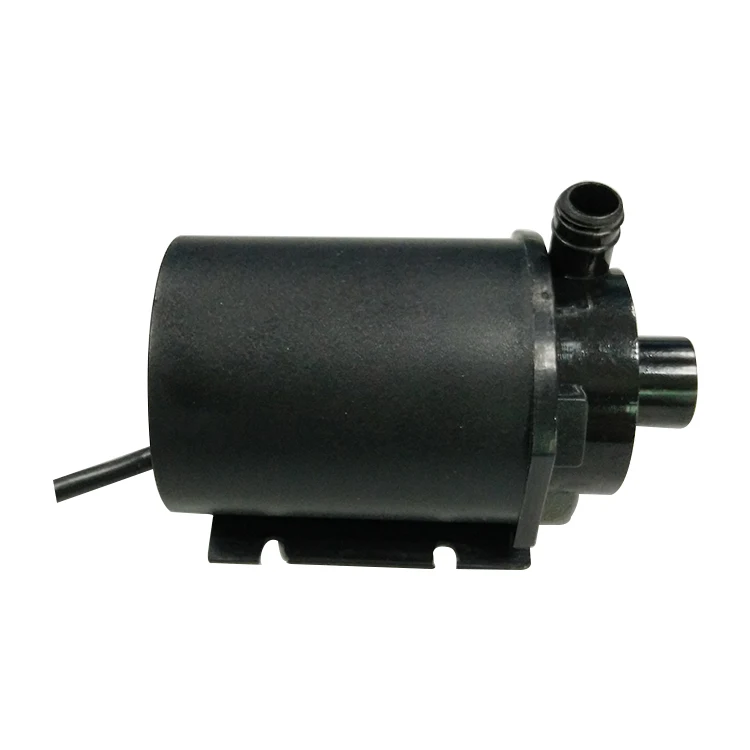

24v dc brushless solar water pump

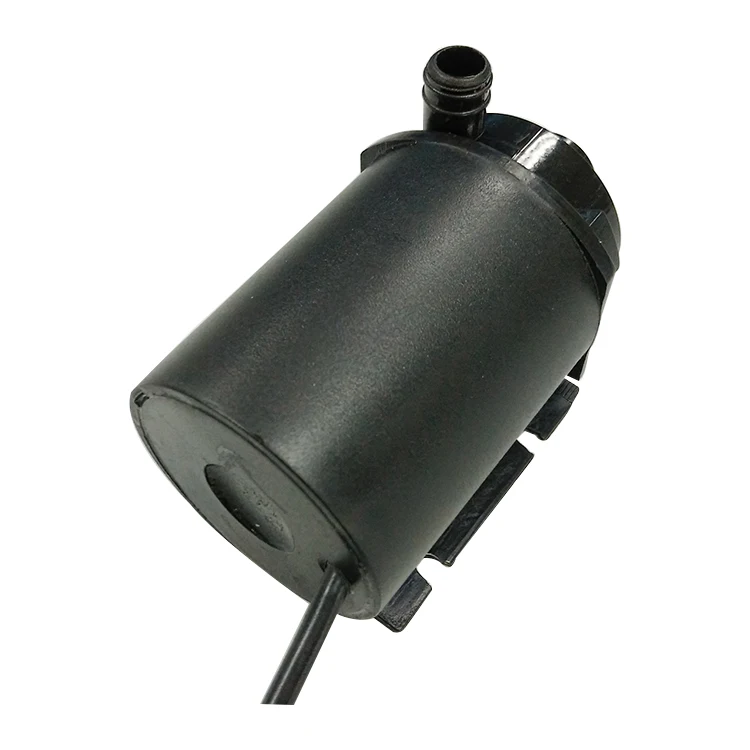

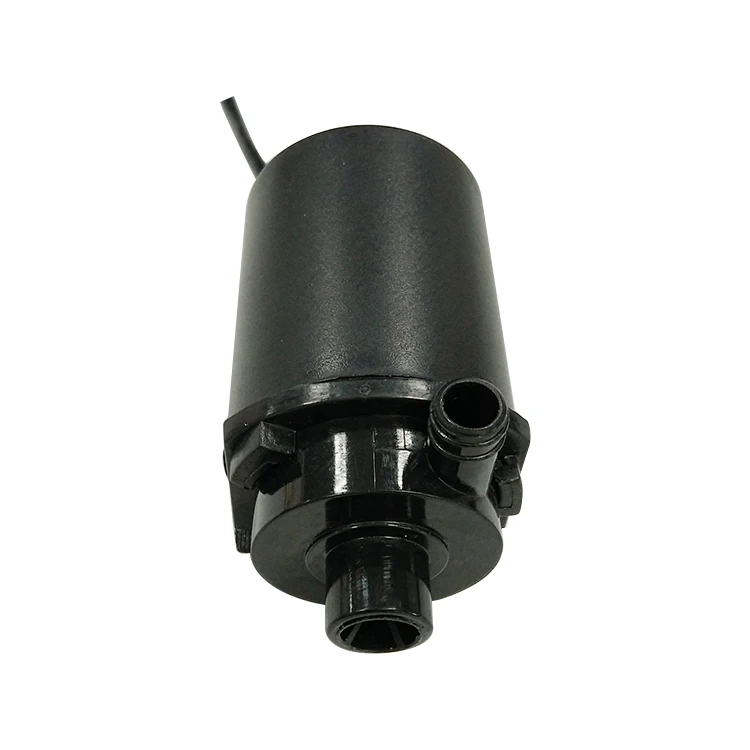

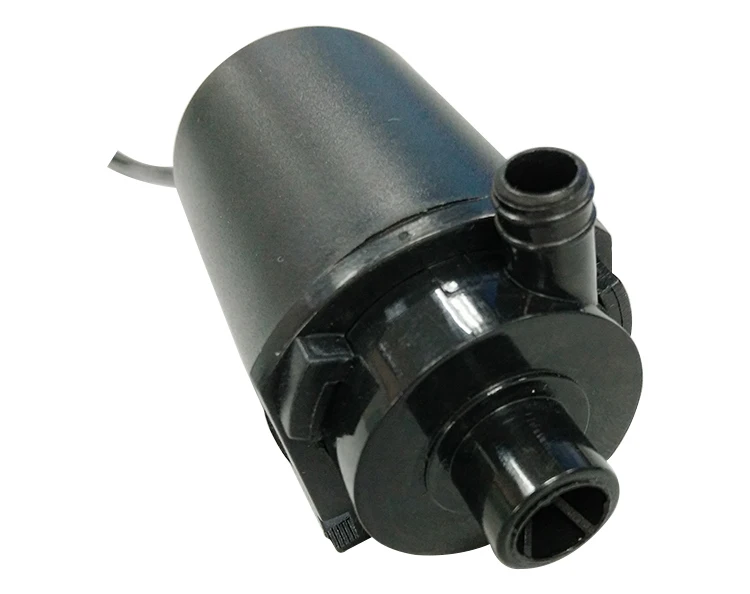

2 inch water pump 12v dc motor PWM control/ fountain submersible water pump 24v dc/ low voltage mini dc water pump

Product parameter



Character/modelZL38-02
Working Voltage RangeDC: 6V-24V
Rating Power6V: 2-12W / 12V: 3-18W / 24V: 5-25W
Static Water Head1-5 M
Static Flow Rate3-12 L/min
LifespanContinuous operation≤24hrs, under normal working surrounding >20000Hr0Hr
Working EnvironmentLiquid: From weak acid to weak base, workable in water (Submerged )
Max NoiseUnder normal working status, 1M distance over test instrument <40dB
Max Working TemperatureUnder normal surroundings, fluid medium temperature≤70℃
ApplicationSolar water circulation system, Medical kit cold hot compress cycle, Small fountain, Aquarium, etc.

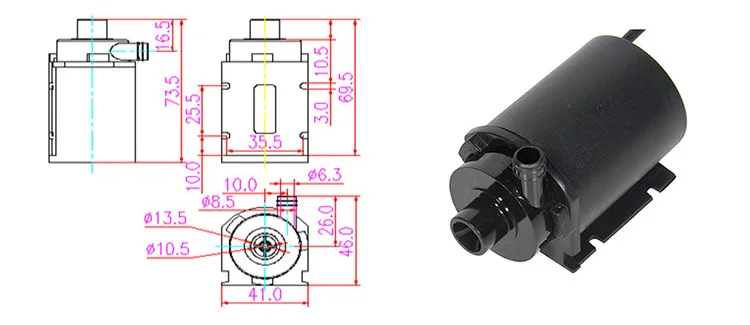

  SizeIP GradeInletOutletRemark
Lengt(mm)Width(mm)Height(mm)OD(mm)ID(mm)OD(mm)ID(mm)Inlet and outlet with forward spinning standard pipe thread
964790IP66G1/2'' standard pipe threadφ13G1/2'' standard pipe threadφ13



Performance diagram

24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump

24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump24v dc brushless solar water pump
