Product Overview

Description

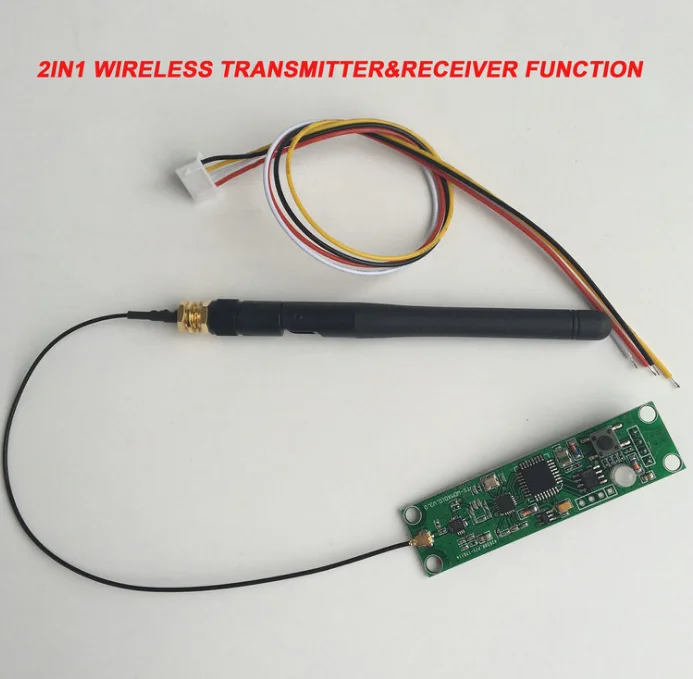

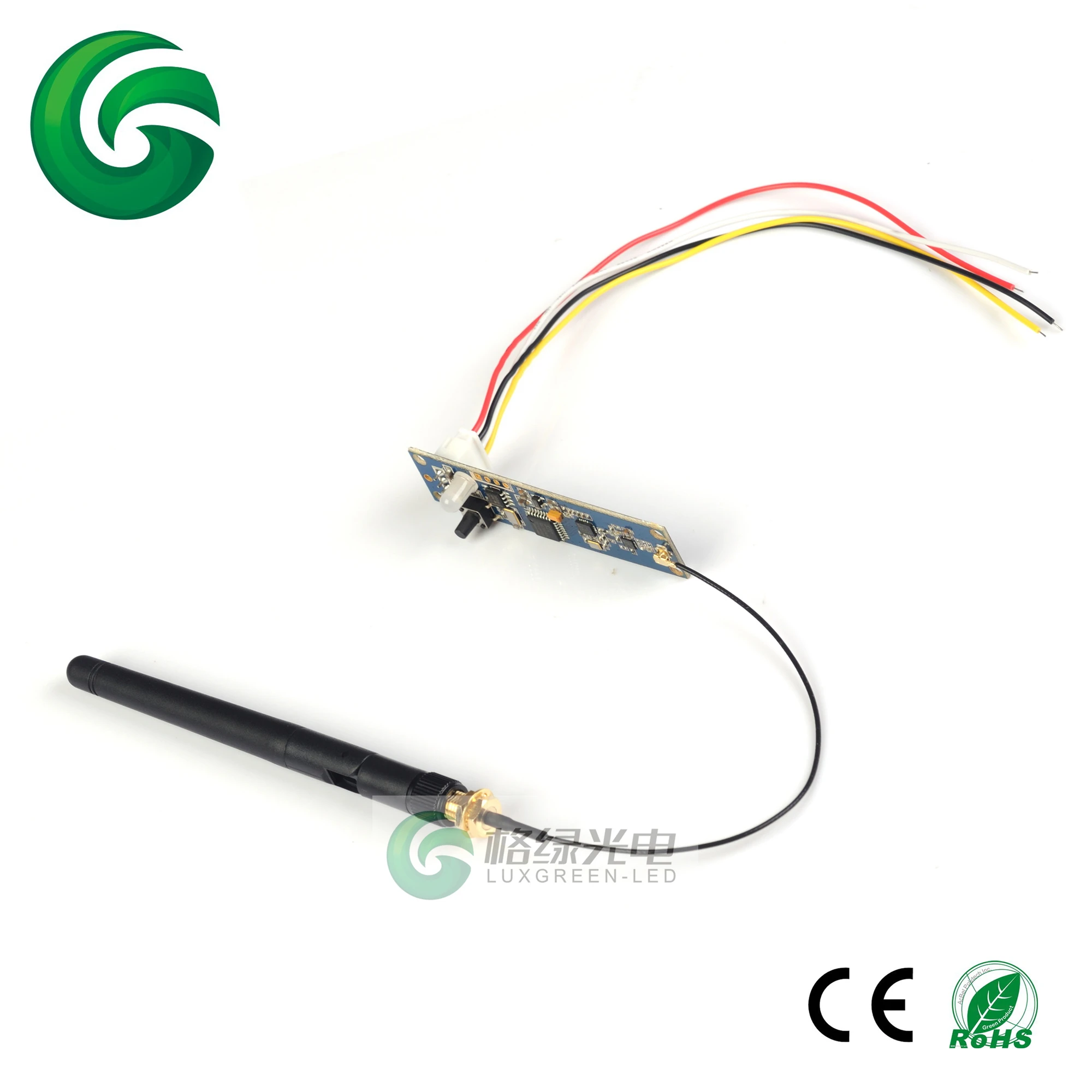

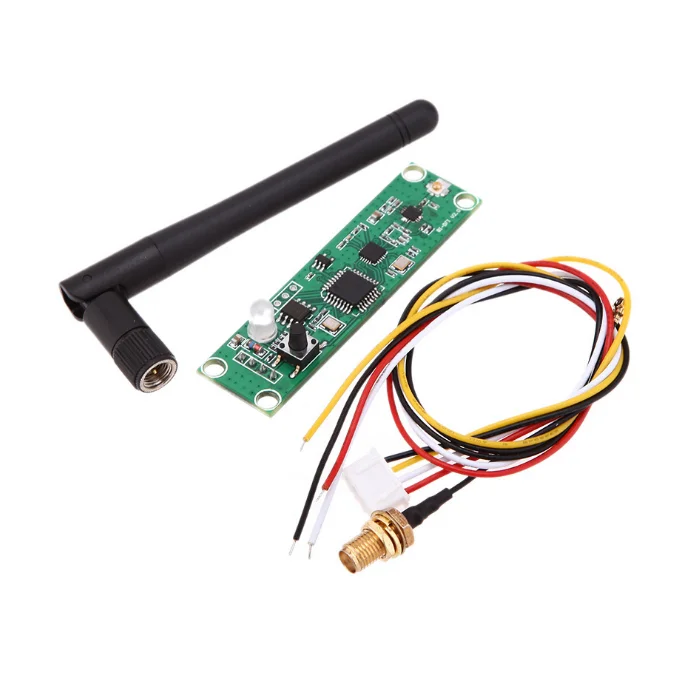

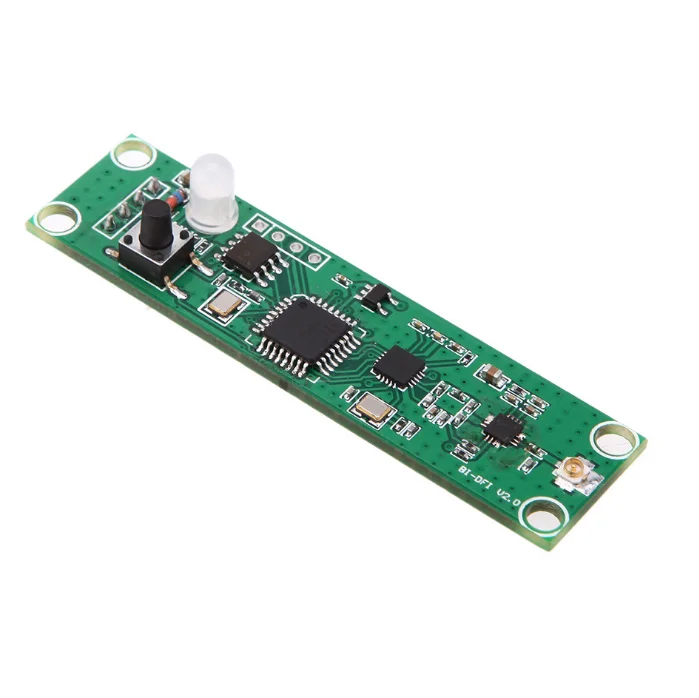

2.4Ghz Wireless DMX 512 Transmitter & Receiver 2 in 1 PCB Modules



  Brief

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely

And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.

This product adopt 2.4G ISM frequency section( global opening section) without permission limited High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly, high anti-jamming ability.



Product Feature

1. Product name:2.4G wireless DMX512 R/T moulding board

2. Small size,Esay to suit for interior of accessed lighting

3. Single key to operate,tricolor LED displaying

4. Transmitting standard DMX512 protocol data of console,also can transmitting lighting and lighting DMX512 protocol data.

5. 126 channels jumping frenquecy automaticly, high anti-jamming ability. to ensure works reliability

6. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place..

7. Input voltage:5VDC

8. Work frequency section:2.4G ISM,126 channels.frequency section

9. Max transmitting power rate:20dBm

10. Receiver sensitive:-94dBm

11. Signal port:RS485 or CPU series port AURT



Product parameters:



Item name	LUG-IP20-WI-DMXPCB
Input Voltage	5V DC
Transmission Way	standard DMX512 wireless signal transmission
Transmission Function	Have receiving and transmitting functions Transmission distance of 400 meters
Waterproof grade	IP20

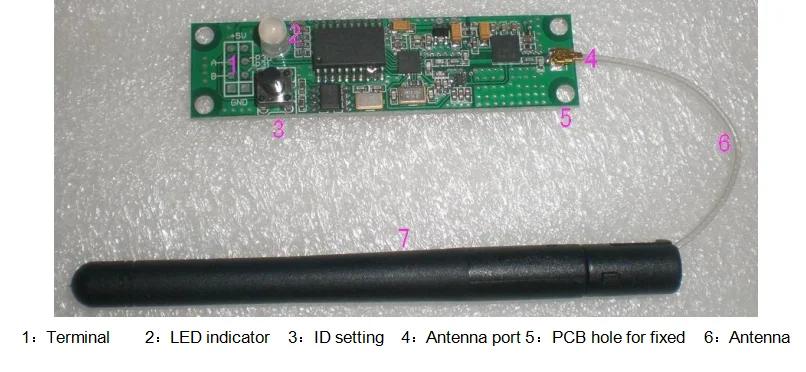

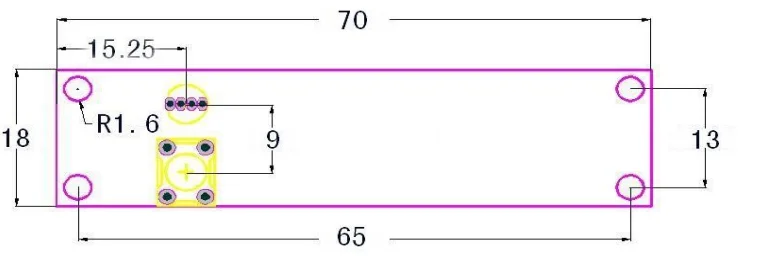

Size(MM)	D130x20

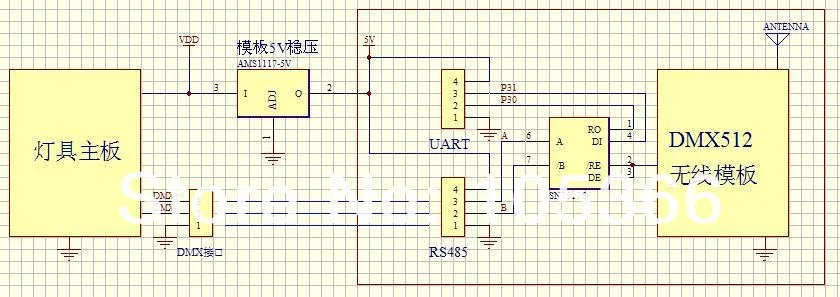

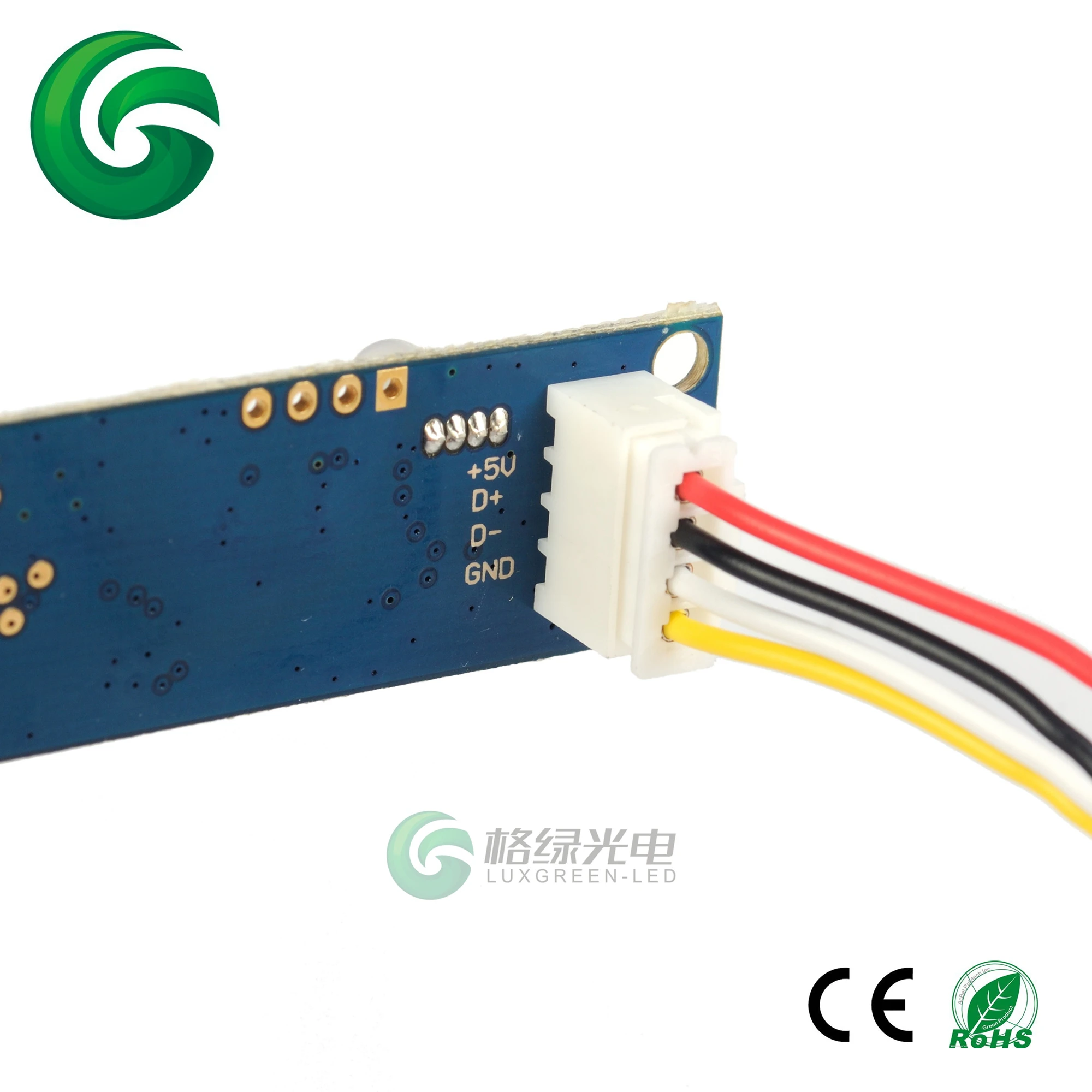

Connecting Scheme:









◊.Please take off IC of RS485 port such as SN75176 if CPU series port connect with lighting to be slected on the module.

◊.Try to separate 5V between power supply and input voltage of lighting

◊.Select quality linearity Zener diode for power supply, such as 1117,7805 etc

◊.Please place it apart from hi-RF circuit part.



Operating manual:

1.ID code and LED color corresponding relateship:

 1):RED

 2):GREEN

 3:)RED+GREED

 4:BLUE

 5):RED+BLUE

 6):GREEN+BLUE

 7):RED+GREED+BLUE

 2. Press key 1 time to indicate ID setting,,Press again to set ID,then ID value adding 1 each time.by press

3.Working condition

LED constant lit up:no DMX or wireless singal.          Red LED flash:transmitting.  Green LED flash:receiveing

4. RF frequency 2. 400-2. 525 G,total 126 channels,it¡s searching automaticly,

5. ID Code ¡1-7¡ groups ID code,press ¡KEY¡ for setting,it only can works under same ID code.of transmitter and receiver.



Establishing Communication:

1. Power on DMX512 wireless received board and transmitted board.

2. Press ¡Key¡ button to set same ID value of transmitted board and received board., please use different ID value if you need use more than 1 group wireless net at same time in same place.

3. The red LED flashs when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

4. Communication was established correctly then
