radiation analysis equipment supply Ultra Low Level Liquid Scintillation Spectrometer price

Product Overview

Description

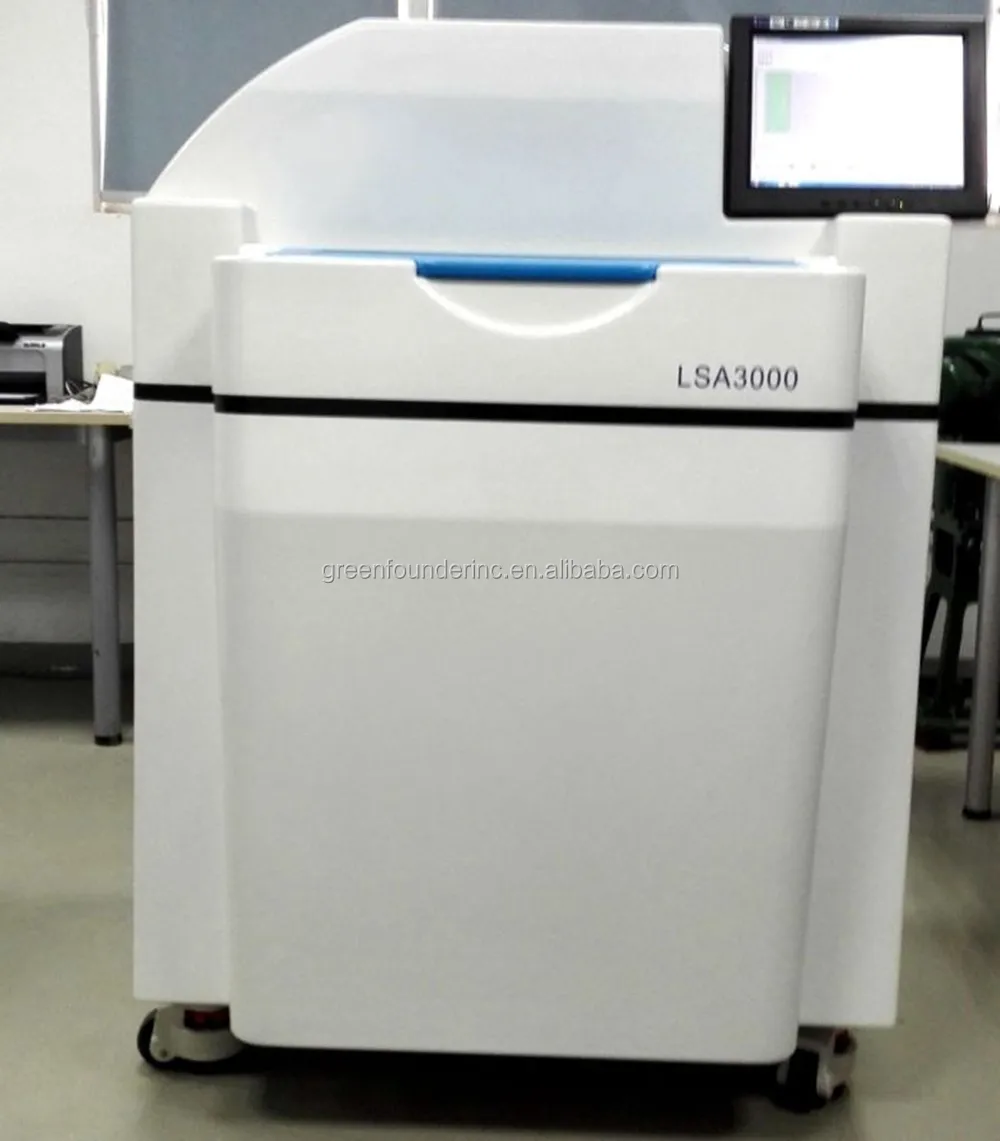

LSA3000 is a ultra-low level liquid scintillation spectrometer,which is used for detection of ultra low level of beta and alpha radiation. Its technical performances and parameters have entered into the international advanced level and filled the demestic blank in ultra low level liquid scintillation spectrometer instrument.

LSA3000 which is a necessary equipment in the low level radioactive measurement laboratory, is mainly used for measurement of low level ³H or ¹⁴C from environmental samples(such as: water, air, land, animals and plants)and other alpha and beta nuclides radiation. Applications range from drinking water analyses of radon, food control for ⁹⁰Sr, radioactive effluent measurements at nuclear power plants, emergency preparedness for nuclear power and homeland security, radiocarbon dating,  ocean expedition to other biobased material analyses.



Features:

* Adopt the Triple to Double Coincidence Ratio method (TDCR), no inherent gamma source

* Used for both relative and absolute activity measurement

* Counting and spectrum analysis

* Dual multi-channel analysis technology

* TDCR and Efficiency Tracing Technique are used for double labelling separation

* Automatic continuous spectrum stablization

* Auto-change sampling; once for 30 samples

* Convenient measurement and data analysis with two display screens

* Excellent data processing function, automatically or manually calculate pulse shape area,counting rate and detection efficiency.



Applications:

* Radioactive effluent measurements at nuclear power plants

* Environmental-Natural and Man-made radioactivity

* Nature radiation detection of envrionment

* Water analysis

* Food control(such as, ⁹⁰Sr)

* Radiocarbon dating

* Measurement and quality supervision

* Biochemical research



Technical Specifications

Detection Efficiency	3H:≥65%,14C:≥95%
Measurement Energy	1~5000KeV(β),3~9MeV(α)
Background	lower than 1cpm (20ml 40% tritium water sample, Eff >25%) lower than 2cpm(5ml 14C sample,Eff >75%)
(EV)2/B	>50000(with 3H water sample in 20ml PFA vial)
Detection limit	0.8Bq/L(12ml scintillation solution +8ml  tritium water with samling time 1000minutes)
MCA	2 x 1024 channel
Stability	Count variation less than 0.2 %/24 hours
Measuring Mode	Counting Mode,Spectrum Mode
Energy Resolution	0.01keV/ch(3H)
Sampling Mode	Continuous Sampling,Repeated Sampling,Timing Sampling,Preset Percision Sampling
Sample Quantity	30
Sample exchanging	Automatic changing by conveyor belt
Volume of Sample Vial	Standard 20ml vials
Display	12" color touch screen and19" wide screen synchronous display
Cooling Unit	Built-in,included in the standard Configuration
Physical dimensions	W 930× H 1300× D 910( mm)  Weight approx. 900 kg
Communication Interface	USB, RJ45
Power Supply &Power Consumption	220V±10%,50Hz±10%;200W
Operating Conditions	Temperature:5℃ to 40℃ ,Humidity max.: 80%
