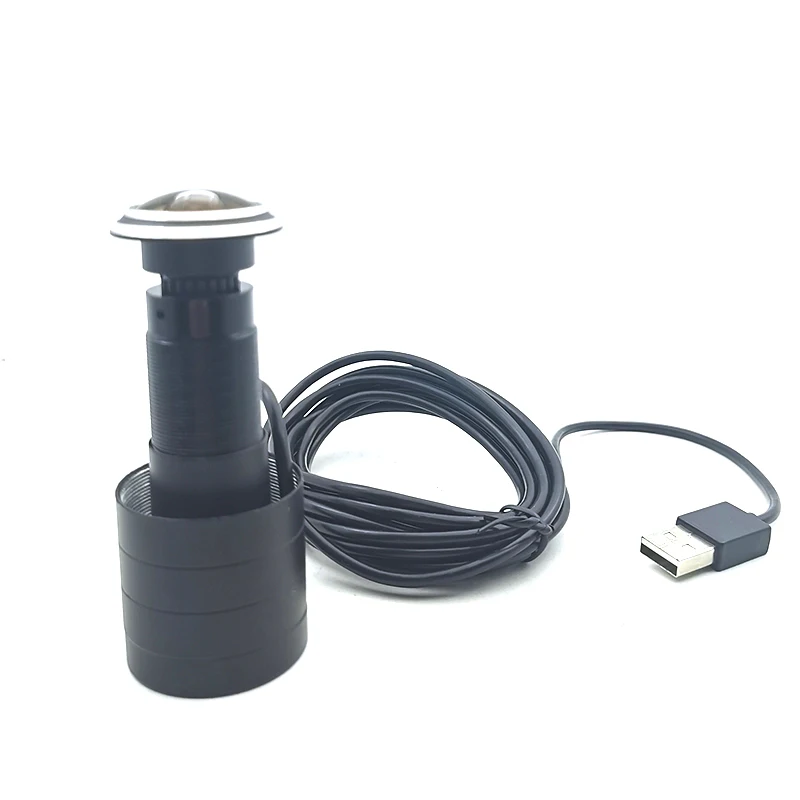

Door Cat Eye Surveillance Wide Angle Lens OTG Type C Micro USB Digital Video UVC CMOS Security USB Security Peephole Camera Usb
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (60837418850):
Product Overview
Description
Micro USB Camera
Door Cat Eye Surveillance Wide Angle Lens OTG Type C Micro USB Digital Video UVC CMOS Security USB Security Peephole Camera Usb
Door Cat Eye Surveillance Wide Angle Lens OTG Type C Micro USB Digital Video UVC CMOS Security USB Security Peephole Camera Usb
Door Cat Eye Surveillance Wide Angle Lens OTG Type C Micro USB Digital Video UVC CMOS Security USB Security Peephole Camera Usb
Product Overviews
Product Description
2.0Megapixel 1080P USB Door Mini camera
Introducting:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Linux operation system
Main Features:
- Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag
- Free Driver USB 2.0 (UVC)
- USB2.0 HIGH SPEED, compression USB 1.1
- Default setting (30fps@1920*1080p)
- Manual focus lens
- Angle of view around 90 degrees (without any distortion)
- Compression YUY2 & MJPEG
- Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
- Linux(In 2.6.18 above the kernel version);m ac ps3; Android system
- Standard 3m cable,if you need shorter cable ,pls contact with us for custom made
- Can be connected through 10 meters USB cable
- Dimension: 30mm Diamater
- USB Power: 5V±10% ,50mA
- Used:intelligent m achine,especially Banks'ATM
- Can be customized by your requirements
Detailed Specifications Of The Parameters
Models GS-DOUBCM-1.78mm
Image sensor | 1/2.7" Color CMOS | |
Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 1.78mm default around 170degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | / | |
Weight (Approx. G) | 50g | |
1.0Megapixel 720P usb Mini camera
Detailed Specifications Of The Parameters
Models GS-DOUBCH-1.78mm
Image sensor | 1/4" Color CMOS | |
Effective Pixels | 1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 1.78mm default around 150degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | / | |
Weight (Approx. G) | 50g | |
Company Information
Certifications
Transaction Flow
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country
3.BY air &BY sea
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
