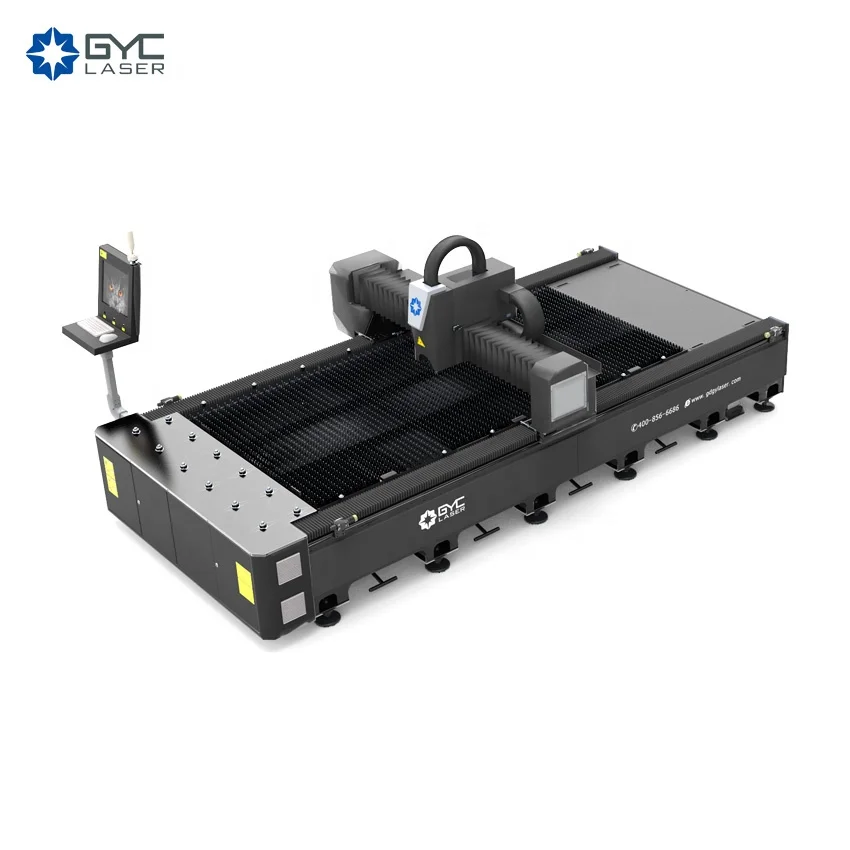

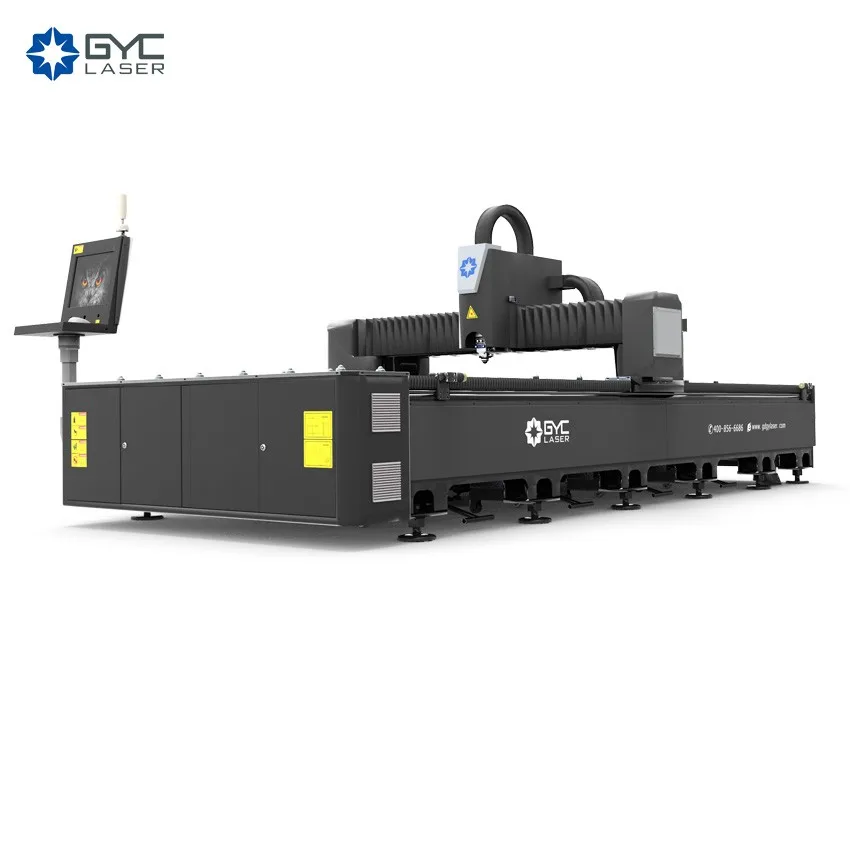

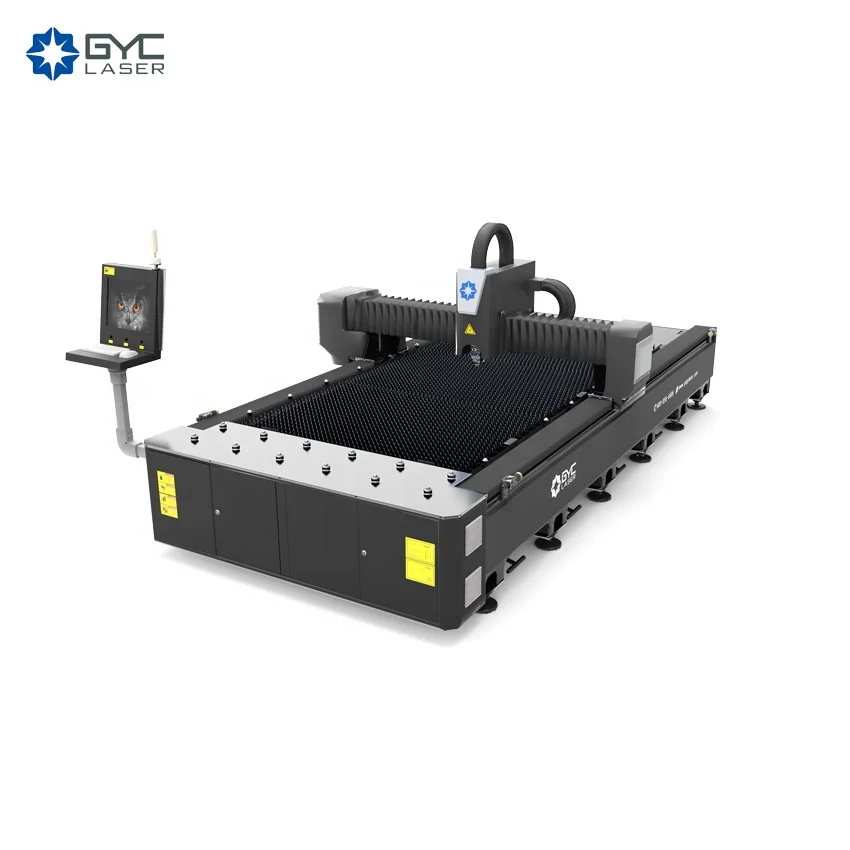

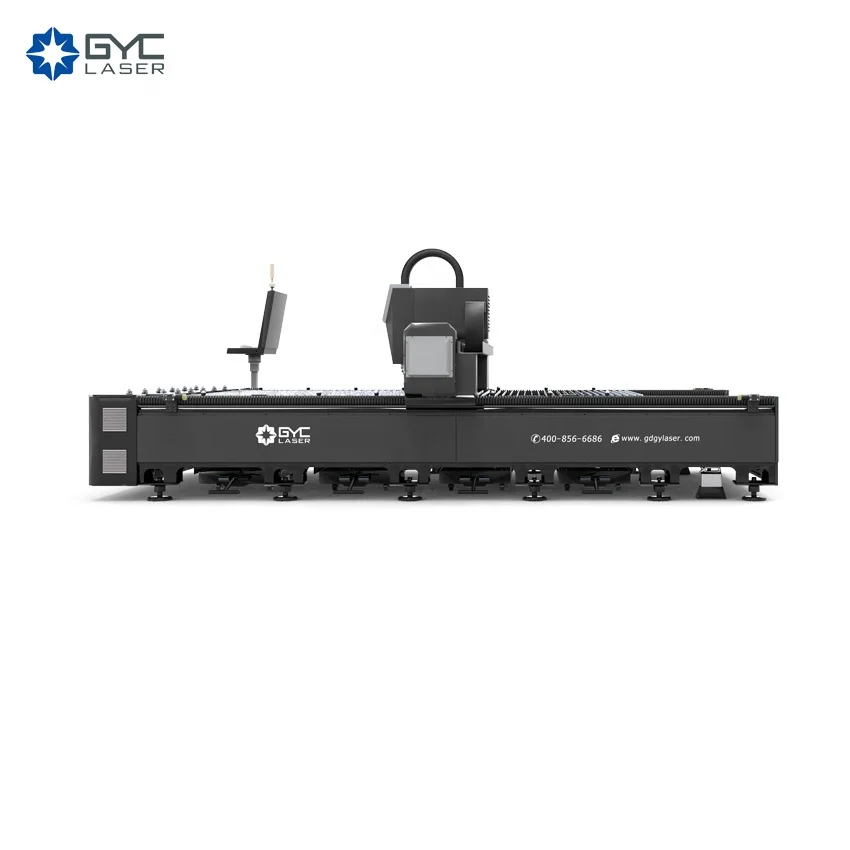

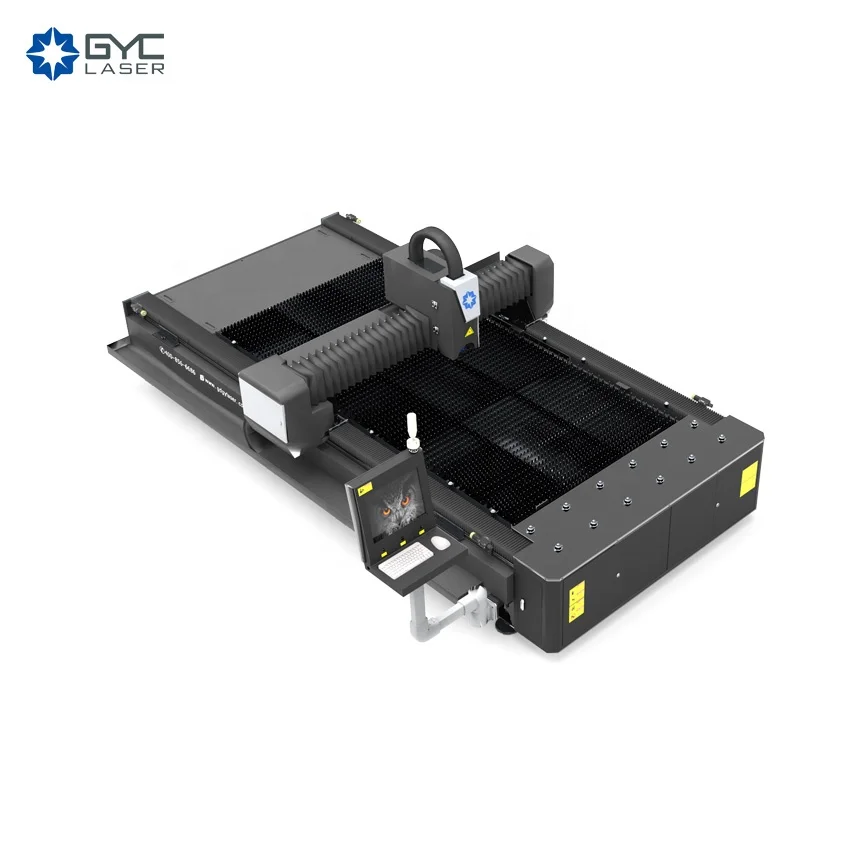

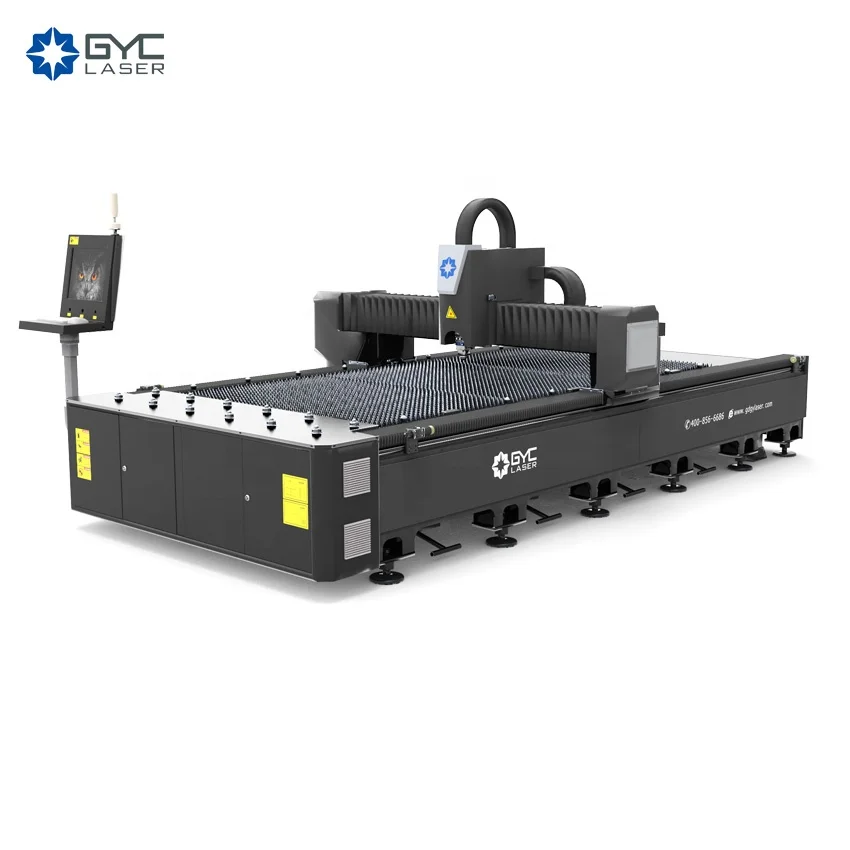

FAST CUT 1530FC Fiber Laser Cutting Machine cutting 5mm steel ipg fiber laser

1.\tWhat is Laser?

A laser is a device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation. The term "laser" originated as an acronym for "light amplification by stimulated emission of radiation"

For more please visit https://en.wikipedia.org/wiki/Laser

2.\tWhat is Laser Cutting?

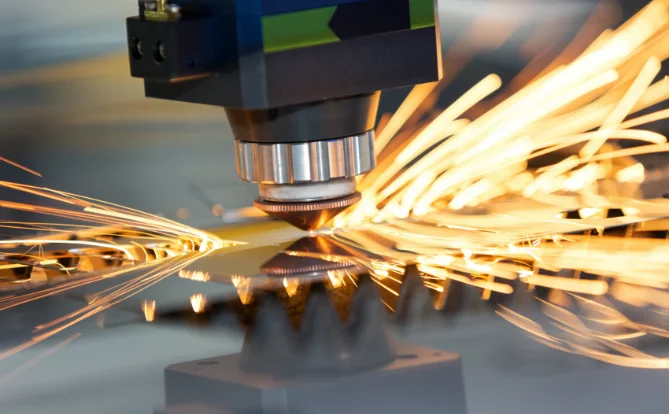

Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications,

Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.

For more please visit https://en.wikipedia.org/wiki/Laser_cutting

Advantages of laser cutting.

(1) Good cutting quality. The slit width is narrow (generally 0.1--0.5mm) and the surface roughness of the slit is perfect, could be welded without polishing. (2) Fast cutting speed, The heat affected zone is small (3) Environment friendly.

3.\tWhat kinds of Laser in your Machine?

It is fiber laser cutting machine, wavelength is 1064nm, good for metal cutting.

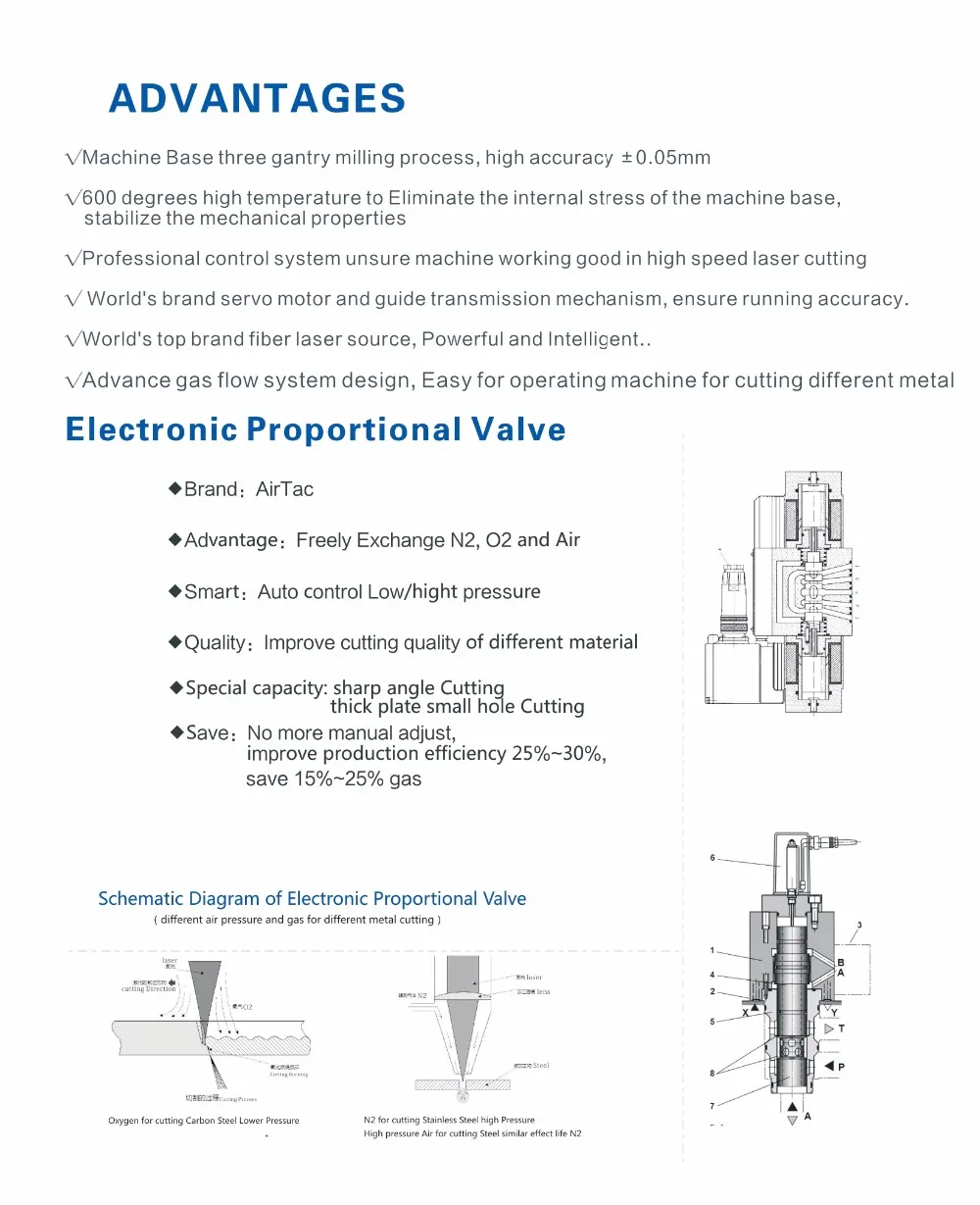

4.Does it require assistant gas for cutting? What is the pressure?

Yes, Oxygen, Nitrogen and High-pressure air,

Normally we can say as below,

1.\tOxygen assistant cutting to get black cutting edge, require pressure 10kgs to cut Carbon steel, mild steel.

2.\tNitrogen assistant cutting to get white color cutting edge, require 15kgs-20kgs pressure to cut Stainless steel

3.\tAir compressor offer high pressure air up to 16kgs to cut Stainless steel to get brown color edge.

5.\tHow this Fiber Laser cut in Metal?

Very good, we can say the fiber laser is born for metal cutting because metal have high absorption rate of fiber laser, and it is cost of running much lower than high power Co2 laser.



6.\tDoes this kind of laser dangerous?

Absolutely not, it is safe, we designed the machine in 8 aspects (Security, Culture, Value, Aesthetic, Quality, Service, Save, Experience), the Security will be always the priority and the most important thing we need to be consider.

7.\tAny Radiation from the laser machine?

The radiation of the fiber laser cutting machine is similar to that of the computers, mobile phones, televisions and copiers.

8.\tHow is the market of laser cutting?

"fiber laser revenues cracked the $2 billion level, turning in a 34% increase over 2016."

The revenue growth of high power fiber lasers, used heavily in sheet metal cutting, lifted this laser technology to 47% of total industrial laser sales in 2017. Couple this with laser metal cutting representing 35% of all laser revenues, and it becomes obvious why laser metal cutting, a key component in the fabricated metal product sector of manufacturing used throughout the world, is a metric in a country's gross domestic product (GDP)

9.\tWhat about the investment for buying one machine?

For the machine just about the cost of the machine, the cost shipping

For the whole project, need to invest for the factory and the infrastructure of the factory, such as the Electricity system, gas system, gantry crane, and the team.

10.\tWhat are the advantages of laser cutting compared to CNC punching?

The CNC punching is good for simple design, for example if you have many circle holes need to cut, then CNC punching will be faster,

Laser cutting is ok for any design and any thickness metal sheet cutting, it is an ideal for creating shapes with a number of small features, curves and details. Most of the fabrication center we can find both laser machine and CNC punching, sometime not just one.

11.\t What are the differences between Fiber laser cutting and plasma cutting, water jet cutting?

Cost of Machine: European Fiber Laser>Water jet>Plasma

Operating Cost: Water Jet>Laser>Plasma

Cutting Quality (Result): Plasma>Laser>Water Jet

Precision: Water Jet>Laser>Plasma

Fiber laser cutting:

Is better for cutting metal, Thick steel cost more, High precision.

Plasma cutting:

No matter cutting Thin steel or Thick steel, but cutting quality

water jet cutting:

Almost cut Everything, but very slowly.

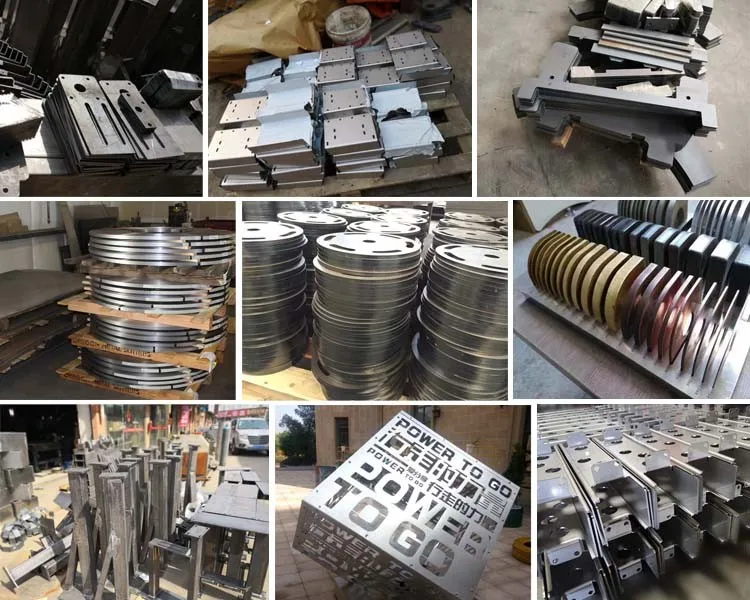

12.\tWhat materials can be cut by this Fiber Laser Cutting Machine?

Most of the fabricator use it to cut Stainless steel, Carbon Steel, Mild Steel, Iron, galvanized steel, sometimes they cut Aluminum and brass too,

And some customer uses it to cut gold, silver for jewelry production.

13.\tWhat is the thickness the machine can cut?

We would like to say different power source can cut different thickness material, it is related to material and gas pressure. for example, 1kw IPG laser source max cut 12mm CS, and 5mm SS, for details please write us for a table sheet of material, laser power, speed, gas etc.

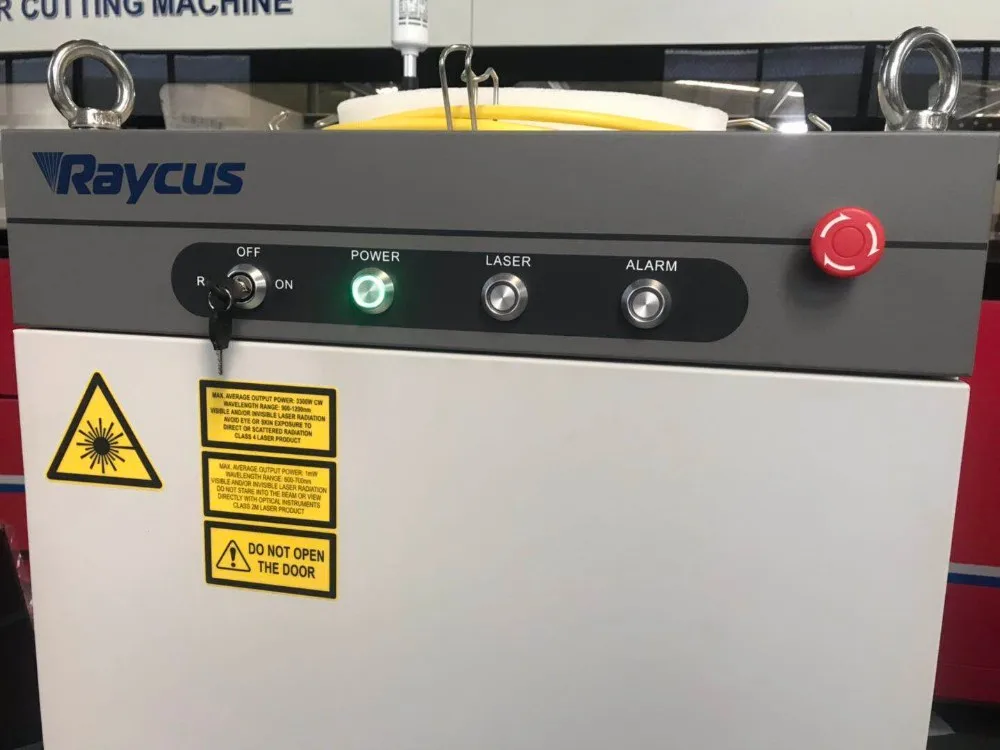

14.\tHow many options of laser source? What are the differences?

Normally we offer IPG, RAYCUS, MAX, differences is the cost and the cutting quality, we have experience of all the laser source, and we will recommend different power source based on customer's needs.

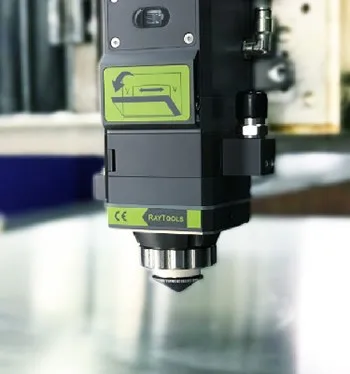

15.\tAny different optional laser heads? What are the differences? auto focus and manual focus?

For the Laser head we use WSX, RAYTOOLS, LASERMECH, PRECITEC, and All the tube have manual focus and manual focus options, we will use different brand laser head depends on different laser power.

16.\twhich operating software would be used in your machine?

Priority option is Cypcut controller, Economic cost and great performance,

But we the other options are available.

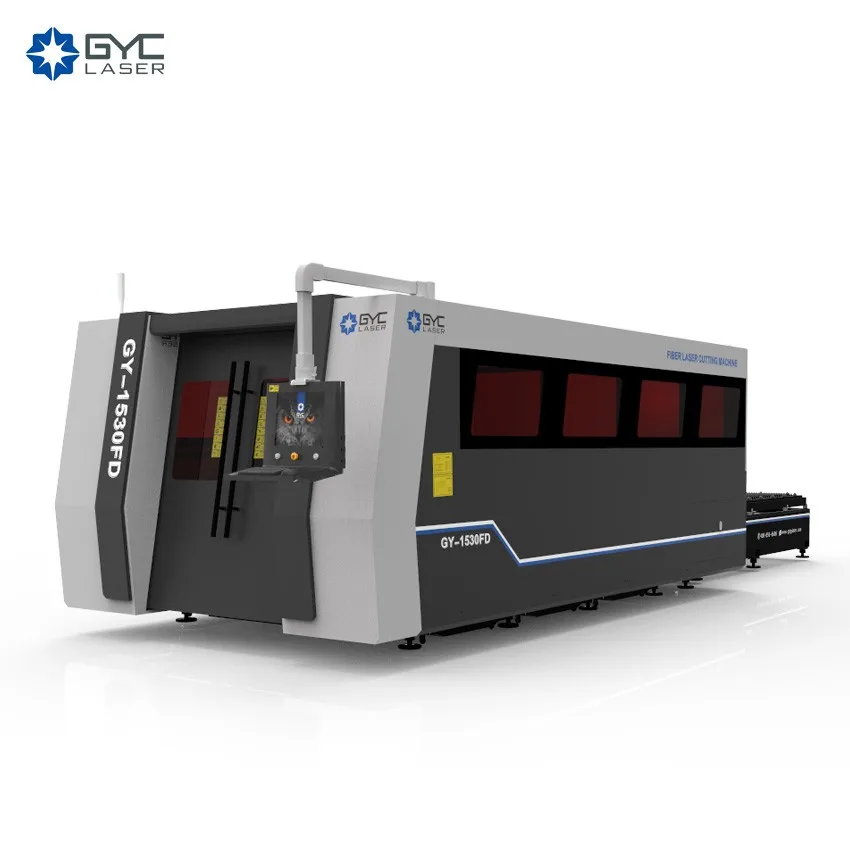

17.\tDimensions of machine

Model: 1530FD

8500mm*3300mm*18500mm

18.\tHow do I choose the machine right for me?

You just need to be sure how much thickness of steel that you need to cut, we will recommend you model right fit to your projects.

19.\tWhat are the running conditions of fiber laser cutting machine? Does it require air conditioning?

Temperature of machine: 5-45 ℃

Temperature of laser source 5-25 ℃, humidity ≤ 70%

We recommend to offer air conditioning to the fiber laser source at least.



20.\tWill there be a lot of dust in the process of using the machine? What we can do for it.

Yes, there will be metal cutting dust, we will offer Exhaust fan to the Exhaust the dust away the factory, if you need the air filter system, please contact with us, or you can buy from local vendor.

21.\t What is the running cost of the machine?

Just need to think about the Electricity, gas and spares, not too much, different cost in different power, please write to us and we will back you details.
