AC 240V Universal 600KG strong life rolling door motor
- Category: >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (60837440921):
Product Overview
Description
Electric Roller Shutter Motor
roller shutter window motor suppliers
roller shutter motor specification
Features:
1.Remote control.
2.Low noise,small shaking.
3.With electronic anti-theft apparatus.
4.Good design,advanced structure,strong power.
5.Import electric component,security and credibility.
6.Automatically open or close the doors by pressing relevant buttons.
7.Doors are also workable under the operation of manual control equipment when there is no power supply.
Functions:
1.Overheat protection: The motor is with overheat protect equipment;

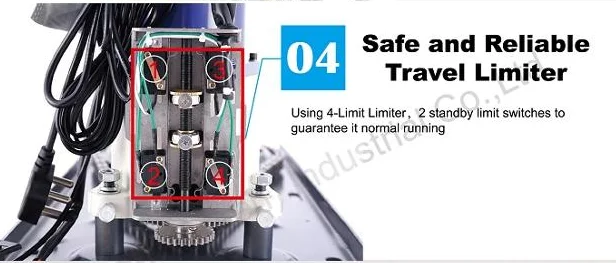

2.Mechanic Limit: Limit switch adjusts to the door position in both "up" and "down" precisely and safely;
3.Remote control: With convenient and stable control function, can be operated by transmitter;
4.Manual button: Up, Stop and Down.You can through the manual button which makes the rolling door open and close.
5. Limit switch unit enables precise adjustment of door in both up and down positions.
Parameters of 300kg~700kg capacity motors:
| Model | Output Voltage(V) | Maximum Height(M) | Power(W) | Rated Current(A) | Output torque(N.M) | Maximum Weight(KG) |
| YZ-300KG-1P | 250 | 4.5 | 250 | 2.5 | 168 | 300KG |
| YZ-400KG-1P | 250 | 4.5 | 250 | 2.5 | 168 | 400KG |
| YZ-500KG-1P | 370 | 6 | 370 | 3.5 | 345 | 500KG |
| YZ-600KG-1P | 370 | 6 | 370 | 3.5 | 412 | 600KG |
| YZ-700KG-1P | 380 | 7 | 380 | 3.8 | 412 | 700KG |
Motors Details:
Transmitters:
Package Information:
Applications:

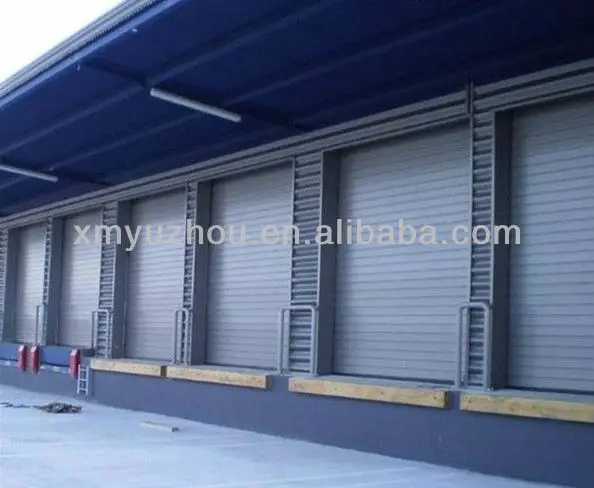

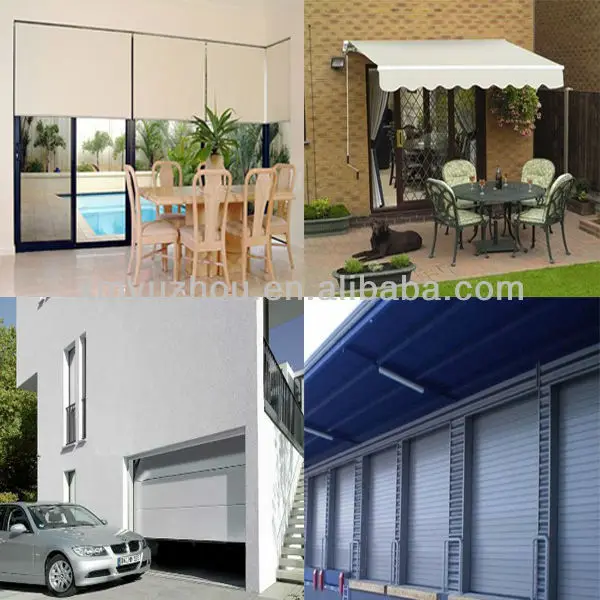

widely used in shopping malls, hotels, warehouses, garages, shops, factories and other buildings' rolling door opening and closing.
