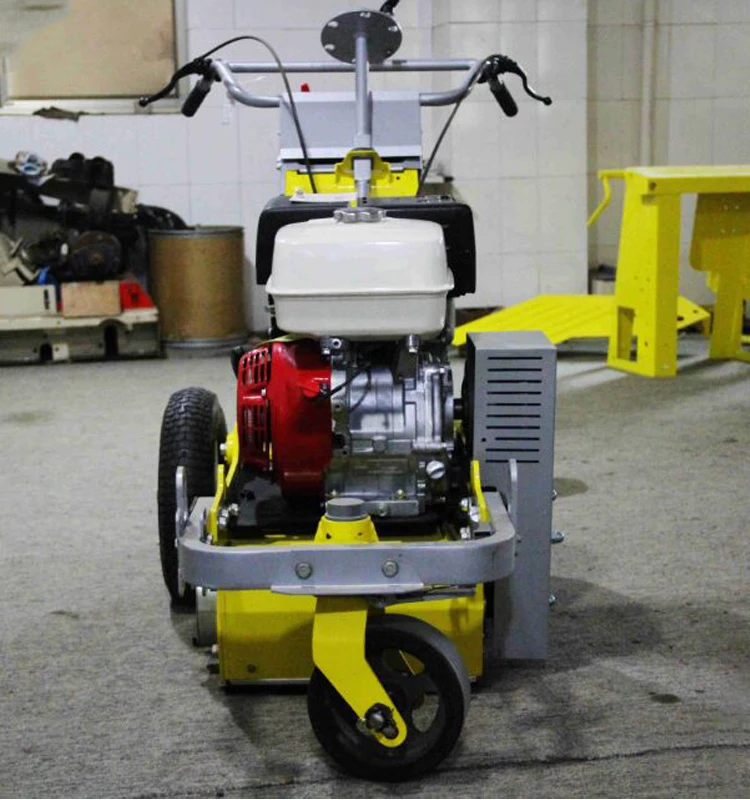

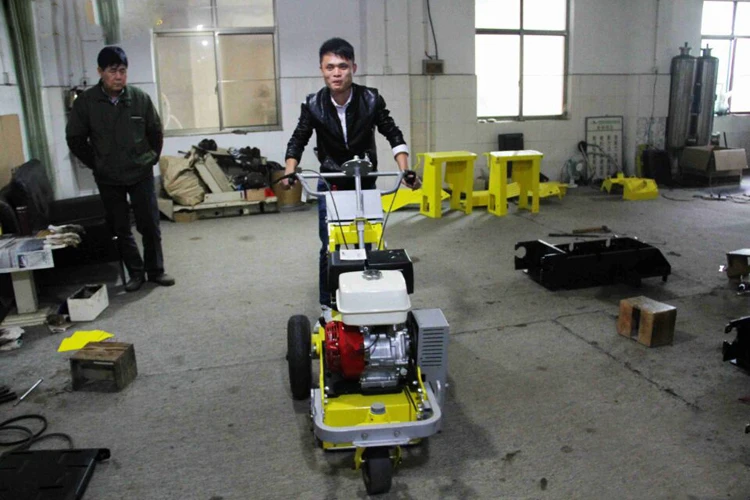

WIPIN scarifier is equipment developed on the basis of planing technology. Scarifier mixes the machine and cutters to remove the concrete and asphalt surface. The cutters powered by the petrol engine,electromotor and hydraulic system rotate in very high speed to hit the road and get the rough-making effect.
WRS255
Applications:
• Remove epoxy coatings, thermoplastic coatings, paint and traffic line
• Remove glue, oil, contaminants, mill scale and rust
• Repair common floor problem: Uneven slabs, high spots, trowel marks, damaged concrete
• Level uneven surfaces and trip hazards Grooving floor for slip resistance Floor clean and preparation
Features :
• With WIPIN drums, you can choose from a variety of accessories and cutters to achieve the profile, depth and speed you need for each job.

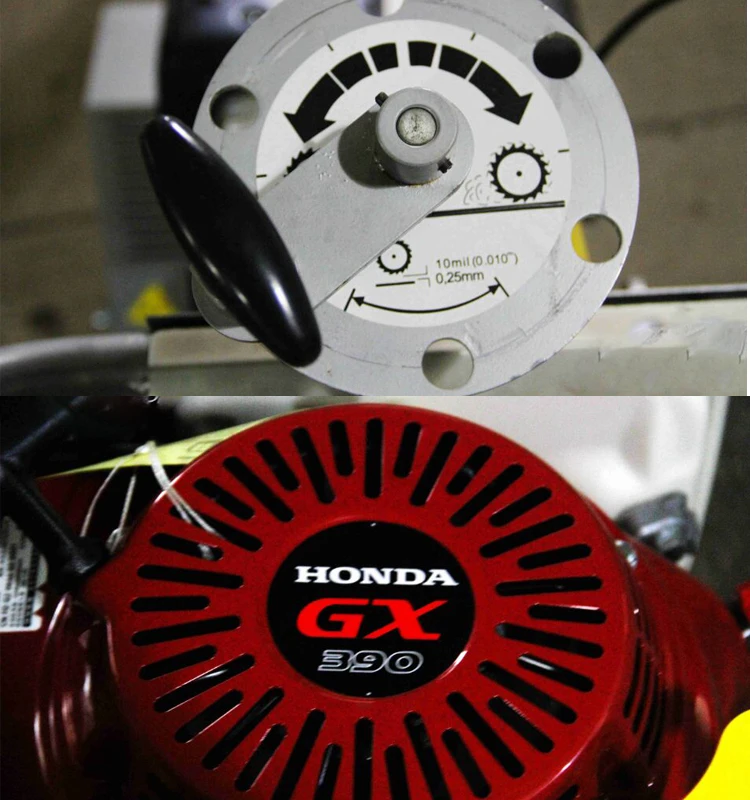

• Variable depth settings provide greater control of surface removal and unique engage/disengage lever lets you raise or lower cutting drum without losing depth setting.
• Vacuum hookup and water outlet for dust-free operation.
• Patented casting ball bearing can reduce maintence.
• With WIPIN's quick-change drum design and spare drum assemblies, you'll be back on the job in five minutes.
• Safety switch. Can turn off the engine quickly in emergency.
• Edge milling machine. Can use in small,narrow areas or edges.
Model
WRS255
Weight(KG)
145/160
Working Width(mm)
255
Working Depth(mm)
8
Power Option

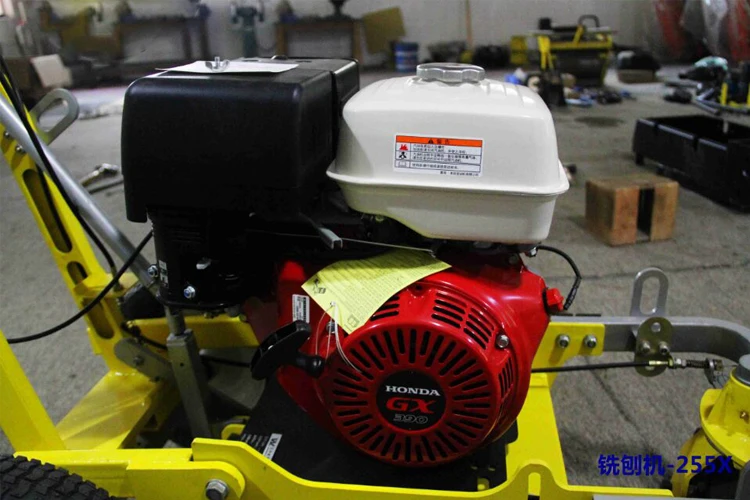

GX390/7.5KW
Drum Assembly
Changeable
Drum Rotation
Downcut(clockwise)
Depth Control
Yes
Dimensions(L*W*H))(mm)
1009* 600 *1006
Power Drive
Manual
Packaging & Shipping
Our Services
Company Information
FAQ
FAQ:
Why choose we WIPIN?
We experience in the hydraulic tools for more than 5 years.
What is your advantage?
Top quality, competitive price, experienced engineer etc.
What is your Quality control System?
1. We work according to the ISO 9001 Quality Management Standard.
2. Our production process from the first test on the raw material until the final test of the individual parts every product is tested in each phase of its production
3. Defective products rate less than 1%
What is the guarantee?
During12months warranty period,we arecommitted to bear all the costs for a quality problem, and to find the fastest way to solve the problem.
Can you design specially for the Customers?
Yes, we can . in fact, we have designed many types of quick couplings, connector for different lines of customers, such as Construction, Chemical, Oil and so on.
Do you OEM for the customers?
Yes,we do
Are you the good partner all the time?
Yes, we are the factory which are worthy of your cooperation all the time.We have 16 experience of producing and designing the hydraulic quick couplings.
