Product Overview
Description
Products Description

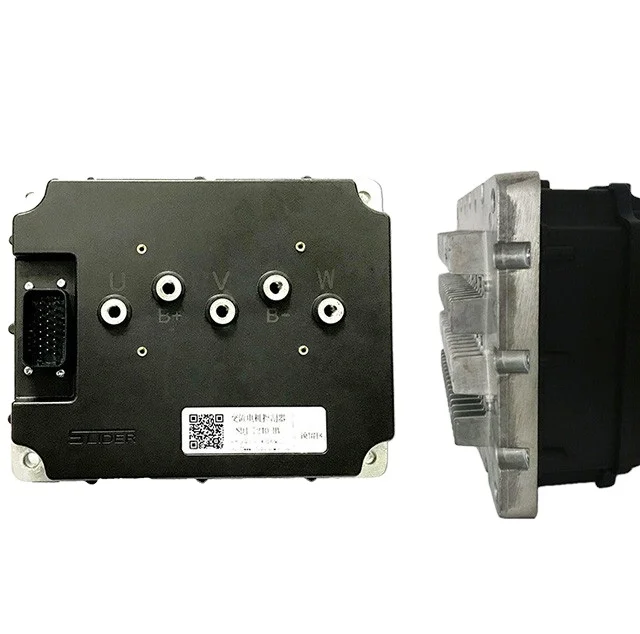

AC Motor Controller SDJ-7.5KW-7240
SDJ series AC controller is a driver developed for AC electric vehicles in low voltage. As the drive equipment of high reliability and large torque asynchronous motor, designed with four quadrants vector control method, it can control the motor speed & torque precisely. It is widely used in pure electric passenger car, low-speed A00 class passenger car, electric sightseeing vehicle, electric logistic vehicle, etc.
Features
(1)The controller adopts the German DSP, an international mainstream digital drive as a core control chip, which helps to build a good platform for motor control algorithm.
(2)By using the high power MOSFET tube for power device, it can realize the efficient energy conversion.
(3)Multiple safety protection for CAN interface and safety certification management of lithium battery BMS.
(4)Support short circuit protection (phase - ground, phase - phase, phase - source) , overload, over temperature, over voltage protection.
(5)A reliable & flexible regenerative brake technology can improve the driving mileage, and meet the needs of customer.
(6)Using micro-motion technology & slow descent and hill-holding technology for steep slope, more powerful climbing ability, stable hill-holding, stronger start-up.
(7)Adopt excellent optimization algorithm & frequency 0 to 300 HZ, to reduce noise and vibration amplitude.
(8)Perfect fault protection function, the buzzer reminds all kinds of faults, it’s convenient maintenance.
(9)Adopts CAN-bus technology to reduce wiring connected, the parameter can be adjusted and it’s programmable online.
(10)Adopts compatible design to make the volume smaller and the weight lighter.
(11)Simplify the installation and debugging steps.
(12)High reliability, low maintenance cost.
(2)By using the high power MOSFET tube for power device, it can realize the efficient energy conversion.
(3)Multiple safety protection for CAN interface and safety certification management of lithium battery BMS.
(4)Support short circuit protection (phase - ground, phase - phase, phase - source) , overload, over temperature, over voltage protection.
(5)A reliable & flexible regenerative brake technology can improve the driving mileage, and meet the needs of customer.
(6)Using micro-motion technology & slow descent and hill-holding technology for steep slope, more powerful climbing ability, stable hill-holding, stronger start-up.
(7)Adopt excellent optimization algorithm & frequency 0 to 300 HZ, to reduce noise and vibration amplitude.
(8)Perfect fault protection function, the buzzer reminds all kinds of faults, it’s convenient maintenance.
(9)Adopts CAN-bus technology to reduce wiring connected, the parameter can be adjusted and it’s programmable online.
(10)Adopts compatible design to make the volume smaller and the weight lighter.
(11)Simplify the installation and debugging steps.
(12)High reliability, low maintenance cost.
(13)Parameters or software could be customized as customer’s requirement.

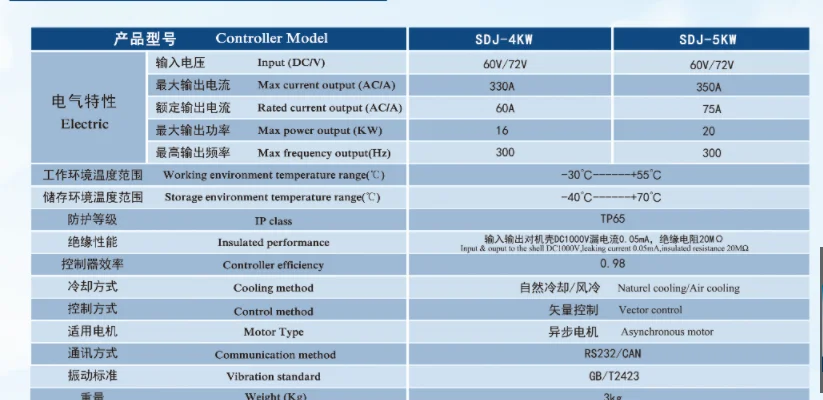

Parameters
Input (DC/V) | 72V |
Max current output (AC/A) | 400 |
Rated current output (AC/A) | 115 |
Max power output (KW) | 30 |
Max frequency output (Hz) | 300 |
Working environment temperature (℃) | -30℃ ~ 55℃ |
Storage environment temperature (℃) | -40℃ ~ 70℃ |
Insulated performance | Input & ouput to the shell DC1000V,leaking current 0.05mA,insulated resistance 20MΩ |
Controller efficiency | 0.98 |
Cooling method | Naturel cooling/Air cooling |
Vibration standard | GB/T2423 |
Control method | Vector control |
Communication method | CAN |
IP class | IP67 |
Weight (Kg) | 3.5kg |
Motor Type | AC Asynchronous motor |
*It's the absolute maximum value in table,which could be adjusted according to the exact request of the customer

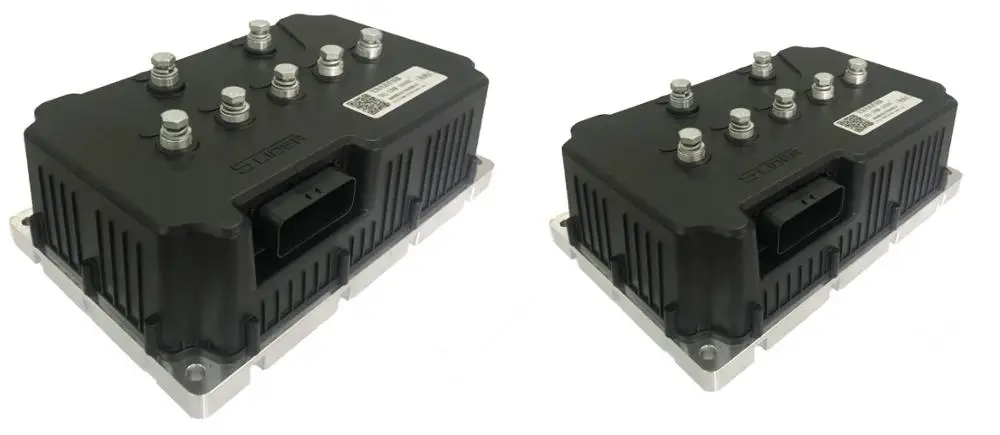

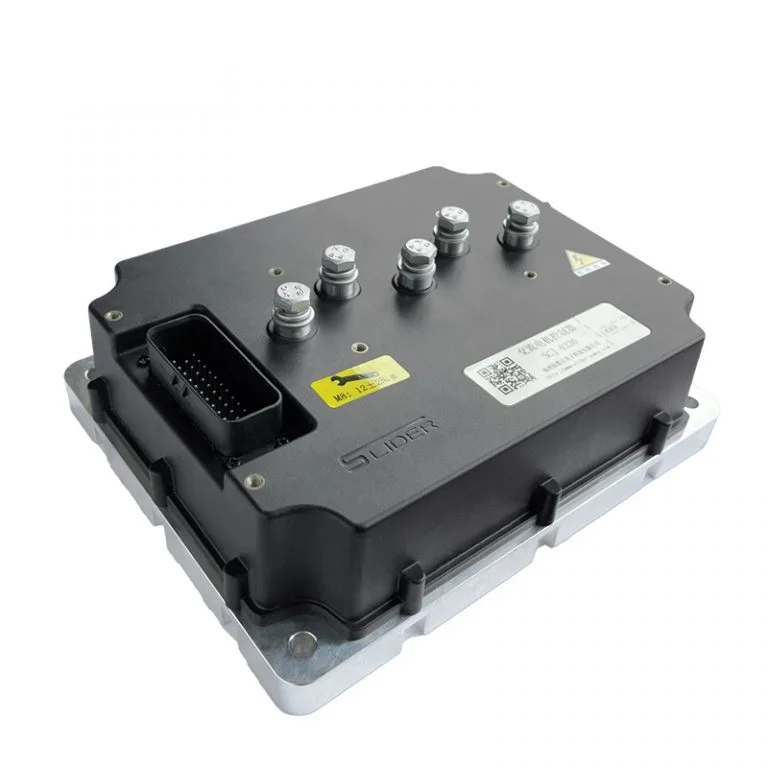

Details Images

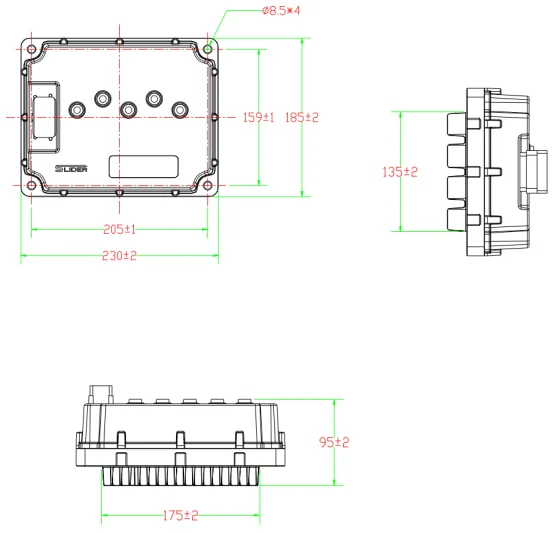

Dimensions

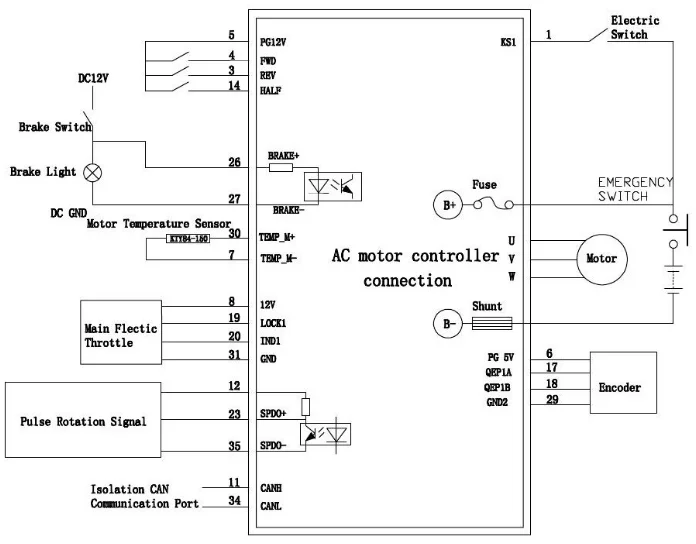

Circuit diagram

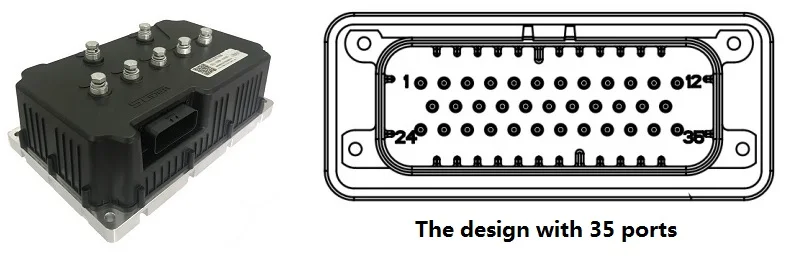

Common associations with controllers
Applications
Our controllers are widely used in electric passenger cars, electric golf carts, electric sweepers, electric trucks, electric forklifts, electric pallet trucks, electric mobile scissor lifts, electric sightseeing cars, electric logistics vehicles and other electric vehicles.
Company Profile
Fuzhou SLIDER Electronic Technology Co.,Ltd was founded in 2004, a high-tech manufacturing enterprise, professional in R&D, producing & selling of new energy driving system. As the leading enterprise, it has got the award of ‘innovation’, ‘science & technology’, ’specialty & innovation’, ‘small giant of science & technology’, etc in Fujian province. It mainly supplies electric car controller, electric forklift controller, DC – DC power supply, AC-DC power supply, inverter, etc. All products are widely applied to automobiles, forklifts, financial electronic, automation, pro-environment and more:
Perfect management system: SLIDER company is an ISO9001 certified enterprise with a complete quality management system covering IATF16949; At the same time, it has passed the China Compulsory Certification(3C system)for all most products.
R&D capabilities: R&D center closely follows the cutting-edge core technology in the industry, to ensure the capabilities of the technological innovation. At present, the company has established a complete research and development platform of the electric system for pure electric vehicle driving & forklift driving. In the intellectual property, SLIDER got 5 invention patents, dozens of utility model patents and software copyrights.
Complete facilities: it is equipped with motor testing platform, high & low temperature testing box, vibration testing machine, electromagnetic anti-interference testing instrument, salt spray testing machine.
Full product line: All products cover the middle & low voltage in the control market of electric vehicle, ‘series products in the pure electric passenger car, electric forklift, electric sweeper, electric sightseeing vehicle,etc’, power coverage of 1KW – 90KW.
Based on the core philosophy of “reliable quality, excellent service, win-win cooperation”, SLIDER sticks to high quality standards and will build a century-old corporation. For our customers from different industries, the high quality products & good service will be got from SLIDER with the full enthusiasm. Supported by the brand-new image and the powerful & independent innovation technology, it strives to become a well-known supplier of medium & low-speed electric vehicle drive system at home and abroad.
Perfect management system: SLIDER company is an ISO9001 certified enterprise with a complete quality management system covering IATF16949; At the same time, it has passed the China Compulsory Certification(3C system)for all most products.
R&D capabilities: R&D center closely follows the cutting-edge core technology in the industry, to ensure the capabilities of the technological innovation. At present, the company has established a complete research and development platform of the electric system for pure electric vehicle driving & forklift driving. In the intellectual property, SLIDER got 5 invention patents, dozens of utility model patents and software copyrights.
Complete facilities: it is equipped with motor testing platform, high & low temperature testing box, vibration testing machine, electromagnetic anti-interference testing instrument, salt spray testing machine.
Full product line: All products cover the middle & low voltage in the control market of electric vehicle, ‘series products in the pure electric passenger car, electric forklift, electric sweeper, electric sightseeing vehicle,etc’, power coverage of 1KW – 90KW.
Based on the core philosophy of “reliable quality, excellent service, win-win cooperation”, SLIDER sticks to high quality standards and will build a century-old corporation. For our customers from different industries, the high quality products & good service will be got from SLIDER with the full enthusiasm. Supported by the brand-new image and the powerful & independent innovation technology, it strives to become a well-known supplier of medium & low-speed electric vehicle drive system at home and abroad.
Certifications
Shipping
FAQ
1)What’s your service & warranty ?
1. Before installation, it will be detected to ensure it will be matched with your vehicle.
2. The quality will be guaranteed & warranty will be 1 year.
2)Do you supply the other parts of the driver system ?
No. However, we provide contact information for other component suppliers, you contact them directly.
3)What’s the MOQ ?
Before quantity, you can get samples to test first. Just one unit is OK.
4)How cold can the weather get and have this controller still function ?
You can see usage temperature in specification. It is made by intelligent control core, then the failure in working state will be prevented & the safe driving will be ensured.
5)How do you ship the goods and how long does it take to arrive ?
Sample can be shipped by DHL, UPS, FedEx or TNT & it usually takes 7-14 workdays to arrive. Production order will be sent out by ocean or air. Transport method will be met to customers.
1. Before installation, it will be detected to ensure it will be matched with your vehicle.
2. The quality will be guaranteed & warranty will be 1 year.
2)Do you supply the other parts of the driver system ?
No. However, we provide contact information for other component suppliers, you contact them directly.
3)What’s the MOQ ?
Before quantity, you can get samples to test first. Just one unit is OK.
4)How cold can the weather get and have this controller still function ?
You can see usage temperature in specification. It is made by intelligent control core, then the failure in working state will be prevented & the safe driving will be ensured.
5)How do you ship the goods and how long does it take to arrive ?
Sample can be shipped by DHL, UPS, FedEx or TNT & it usually takes 7-14 workdays to arrive. Production order will be sent out by ocean or air. Transport method will be met to customers.
