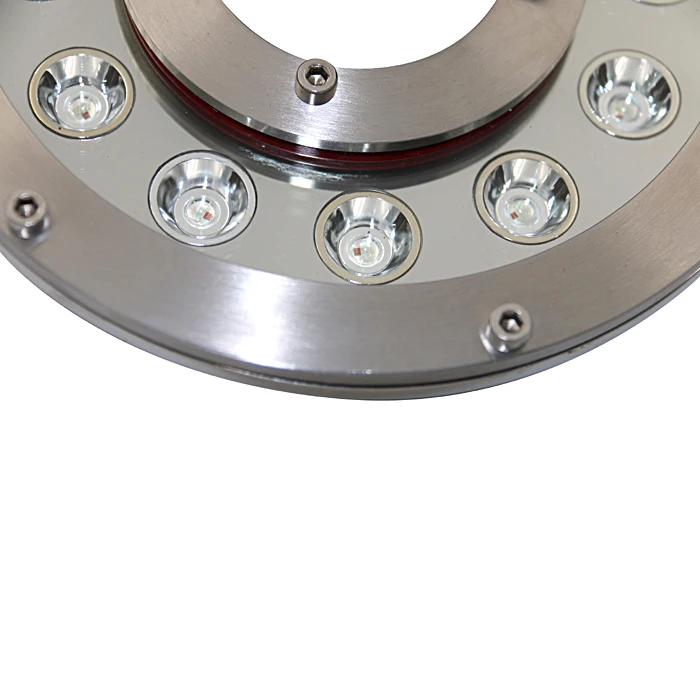

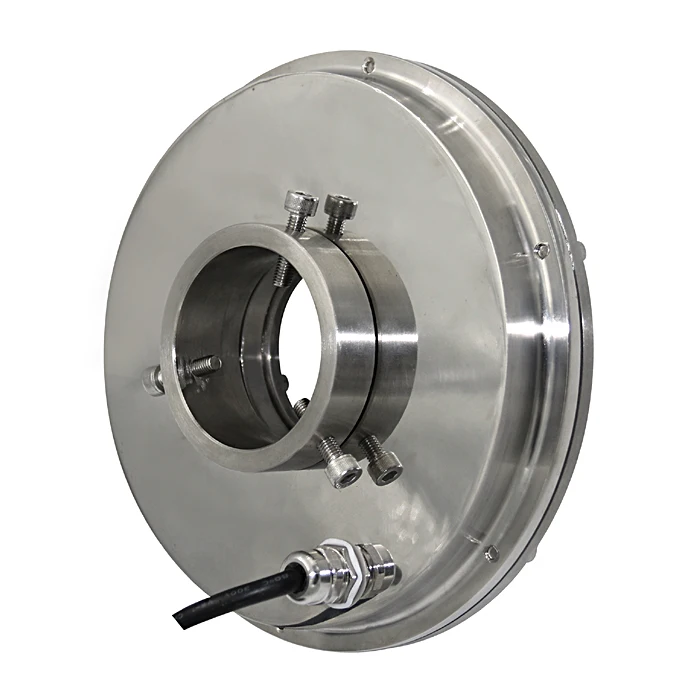

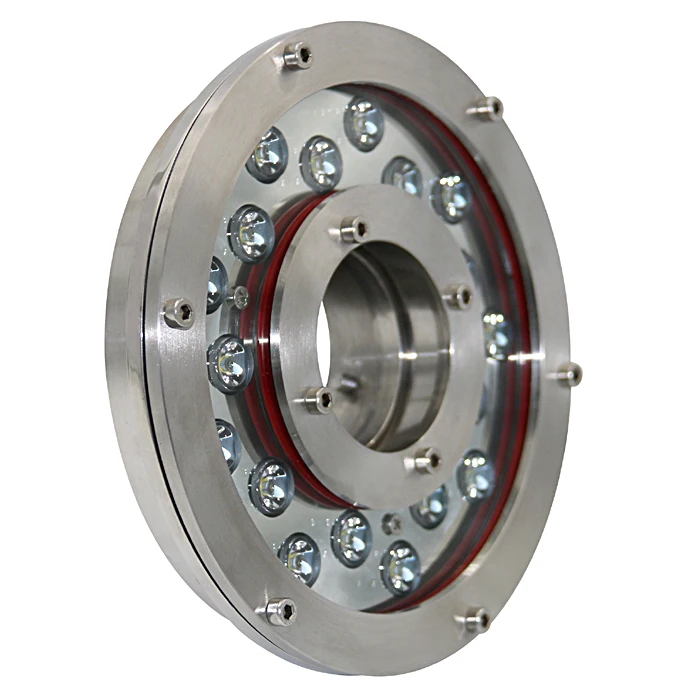

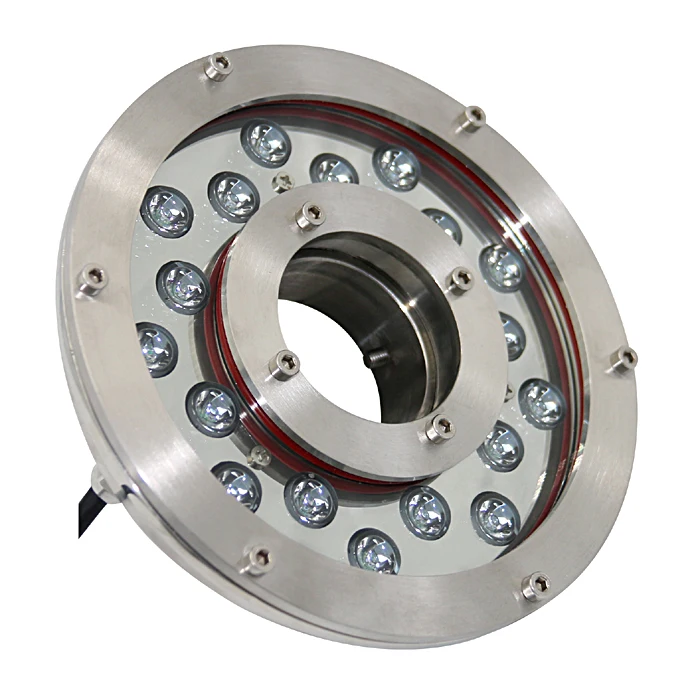

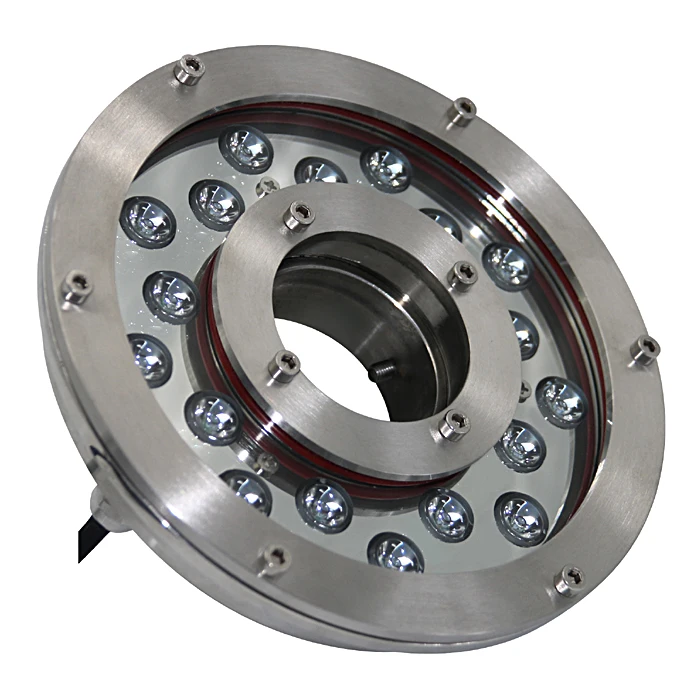

316SS IP68 Stainless Nozzle White Rgb Rgbw dmx512 Stainless Pool Swimming Pond Underwater Lighting Ring Led Fountain Light
- Category: >>>
- Supplier: Jiangmen Yuefa Lighting Factory
Share on (60837508100):
Product Overview
Description
Product Description
Over-Current Protection
Short-Circuit Protection
Over-Temperature Protection
Over-Voltage Protection
1.Housing: 316L# stainless steel, surface polishing treatment, durable and anti-corrosion.
3.Glass: Tempered Glass T=8mm
4.Lens: Waterproof lens, Efficiency ≥ 85%, High light transparency & high uniformity lens.
5.Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed
6.MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk
7.waterproof seal:glass and housing are silicone sealed
8.Operating temperature:-40~50 centigrade
| Product name | LED Fountain Light |
| Model No. | YF-PT054G |
| LED Chips Quantity | 18PCS |
| Power | 18W |
| Input Voltage | DC12V / DC24V |
| Chips Brand | Bridgelux/Epistar |
| Emitting Color | RGB |
| LED Luminous Efficiency | 100LM/W |
| Lamp’s Luminous Efficiency | >60LM/W |
| Beam Angle | 15°/30°/45°/ 60° |
| CRI | 80Ra |
| Lifespan | 50,000hrs |
| Protection Rating | IP68 |
| Operating Temperature | -40°C~50°C |
| Material | 316L Stainless Steel |

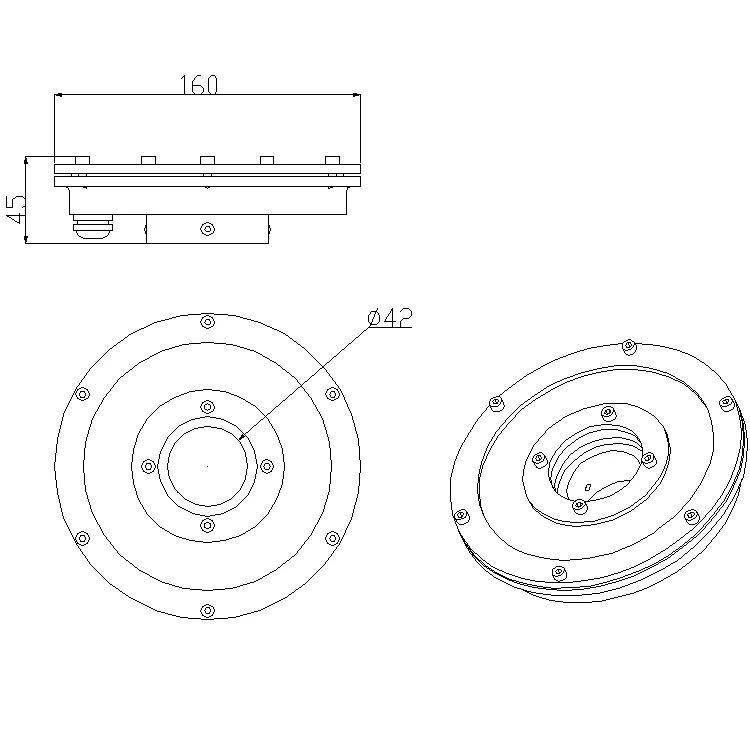

| Product Size | D160*H45MM (6.3" x 1.77") |
| Hole Size | D52MM (2") / D42MM(1.65") |
| Gross Weight | 2.5KGS (5.5lbs) |
* Control: DMX512 / Wifi control / RF Control / IR Control are available.
* Wiring & Installation: Simple&neat wiring, make the installation and maintenance more fast and easy.
* Protection grade: IP68. Sealed by reinforced glass, rubber ring, silica gel and silicone to make sure 100% water proof.
Related Power
| Model Number | Power | Emitting Color | Chips | Lumens | Input Voltage | Beam Angle |
| (W) | (LM) | |||||
| YF-PT054 | 18x1W | White | CREE | 1700-1800 | 10-30VDC | 15°/30°/45°/ 60° |
| 18x3W | White | 5000-5200 | 10-30VDC | 15°/30°/45°/ 60° | ||
| 18x5W | White | 8000-8500 | 10-30VDC | 15°/30°/45°/ 60° | ||
| YF-PT054G | 18x1W | RGB | Epistar or Bridgelux | 12VDC/24VDC | 15°/30°/45°/ 60° | |
| 18x3W | RGB | 12VDC/24VDC | 15°/30°/45°/ 60° | |||
| YF-PT054-3G | 9x3W | 3 in 1 RGB | 12VDC/24VDC | 15°/30°/45°/ 60° | ||
| 9x5W | 3 in 1 RGB | 12VDC/24VDC | 15°/30°/45°/ 60° | |||
| 12x3W | 3 in 1 RGB | 12VDC/24VDC | 15°/30°/45°/ 60° | |||
| 12x5W | 3 in 1 RGB | 12VDC/24VDC | 15°/30°/45°/ 60° | |||
| 18x3W | 3 in 1 RGB | 12VDC/24VDC | 15°/30°/45°/ 60° | |||
| 18x5W | 3 in 1 RGB | 12VDC/24VDC | 15°/30°/45°/ 60° |
