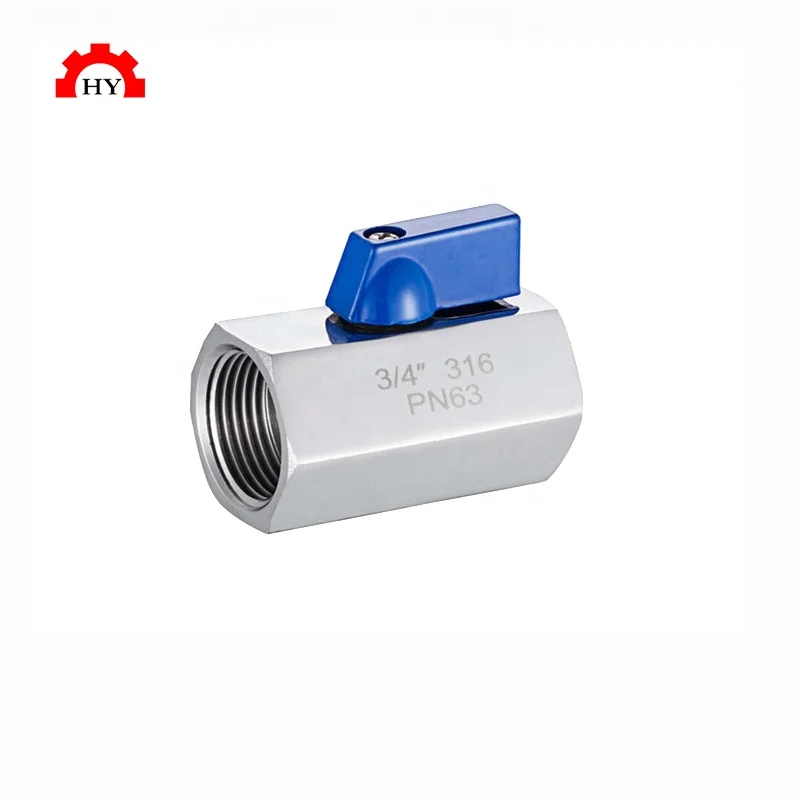

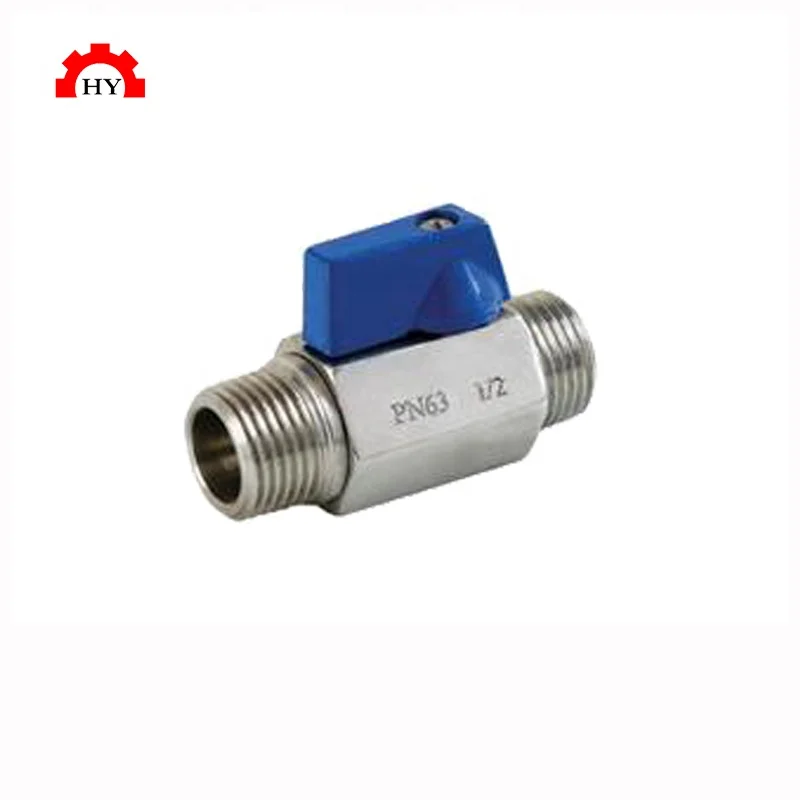

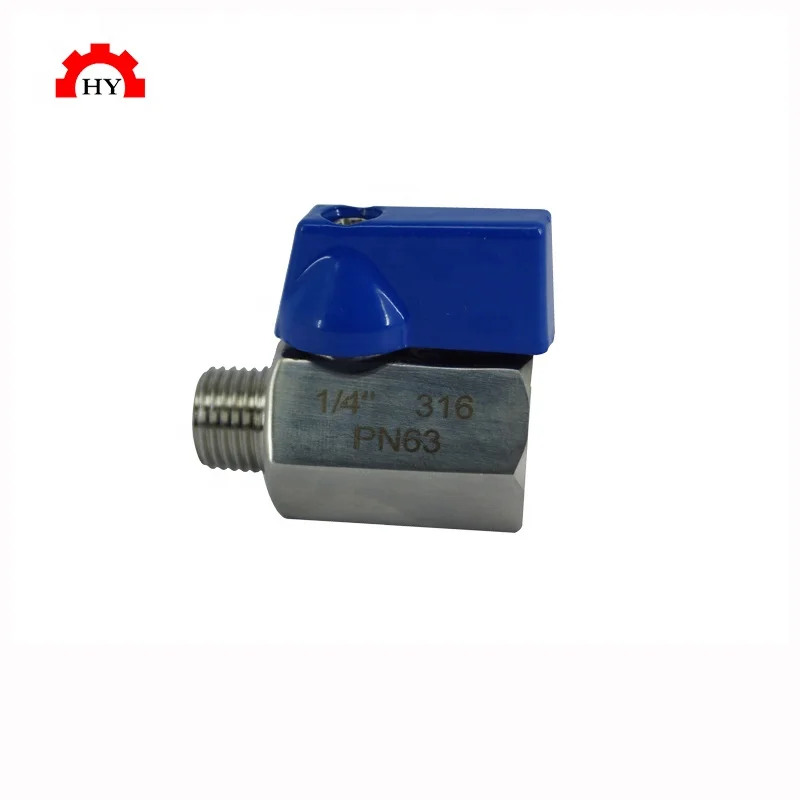

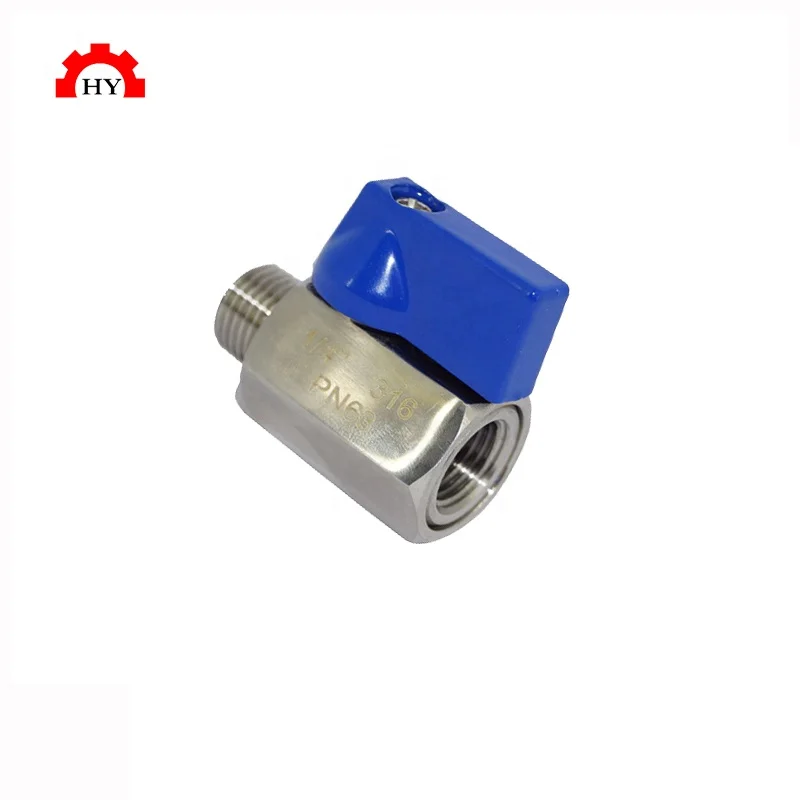

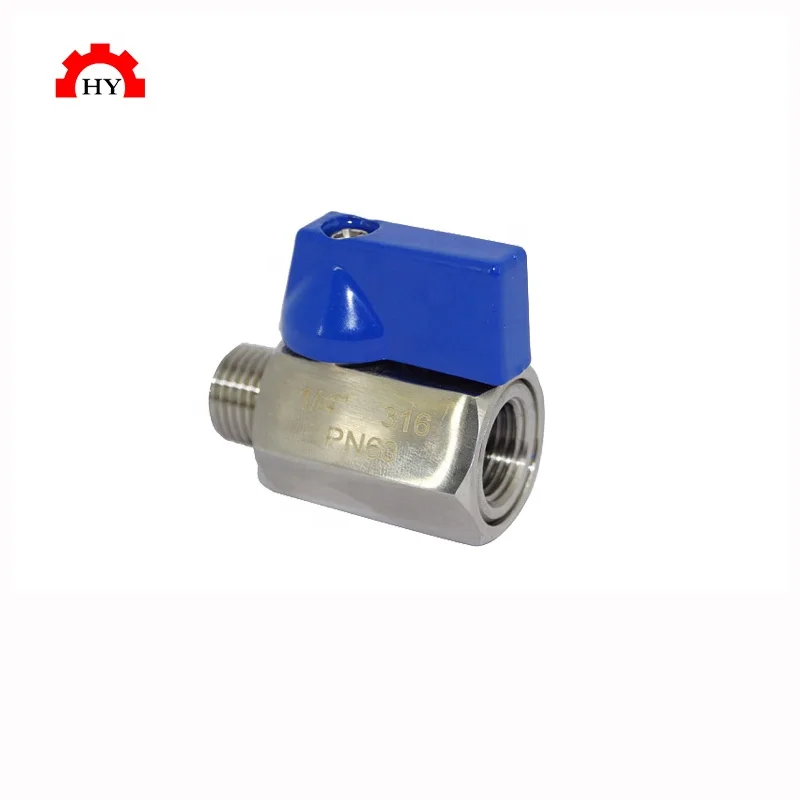

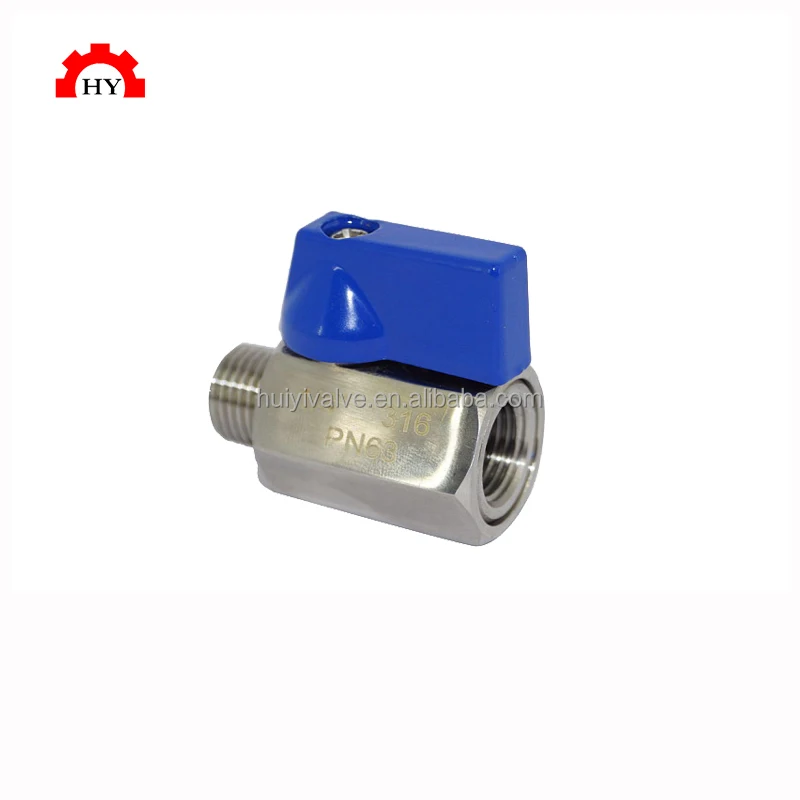

Stainless Steel 304 NPT Male Female Thread Mini Ball Valve

Product Overview

Description









Specification

l  Product Name: male female thread mini ball valve

l  Model No.: HY-MNBVMF

l  Material: SS304 , SS316

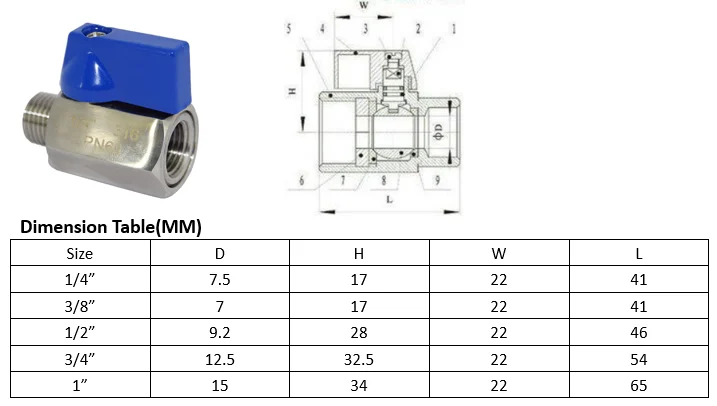

l  Size: 1/4”(DN8) to 1”(DN25)

l  Working Pressure: 6.4 Mpa

l  Working Temperature: normal temperature

l  Valve Seat: PTFE

l  Connection: male - female thread

l  Thread: NPT, BSPT, BSPP

l  Applicable Medium: oil, gas , water





Product Characteristics

Safe, reliable and leak-proof connection;

Easy to install ,disconnect and retighten;

No torque is transmitted to tubing during installation

Specified specification available upon request

Quality assurence

Free sample can be sent to test quality before place an order.







Advantages

• Free of maintenance

• Compact and portable

• Small operating torque

• Gasket complies with PTFE

• Handle level can be installed on the side of the valve body,no matter of the flow direction

• It can be match with pneumatic and electric actuators

• Valve Type: One piece, Two piece, Three-piece, Butterfly ball type

• Cores Type: T type,L type,Direct type

• Material :AISI304,316L





Wenzhou Huiyi Valve and Fittings Co.,Ltd(Huiyi Valve) is located in Binhai Industrial Park , Wenzhou City, Zhejiang Province . Our company is near airport , convenient transportation . Our company mainly focus on the manufacturing and sales of valves, pipe fittings and metal products , we have tens of years’ experience , until now , Huiyi Valve have 120 staffs , which is including 4 senior engineers , 10 technicians , 10 persons who are in charge of pre-sales service and after-sale service .



Our valve products have: piece ball valve(1piece , 2 piece , 3 piece ball valve) , instrumentation ball valve , hydraulic ball valve , flange ball valve , high pressure needle valve , gate valve , shut-off valve , check valve and so on . Our pipe fitting products have: casting 150 LB screwed pipe fittings , high pressure forging pipe fittings , compression fittings , sanitary pipe fittings , butt weld pipe fittings , and we can make non standard pipe fittings which is as per customers’ drawing and samples . All the products are made as per ASME , ANSI , DIN , JIS , GB standard , which can meet customers’ various requirements . Our products are sold to all over the world , and win a good repute impression in international market .



Why choose us ? Firstly , we are professional in manufacturing and the process of international trade , all of our salemen are graduated from high degree foreign trade major in University , they are very similar with the international market , and our workers are rich experiences in manufacturing pipe fittings and valves . Secondly , we have good after-sales service , you do not need to be afraid our quality during you are using our products , we have 10 inspectors to test the product performance , our inspection policy is 100% test . Finally , our prices are very competitive in the market.



1.Q :How can I know about your products ?    A:You can visit our official website, www.huiyivalve.com , you can see the product details and e-catalogue in it .   2. Q:How long did you make our orders ?     A:The delivery time is depending on the quantity , generally speaking, our delivery time is no more than one month .   3. Q:Can you arrange shipment for us ?     A:Yes ,we have our own forwarder , the port of loading is Shanghai port or Ningbo port , after you place order to us , what you do is that waiting the goods to arrive in your destination port , we can book ship for you and buy insurance .   4. Q:How do we know your product quality ?     A:Before you place order to us , we can send you samples for your confirmation , the sample is free for you , but you need to pay the air shipping cost for the samples .   5.Q:Your MOQ is ?    A:If you just need the regular products , we have many regular products in stock , then the MOQ is 5 pcs , if you need the customized products , we do not have them in stock , the MOQ is 20 pcs .   6.Q:How do you package the products ?    A:Inner case is carton, outside package is plywood case , if you need customized package , it is also ok .
7.Q:Can you customize the products ?    A:Yes , we can customize , but you need to give us product drawing or samples .   8.Q:How long is the guarantee period ?    A:12 months after the goods arrive in customer’s place .   9.Q:Do you have material test certificate ?    A:Yes , we can provide the MTC(material test certificate) when the goods are finished , our products are 100% tesing , not only test several pieces .
10. Q:If we find the quality is bad when we receive the goods , how can I do ?       A:It is easy , you just tell us which products have quality problems , then provide us the pictures and videos , after confirm the products are really bad quality , then we will send new products for customers , the customers do not need to send the unqualified products to us .   11.Q:What is the payment terms ?      A:20%-30% advanced payment before production, the balance is before shipment , or 100% L/C at sight . For other payment terms , we can discuss  Want to know more ? Please see below , contact us :
