Fanless Mini PC with Intel Atom CPU 64GB 128GB SSD 2 LAN 6 COM 1xHDMI Industrial Computer
- Category: >>>
- Supplier: Shenzhen Lingjiang Computer Technology Co. Ltd.
Share on (60837579551):
Product Overview
Description
Factory Wholesale mini pc with intel cpu 64G SSD industrial Computer 2*LAN & 6*COM Fanless Industrial PC
Product Description
1.Extreme Rugged and fanless design.
2.Intel Atom N2800 (1.86Ghz) at low power consumption with high performance,
3.Support full-automatic RS-485, WIFI, 3G, it's a multi-function industrial embedded computer.
4. Dual core Intel Atom D2550, 2xGbE,6xCOM,4xUSB
| Features | |
| Model Name | LBOX-2550 |
| Mechanical | |
| Shell Material | Aluminum alloy |
| Color | Black |
| IP Grade | IP63 |
| Net weight | 1.35kg |
| Thermal methods | Fanless |
| System | |
| CPU | Intel Atom N2800/D2550 CPU,1.86GHZ, CPU Power Consumption 6.5W |
| Chipset | Intel N2800+NM10 |
| Memory/RAM | Onboard 2GB ram, Optional DDR3 MAX 4GB |
| Storage | SSD 64GB (Up to SSD 512G/128G/256G, Optional 2.5 Inch SATA HDD320G/500G/1TB etc.) |
| System | XP/Win7/Win8/Win10/Linux |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45 Gigabit Ethernet, Integrated RTL8111E Gigabit Ethernet |
| Serial Port | COM1×RS232/485/422( Defaults to RS485); COM2-COM5×RS232/RS485(Defaults to RS232); COM6×RS232 |
| USB | 4×USB 2.0 Port |
| Display | 1×VGA,Integrated Intel GMA 3650 Chip, |
| Audio | 1×MIC-in,1×Line-out,Graphics Integrated ALC653 |
| Others | 1×8 bits GPIO (Optional),1×LPT(Optional),1×PS/2 (Optional) |
| Consumption | Less than 15W |
| Whatchdog Timer | 1-255s,Programmable |
| Expansion | 1×SIM, 2×Min-Pcie (Optional Wifi module.3G module) |
| Working Temp. | Working Temp -40℃-80℃,Working Humidity 5%-90%(Non-condensing) |
| Storage Temp. | Storage Temp -40℃-80℃,Working Humidity 5%-90%(Non condensing) |
| Power | Wide voltage 9V~30V,12V5A Power adapter |
| Switch ON/OFF | Power switch |

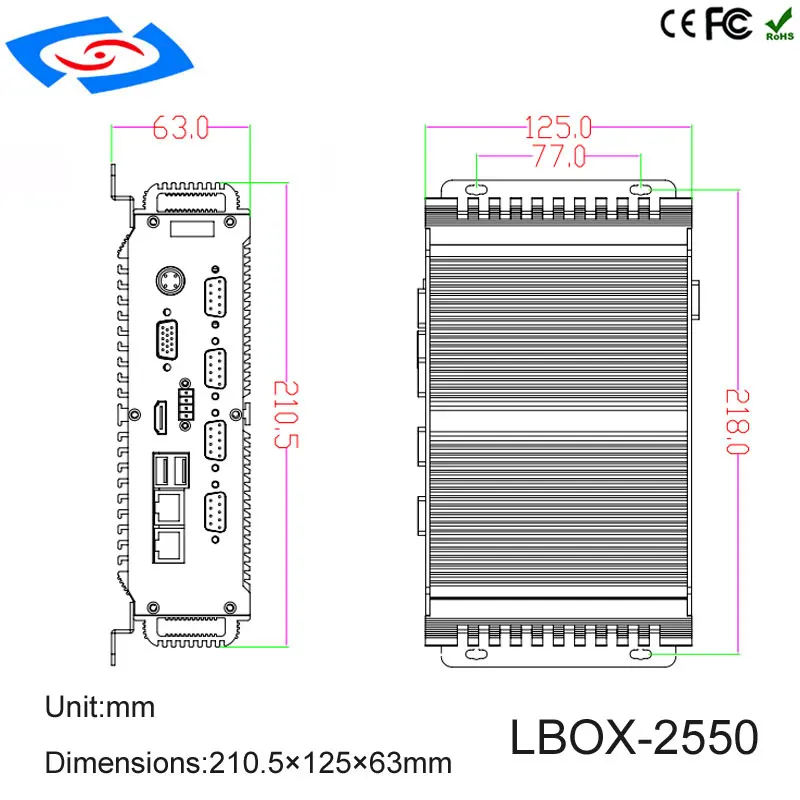

| Dimensions | 210.5×125×63(mm) |
| Hole Size | 218×77(mm) |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | LBOX-2550 |
| Standard Configuration | Intel Atom N2800 Dual Core CPU/1.86GHZ/RAM 2G/ SSD 64G(Win7 32 Bits OEM)/1xVGA/2xLAN/ 1xMIC-in/Line-out /4×USB/6×COM |
| Standard Accessories | 12V5A Power Adapter,RS485 |
| Optional | RAM 4G/SSD 64G/128G/256G/HDD 320G/500G/1TB LPT/PS2/GPIO/WiFi Module/3G Module/Built-in Speaker |
