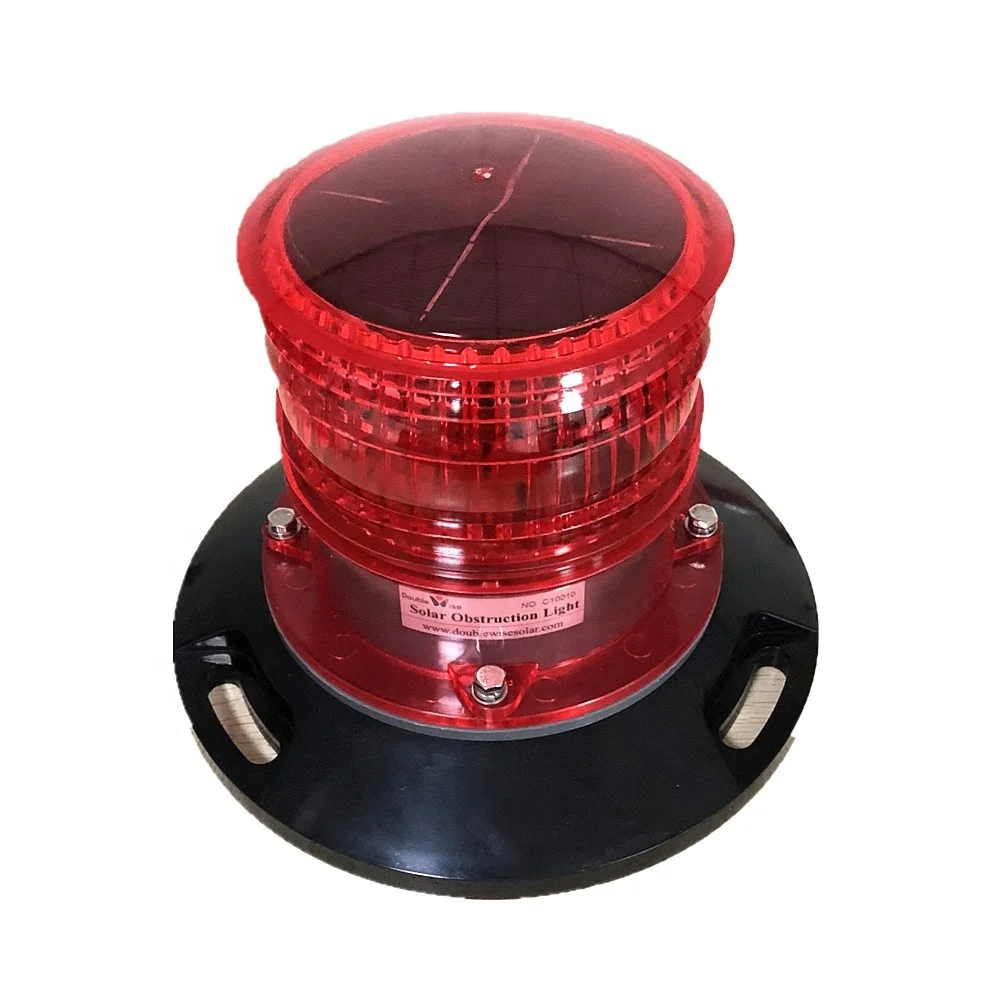

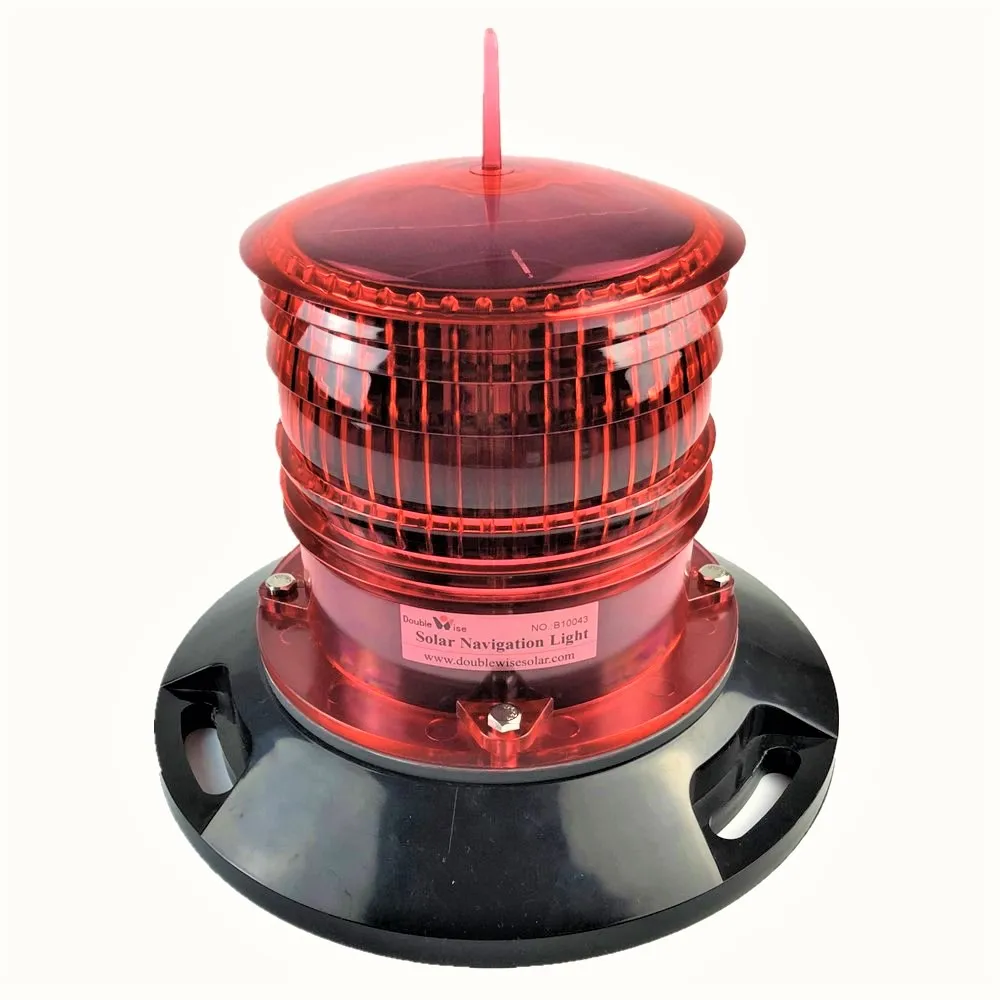

FAA L810 Tower Aviation Obstruction Solar Aircraft Warning light
Solar airfield obstacle light DWS301A is an ICAO low-intensity Type A aircraft warning light with the characteristics of solar self-contained, durable and anti-UV . Because Buildings and smaller obstructions located near airports should be marked with steady-burning red lights.,this airport obstruction light is generally used as the Airfield Obstacle Warning on dangerous Prominent Parts . It installs in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
Red,Steady-on and its intensity is up to 10cd.
Solar panel 1.5Wp, replaceable Ni-HM battery 5Ah.
Turns on at dusk and off at dawn automatically.
To charge under nearly all weather conditions and its autonomy up to 70hrs from a full charge.
Completely solar self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Typical Applications
Solar Tower Obstruction Lighting Solution
Solar Red Obstruction lights are used to increase conspicuity during nighttime. The solar red obstruction lighting system is composed of flashing omnidirectional beacons (L-864) and/or steady burning (L-810) lights. When one or more levels is comprised of flashing beacon lighting, the lights should flash simultaneously. Telecommunications or Power Towers are typically tall structures designed to support Antennas or Power lines. They are among the tallest man-made structures.
BASIC RULES * The number of light levels recommended depends on the height of the structure; * The number and arrangement of light units at each level should be placed so the lighting is visible from every angle in azimuth; * Lights are applied to display the general definition of the structure; * Width and length of buildings determine the number of lights installed at the top and at each light level.
SELECTION OF LIGHTS If the tower is needed to be lighted at night, please reference the following list.
