High Voltage Disconnectors Single Phase and 3 Phase Disconnector Switch 20a 400 V Ac Cabinet Mount Air Load Brake Switch 24kv
- Category: >>>
- Supplier: RongZhao (Fuzhou) Imp & Exp Co. Ltd.
Share on (60837629735):
Product Overview
Description

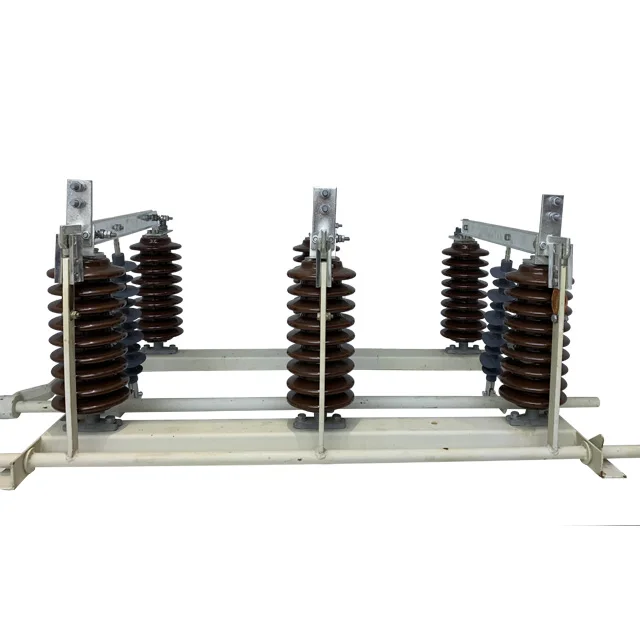

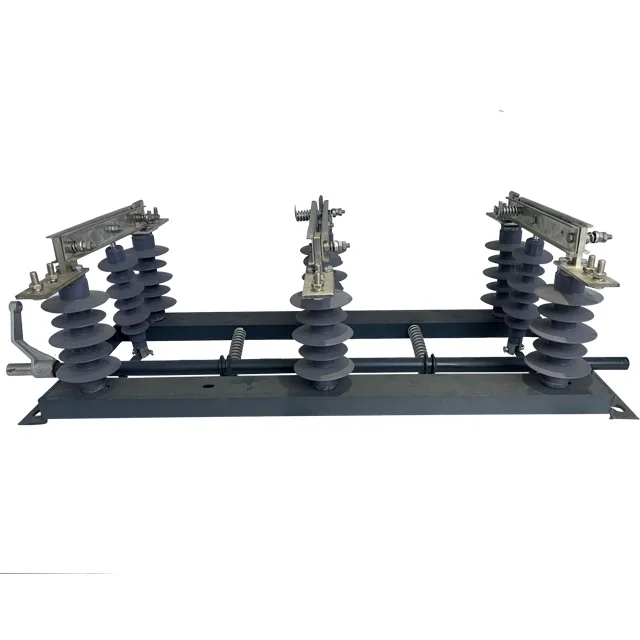

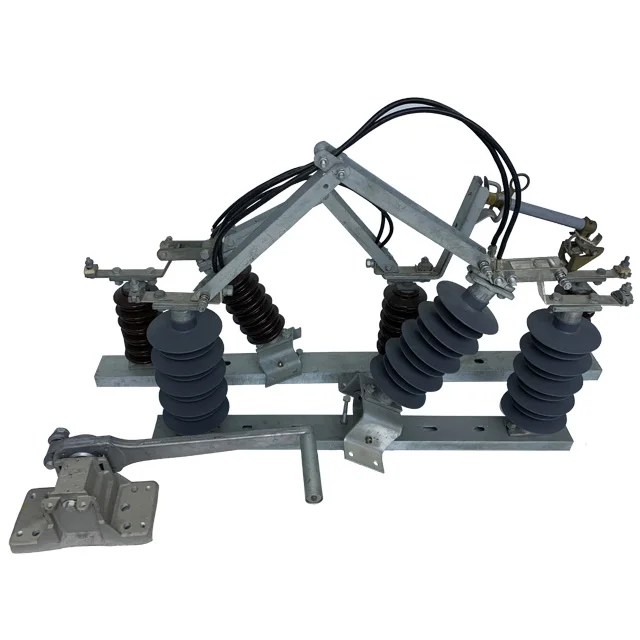

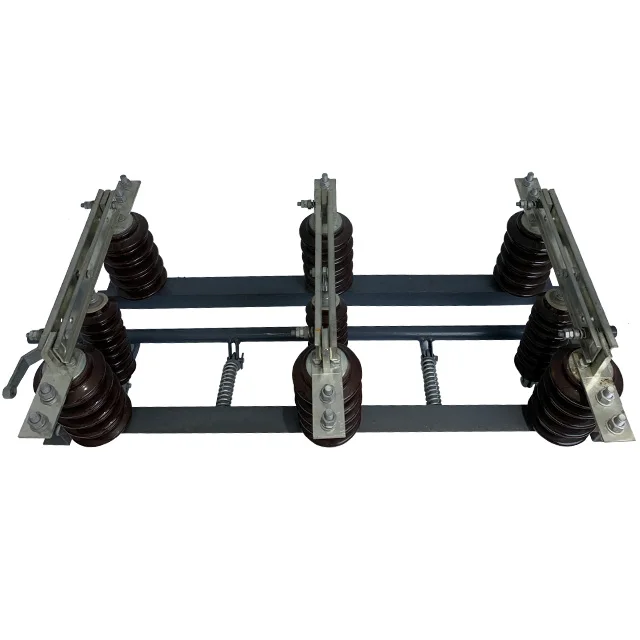

High voltage disconnectors single phase and 3 phase
| Type | Rated Voltage (KV) | Rated Current (A) | Creepage Distance (mm) | Heat Steady (A) | Shock Voltage (A) |
Impulse withstand Volt (KV) | Power-freq. withstand volt (KV) |
| GW1 | 10-15 | 400-1250 | 300-400 | 12500 | 31500 | 75 | 38 |
| GW2 | 20-27 | 400-1250 | 420-580 | 12500 | 31500 | 120 | 50 |
| GW3 | 30-36 | 400-1250 | 660-900 | 12500 | 31500 | 170 | 70 |
| HGW1 | 10-15 | 400-1250 | 370-520 | 12500 | 31500 | 75 | 38 |
| HGW2 | 20-27 | 400-1250 | 600-800 | 12500 | 31500 | 100 | 45 |
| HGW3 | 30-36 | 400-1250 | 900-1200 | 12500 | 31500 | 170 | 70 |
| RGW1 | 10-15 | 400-1250 | 300-400 | 12500 | 31500 | 75 | 38 |
| RGW2 | 20-27 | 400-1250 | 420-580 | 12500 | 31500 | 120 | 50 |
| RGW3 | 30-36 | 400-1250 | 660-900 | 12500 | 31500 | 170 | 70 |
| HRGW1 | 10-15 | 400-1250 | 370-520 | 12500 | 31500 | 75 | 38 |
| HRGW2 | 20-27 | 400-1250 | 600-800 | 12500 | 31500 | 100 | 45 |
| HRGW3 | 30-36 | 400-1250 | 900-1200 | 12500 | 31500 | 170 | 70 |
