SYNCOTEK Card Reading Plastic Card Dispenser Bill Acceptor Manufactures
US $250.00-$278.00

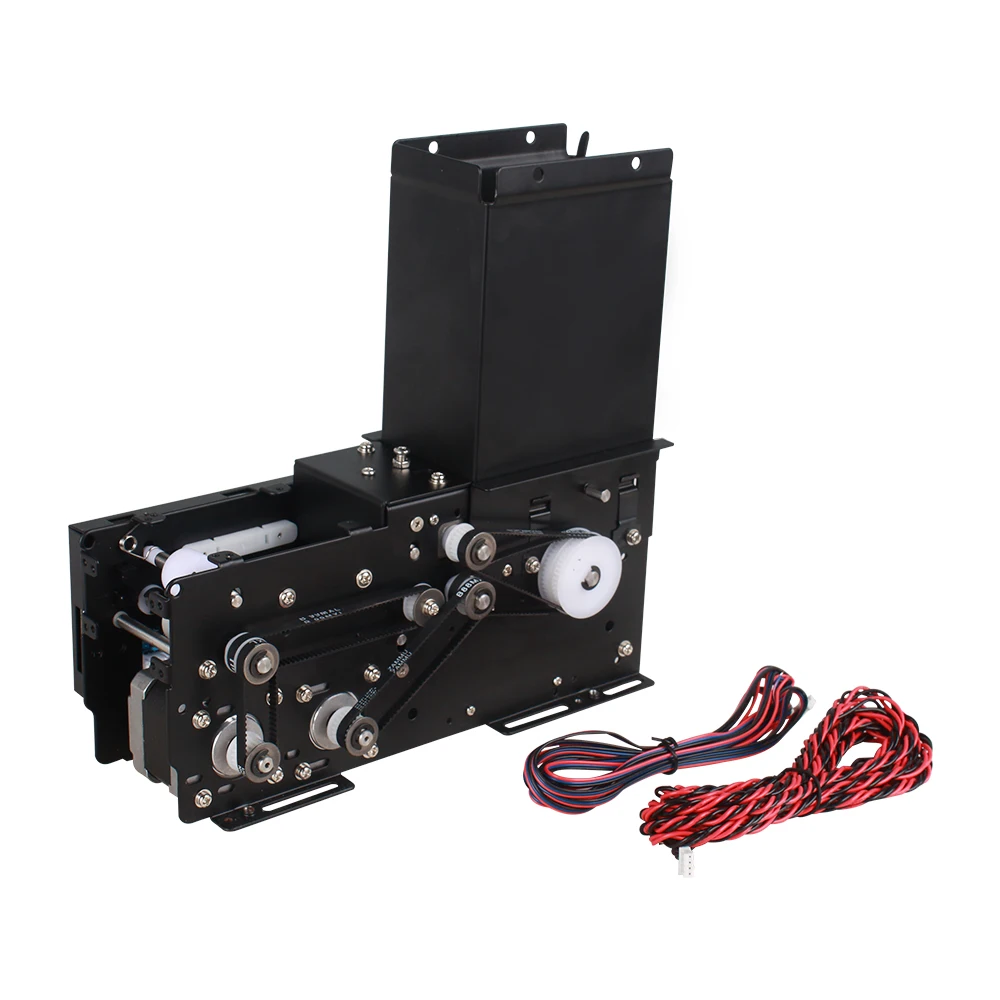

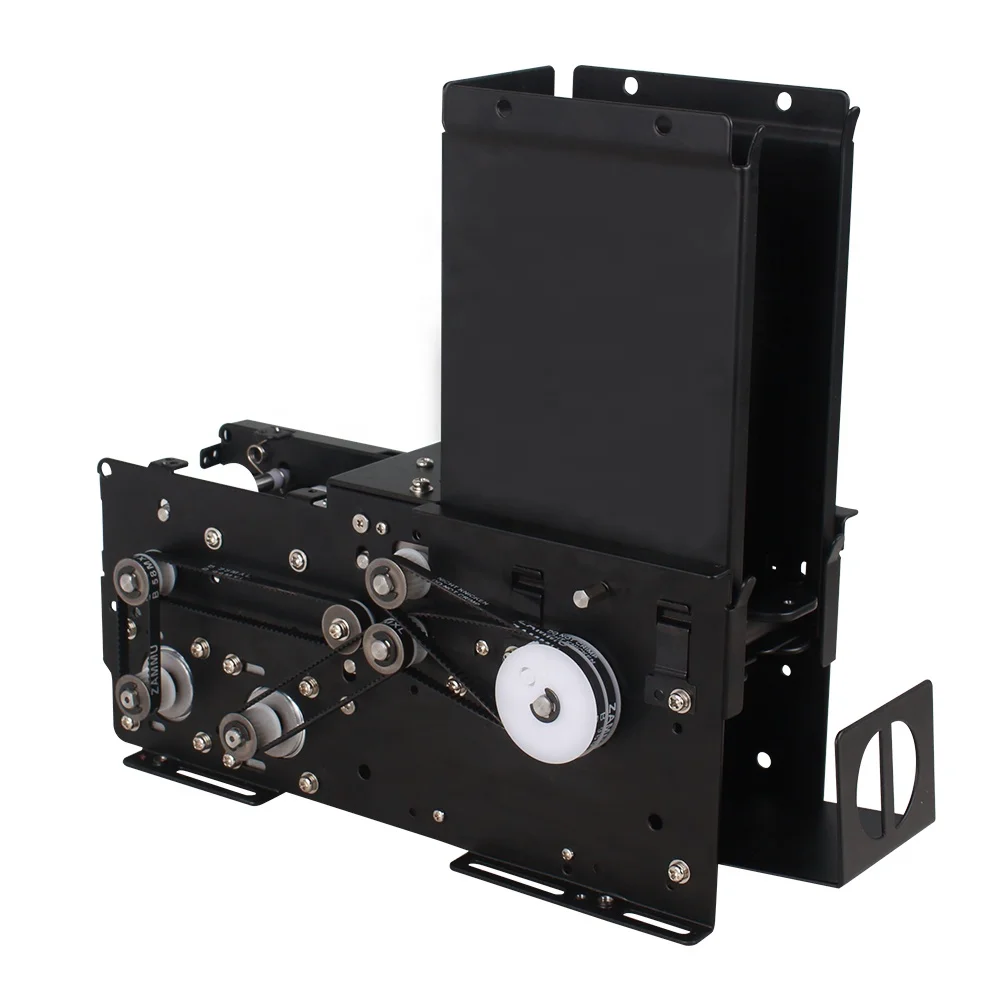

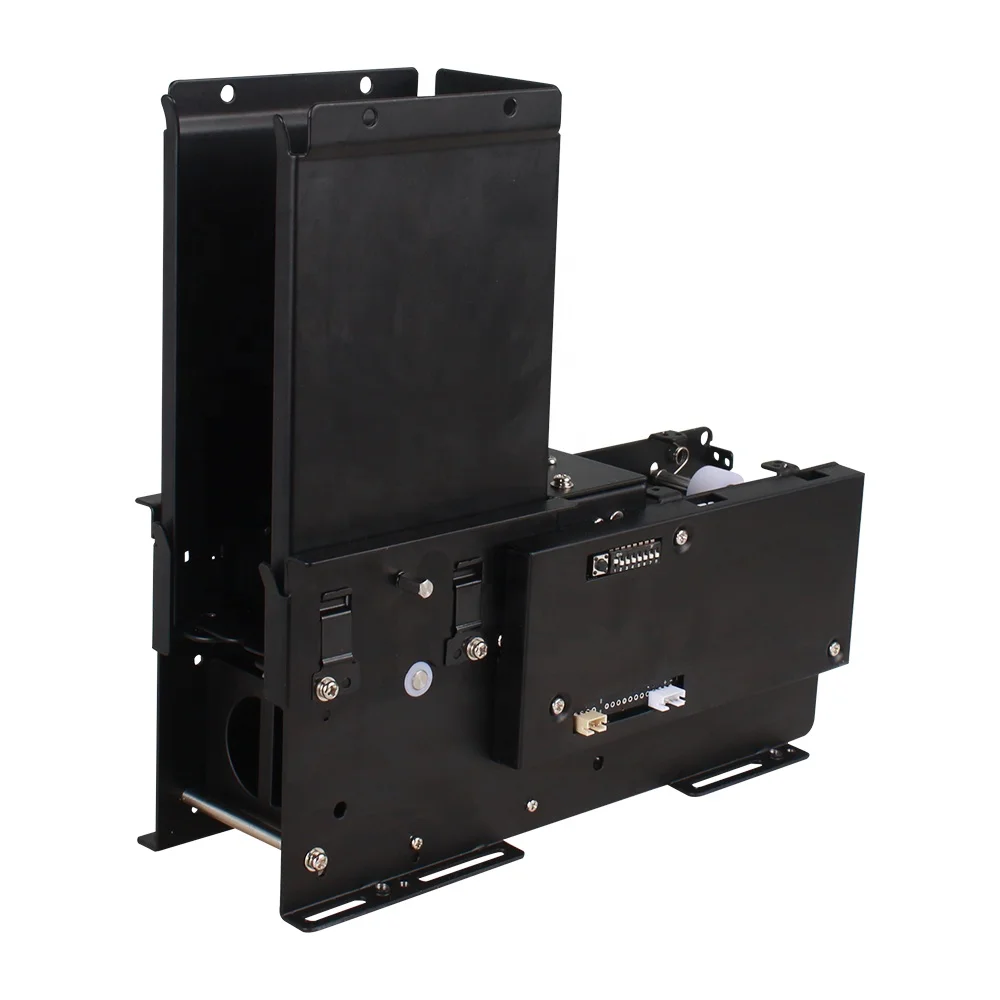

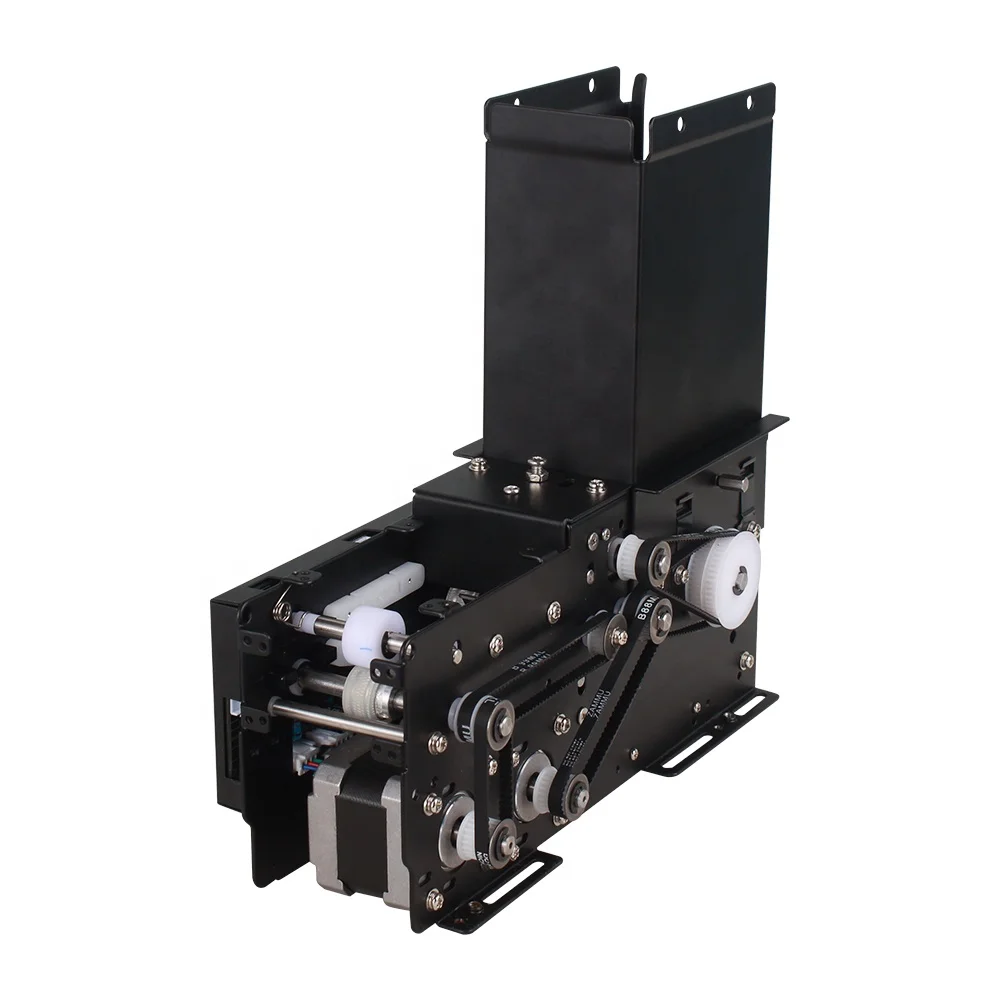

RFID card dispenser machine with big hopper and RS 232/I/O TTL interface
- Category: >>>
- Supplier: Shenzhen Mingte Tech Co. Ltd.
Share on (60837654940):
Product Overview
Description
Overview
Based on reliable structure design and massive integrated circuit, MT166 specially supports automatic card dispensing (collecting) which function controlled card dispensing & collecting and RF card operation.
Features
Compact, high reliability and durability
Support contactless IC card (ISO14443 TYPE A & B)-optional
Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)
With two stepper motors and lifetime over 2 million cycles.
Designed with shutter, dust and water proof
Adjustable card thickness &dispensing speed
Extension stackable cards hoppercapacity: 180pcs (card thickness: 0.8mm)
With error card recycling and card-low indication
With multi bezel (Optional)
Various correspondingand custom design
Applications
ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
Specifications
CATEGORY | Card Collectors&Dispensers | ||
CARD TYPE | Magnetic Cards(optional) Contact IC Cards(optional) Contactless IC Cards(optional) | ||
CARD SPECIFICATIONS | Size: 54x86mm Thickness: 0.3-2.0mm | ||
MAGNETIC CARD(Optional) | ISO/IEC 7810/1811 | Track 1 | R |
Track 2 | R | ||
Track 3 | R | ||
IC CARD(Optional) | ISO/IEC 7816 | R/W | |
PSAM/ESAM | |||
EMV | Level 1 Compliant | ||
CONTACTLESS CARD(Optional) | ISO14443 Type A & B & Mifare | R/W | |
CARD DISPENSING SPEED | >1pcs/s | ||
CARD RECYCLING HOPPER CAPACITY | 25pcs | ||
CARD HOPPER CAPACITY | 180pcs | ||
LIFETIME | >2000000 Cycles | ||
INTERFACE | RS-232/I/O TTL | ||
POWER SUPPLY | DC24V ± 5% | ||
CURRENT | Max Current: 2A(24V) | ||
WORKING TEMPERATURE | -40-+65°C | ||
WEIGHT | Approx 2120g | ||
REMARK | With shutter & multi bezel(optional) | ||
Company Information
——Some related Certificates
Exhibitions
To Expand overseas markets,Mingte attends many exihibiion every year , for example,
IBEX in india ,January
VendExpo in Russia ,March
Cards & Payments in Dubai,May
Uniti Expo in Germany,June
Cartes in France,November
IBEX in india ,January
VendExpo in Russia ,March
Cards & Payments in Dubai,May
Uniti Expo in Germany,June
Cartes in France,November
Packaging & Shipping
1.Verious payment ways:T/T ,Western Union,etc
2.FedEx/DHL/UPS/TNT for samples, Door-to-Door
3.By Air or by Sea for batch goods, for FCL;Airport/Port receiving
4.Customers specifying freight forwarders or negotiable shipping methods
5.Delivery Time:3-7 days for samples;2-7 weeks for batch goods
After Sales Service
1.MINGTE provide Communication Protocol,SDK for customers to develop
2.MINGTE provide technical support to customers when they met problems in develop processing
3.MINGTE provide high-quality products to customers (Every product will pass three times strict test before delivery)
4.MINGTE provide OEM products to customers
5.MINGTE provide a high efficiency team and pleasure purchase process to customers
Welcome to contact us :
SHENZHEN MINGTE TECH CO.,LTD.
NAME:Cassiel
Skype:mingte sales2
TEL:+86-0755-26078054
Website:WWW.mingtetech.com
FAQ:

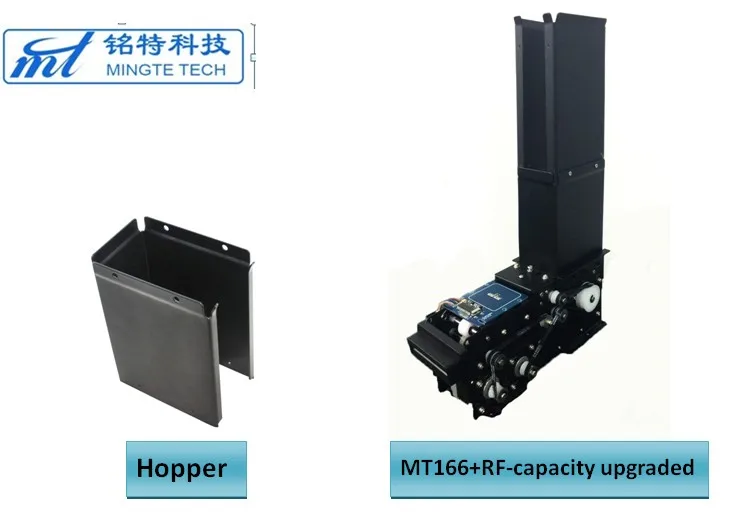

Q.Does this Card Dispenser (MT166) support reading and writing?
We have 2 types of it, MT166: Support collecting & dispensing card
MT166(+RF):Support collecting & dispensing card; also support reading & writing
Q.Freight and lead time?
The freight depends on destination and the weight of products;
If the order is not very large,the products can be shipped out in 3 working days after the payment was received
Q.If you provide related cables?
We provide data lines and power lines.
