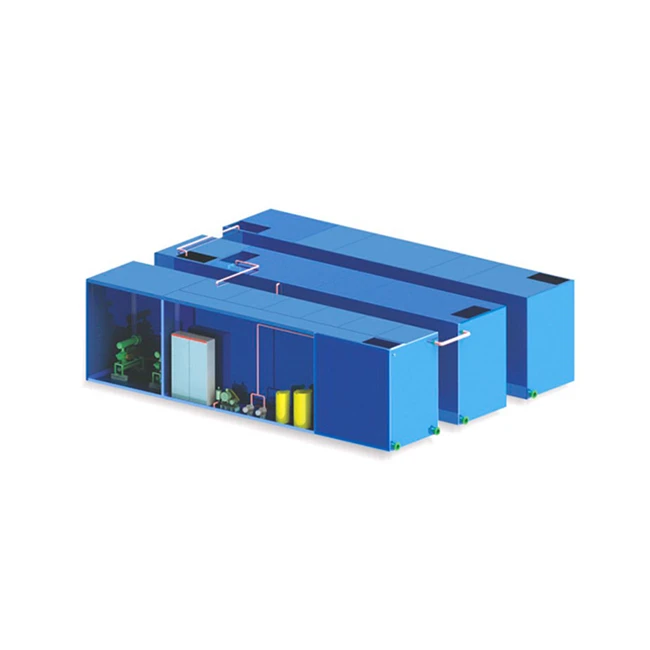

Different capacity MBR system/ Membrane Bio Reactor in Container for waste water

Product Overview

Description

Integrated Equipment for sanitary sewage treatment





Scope of application

Rural human settlements
Rural and urban sewage treatment
Small watershed management, black odor water treatment
Renovation of rural environment, construction of a happy and beautiful new village, construction of a new countryside
Decentralized domestic sewage treatment in factories, schools, hotels, scenic areas, farmhouses, etc.



Outlet Water Standard
“Urban Wastewater Recycling Standards” (GB/T18920-2002) “Urban Miscellaneous Water Quality Standards”
Class I A emission standard for “pollutant discharge standards of urban sewage treatment plants ”(GB18918-2002)
"Water pollutant discharge standards of Minjiang River and Minjiang River Basin" (DB51/2311-2016) Standard for urban sewage treatment plants



Technical Description

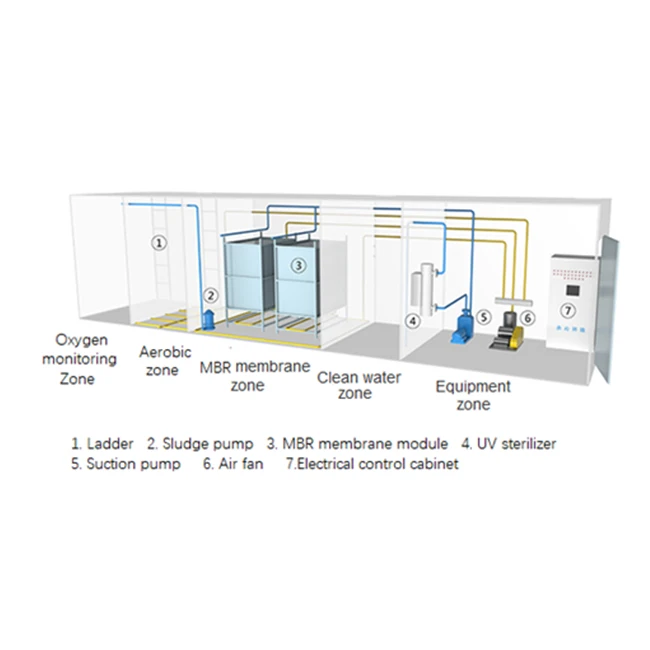

The integrated sewage treatment equipment adopts the self-developed Internet + A/O-MBR patent technology, which integrates the Internet and Internet of Things technology in the use of equipment. The equipment process is divided into three zones, and the anoxic zone is treated by anaerobic microorganisms. The insoluble macromolecular organic matter is converted into a soluble small molecule organic substance, and at the same time, partial nitrification and denitrification are performed by the refluxing nitrate nitrogen under the action of nitrifying bacteria to remove ammonia nitrogen. The aerobic zone removes various organic substances in the sewage through the biochemical degradation and adsorption of a large number of different microbial communities attached to the filler, so that the organic matter content in the sewage is greatly reduced, and the oxygen content is sufficient. Degrading ammonia nitrogen in sewage under conditions. The MBR zone further purifies the wastewater by high sludge concentration and achieves solid-liquid separation.

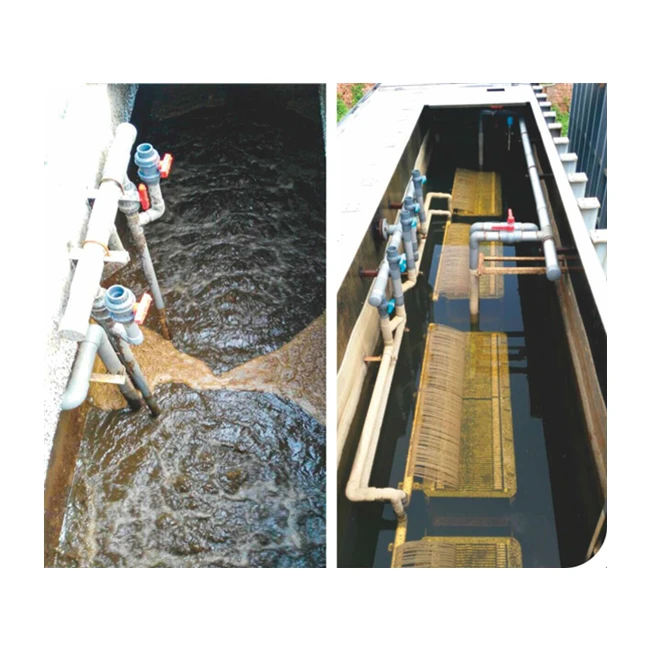

MBR principle

MBR combines high-efficiency biochemical treatment technology with advanced microfiltration membrane separation technology. With mechanical screening and deep filtration of membrane modules, 100% cut off nitrifying bacteria, polyphosphate bacteria (PAOs), chemical heterotrophic bacteria, fungi and other sewage. Purification of "main bacteria", complete separation of hydraulic retention time (HRT) and sludge age (SRT), greatly accelerate the progress of nitrification, promote aerobic biological phosphorus uptake, and significantly improve the ability and efficiency of simultaneous biological nitrogen and phosphorus removal. The suspension and turbidity of MBR effluent approach zero, the fecal coliform stability is less than 3/L, and other indicators such as total nitrogen and total phosphorus are better than the one-grade A standard of GB18918, and can be directly returned without disinfection. It is used for landscape, greening, flushing, car washing, etc., to achieve pollution load reduction and domestic sewage resource recycling in one step.



Equipment Advantage

Model Selection



Daily Capacity (m3/h)	Model	size (mm)			Qty of box	Installed Power
		Length	Width	Height	Piece	KW
10	ECO-10	3000	1200	2000	1	1
20	ECO-20	4000	1500	2000	1	1
30	ECO-30	4800	1500	2500	1	1.5
40	ECO-40	5200	1500	2500	1	1.5
50	ECO-50	5200	2000	2500	1	2
100	ECO-100	7200	2000	3000	1	5
200	ECO-200	11500	2500	3000	1	6.5
300	ECO-300	85000	2500	3000	2	10
500	ECO-500	140000	2500	3000	2	15
The treatment capacity for each set is 5-200m3/day and can be in parallel as desired.
