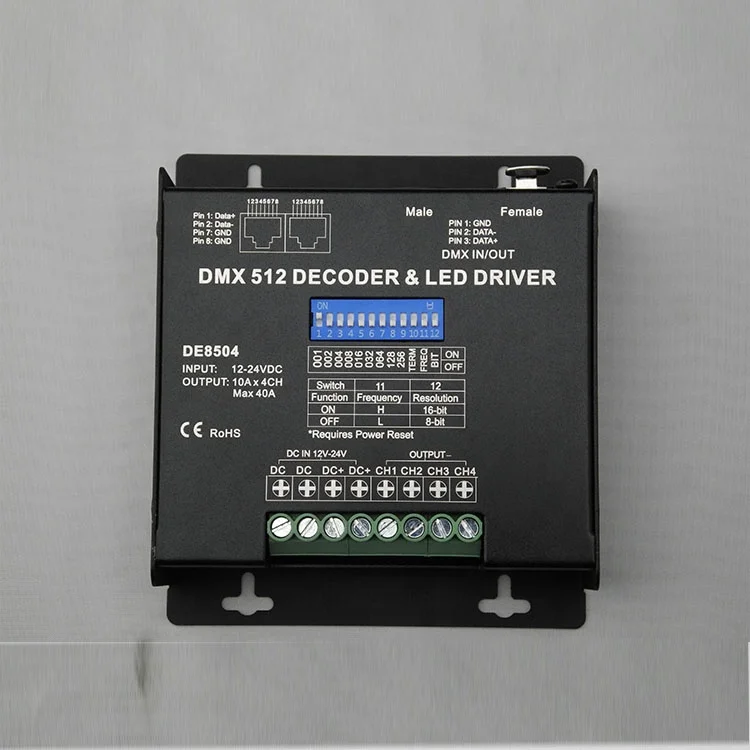

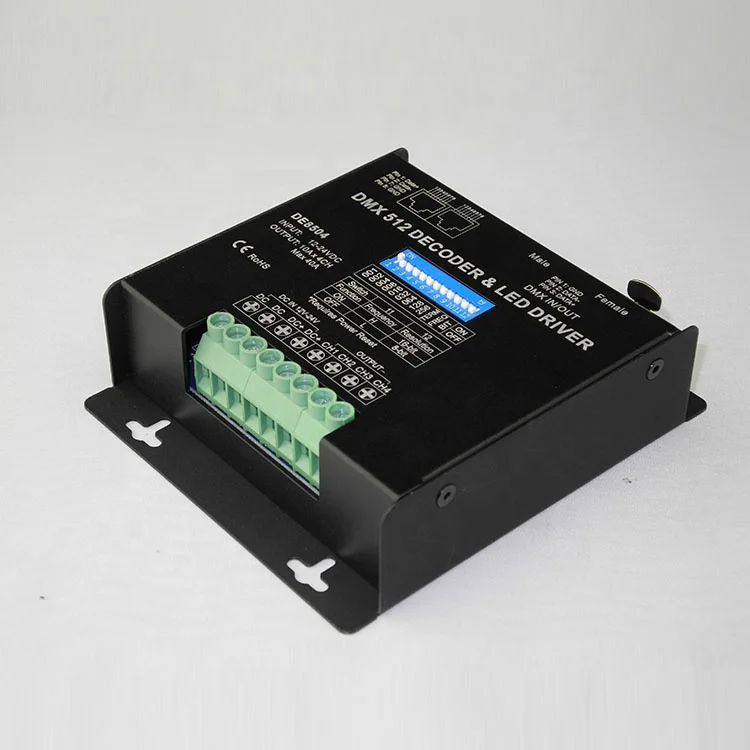

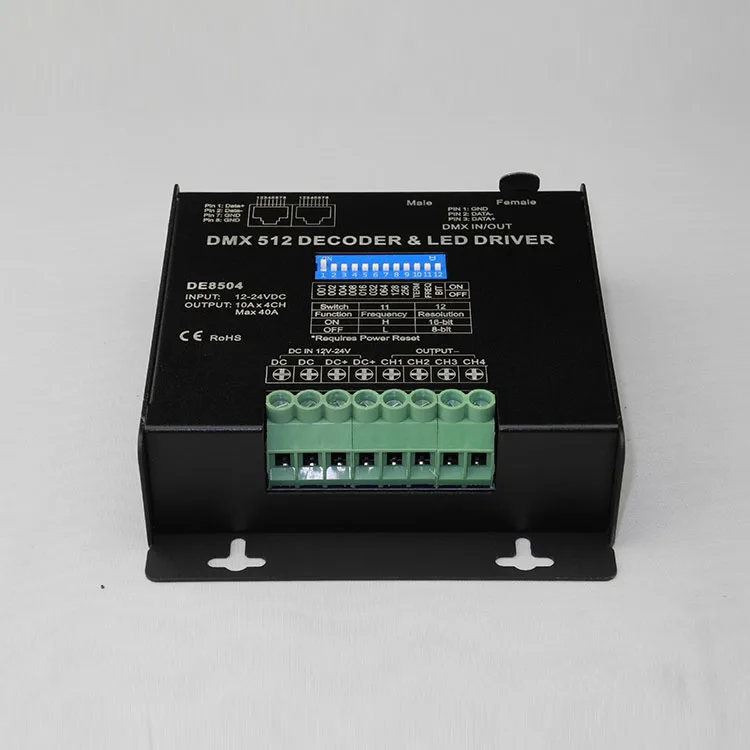

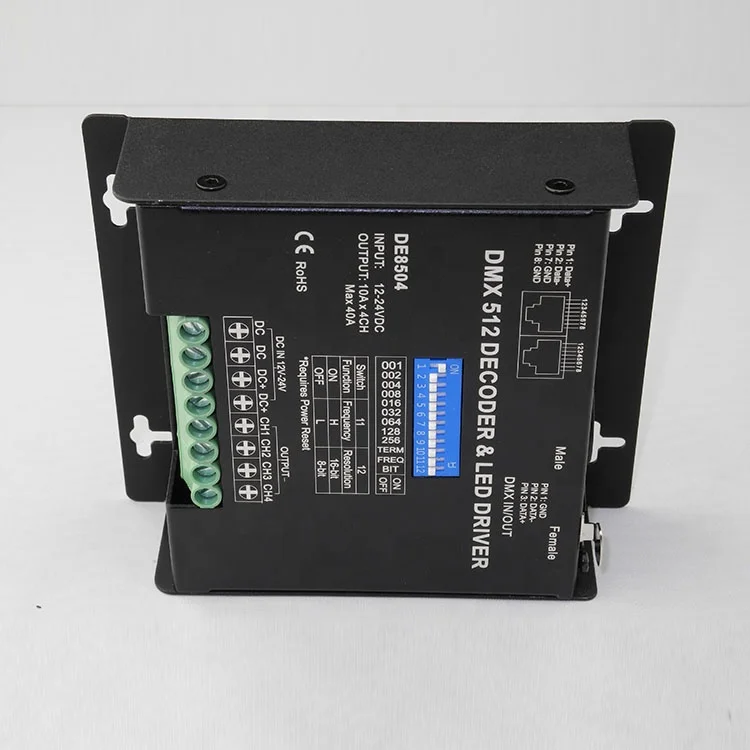

DC12 24V RGBW controller DMX512 decoder

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

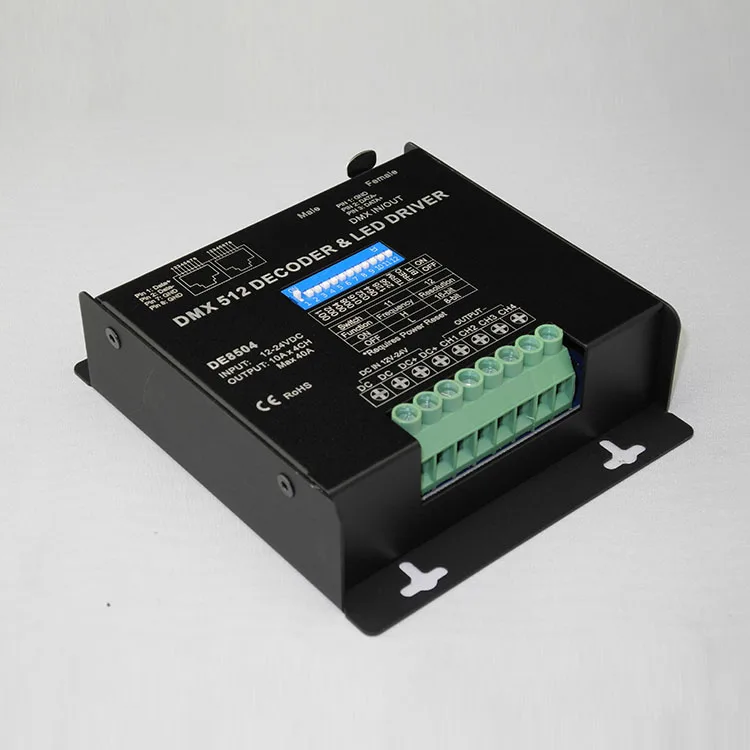

Features of 10A*4CH DMX512 Decoder DE8504:

1, Meets DMX512/1990 Signal, with RJ45 and XLR interface.

2, 8bit/16bit option, 500Hz/5000Hz frequency option, Signal isolation, DMX signal amplifier, full-color with driver control.

3, Power without flashing, smooth at low.

4, Output 4 channels,RGBW, single channel max10A output drive,total output is less than 40 A.

5, Can achieve asynchronous color changes effect under working with controller.

6, With dip switch to set DMX address freely.

7, Strong anti - interference ability ,humanized terminal design.

8, Custom-made is available and 3 years warranty.

Tech-parameter of 10A*4CH DMX512 Decoder DE8504:

Input Voltage:DC12-24V          Output Current:10A*4CH Max 40A          Control Channels:4CH

Light Gray Level:8Bit/16Bit       Signal Input:DMX512 digital signal          Frequence:500Hz/5000Hz

Work Temp:-30~70℃               Max Power:480W(12V)/960W(24V)        Protection Grade:IP40

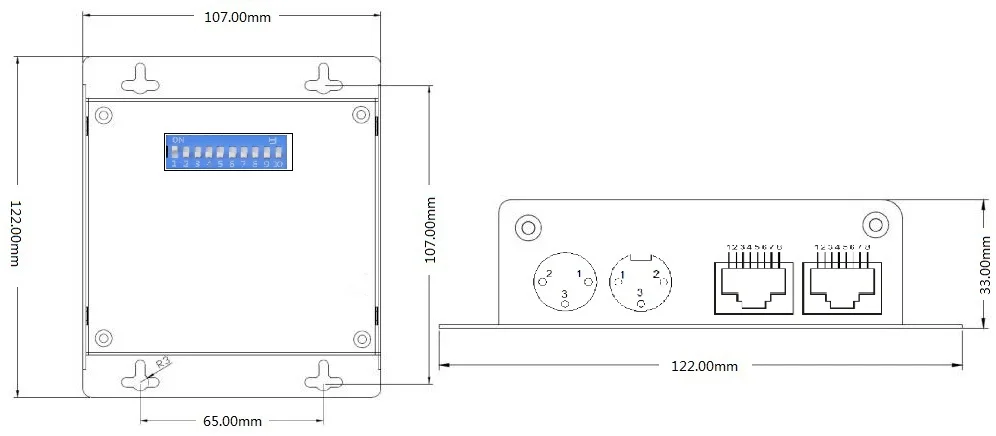

Gross Weight:400g                   Product Size:L122*W107*H33(mm)       Signal Isolation:>1000V

Specifications of DMX512 Decoder/Driver Series:

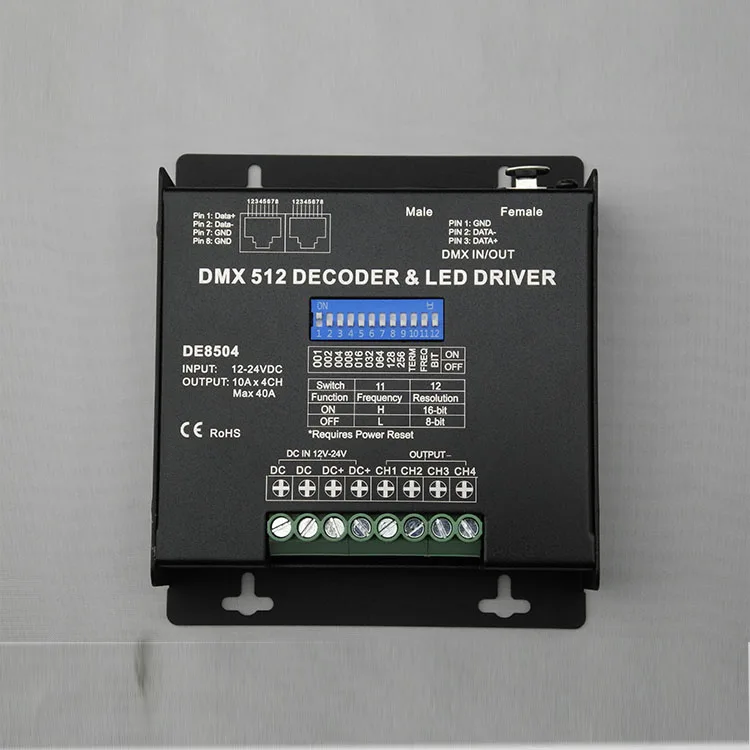

Product Instructions of 10A*4CH DMX512 Decoder DE8504:

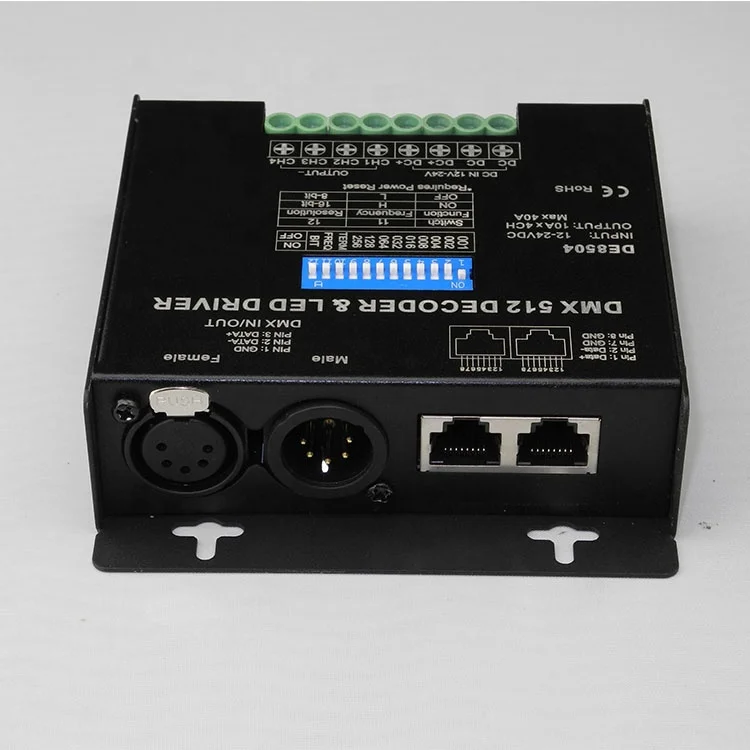

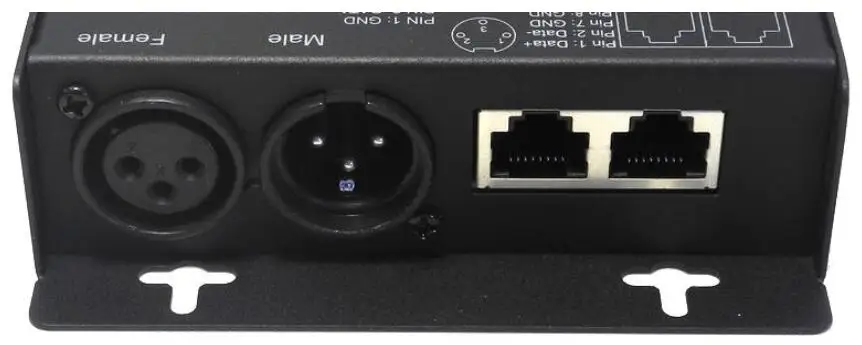

1), DMX Signal IN/OUT interface: RJ45 /XLR connector.

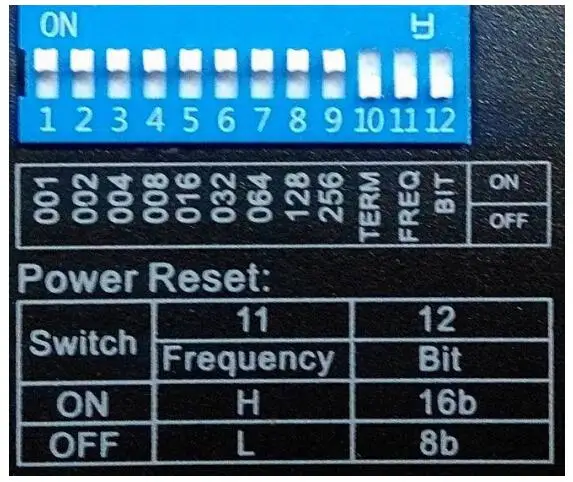

2), DMX address encode with Dip-Switch(NO.1 to NO.9), comply to universal DMX512 dial code.

3), Dip-Switch NO.10 is TERM for whole signal circle.

4), Dip-Switch NO.11 for Frequency option -- ON: 5000HZ(H) OFF: 500Hz(L)

5), Dip-Switch NO.12 for Bit option: ON: 16bit OFF: 8bit
6), NO.11 and NO.12 change, come into operation when Re-Power on.

7), SELF-TESTING: put all Dip-Switch NO.1 to NO.9 ON, full channels output 3 seconds, then each color gradient.

8), POWER IN DC12-24V, common anode constant voltage output, can meet all kinds of full color module and monochrome module and automatically according to the lamps module load adjust output current, each channel maximum current not more than 10 amps.

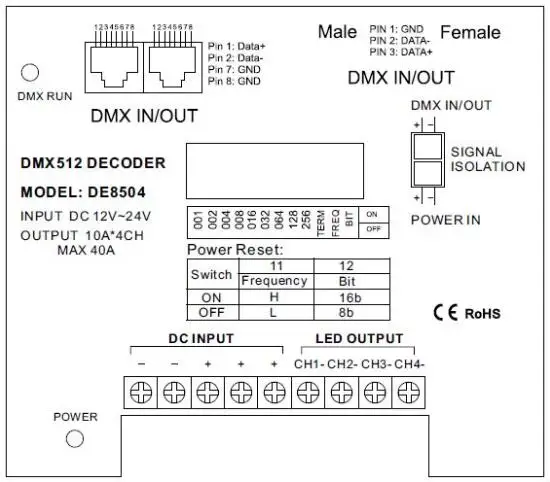

Wiring Diagram of DE8504:

DMX-512 Control Signal Connection:

1, DMX signal cable with three core belt shielding line (signal special wire), DMX signal positive, negative terminal crimping, in DMX signal line plug should be paid special attention to the polarity. The input interface and corresponding signal output from the DMX512 controller,signal is negative, and the connection of DE8504 signal.

2, The DMX5000 output and DE8504 transmission line can't exceed 300 meters.

3, Most DMX5000 each port connected 170 DE8504, the JBLED FLASH light system software can realize control and computer on-line,realize unlimited expansion cascade with DMX lamp.

4, Please note, the DMX signal input and output please interface between DMX signal, cannot be inserted opposite, or can not work,the signal transmission does not come.

5, When contacting 32 pieces of DE8504, DMX signal must add a signal amplifier such as RE2000,cascade can't more than 4 PCS.

6. At the end of the whole connection, we should connect a DMX signal finalizer ( Put down the code switch NO.10 of DE8504 dial) .
