Alluvial Classifier System Gold Drum Trommel Screen Price For Sale
Product Description

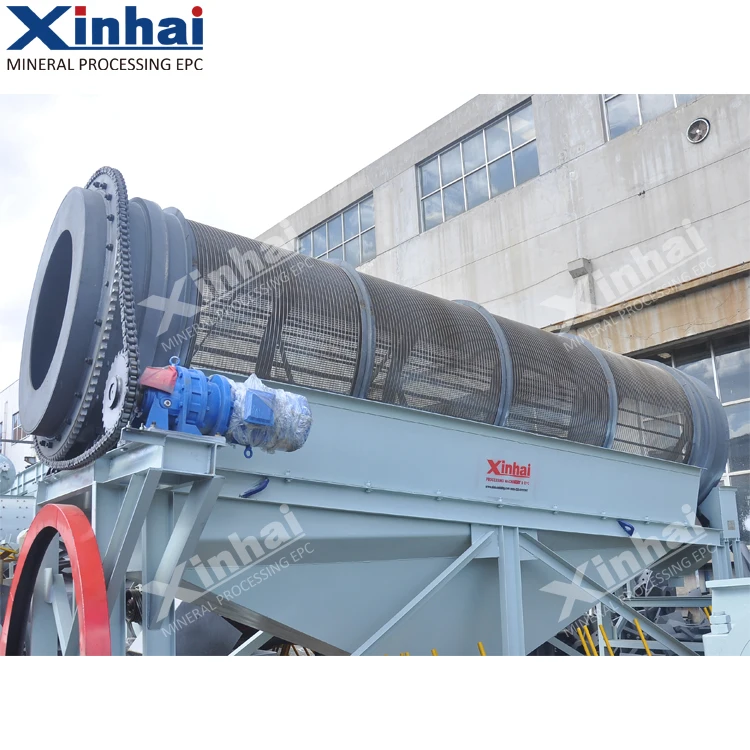

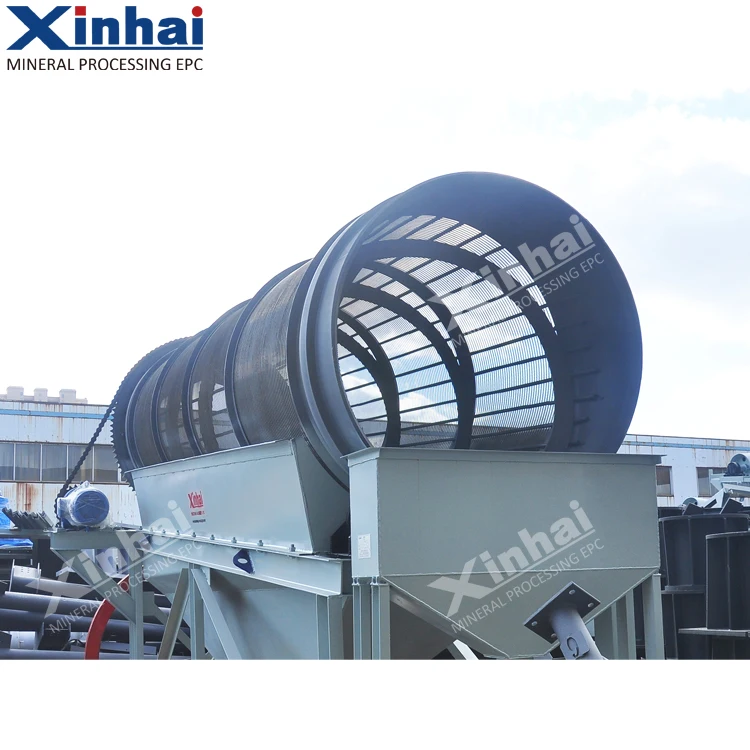

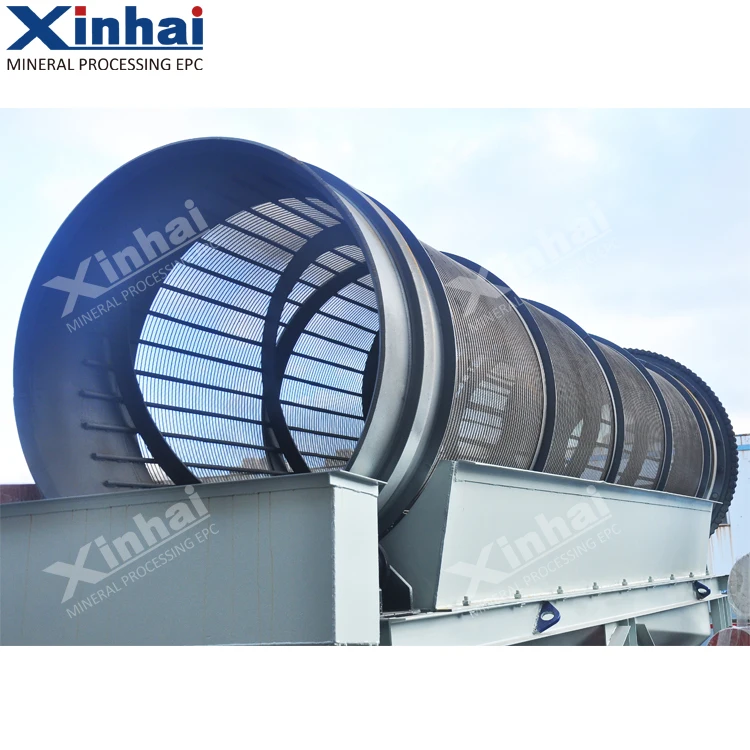

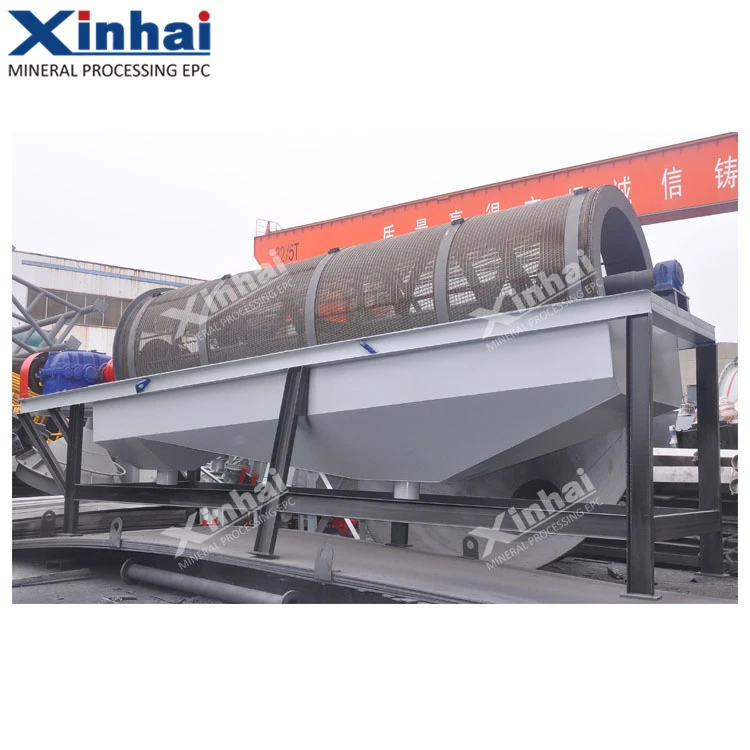

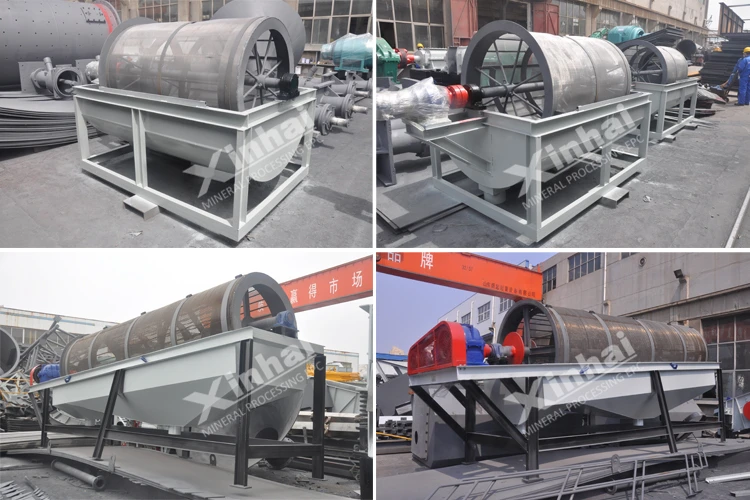

Gold trommel —Product Description
The gold trommel provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.Product Structure

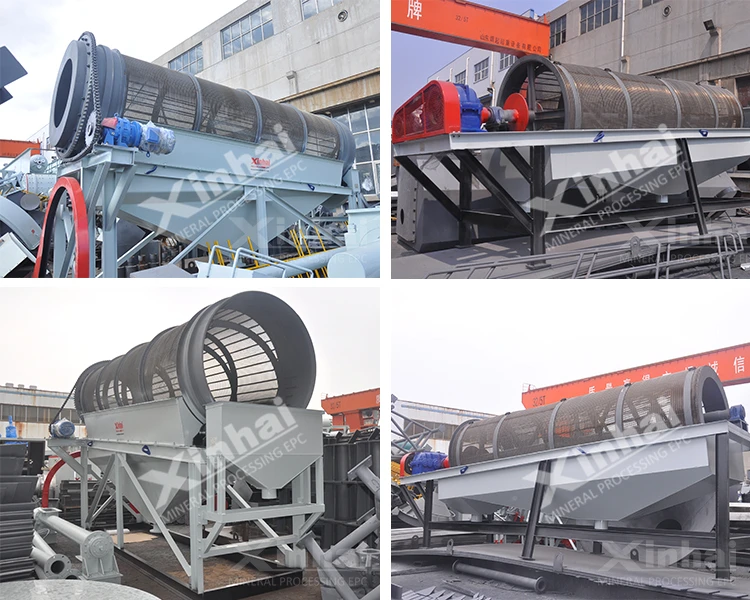

Gold trommel —Product Structure
Size (mm): φ1500*3500 or according to processing capacity Function: for washing, screening and separating the minerals
Mesh size: 12mm and 6mm or according to clients requirement
Process Description
Gold trommel — Process Description
1. Input of raw materials through heavy equipment
Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials
Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and, by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated
Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected
Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials
Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and, by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated
Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected

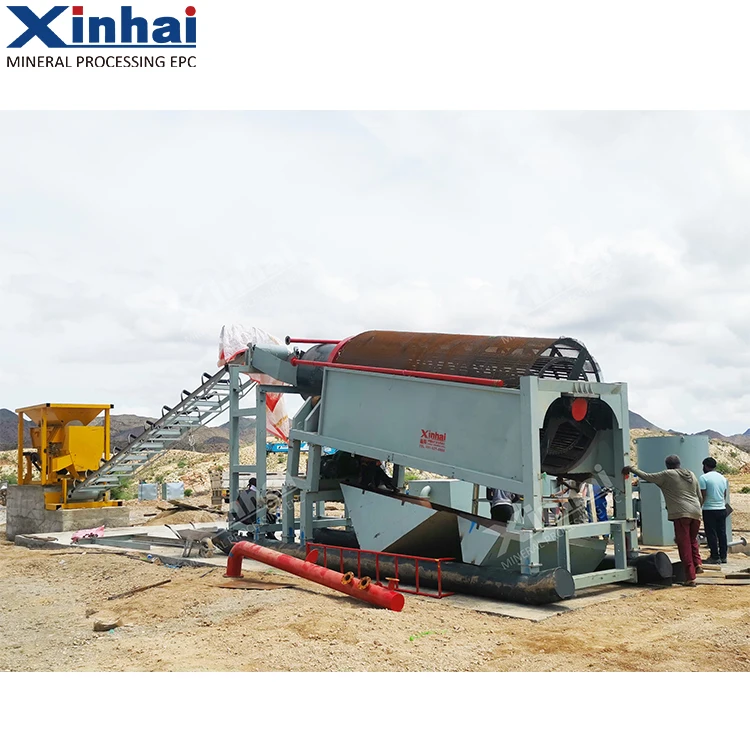

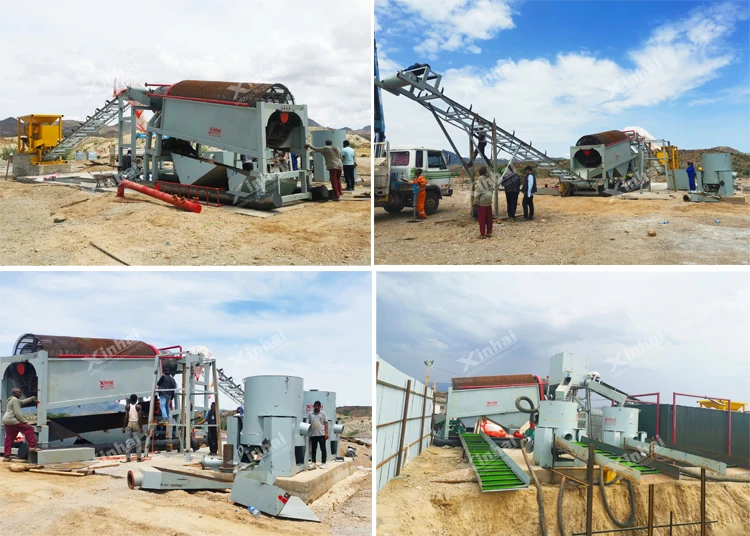

Successful Cases
Technical Parameters
Model | Capacity | Power | Screen Diameter | Screen Length | Discharge Size | Input Size | Dimension (L×W×H) | Weight |
(t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
GTS1015 | 50 | 3.0 | 1000 | 1500 | 0~100 | ≤300 | 2600×1400×1700 | 2200 |
GTS1020 | 100 | 4.0 | 1000 | 2000 | 3390×1400×2140 | 2800 | ||
GTS1225 | 160 | 5.5 | 1200 | 2500 | 4146×1600×2680 | 4200 | ||
GTS1530 | 250 | 7.5 | 1500 | 3000 | 4460×1900×2820 | 5100 | ||
GTS1545 | 350 | 11 | 1500 | 4500 | ≤400 | 5960×1900×3080 | 6000 | |
GTS1848 | 450 | 15 | 1800 | 4800 | 6500×2350×4000 | 7500 | ||
GTS2055 | 600 | 22 | 2000 | 5500 | 7500×2550×4800 | 9600 | ||
GTS2265 | 800 | 30 | 2200 | 6500 | 8500×2750×5000 | 12800 |
